DO VALE HOUSE

Gabriel Castro (MOBIO) + Marcos Franchini

ARCHITECTS
Gabriel Castro MOBIO, Marcos Franchini

CATEGORY
HOUSES

AREA
150 m²

LOCATION
Nova Lima, Brazil

STRUCTURE
Lucas Saraiva

PHOTOGRAPHS
Laura Costa

YEAR
2021

MANUFACTURERS
Seves Glassblock, Allmad, Alox, Olaria do Pedrinho, Roca, TL Estruturas

ELECTRICAL INSTALLATIONS
Faver Automação e Projetos, Irineu Castanheira

HYDRAULIC DESIGN
Cleocy Zille

COUNTRY
Brazil

CITY
Nova Lima

EXECUTION
Otoni Engenharia

COLLABORATORS
Amanda Castilho, Artur Lacerda, Diandra Noemí, João Pedro Facury, Manuela Dolores e Sofia Vasconcelos

Do Vale House
© Laura Costa
Do Vale House
© Laura Costa

The Casa do Vale project started from the demand of a couple to build a new residence on a 360m² terrain located in the Vale do Sol neighborhood in Nova Lima, MG.

Do Vale House
© Laura Costa
Do Vale House
© Laura Costa

The clients' desire was to have a cozy house to spend the nights and the weekends, which had a built area of up to 150m ², three bedrooms being (one of them suite) and an outdoor area for open-air activities, garden, and vegetable garden, shelter for dogs and chickens, plus an ornamental water tank.

After a long process of composition studies taking into account the program, solar orientation, the lot and surrounding specifics, plus financial issues.

It was defined as a project strategy horizontal house composed of two perpendicular axes whose intersection corresponds to the main access and the room that articulates the most private spaces and the services.

Do Vale House
© Laura Costa
Do Vale House
© Laura Costa

The notions of patio and balconies guide the design of the project so that all the rooms are integrated and have access to the external area.

The living room integrated into the kitchen sets the central space of the house, with higher ceilings, close to the street facade and open to the main patio, which will be shaded by a pergola with hanging orchids and vases, so that the house is expanded in days of family events or outdoor dining.

Do Vale House
© Laura Costa
Do Vale House
© Laura Costa

The rooms are also integrated into the outdoor area, in smaller courtyards, through the use of sliding doors instead of windows.

To shelter the terrace from the bedroom facing the street, a leaking wall was created with pagination of solid bricks interspersed.

Do Vale House
© Laura Costa
Do Vale House
© Laura Costa

The third bedroom will be used initially as an informal office, which can be later closed in a conventional room.

Taking advantage of this condition leaving it without partitions and extending the space of common use of the residence, which became more generous with more openings for ventilation and natural lighting.

Do Vale House
© Laura Costa
Do Vale House
© Laura Costa

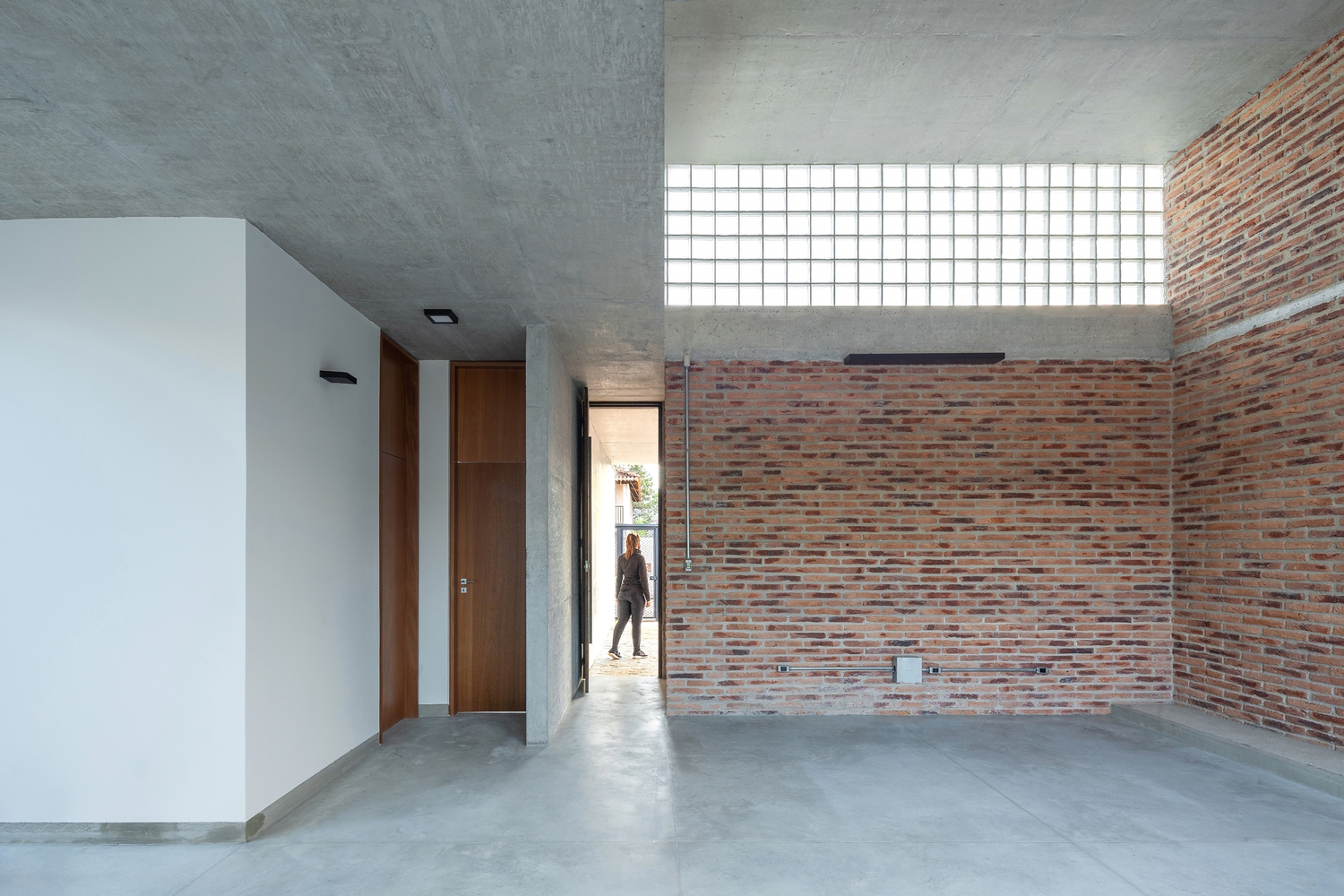

The building system was defined from slabs of reinforced concrete and vertical elements in massive blocks of ceramic brick, which is allowed by the measures of the openings and is less expensive.

Given that the couple also likes natural materials apparent, it was defined that the structural elements would not have any type of coating, apart from the bedrooms where it was decided for painted block masonry.

Do Vale House
© Laura Costa


Do Vale House
© Laura Costa
Do Vale House
© Laura Costa
Do Vale House
© Laura Costa
Do Vale House
© Laura Costa


Do Vale House
Floor Plan
Do Vale House
Floor Plan
Do Vale House
Roof Plan
Do Vale House
Axo


Do Vale House

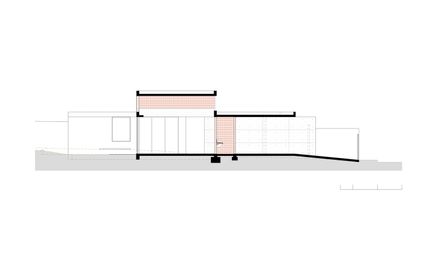

Longitudinal Section
Do Vale House
Transversal Section


Do Vale House
Back Façade
Do Vale House
Main Façade


Do Vale House
Sketches
Do Vale House
Sketch


Do Vale House
Sketches
Do Vale House
Sketches
Do Vale House
Sketches


Do Vale House
Patterns
