FIVE HOUSE

M Gooden Design

ARCHITECTS
M Gooden Design

AREA
922 ft²

YEAR
2020

MANUFACTURERS
Western Window Systems, Advantage Lumber, Cambria, Milgard, Bosch, Mosa Tile

STRUCTURAL ENGINEER
BC Structural Engineers

POOL CONTRACTOR
Gohlke Pools

PROJECT ARCHITECT
Kevan Russell, AIA

DESIGNER
Joy Han

GENERAL CONTRACTOR
Larson Construction

LEAD DESIGNER / PRINCIPAL
Michael Gooden, AIA

COUNTRY
United States

CATEGORY
HOUSES

LOCATION
DENTON, UNITED STATES

Five House is an accessory dwelling to a 1,643 square foot main residence. The project sought to embrace the existing historic mid-century modern main residence on the property and provide direct engagement between the entertaining decks, linear pool, and the new accessory structure.

Five House
© Parrish Ruiz de Velasco
Five House
© Parrish Ruiz de Velasco
Five House
© Parrish Ruiz de Velasco

A thorough discovery and programming phase allowed the design team to understand specific aesthetic goals and function requirements of the compact footprint.

Simplicity of form, complementary proportions, and planning efficiency were primary objectives for the design concept. The dwelling is designed on a strict five-foot planning grid, which not only reinforces the primary design objectives, but is also how its name was derived: Five House.

Five House
© Parrish Ruiz de Velasco
Five House
© Parrish Ruiz de Velasco

The structure provides both a public entertainment use and a private dwelling space for guests. The living room and kitchen open directly on to the pool terrace, providing a cabana-like connection to the pool.

For more private guests, the dwelling is a full-service space that can provide as much privacy as preferred through operable louvers and roller shades.

Five House
© Parrish Ruiz de Velasco
Five House
© Parrish Ruiz de Velasco

During parties and gatherings, the pool-side facade can open completely with a series of disappearing glass panels. The same glass panels can be veiled by use of the rolling vertical louvers that disrupt sight lines from the main house.

The accessory structure employs a limited vocabulary of materials, displaying rich texture and amplifying the movement of sun and shadow across the facade.

Five House
© Parrish Ruiz de Velasco
Five House
© Parrish Ruiz de Velasco
Five House
© Parrish Ruiz de Velasco

A board-formed concrete frame supports a simple, mono-slope standing seam metal roof that floats above a delicate clerestory ribbon of glass. Responsibly-sourced Cumaru wood cladding is used as a strong vertical texture on the facade, as well as the decks and ceilings throughout the house.

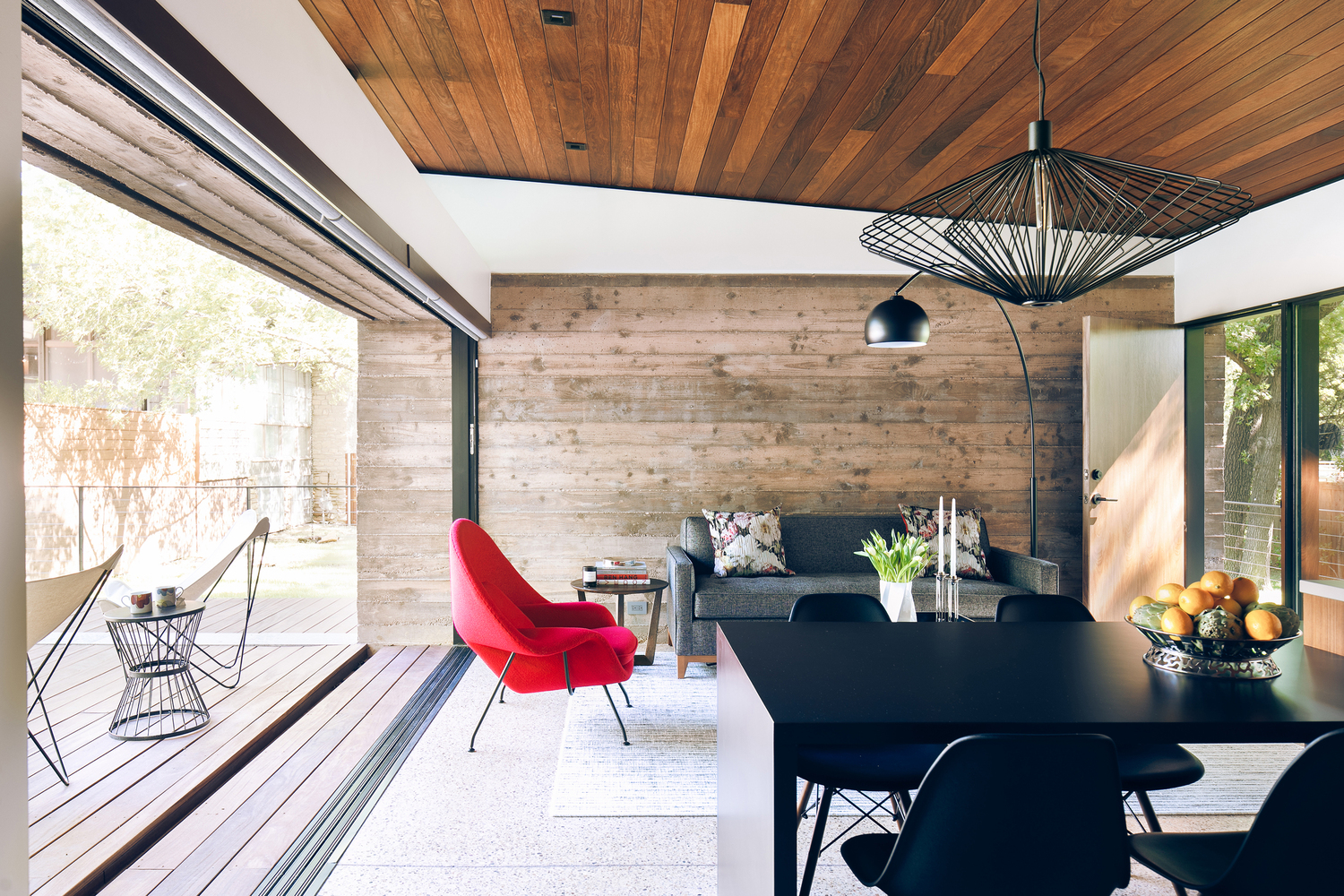

The Living Room and Bedroom open to the outdoor decks through a pocketing glass wall, while rolling solar screens and a generous roof overhang allow for privacy and shade during the day.

Five House
© Parrish Ruiz de Velasco
Five House
© Parrish Ruiz de Velasco

The 672 SF project is organized along the North-South axis of the site, engaging the natural landscape and serving as the terminus to the 50ft lap pool.

The combination of pitched ceilings and clerestory windows attribute to the spatial success and comfort of the project.

The concrete frame and door opening heights of the dwelling are actually rather low, approaching a code minimum height.

The design team felt that this provided a more appropriate proportion to the structure and complemented the scale of the 1949 existing residence.

Five House
© Parrish Ruiz de Velasco
Five House
© Parrish Ruiz de Velasco

The main facade of the house incorporates (5) five-foot sliding glass panels that pocket and disappear into the wall, creating direct engagement with the outdoor decks.

This expands the livable area of the unit and blurs the delineation of indoor and outdoor space.

Five House
© Parrish Ruiz de Velasco


Five House
Floor plan
Five House
Site plan


Five House
Diagram
Five House

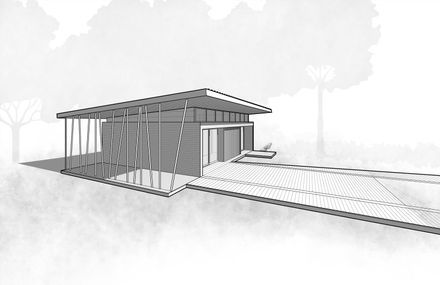

Perspective


Five House
Sections
Five House
Elevations
