THE RICHARD ROGERS’ DRAWING GALLERY

Rogers Stirk Harbour + Partners

AREA
120 m²

YEAR
2020

PHOTOGRAPHS
James Reeve, Stéphane Aboudaram | We Are Content(S)

CATEGORY
Gallery

PROJECT MANAGEMENT
Rainey + Best

STRUCTURAL ENGINEER
Lang Engineering Consultancy

LOCAL ENGINEER
Ates

LOCAL ARCHITECTS
Demaria Architectur

CLIENT
Chàteau La Coste/Paddy Mc Killen

SPECIALIST ENGINEERS
Hasson Engineering Solutions

INTERNAL FIT OUT
SCEA Château La Coste, IDME France, ACM France

BUILDING ENCLOSURE ENGINEER
Setanta Construction

STEEL WORKS
Bysteel

Location
Le Puy-Sainte-Réparade, France

Rogers Stirk Harbour + Partners (RSHP) with Château La Coste are pleased to present the completion of Richard Rogers’ final work begun before his retirement from practice in June 2020.

The Richard Rogers’ Drawing Gallery
© Stéphane ABOUDARAM | WE ARE CONTENT(S)
The Richard Rogers’ Drawing Gallery
© Stéphane ABOUDARAM | WE ARE CONTENT(S)

Château La Coste, a 500-acre area of outstanding natural beauty is an internationally renowned destination for art and architecture.

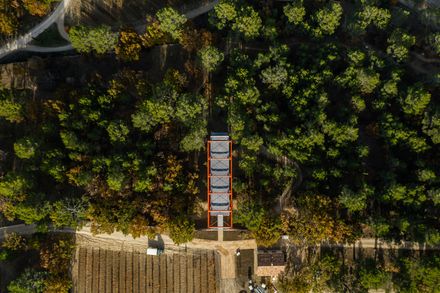

Set in Château La Coste’s vineyard, the Richard Rogers Drawing Gallery is a 120m2 gallery space that cantilevers off a hillside amongst trees above a historic Roman track, overlooking the ancient ruin of La Quille and the Luberon National Park.

The Richard Rogers’ Drawing Gallery
© Stéphane ABOUDARAM | WE ARE CONTENT(S)
The Richard Rogers’ Drawing Gallery
© James Reeve

It joins the Château La Coste’s Architectural & Art Walk, amongst pavilions by renowned architects including, Renzo Piano, Tadao Ando and Jean Nouvel.

In 2011, Richard was invited to choose a place in the landscape that spoke directly to him and was given the freedom to design a gallery that would live there.

The Richard Rogers’ Drawing Gallery
© James Reeve
The Richard Rogers’ Drawing Gallery
© Stéphane ABOUDARAM | WE ARE CONTENT(S)
The Richard Rogers’ Drawing Gallery
© Stéphane ABOUDARAM | WE ARE CONTENT(S)

The remote and unusual location selected required a bespoke design and fabrication. Designed to have the lightest of touches on the area and its ecology, the building cantilevers out 27-metres to a point 18-metres above the heavily wooded site.

Its delicate joints and expressed elements support the lightweight extruded gallery, clad in a naturally finished satin steel, softly mirroring the surrounding landscape.

The Richard Rogers’ Drawing Gallery
© James Reeve
The Richard Rogers’ Drawing Gallery
© James Reeve
The Richard Rogers’ Drawing Gallery
© Stéphane ABOUDARAM | WE ARE CONTENT(S)

The external orange steel beams taper as the construction floats outwards into mid-air. Where the building touches the ground, it does so subtly, belying the robust engineering below ground that supports the structure from just one end.

Industrial in nature but with elegant handcrafted details, the building is itself a sculpture in this landscape.

You leave the terra firma of the old Roman track and transition across a lightweight bridge to the cantilevering gallery.

Walking through the support structure it is here where the visitor experiences a sensation of almost floating. The gallery’s single rectangular room frames a view of the landscape through the 5x4m opening at its furthest end, beyond extends a terrace, above which the eaves gently jut out buffering the light between inside and out.

The Richard Rogers’ Drawing Gallery
© Stéphane ABOUDARAM | WE ARE CONTENT(S)
The Richard Rogers’ Drawing Gallery
© James Reeve

The physics of the building, cantilevering as it is in combination with the region’s seismic activity, requires bridge type engineering and construction techniques. The building and its materials needed to be flexible.

The cables at the entrance that ground the structure contract and expand, sensitive even to the local climate’s fluctuating temperatures. The poured resin gallery floor flexes in harmony with the structure.

The Richard Rogers’ Drawing Gallery
© James Reeve


The Richard Rogers’ Drawing Gallery
© Stéphane ABOUDARAM | WE ARE CONTENT(S)
The Richard Rogers’ Drawing Gallery
© Stéphane ABOUDARAM | WE ARE CONTENT(S)
The Richard Rogers’ Drawing Gallery
© James Reeve
The Richard Rogers’ Drawing Gallery
© James Reeve


The Richard Rogers’ Drawing Gallery
Plan
The Richard Rogers’ Drawing Gallery
Site plan


The Richard Rogers’ Drawing Gallery
Elevation
The Richard Rogers’ Drawing Gallery
Cross section


The Richard Rogers’ Drawing Gallery
Courtesy of Stephen Spence / RSHP
The Richard Rogers’ Drawing Gallery
Courtesy of Stephen Spence / RSHP


The Richard Rogers’ Drawing Gallery

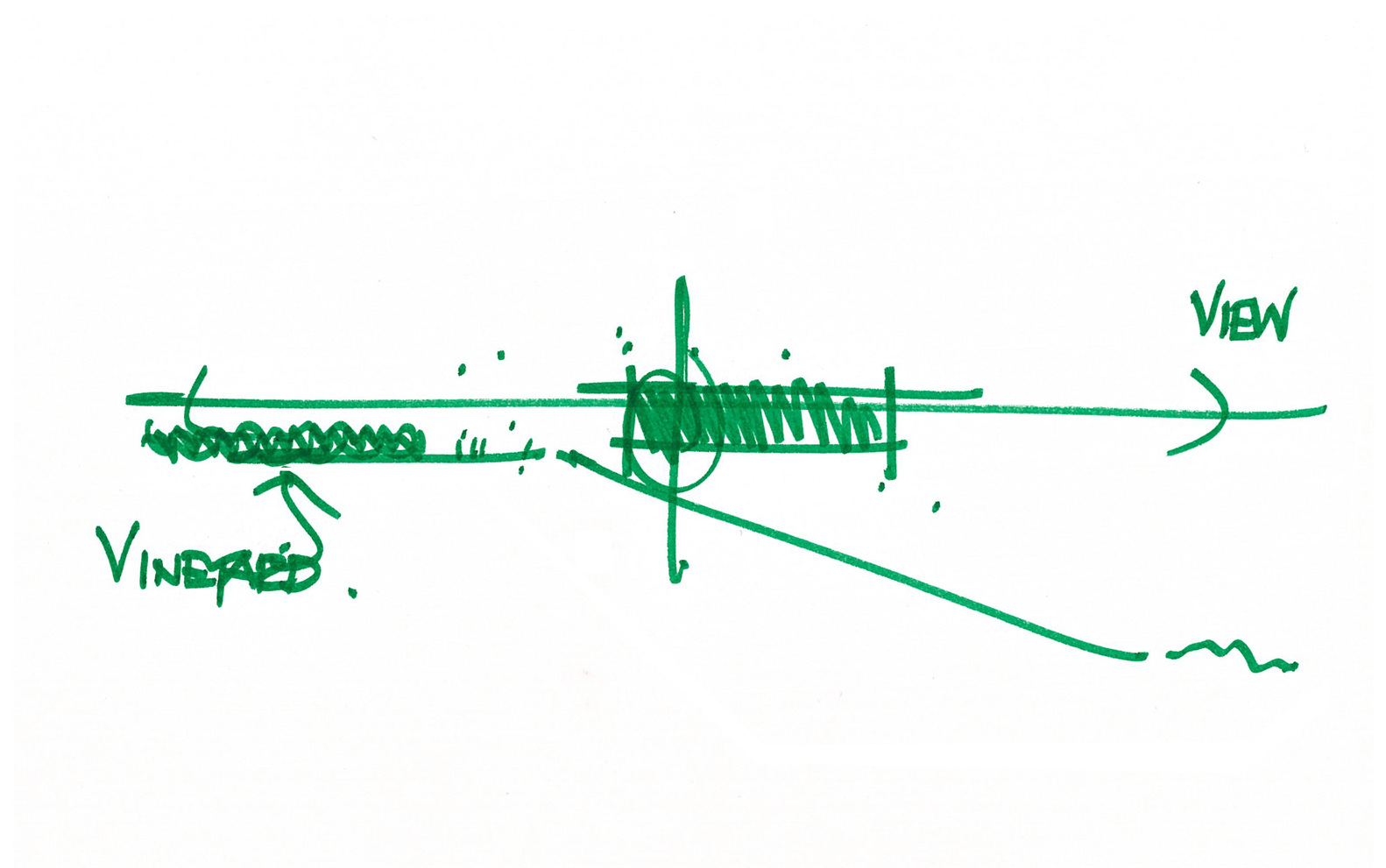

Sketch
The Richard Rogers’ Drawing Gallery
Sketch
The Richard Rogers’ Drawing Gallery
Sketch
The Richard Rogers’ Drawing Gallery
Sketch
The Richard Rogers’ Drawing Gallery
Sketch
The Richard Rogers’ Drawing Gallery
Structure axo
