75WA RESIDENTIAL BUILDING

INchan atelier

ARCHITECTS
INchan atelier

ARCHITECT IN CHARGE
Intanon Chantip

PROPS STYLIST
Tharisra Chantip

DESIGN TEAM
INchan atelier

CONTRACTOR
Beaver power

PHOTOGRAPHS
Add Wimolrungkarat

AREA
700

YEAR
2020

LOCATION
Sathon, Thailand

CATEGORY
Residential

This is a residential project, located in a very high-density area in central Bangkok, Thailand.

The given land plot has a size of 300 square meter (or 75 square wa in Thai measurement scale), and it can only be accessed by a long 4-meter-wide street.

75WA Residential Building
© Add Wimolrungkarat
75WA Residential Building
© Add Wimolrungkarat
75WA Residential Building
© Add Wimolrungkarat

The challenging issue of this project is the requirements from the owner - this house must serve 9 family members and 2 maids, total 11 people, whose ages range from a newly born baby to a very old grandmother.

The house requires 5 parking spaces, and there must be a lot of storage for different purposes.

Apparently, the outline of the house appears very tight to the site; that is it must optimize the land plot by means of reaching the maximum size with the minimum setbacks according to the building regulations.

75WA Residential Building
75WA Residential Building
© Add Wimolrungkarat

However, the design should provide a proper amount of open space around the house. Once the minimum setbacks are applied, the house cannot have openings directly confronted with the property lines. So the design strategy for this house mainly focuses on how the cross-ventilation effect can happen.

Eventually, the idea is to use the overlapping planes (very much like the windmill configuration) to create small opening spots from all sides, performing like ventilation inlets as well as to have a big open well at the center of the plan, working like a ventilation outlet.

75WA Residential Building
© Add Wimolrungkarat
75WA Residential Building
© Add Wimolrungkarat

With that, the cross ventilation can potentially take place together with bringing in a good amount of natural light into the interior spaces.

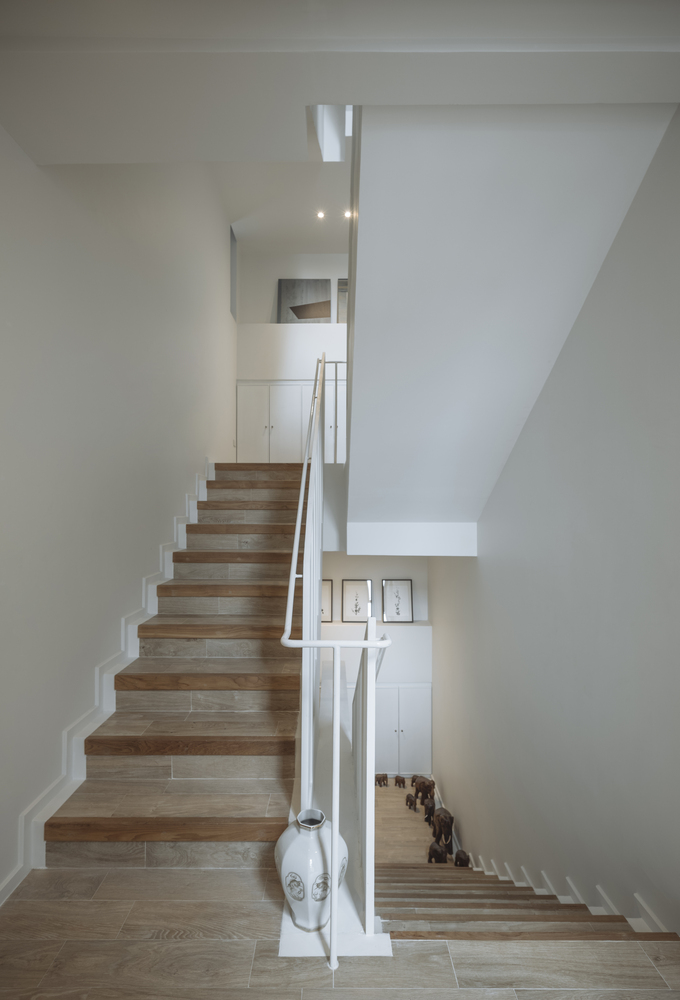

The house rises up to 4 floors, in which the stairs and the elevator, located at the rear side of the house, are the main vertical circulations.However, the visual relationship among floors is also significant.

75WA Residential Building
© Add Wimolrungkarat
75WA Residential Building
© Add Wimolrungkarat

The design offers vertical interactions taking place around the open well at the front side of the house.

Moreover, the liveliness from the vertical greenery is set to play an essential role in this house.

75WA Residential Building
© Add Wimolrungkarat
75WA Residential Building
© Add Wimolrungkarat

THE FOLLOWINGS ARE PROGRAMS OF THIS HOUSE ORGANIZED PER FLOOR:

Floor 1: Parking facilities, the main entry where it can easily reach the stair hall and the elevator quickly, maid rooms, shoe cabinets, and other storages, laundry facility, a small cooking facility, as well as the herbal garden.

Floor 2: This is the main floor for everyone in the house. It has a combination of a common area, a big dining table, a big kitchen, pocket storage, and a powder room.

Also, this floor provides a big bedroom for two with an en-suite bathroom and walk-in closet.

75WA Residential Building
© Add Wimolrungkarat
75WA Residential Building
© Add Wimolrungkarat
75WA Residential Building
© Add Wimolrungkarat

Floor 3: This floor dedicates to 2 sisters and a grandmother. It has 2 big bedrooms with en-suite bathrooms and walk-in closets. There are 2 storage rooms for different purposes.

Floor 4: This floor dedicates to the son's family, who plans to have 2 children. It comprises a big bedroom with an en-suite bathroom and walk-in closet, 2 small bedrooms, one shared toilet plus one shared bathroom, a small office, and a minibar.

Rooftop floor: The family plans to exploit this rooftop area for more than just a flat-slab roof. Hence, some part of it is adjusted to be hanging out space – a bar-b-q activity, and the rest will be a drying area for blankets.

75WA Residential Building
© Add Wimolrungkarat


75WA Residential Building
© Add Wimolrungkarat
75WA Residential Building
© Add Wimolrungkarat


75WA Residential Building
First Floor Plan
75WA Residential Building
Second Floor Plan
75WA Residential Building
Third Floor Plan
75WA Residential Building

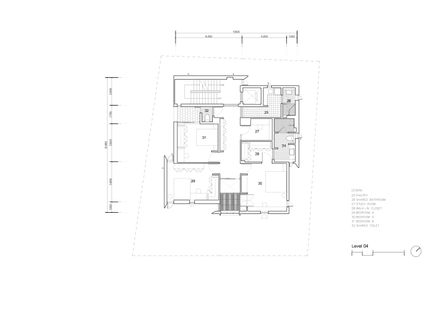

Fourth Floor Plan
75WA Residential Building
Fifth Floor Plan
75WA Residential Building
Site Plan


75WA Residential Building

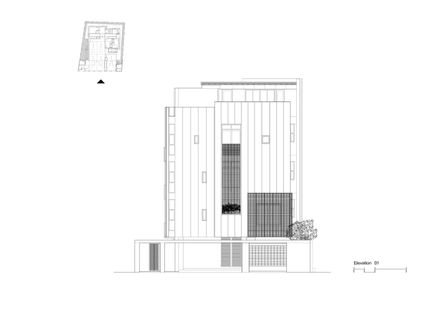

Elevation 01
75WA Residential Building
Elevation 02
75WA Residential Building
Elevation 03
75WA Residential Building
Elevation 04


75WA Residential Building
Isometric View
75WA Residential Building
Section
