VILLA BACKYARD

TOUCH Architect

ARCHITECTS
TOUCH Architect

LOCATION
House Interiors • Thailand

CATEGORY
Houses

AREA
90 m²

YEAR
2021

DESIGN TEAM/ ARCHITECT
Pitchaya Tiyapitsanupaisan , Tanita Panjawongroj

MANUFACTURERS
Alumet, COTTO, Tree Concept, ID ROOF, Rococo, T-Rex Steel

PHOTOGRAPHS
Anan Naruphantawat

CONTRACTOR
DWN Builder

CIVIL ENGINEER
Chittinat Wongmaneeprateep

LEAD ARCHITECTS
Setthakarn Yangderm, Parpis Leelaniramol

The site is an hour’s drive away through the East from Bangkok; Chachoengsao, in which the suburb’s living environment is closed to a city, many factories, and the sea (Gulf of Thailand), which produces an excessive level of soil salinity.

Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat

A non-terrain land with an artificial pond is where the villa is located.

Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat

This man-made pond was built to be used as consuming water as well as an atmospheric visualization and all relaxation senses.

Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat

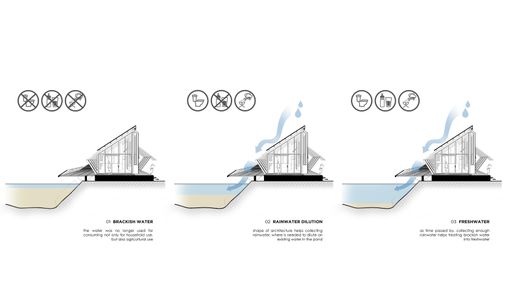

As mentioned above, saline soil causes brackish water in the pond, which the water was no longer used for consumption not only for household use but also for agricultural use.

In order to alter this low biodiversity water into freshwater, rainwater is needed to dilute existing water in the pond.

Architecture is considered to live along and be part of this water treatment process, therefore, shape and approach are designed to support this development.

Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat

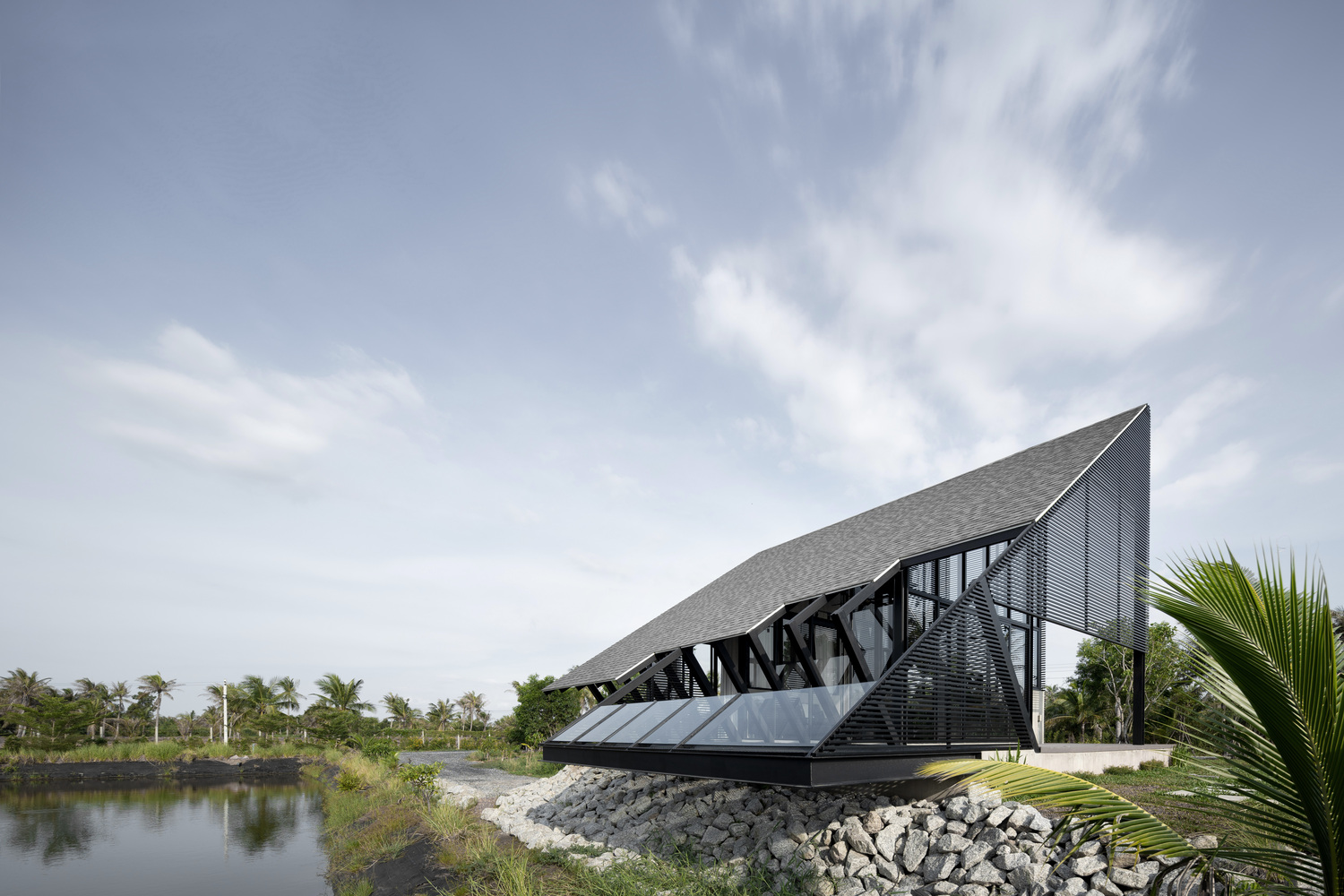

The designed is originated by a simple cube which is diagonally slashed in half to provide the largest slanted cantilevered surface which acts as a roof and wall for draining water, together with all the functions serve what a single-family residence needed within a small, affordable, and useful house, as well as sustainability.

An open-plan living space that is arrangeable for multipurpose use, such as family gathering, dining, and extension sleeping area, connects to both private and semi-public areas.

Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat

A water-side edge, in which a bedroom and an outdoor terrace are located, is serrated subtracted to act as a shading element as well as gaining hierarchical openness; the highest openness at the entrance terrace allows taking sight in standing position, while middle and low for living space and bedroom allows panoramic view in sitting and laying down position, respectively.

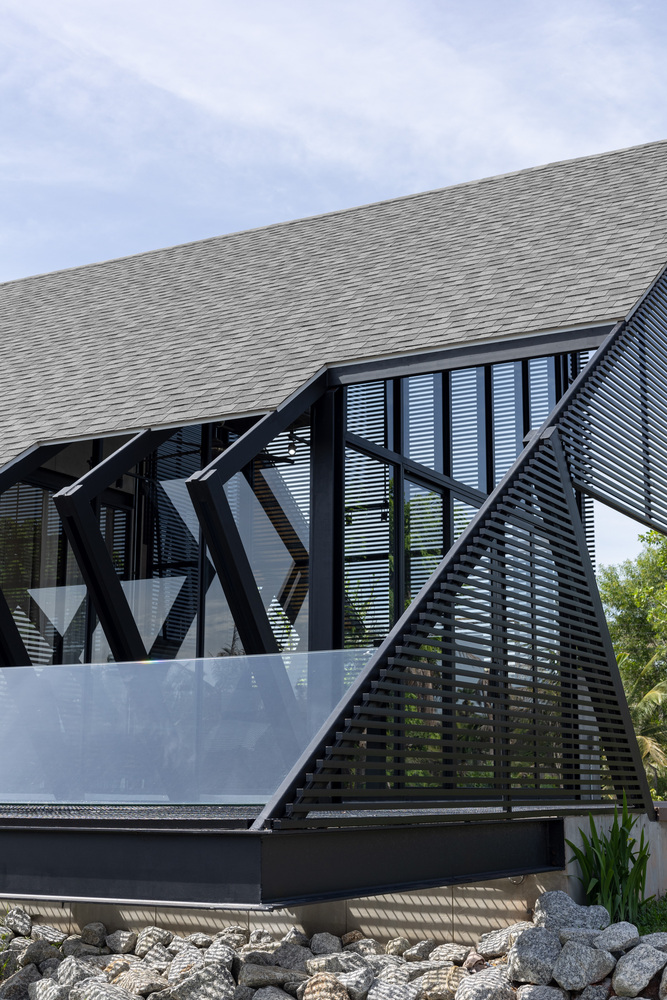

The other shading element, a durable aluminum trellis, apply to the rest wall for heat protection. Steel structure with an asphalt shingle roof is used for quick and easy installation with lightweight and durability for water drainage.

Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat
Villa Backyard
© Anan Naruphantawat

Steel grating is applied for a cantilevered outdoor terrace, which allows rainwater to fall directly to the pond, as well as, cooling the air above the floor from water evaporation.

Aluminum trellis is not only durable, low maintenance and last-longer used material, but also can easily be re-used for another building because of a clip-lock installation.


Villa Backyard
Section
Villa Backyard
Sections


Villa Backyard
Plans
Villa Backyard
Elevations


Villa Backyard
Villa Backyard


Villa Backyard
Villa Backyard
Isometric
