ALTA Architectes - Urbanistes

Agency GIBOIRE Morbihan Offices

Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau

AGENCY GIBOIRE MORBIHAN OFFICES

A/lta

ARCHITECTS
A/lta

AREA
270 m²

YEAR
2021

LOCATION
Vannes, France

CATEGORY
Office Buildings

Text description provided by the architects.

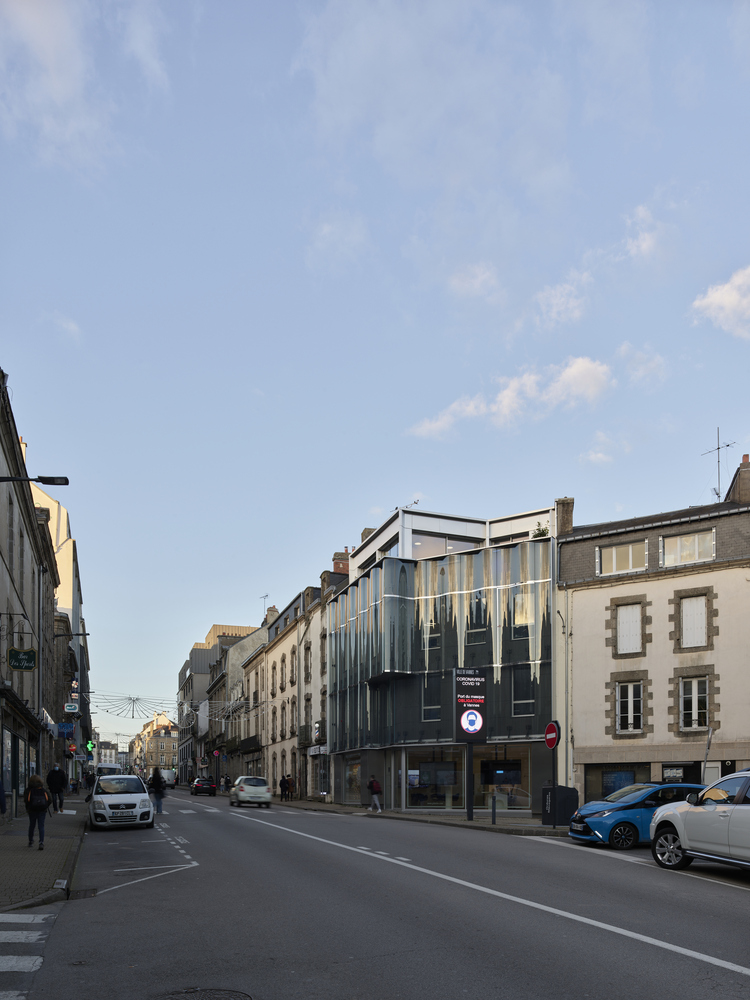

This project involves the heavy restructuring of a corner building located at the junction of rue Thiers and rue Carnot, in the heart of the historic center of the city of Vannes.

The existing building, R+2 plus attic, was a bank that we transformed into offices for Groupe Giboire. The aim is to set up a new commercial and real estate development agency.

Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau
Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau
Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau

The location of the project is remarkable, close to the port, it is backed by the city walls dating from the 4th century.

The original structure of the building has been preserved, except for the attic which has been given a new style.

The first floor "catches up" with an alignment on the street, large openings are created to allow the reading of the ramparts located in the court. It is clad with a stainless steel cladding that is also found in the attic.

Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau
Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau

The original configuration in angle (providing a real response to the articulation of the two streets), and the complexity of the structure of the existing facade, the bias was to choose the sobriety and finesse of the materiality.

For this reason, the mineral facade was highlighted by a second curved glass skin located at the two intermediate levels.

Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau
Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau

The combination of glass and stainless steel envelops the building and delicately slides it into the historic heart of the city.

The redesigned facade plays with the reflections of the city as well as those of the sky, which vary according to the time of day.

Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau
Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau

The glass panels, which make up this pleated structure, are supported by stainless steel rails. An anodized aluminum frame allows the natural ventilation of this double skin.

The upper part of this frame, which constitutes the acroterion, is made up of removable panels which make its maintenance possible.

Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau
Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau

The interior design was guided by the idea of transparency and luminosity. The attic of the building hosts a large meeting room that gives access to a terrace with a view of the city and the port.


Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau
Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau
Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau
Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau
Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau
Agency GIBOIRE Morbihan Offices
© Stephane Chalmeau


Agency GIBOIRE Morbihan Offices
Situation
Agency GIBOIRE Morbihan Offices
Detail


Agency GIBOIRE Morbihan Offices
Elevation
Agency GIBOIRE Morbihan Offices
Elevation
Agency GIBOIRE Morbihan Offices
Ground Floor Plan
Agency GIBOIRE Morbihan Offices
Floor Plan Level 1
Agency GIBOIRE Morbihan Offices
Floor Plan Level 2
Agency GIBOIRE Morbihan Offices
Floor Plan Level 3


Agency GIBOIRE Morbihan Offices
Ground Floor Plan
Agency GIBOIRE Morbihan Offices

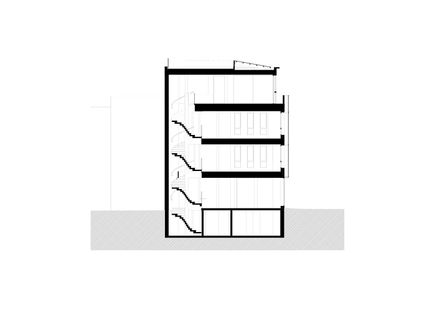

Section
