TRANSPARENTE THE RECTORÍA AT MONTERREY TEC’ RENOVATION

FGP Atelier

ARCHITECTS
FGP Atelier

PHOTOGRAPHS
Arq. Paco Alvarez

CATEGORY
University, Renovation

AREA
6700 m²

MANUFACTURERS
ALPOLIC, Terrazzo & Marble, Barrisol, Cristacurva, Plaka, Rulon International, Grato, Terrazo and Marble Supply Companies

LIGHTING
Arup

MEP CONSULTANTS
Arup

ACOUSTICS CONSULTANTS
Arup

CONTRACTOR
Axioma

CIVIL ENGINEER
Arnold Pacheco Garcia

STRUCTURE ENGINEERS
Mevina

PRODUCTS USED IN THIS PROJECT
Terrazzo Flooring - Terroxy Resin Systems

YEAR
2020

LEAD DESIGNER
Francisco Gonzalez Pulido

DESIGN DIRECTOR
Gergana Gonzalez Pulido

DESIGNERS
Danilo Madina, Sofia Fernandez

LANDSCAPE ARCHITECT
Claudia Harari

WIND CONSULTANT
Rwdi

PROJECT MANAGER
Matthew Stymiest

LOCATION
Monterrey, Mexico

FACADES CONSULTANTS
Arup

ASSOCIATE ARCHITECT
Oda

The Rectoría at Monterrey Tec’s primary campus in Monterrey, Mexico, serves as the central administration building for the entire system of campuses around Mexico.

Transparente The Rectoría at Monterrey Tec’ Renovation
Transparente The Rectoría at Monterrey Tec’ Renovation

The building is the most iconic on the campus and one of the most important in the history of modern architecture in Mexico.

Since its construction, its use has changed many times.

Transparente The Rectoría at Monterrey Tec’ Renovation
Transparente The Rectoría at Monterrey Tec’ Renovation

The result of all these modifications over the years is that the building retains its historic character in some areas, but not necessarily in others.

A clear sense of cohesion is lacking. Most importantly, however, the spaces do not function optimally.

Transparente The Rectoría at Monterrey Tec’ Renovation
Transparente The Rectoría at Monterrey Tec’ Renovation
Transparente The Rectoría at Monterrey Tec’ Renovation

Many on-campus feel that the building appears closed and uninviting.

It lacks transparency and a logical internal flow.

The extraordinarily valuable collection housed in the rare books library – the Cervantina – is not even known to many potential users, and the functioning of the central lecture hall is less than ideal.

Transparente The Rectoría at Monterrey Tec’ Renovation
Transparente The Rectoría at Monterrey Tec’ Renovation
Transparente The Rectoría at Monterrey Tec’ Renovation

Finally, the basement level lacks natural light, and the vertical circulation does not meet current standards.

In this context, the leadership of the university decided that they needed to make a significant improvement.

In developing a design solution that responded to this choice, it was imperative that the building retain its historic character. In particular, the design brief expressed the importance of respecting the murals in the lobby and on the facade. This approach would help ensure that the new design would appear to be a harmonious extension of the original intent.

Transparente The Rectoría at Monterrey Tec’ Renovation
Transparente The Rectoría at Monterrey Tec’ Renovation

The transformation of the building that we have come to call “Transparente” would be accomplished through the application of a few essential ideas:
- Creation of grand spaces in synchronicity with the scale and importance of the building;
- Creation of a clear and legible circulation concept;

- recovery of the original spatial relationship between the access plaza and the building, which speaks again about concepts of openness and democracy;
- respecting the past through a thoughtful and minimal intervention paying special attention to materials and systems;
- focusing on functionality to accommodate change and provoke seamless flows among all spaces;
- striking a balance between preservation of the building’s special character, quality, and historical significance and facilitating change in a way that sustains it into the future;

Transparente The Rectoría at Monterrey Tec’ Renovation
Transparente The Rectoría at Monterrey Tec’ Renovation

- ensuring that the new layers represent the ideas, technology, material, and architectural language of future generation;
- focusing on the quality of the relationship between old and new, and not in the architectural language per se;
- designing quality in the new Rectoría defined by scale, form, material, color, and detail; and
- ensuring that the Rectoría reflects the new spirit of Monterrey Tec.

This strategy would go beyond materials and finishes; instead, it would be about connectivity and transparency in an almost metaphysical sense. This notion can be seen in the transformation of the primary façade that has come to signal the renovation of the building and define the overall image of the project.

Transparente The Rectoría at Monterrey Tec’ Renovation

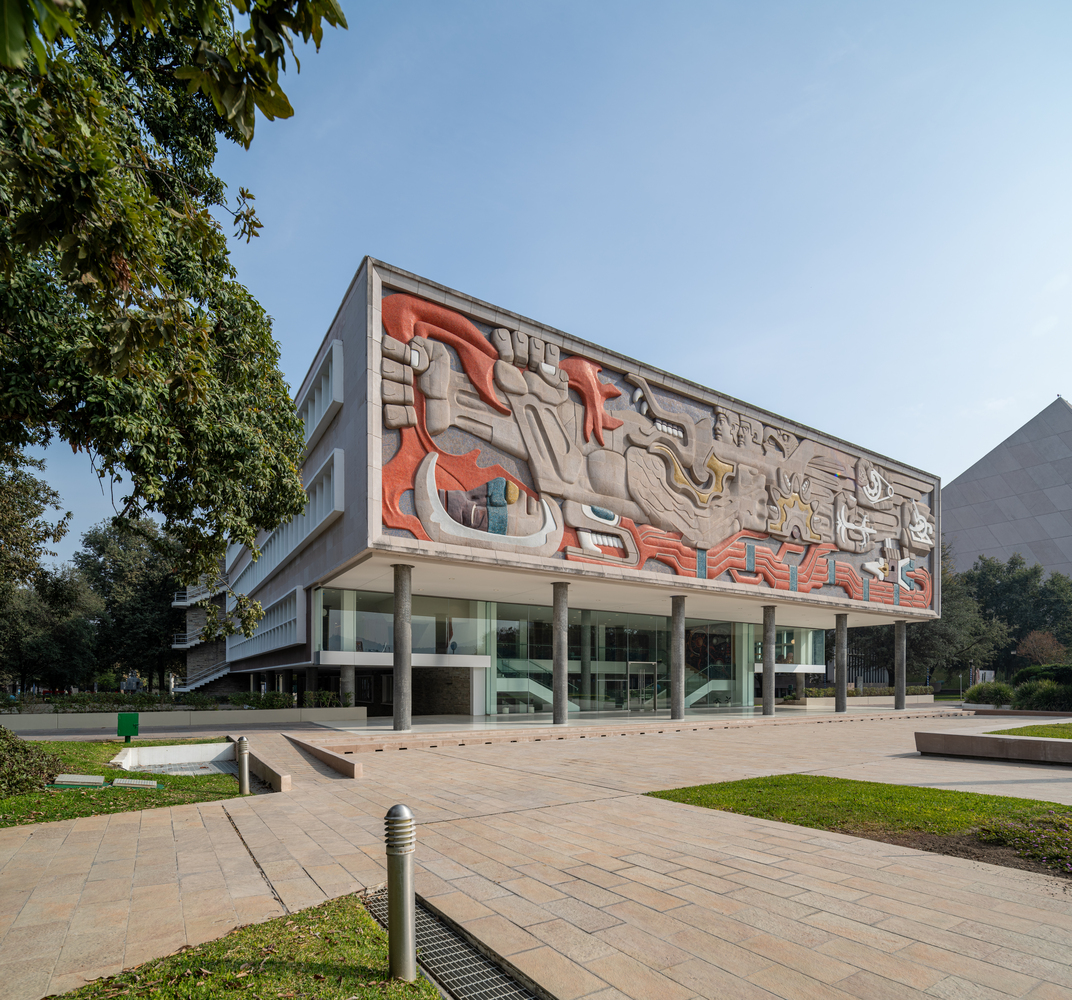

While the original façade was more opaque as a result of being composed of a mixture of glass, stone, and tile, the new façade is entirely glass. The result is a strong sense of transparency that blurs the line between the interior of the lobby and the public plaza in order to create a sense of openness that invites those passing by to enter.

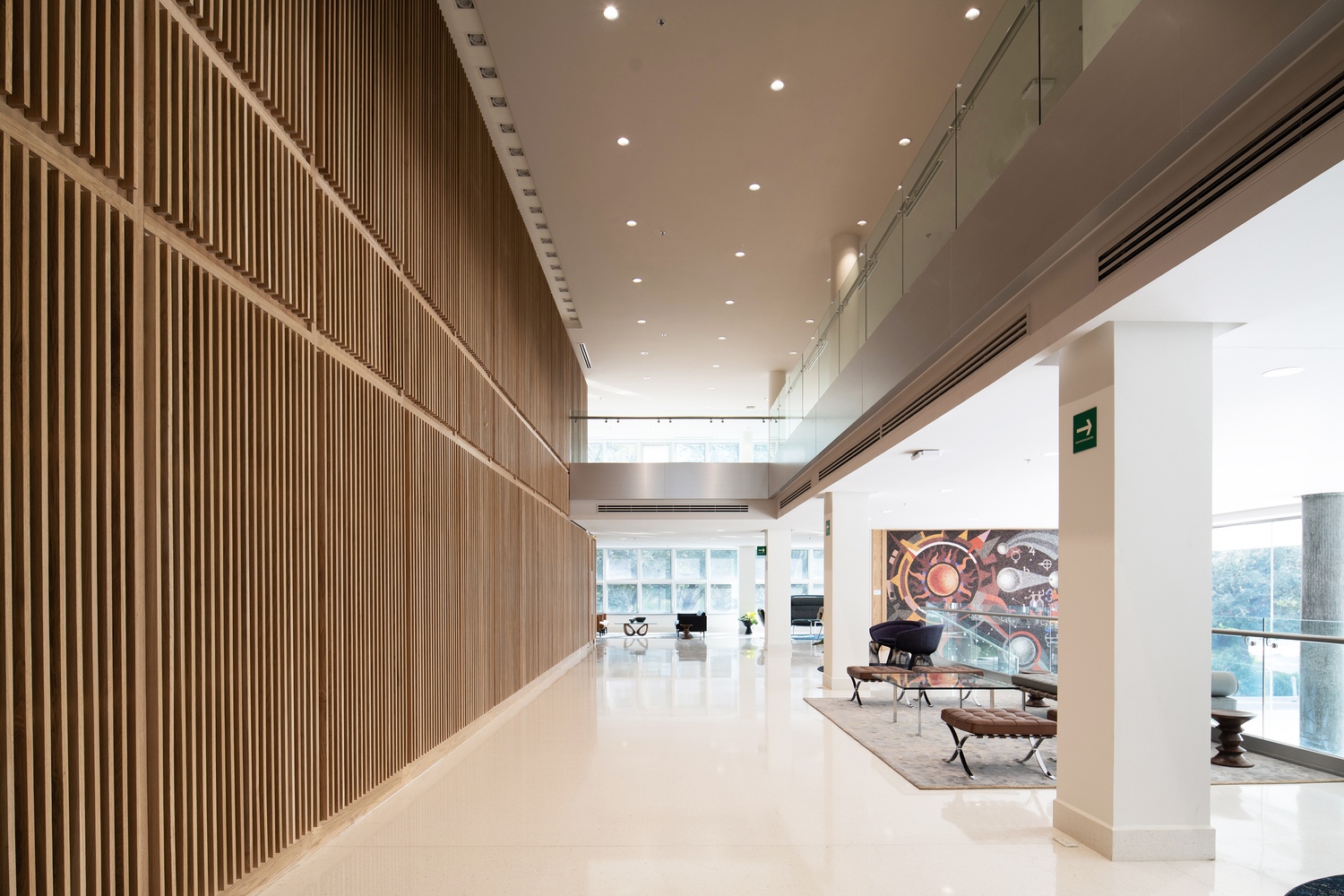

Connectivity and transparency can also be seen in the new two-level hall connecting the ground level to the basement level. The hall itself is defined by a double-height space with a set of stairs and seats connecting the two levels. Coworking and gathering spaces form the perimeter of the two-level hall.

Transparente The Rectoría at Monterrey Tec’ Renovation

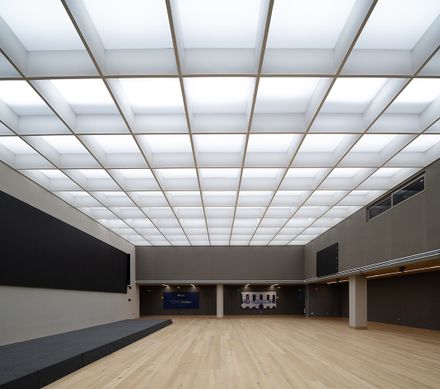

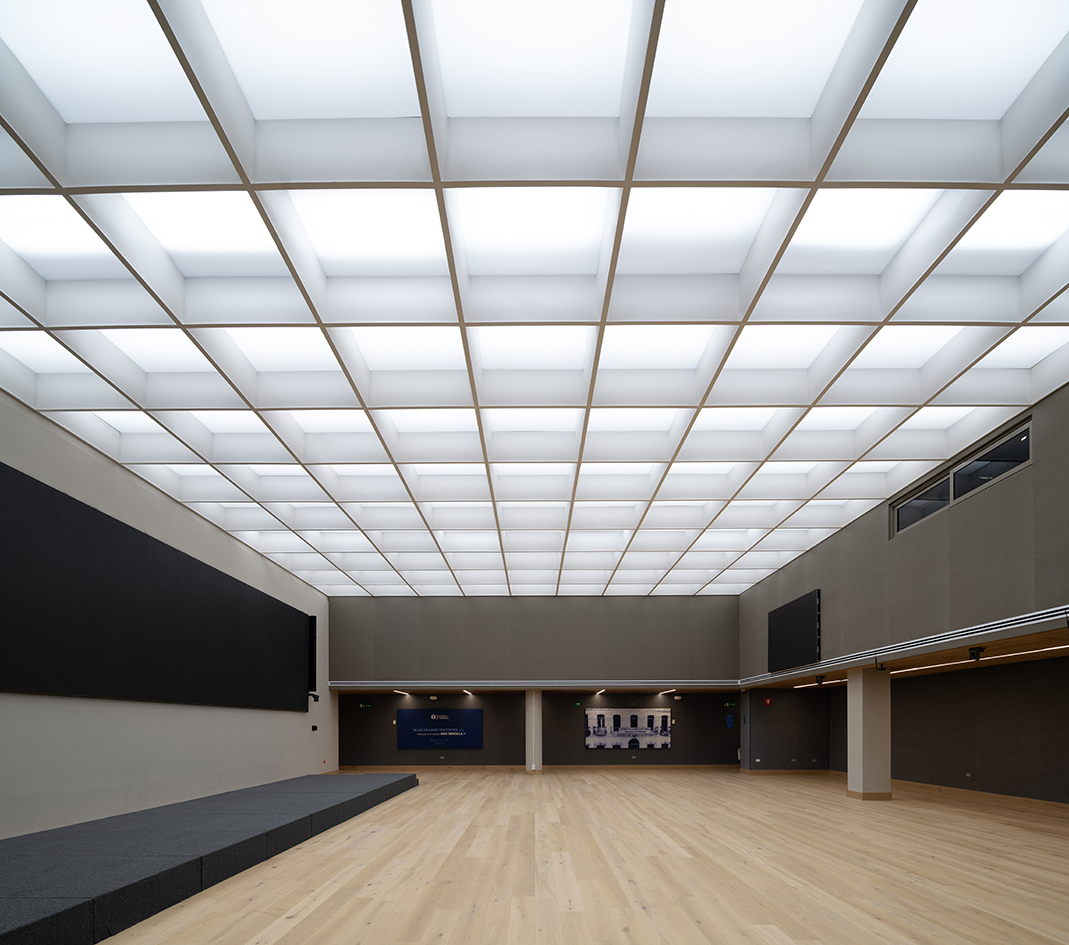

Once on the lower level, visitors can see that a similar strategy has been introduced on the two parallel sides of the building, creating a stepped area that allows light to enter the once dark basement. Directly above this hall is the two-level Sala Major, which serves as a primary place for lectures and gatherings. While the form was not altered, the surfaces and furniture were updated to enhance comfort, improve acoustic performance, and provide up-to-date audiovisual equipment.


Transparente The Rectoría at Monterrey Tec’ Renovation
Sketch
Transparente The Rectoría at Monterrey Tec’ Renovation
Sketch


Transparente The Rectoría at Monterrey Tec’ Renovation
Sketch
Transparente The Rectoría at Monterrey Tec’ Renovation
Sketch


Transparente The Rectoría at Monterrey Tec’ Renovation
Axonometric flow diagram
Transparente The Rectoría at Monterrey Tec’ Renovation

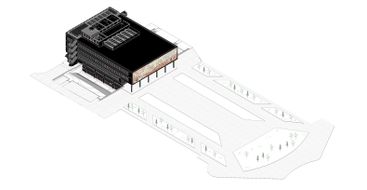

Main axonometric
Transparente The Rectoría at Monterrey Tec’ Renovation
Model view


Transparente The Rectoría at Monterrey Tec’ Renovation
Exploded axo
Transparente The Rectoría at Monterrey Tec’ Renovation
Axonometric detail
