Dai An Apartment

Dai An Apartment
© Quang Dam

DAI AN APARTMENT

H.2

ARCHITECTS
H.2

TEXT BY
Nguyen Thi Xuan Hai

IRON
Mr. An

MANUFACTURERS
AutoDesk, Toto, Kelvin&Lux, Moc Gia Phat, TOA, Trimble Navigation, Xinfa

DESIGN TEAM
Trần Văn Huynh, Nguyễn Thị Xuân Hải, Đỗ Trọng Nhân Kiệt, Shreevardhan Joshi, Châu Minh Tiến, Nguyễn Văn Hóa, Trần Văn Hà

PHOTOGRAPHS
Quang Dam

OWNER
Mr Dinh

AREA
112 m²

YEAR
2020

CATEGORY
Apartments, Apartment Interiors

LOCATION
Thành Phố Vũng Tàu, Vietnam

The house is spread out through the ground floor, 2 floors and 1 garret. It had been renovated into a rental apartment.

Dai An Apartment
© Quang Dam
Dai An Apartment
© Quang Dam

The economic problem was to create maximum space and usable area. It also had to be easy to construct, blocky, solid but unique, attractive to young people. It also had to make the most of the green space.

The proposed solution was using lightweight structures to change the internal space; redistribution of uses: entrances, stairs; and light structures help to save costs in terms of both materials and construction labor.

Dai An Apartment
© Quang Dam
Dai An Apartment
© Quang Dam

The work was renovated into 9 rooms for rent (studio room), arranged as follows:1st floor: garage, reception and 1 studio.
2nd and 3rd floor : Each floor has 03 studios with private toilet, wide open space
Garret floor: renovated into 02 vip apartments with a larger area and dry-cleaning area.

The main materials are iron frame, cement-board plate, iron wall, glass, all of which create flexibility and ease of construction for renovation works.

Dai An Apartment
© Quang Dam
Dai An Apartment
© Quang Dam

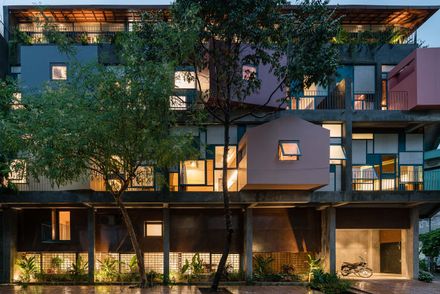

The colorful bungalows rotate in different directions to create a strong movement, which contributes to covering the old concrete columns and structures of the house.

The 2nd and 3rd floors have 6 rooms, each with 1 bungalow block, it is the neat integration of the functions into one integrated block: bedroom, wardrobe, kitchen.

Dai An Apartment
© Quang Dam
Dai An Apartment
© Quang Dam

Two fronts are the advantage of the apartment, so the rooms open to the balcony with 2 fronts. If the lower floors show a youthful dynamism, the 2 garret apartments tend to be rustic and minimalistic.

The garret has a traditional tiled roof showing off the structure for the truss, opening to the view of hanging gardens running along the house, bringing the sense of space of a mini penthouse. Standing on 2 garret rooms, you can see the mountain view of Vung Tau city.

Dai An Apartment
© Quang Dam
Dai An Apartment
© Quang Dam

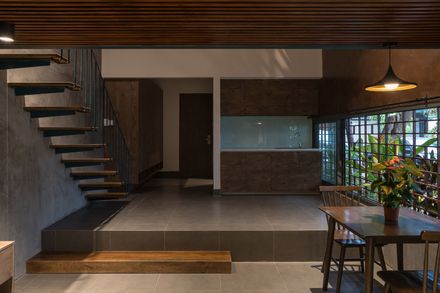

The apartment is completed by wooden furniture, bringing a warm feeling. The painted wall is gray, the base of the facade is accentuated with the steel plate material and is painted in rust to create a strong. These tones contribute to the highlight of the colorful bungalow moving above.

Dai An Apartment
© Quang Dam
Dai An Apartment
© Quang Dam


Dai An Apartment
© Quang Dam
Dai An Apartment
© Quang Dam
Dai An Apartment
© Quang Dam
Dai An Apartment
© Quang Dam
Dai An Apartment
© Quang Dam
Dai An Apartment
© Quang Dam
Dai An Apartment
© Quang Dam


Dai An Apartment
Fifth Floor Plan
Dai An Apartment
Roof Plan
Dai An Apartment
Third Floor Plan
Dai An Apartment
Fourth Floor Plan
Dai An Apartment
Second Floor Plan
Dai An Apartment
First Floor Plan


Dai An Apartment
Diagram
