AVIZOR LOGISTICS

FRPO

LEAD ARCHITECTS
Pablo Oriol, Fernando Rodríguez

AREA
3700 m²

YEAR
2020

ARCHITECTS
FRPO

COLLABORATORS
María Diaz, Iñigo Palazon, Francisco Diaz

CONSULTANTS
Antonio Lorenzo, Axiom Ingeniería, Antonio Simón

LOCATION
Leganes, Spain

CATEGORY
Barn

To the south of the M40 motorway, in an industrial area that forms the background to the extension of Carabanchel neighborhood, a pharmaceutical company requires the extension of its facilities to centralize its logistic activity.

The original building is an amalgam of volumes making up the corner of an industrial park, where the combination of elements has configured the brand identity.

Avizor Logistics
© Imagen Subliminal
Avizor Logistics
© Imagen Subliminal
Avizor Logistics
© Imagen Subliminal

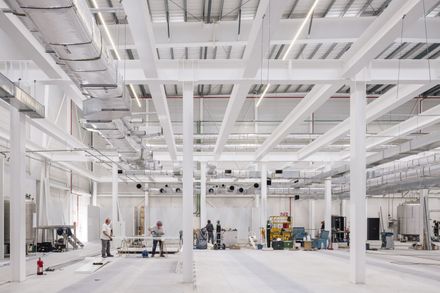

Our proposal synthesizes this complex condition through a simple, abstract operation: an 80x40x14 m box that contains a processing plant and a warehouse. Between the warehouse and the exterior, a service strip hosts the management areas, the technical rooms, and the loading docks.

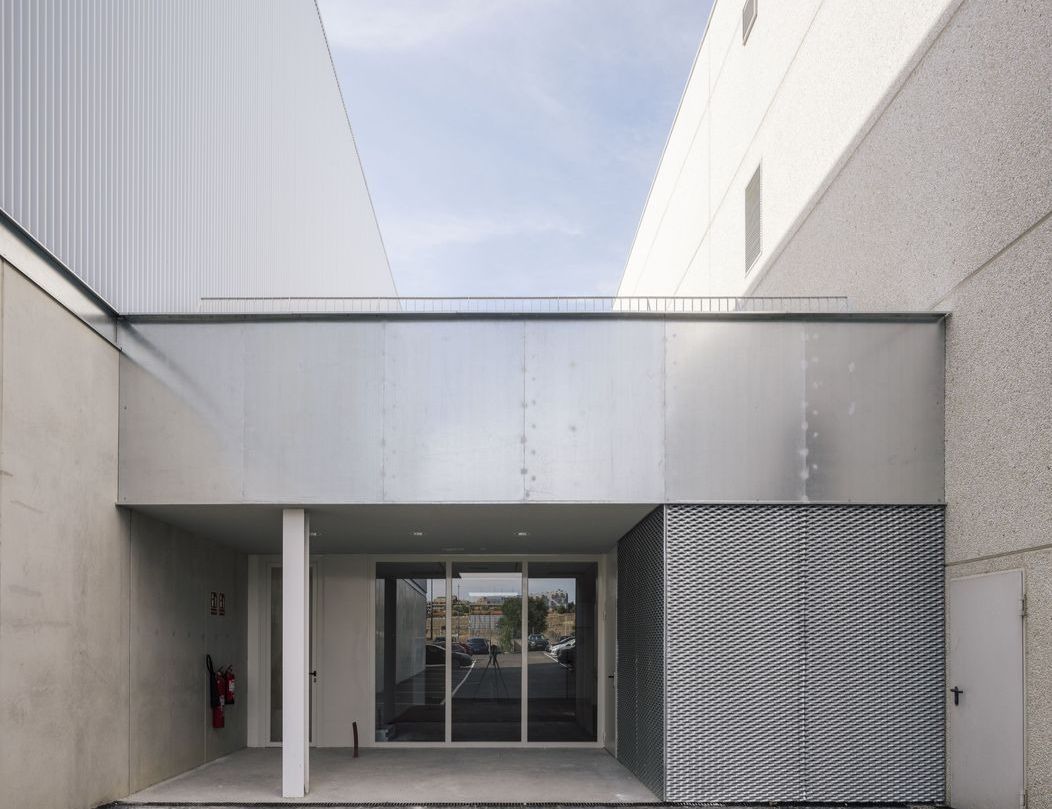

Between the logistics box and the original plant, a slim element, 50x7.50x7.50 m, houses the new access for workers, the changing rooms, and the common areas and, in the background, the connection between both facilities.

Avizor Logistics
© Imagen Subliminal
Avizor Logistics
© Imagen Subliminal

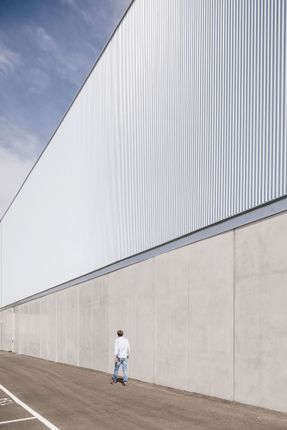

The simplicity of the operation is finished off by the juxtaposition of common prefabricated elements that give the primary volume an additional language: a band of lightly satin precast concrete 4.40 m high includes all the entrances to the box, and a slightly glossy folded metal sheet facade allows the identification of volume from nearby highway.

Avizor Logistics
© Imagen Subliminal
Avizor Logistics
© Imagen Subliminal


Avizor Logistics

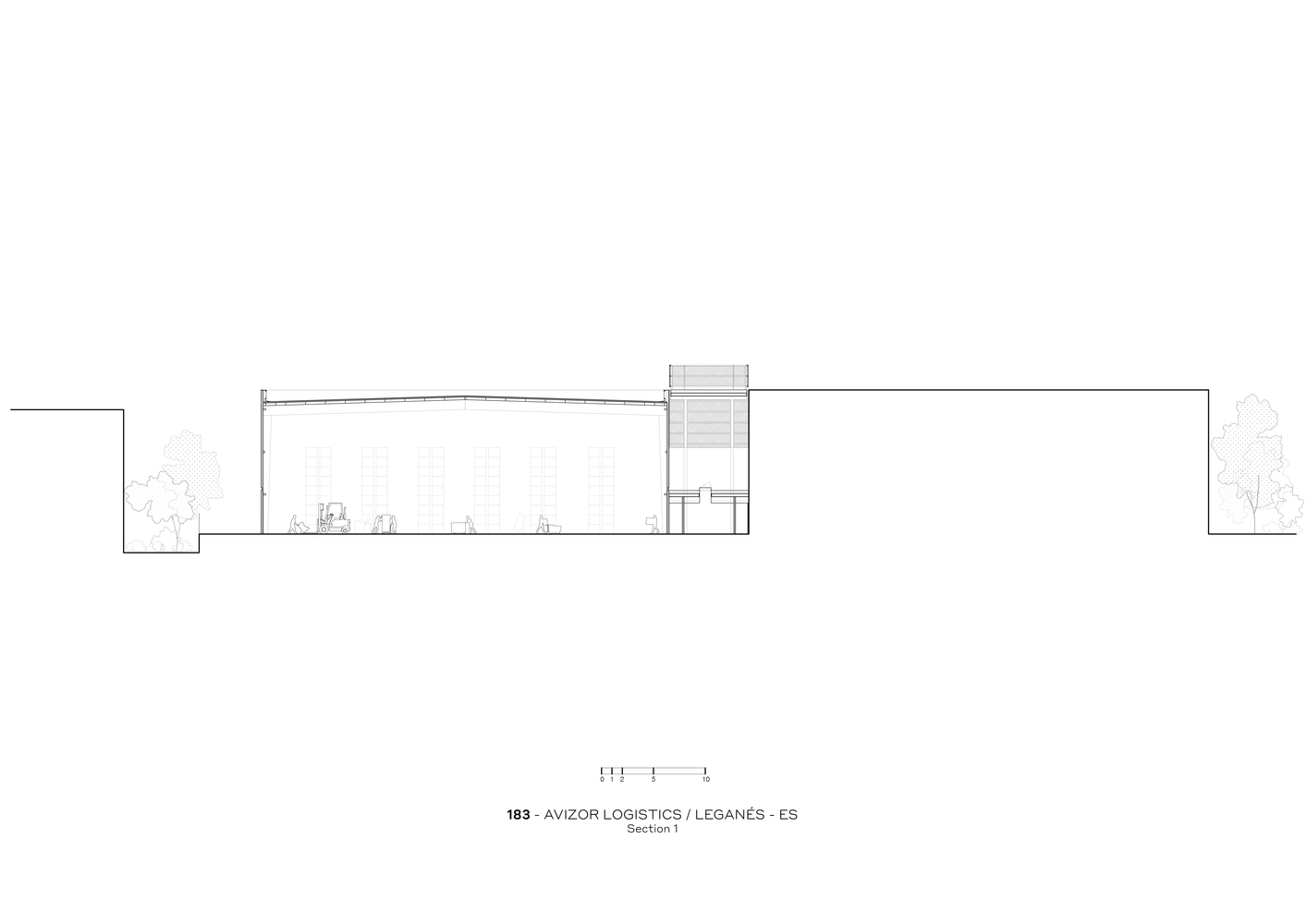

Section 1
Avizor Logistics
Section 2


Avizor Logistics
Detail
Avizor Logistics
Axonometry


Avizor Logistics
General Plan
Avizor Logistics
Site Plan
Avizor Logistics
Floor Plan
