ZIO APARTMENT BLOCK

Alexis Papadopoulos Architectural Practice

ARCHITECTS
Alexis Papadopoulos Architectural Practice

AREA
734 m²

YEAR
2021

MANUFACTURERS
Epiphaniou Bath & Floors, Eupalia Group

ELECTRICAL ENGINEERING
Makis Ioakim

MECHANICAL ENGINEERING
Savvas Aristeidou

CIVIL ENGINEER
Odysseas Georgiou, Savvas Hadjichampi

PROJECT MANAGER
Alexis Papadopoulos

LOCATION
Limasol, Cyprus

CATEGORY
Apartments

ARCHITECTS
Maria Protou, Despo Anagiotou

INTERN
Despo Panayidou

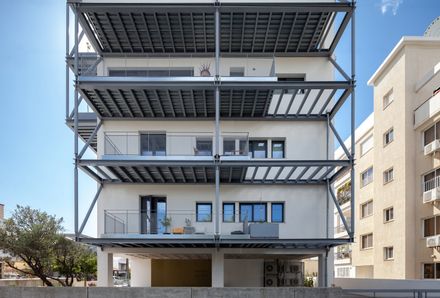

A four-storey apartment block with six apartments was designed to create a pleasant living experience while optimizing construction and maximizing material and energy savings. The compact central volume of the cube-shaped block is juxtaposed with lightweight metal structures that are the suspended balconies for private mainly outdoor use.

ZIO Apartment Block
© Creative Photo Room
ZIO Apartment Block
© Creative Photo Room

The compact block includes a high level of insulation aiming to leave a small ecological footprint and be economically efficient. Shadings for the edifice and solar, power-generating, panels were placed to maximize the building’s orientation.

The structural system used, a strong core and columns only on the perimeter of the building, allows flexibility in floor plan design. Two two-bedroom apartments were created on each floor for the first two floors while two different three-bedroom apartments were created on the 3rd and 4th floor that serve the different needs of the users while following the urban planning regulations.

ZIO Apartment Block
© Creative Photo Room
ZIO Apartment Block
© Creative Photo Room

The ceiling of each typology was designed independently so that the functional, aesthetic, and structural needs of the building are served.

Special attention was given to the floor design of the apartments, a combination of materials tends to unify the spaces disregarding the separation walls.

ZIO Apartment Block
© Creative Photo Room
ZIO Apartment Block
© Creative Photo Room
ZIO Apartment Block
© Creative Photo Room

The roof is organized into a roof garden that acts as a common recreation area through lightweight structures which are covering up the mechanical floor, adding to the building’s overall aesthetic.

Structural approach: Computational optimization techniques were applied to determine the structural system of the project in order to minimize the impact of seismic activity.

ZIO Apartment Block
© Creative Photo Room
ZIO Apartment Block
© Creative Photo Room

This led to a decrease in the amount of reinforcement needed for the construction, given the small cross-sections of the structural elements.

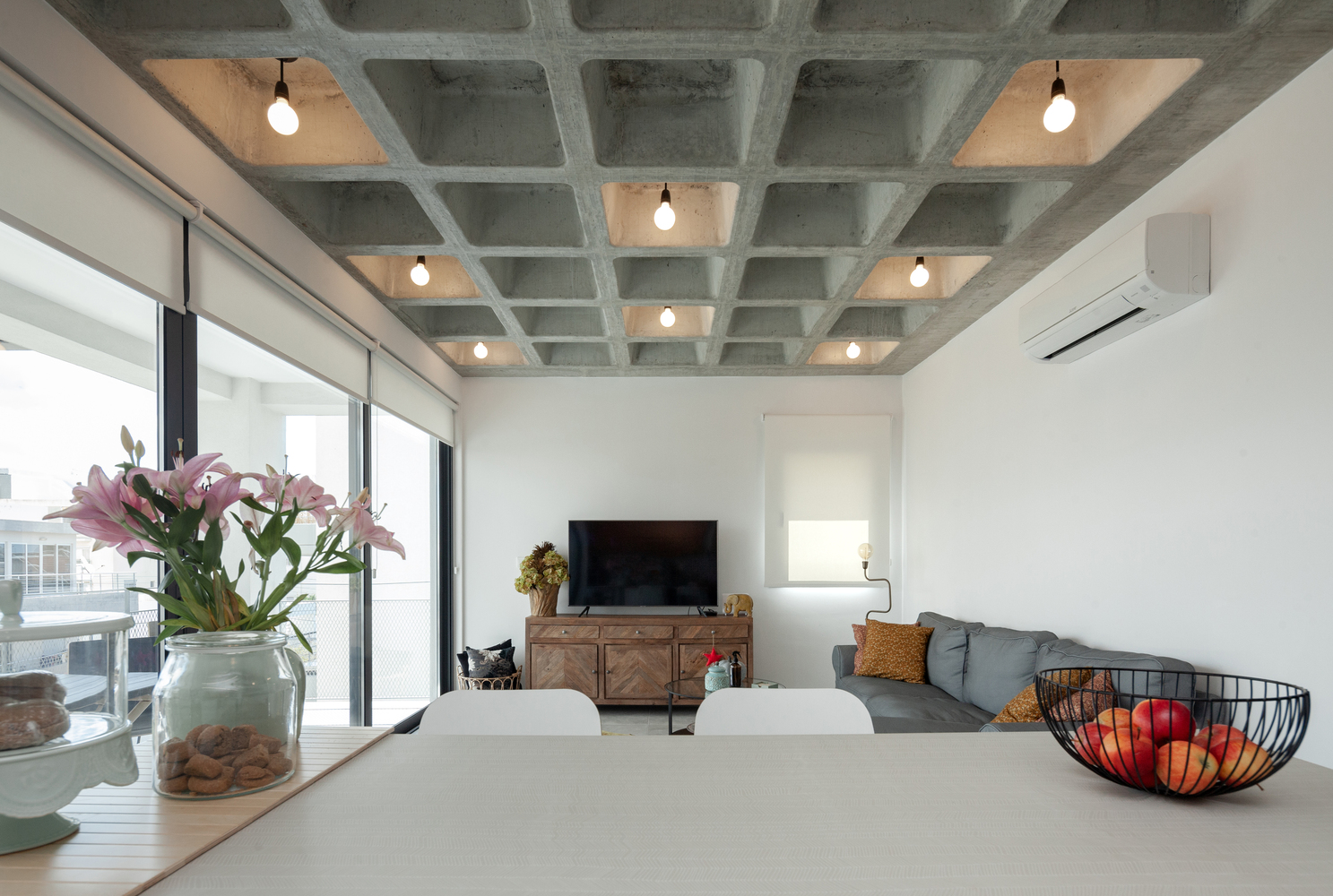

Additionally, the waffle slab system was chosen to reduce the cost for the formworks and to lessen the total weight of the reinforced concrete structure.

ZIO Apartment Block
© Creative Photo Room
ZIO Apartment Block
© Creative Photo Room
ZIO Apartment Block
© Creative Photo Room
ZIO Apartment Block
© Creative Photo Room

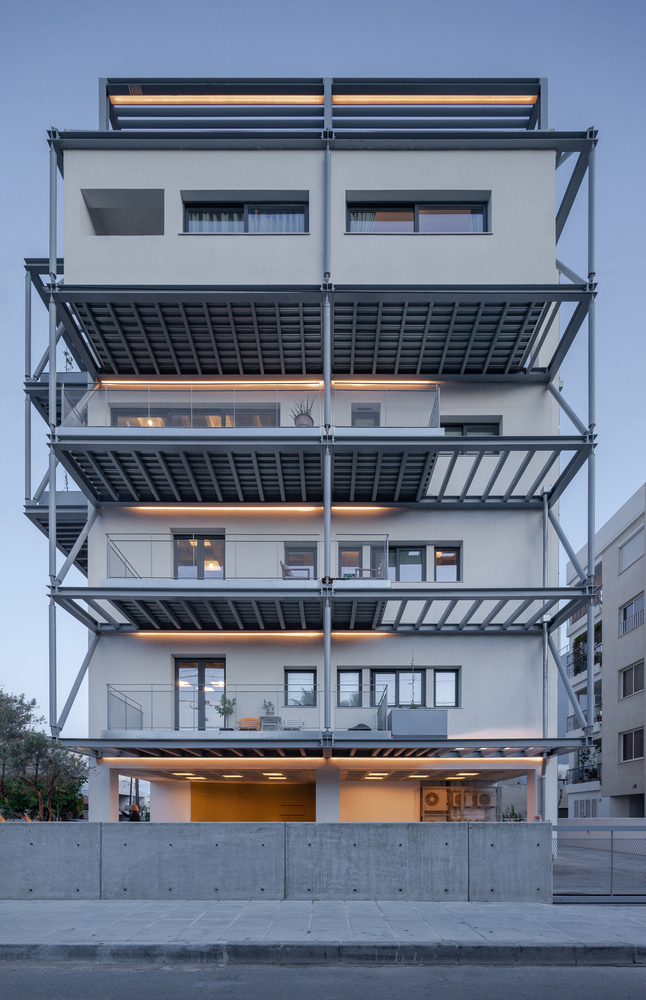

The cantilevered balconies are metal hinged additions that don’t affect the sturdiness of the rest of the structure.


ZIO Apartment Block
© Creative Photo Room
ZIO Apartment Block
© Creative Photo Room
ZIO Apartment Block
© Creative Photo Room
ZIO Apartment Block
© Creative Photo Room


ZIO Apartment Block
Section
ZIO Apartment Block
Axo


ZIO Apartment Block
Plan - Fourth floor
ZIO Apartment Block
Plan - First and second floor
ZIO Apartment Block
Plan - Third floor
