NAOS BUSINESS CAMPUS

Arquitectura en Estudio

CATEGORY
Office Buildings, Interior Design, Sustainability & Green Design

AREA
18277

YEAR
2017

MANUFACTURERS
HID Global, Otis, Porcelanosa Grupo, Energia Solar, Microm

OTHER PARTICIPANTS
Andrea Villa, Kevin Perdomo, Camila Arroyo, Clementine Bahon

LOCATION
Bogotá, Colombia

LEAD ARCHITECTS
Camilo Garavito, Carlos Núñez

INTERIOR DESIGN
Natalia Heredia

LANDSCAPE
Ramiro Olarte

Naos Business Campus
© Llano Fotografía
Naos Business Campus
© Llano Fotografía

Text description provided by architect.

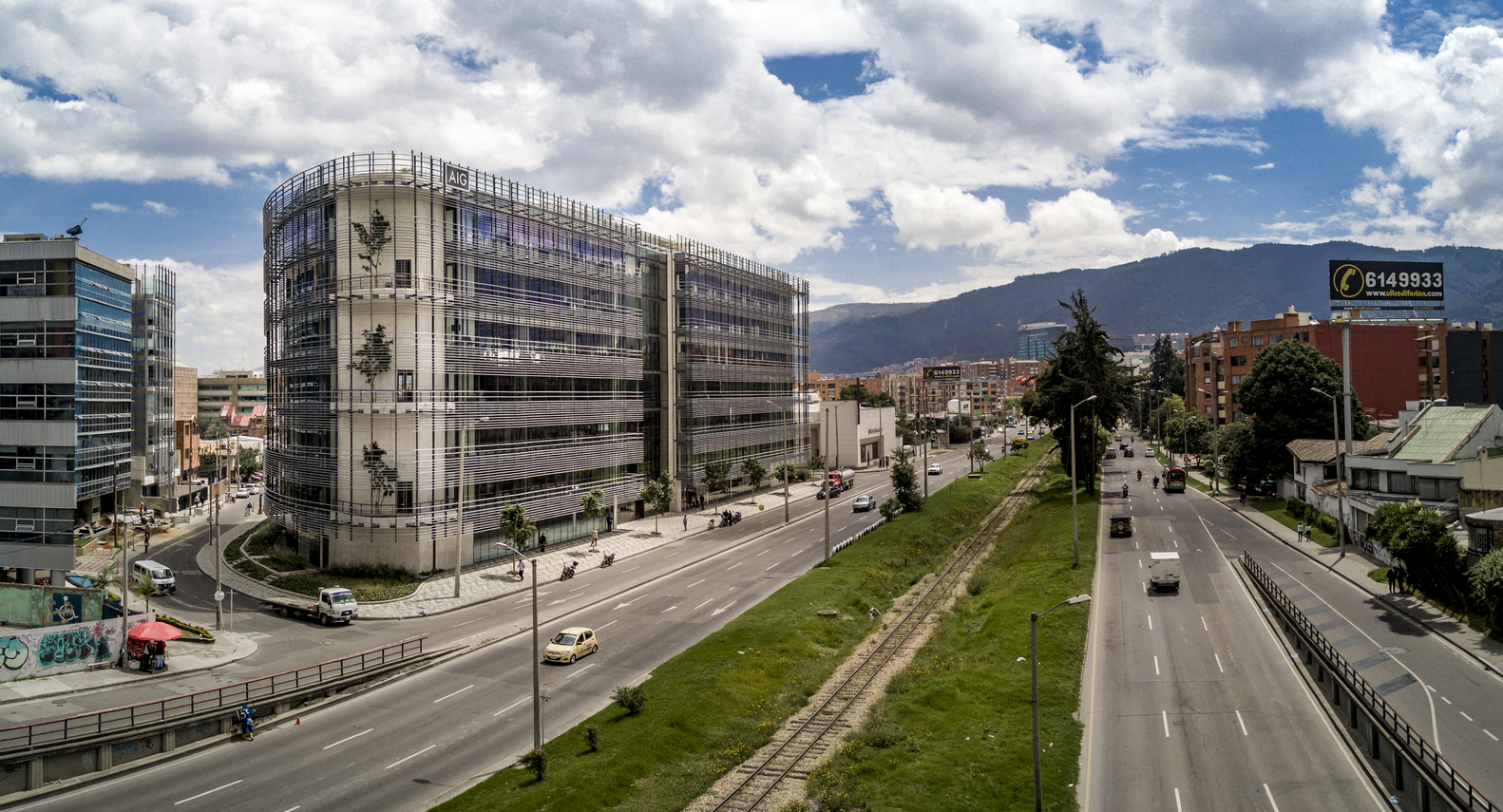

NAOS - Business Campus is an office building located in the northern area of Bogotá, Colombia.

Naos Business Campus
© Llano Fotografía
Naos Business Campus
© Llano Fotografía

The design focuses on providing a sustainable response to its environment and specific location, aiming to generate comfortable and healthy spaces while using natural resources in an efficient manner.

Naos Business Campus
© Llano Fotografía
Naos Business Campus
© Llano Fotografía

A fully glazed cladding solution maximises the entrance of natural light into working areas, lowering the requirements for artificial lighting.

Naos Business Campus
© Llano Fotografía
Naos Business Campus
© Llano Fotografía

The curved aluminum screen that protects this fully glazed external skin controls heat gains in critical times of the day, responding to the environment with different densities between its elements according to the orientation of each facade.

Naos Business Campus
© Llano Fotografía
Naos Business Campus
© Llano Fotografía

These two main elements, along with fair-faced concrete walls, make up the whole of the facade, giving the building a minimalist and contemporary image.

The curved corners respond to the movement and urban dynamic of its surroundings.

Naos Business Campus
© Llano Fotografía
Naos Business Campus
© Llano Fotografía

Double height balconies house 6m tall rubber trees, a very typical species in this area, reinforcing the sustainable image of the building towards the city.

The design takes advantage of air currents coming from the east mountains to naturally ventilate internal areas through a plenum created between the ceiling and the concrete floor slabs.

On warm days, air pressure opens up trap doors located on the ceilings to allow hot air to rise and be naturally expelled by the cold air current coming in from the mountains, lowering demand on mechanical ventilation systems, reducing energy consumption and guaranteeing thermal comfort inside.

The triple height entrance lobby is an extension of the public realm, with trees and benches reinforcing its urban character inside.

Naos Business Campus
© Llano Fotografía
Naos Business Campus
© Llano Fotografía

A very restricted material palette -white calacatta marble, black ultra thin porcelain tiles (reinforced with fiberglass) and teak wood, give this space a sober and elegant character.

Naos Business Campus
© Llano Fotografía
Naos Business Campus
© Llano Fotografía

The texture, brightness, and luminosity of the white marble contrasts with the slick depth of the black porcelain, both complemented by the warm and natural colors and textures of the sustainably sourced timber.

Naos Business Campus
© Llano Fotografía
Naos Business Campus
© Llano Fotografía

Signage has been embedded into the walls and ceilings to emphasize the cleanliness of the design.

The roof landscaping has been strategically designed to blur the boundaries with the city and bring the mountains closer.

Naos Business Campus
© Llano Fotografía
© Llano Fotografía

This space becomes a green park, packed with vegetation, hills, grass and large native trees that reduce the need for watering.

Its large extension helps to harvest rainwater that will be used for bathroom supply and garden watering, while it creates an intimate relationship with nature for the people using its break out areas.

Naos Business Campus
© Llano Fotografía
Naos Business Campus
© Llano Fotografía

Parking areas, with their green colors and dynamic graphics, prioritize hybrid and electric vehicle parking spots, providing charging stations in some of the spots.

Bicycle parking is also generously provided, and the comfortable shower and dressing room areas intend to encourage a healthy lifestyle.

Naos Business Campus
© Llano Fotografía
Naos Business Campus
© Llano Fotografía

By combining all these strategies of energy efficiency and rationalizing the use of natural resources, the building has been pre-certified LEED Gold in the Shell & Core category.


Naos Business Campus
Ground Floor Plan
Naos Business Campus
Typical Floor Plan
Naos Business Campus
Roof Plan


Naos Business Campus
Public Spaces Diagram
Naos Business Campus
Sustainability Diagram
Naos Business Campus
Facade Composition Diagram
