MG RETREAT

SAA Arquitectura + Territorio

ARCHITECT IN CHARGE
Sergio Araneda

COLLABORATORS
Brigitte Woodward, Daniel Reyes, Macarena Assadi, Felipe Valdivieso, Pedro Fabres

MANUFACTURERS
Maderas Arauco

PHOTOGRAPHS
Sergio Araneda

AREA
155 m²

YEAR
2016

LOCATION
Osorno Province, Chile

CATEGORY
Houses

Text description provided by architect.

The project satisfies the requirement to construct a compact family hut, onto which a guest wing will be added.

MG Retreat
© Sergio Araneda
MG Retreat
© Sergio Araneda

The site, which is located meters from the lake within a dense Valdivian forest, proposes a compact volume positioned in the forest in relation to the lake.

The proposal is born from the idea of simple, compact construction together with the idea of the hut as a programmatic reference.

MG Retreat
© Sergio Araneda
MG Retreat
© Sergio Araneda

Under this guise the layout is separated into two large spaces. The house/hut makes up one area and a game-room / guest area the other.

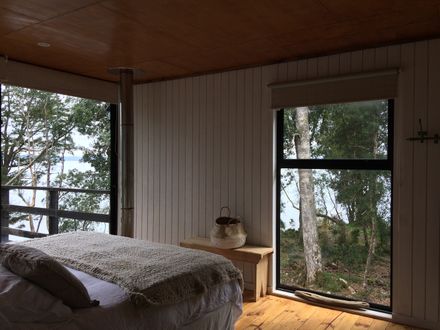

These, in turn are separated into shared uses on the first floor ground level and the bedrooms on the second floor, with a visual relation to the forest and lake.

MG Retreat
© Sergio Araneda
MG Retreat
© Sergio Araneda

The living/dining/kitchen space is set up as a pavilion in which the diagonal structure plays the role of establishing limits to the interior and exterior spaces, freeing the view along the lake, the rain and toward the canopy of green forest.

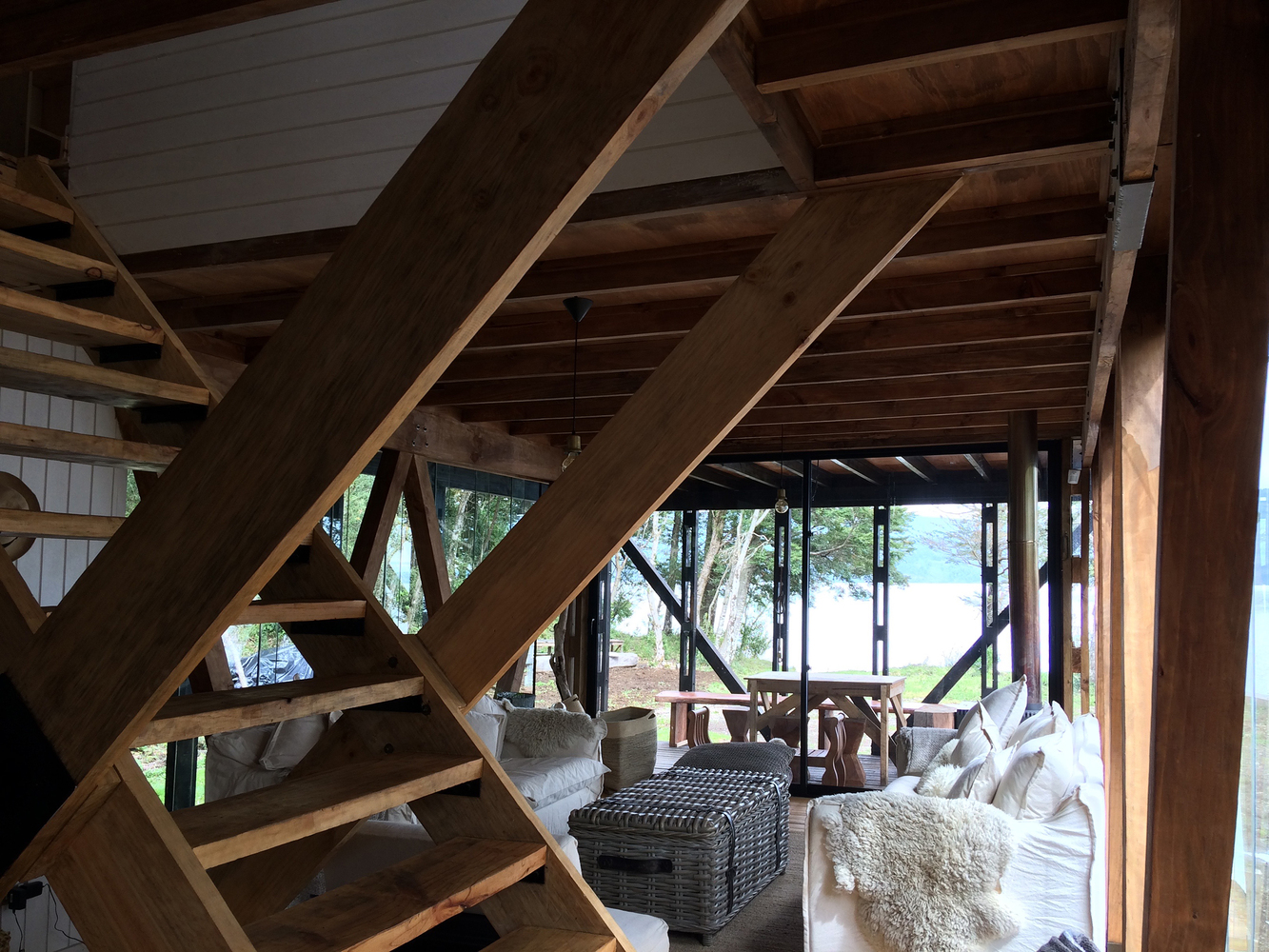

An X-shaped, structural component serves as a staircase where this common space connects with the second-floor bedrooms, which are arranged in a master bedroom and a second room with four bunks.

MG Retreat
© Sergio Araneda
MG Retreat
© Sergio Araneda

The second area is arranged with the bathroom and a game room, which are connected to the common space by way of a deck that serves as an intermediate space between both sections.

Above this the guest area is located with an independent access by way of a second deck on the upper level of the house, which is also connected with both sections.

MG Retreat
© Sergio Araneda
MG Retreat
© Sergio Araneda

The materiality of the structure is of steel pylons and base, a wooden structure on the first level and enclosures of SIP panel and 50cm dimensioned glass to withstand gusts of wind.

For the finishings, dimensioned pine was used for structural elements, with olivillo wood for coverings.

MG Retreat
© Sergio Araneda
MG Retreat
© Sergio Araneda
MG Retreat
© Sergio Araneda


MG Retreat
© Sergio Araneda
MG Retreat
© Sergio Araneda
MG Retreat
© Sergio Araneda
MG Retreat
© Sergio Araneda


MG Retreat
© Sergio Araneda
MG Retreat
© Sergio Araneda


MG Retreat
Elevations 01
MG Retreat
Elevations 02


MG Retreat
Section 01
MG Retreat
Section 02


MG Retreat

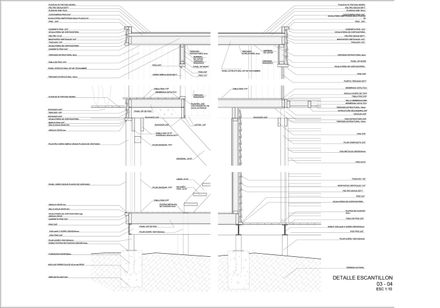

Detail 01
MG Retreat
Detail 02
MG Retreat
Detail 03
MG Retreat
Axonometric


MG Retreat
First Floor Plan
MG Retreat

Second Floor Plan
