MA OF WIND

Ryuichi Ashizawa Architect & Associates

CATEGORY
Houses

LOCATION
Naha, Japan

AREA
84

YEAR
2011

PHOTOGRAPHS
Kaori Ichikawa

STRUCTURE
RC

SITE AREA
210.96㎡

CONSTRUCTION
Daichi Construction Office

STRUCTURE ENGINEER
TAPS Structural Engineering Office

TOTAL FLOOR AREA
109.13㎡

Text description provided by architect.

Okinawa is a beautiful Japanese southern island where it’s possible to appreciate many beautiful natural scenes. The strong solar radiation and typhoons are the only phenomena that makes it unpleasant.

MA of Wind
© Kaori Ichikawa
MA of Wind
© Kaori Ichikawa

Through the ages, people have found ways of living together with nature and generate environments which makes their life richer. This project is a house for a young couple and a little girl in Shuri Nahacity, Okinawa.

We proposed a better dwelling using natural energy without mechanical equipment. The large eaves makes deep shadows that protect life against excessive insolation in Okinawa.

MA of Wind
© Kaori Ichikawa
MA of Wind
© Kaori Ichikawa

The green screen which is covered with plants is set on the ground from the roof. In summer, this green screen will create shade and protection from the sun light.

In winter, sunlight enters inside the room through the leaves. And this green screen guards the privacy of the inhabitants.

The first floor is raised about 3 feet from the ground for natural ventilation. A natural wind passes through the space beneath the floor between the first and the ground level.

Wind comes through and inside the room by vent which are set on first and second floor slab. A hot wind in summer is chilled by the heat of evaporation on the pond, this pond is located under first floor.

MA of Wind
© Kaori Ichikawa
MA of Wind
© Kaori Ichikawa

In the past in Okinawa, an aqueduct and is water was used frequently by the people in their daily life.

This house large roof works as the same mechanism gathering rain water that is lead to the pond or basin on the second floor. Catchment of water is used effectively for plants.

MA of Wind
© Kaori Ichikawa
MA of Wind
© Kaori Ichikawa

With this project, we proposed a better dwelling and environment that adjusts to the unique and severe climate of Okinawa.


MA of Wind

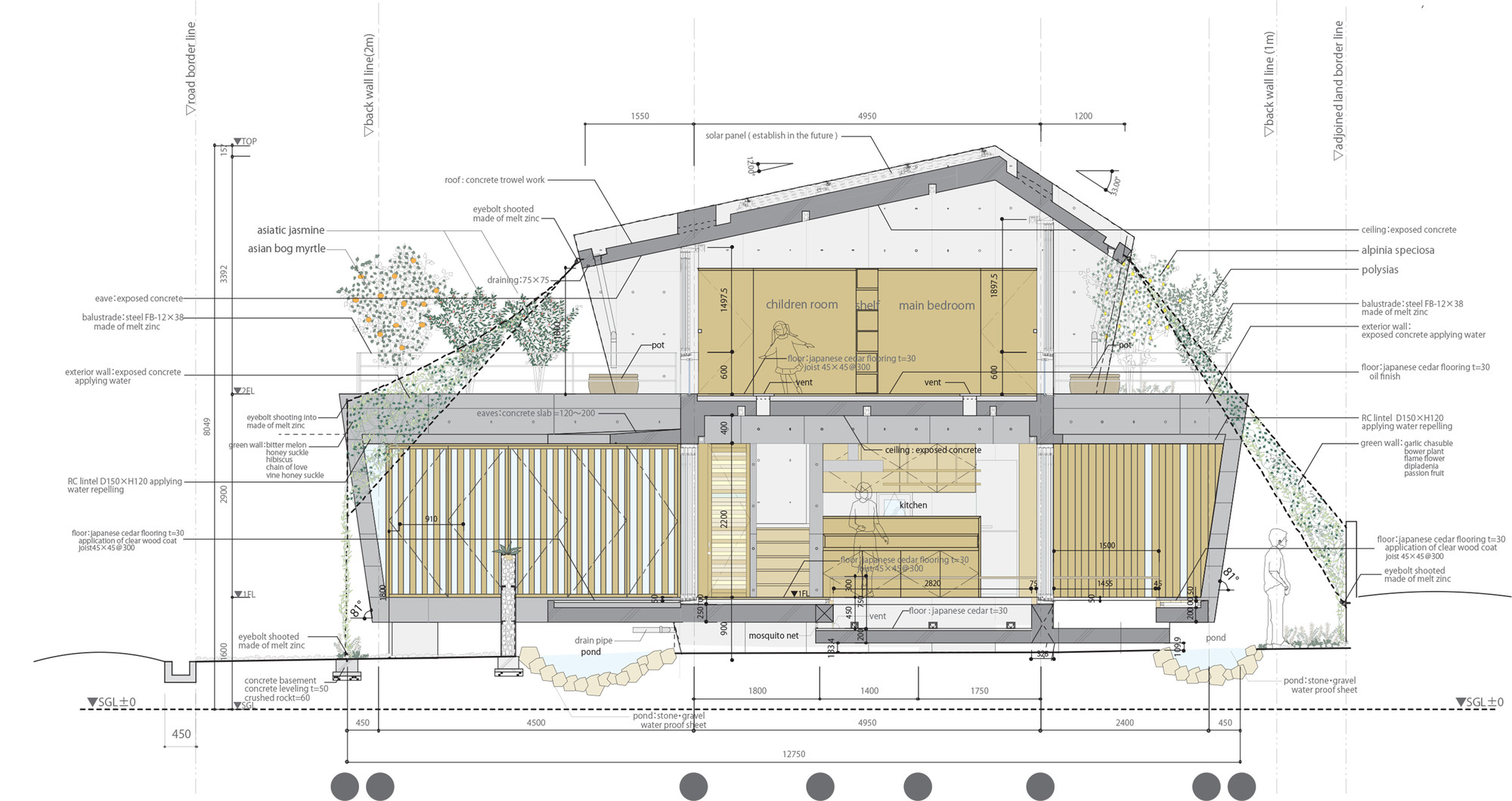

Section
MA of Wind
Section
MA of Wind
Section


MA of Wind

Site Plan
MA of Wind
First Floor Plan
MA of Wind
First Floor Plan
MA of Wind
Second Floor Plan
MA of Wind
Second Floor Plan


MA of Wind

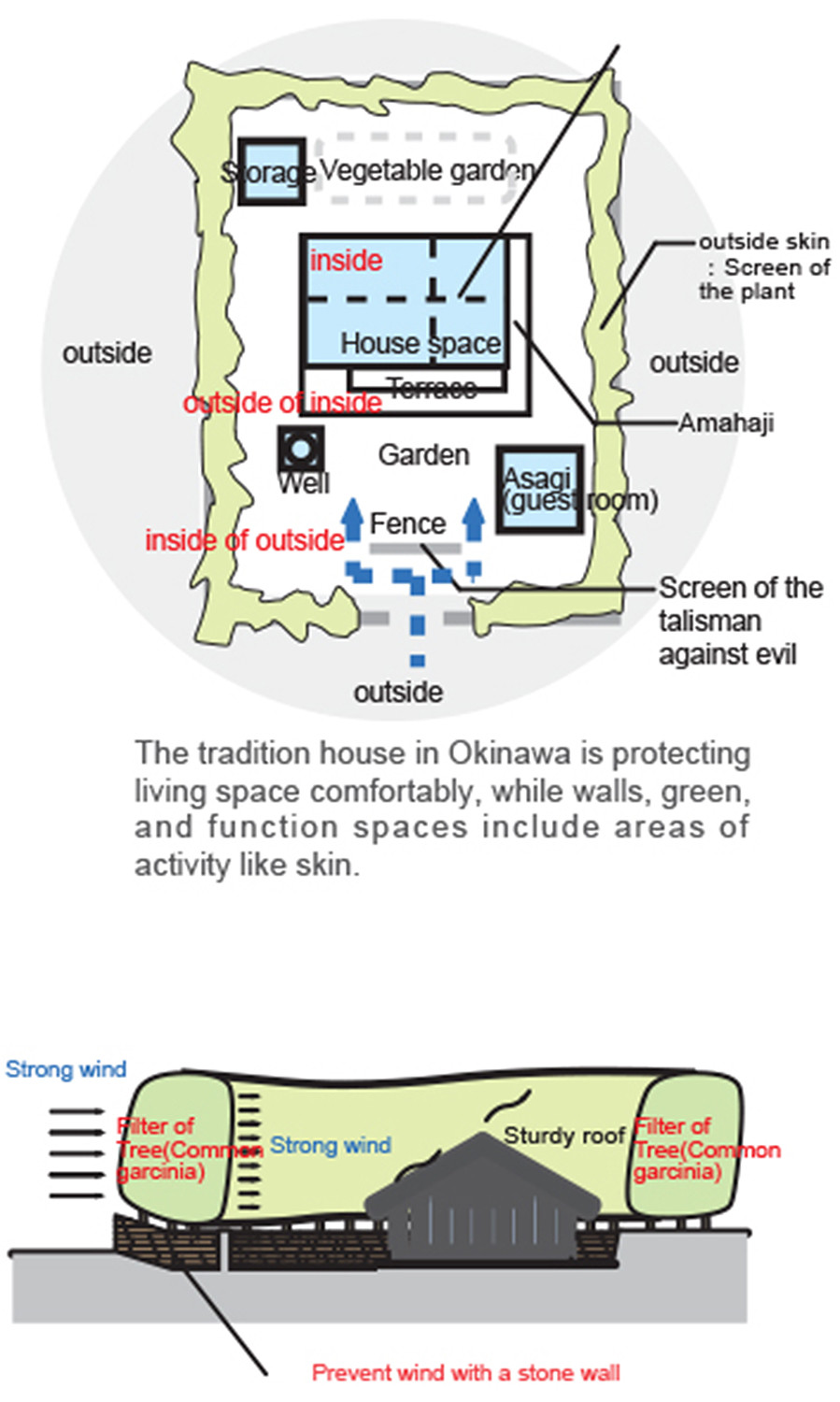

Diagram
MA of Wind
Diagram
