URV UNIVERSITY CAMPUS

Josep Ferrando + Pere Joan Ravetllat + Carme Ribas

YEAR
2011

PHOTOGRAPHS
Pedro Pegenaute

STRUCTURAL ENGINEER
NB-35 Barcelona

ARCHITECT IN CHARGE
Josep Ferrando + Pere Joan Ravetllat + Carme Ribas

CONSTRUCTION
Construccions PAI, S.A.

TECHNICAL ARCHITECT
Toledo-Villarreal + Valeri Consultors

CLIENT
Universitat Rovira I Virgili

BUDGET
9.800.000 €

COLABORATORS
Marc Nadal + Ferran Laguna + Roman Ortega + Olga Schmid + Aida Espanyol + Tania Oramas

LOCATION
Tortosa, Spain

CATEGORY
University

URV University Campus
© Pedro Pegenaute

SITUATION

The new building of the "Terres del l'Ebre" Campus is located in the area of the Tortosa Fairground, to the north of the city, situated between the Ebro river and the district of Remolins

TLOCATION

The location is especially attractive because of its complexity. It is a representative and clearly identifiable ground as an urban framework. Halfway between the park and the city, the proposal aims to smooth the transition between the natural and urban surroundings.

URV University Campus
© Pedro Pegenaute

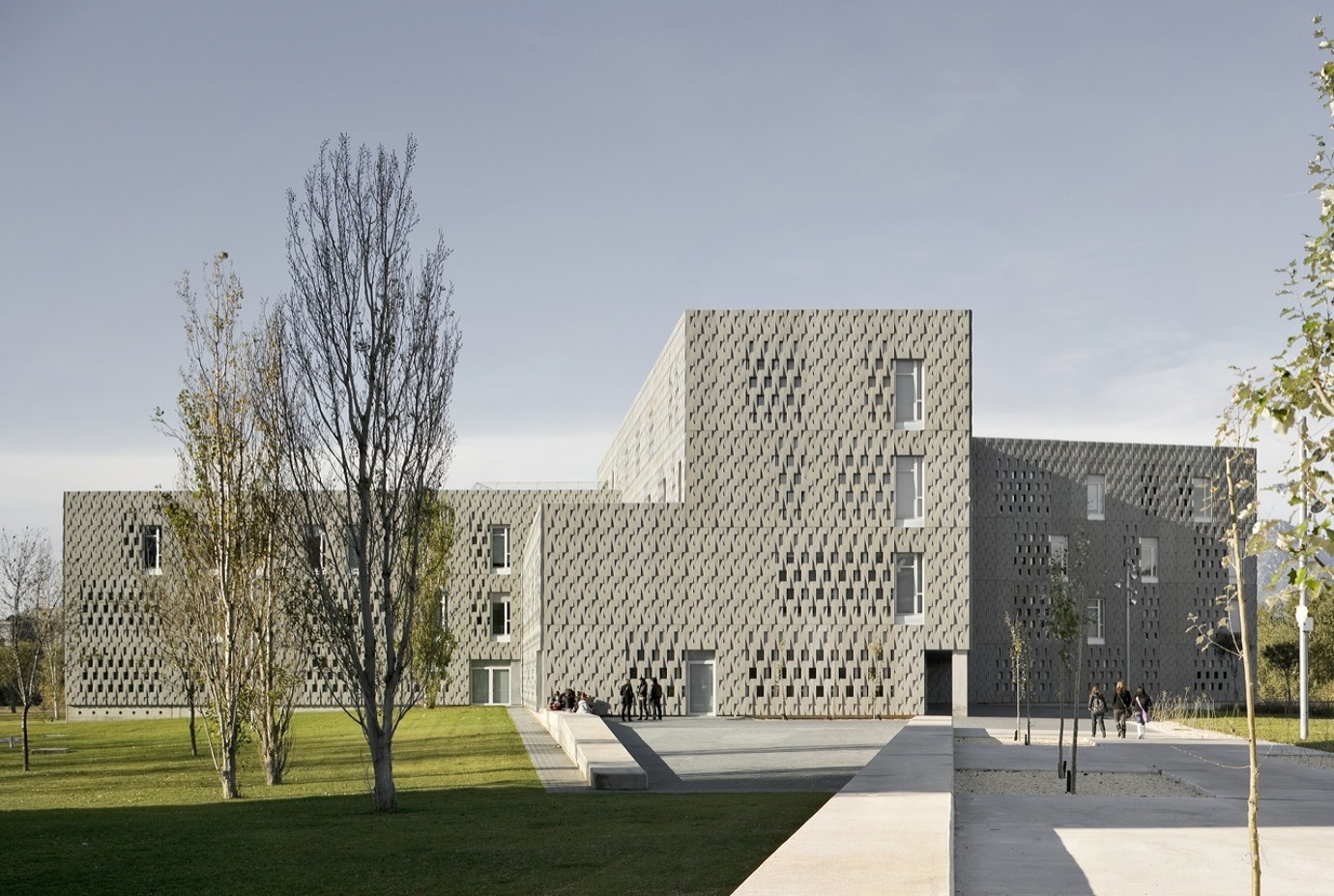

On the one hand, we can discover the new building in the middle of the trees, as a fragmented and discontinuous piece to allow easy integration with the surroundings of the park.

From the other side, on the contrary, it is able to offer a more compact urban facade that overlies the urban topography assuming the usual height of the city.

Its settlement platform is at an upper limit of the park due to the risk of flooding. The difference of dimensions between the park and the building is solved through a series of ramps that give continuity to the space of the park.

THE BUILDING:
In plan, the building moves away from the street to obtain the necessary perimeter for the layout of the program and at the same time can be easily traversed.

URV University Campus
© Pedro Pegenaute

Contrarily, what would represent a barrier-building, the layout facilitates the diagonal routes and allows to relate the park wiith the avenue that connects the city and the fairground.

The new campus wants to be the door of the park creating a beginning and an end and, ate the sime time, be the antechamber of the mentioned avenue. This duality of location characterizes its implantation.

THE PLATFORM :

The plan form allows you to set a good layout of the requested program. External galleries are established grouping by thematic areas, reducing the interior circulation, minimizing the corridors and generating squares or small relation spaces.

Between these common spaces and those of specific uses located in the facade these is an element of variable thickness that serves as transition and filter. Contains support spaces such as bathrooms, facilities patios, box office, etc... promoting acoustic absorption.

URV University Campus
© Pedro Pegenaute
URV University Campus
© Pedro Pegenaute

The section aims to bring natural light to the center of the building in those strategic spaces as the end of the circulation spaces. In addition, it allows to locate the most public or open program on the ground floor where the hall is located with the exhibition space, the library connected with the computer spaces, the study room and the bar.

In the first floor there are three types of classroom that houses the teaching needs, while in the second floor are located the teacher's room. Finally, the third floor houses the management room along with the university extension spaces.

URV University Campus
© Pedro Pegenaute

The Structure

The project comtemplates the construction of a building that presents the shape of a star when seen in the floor plan, with a central body practically square, where the dilatation joint is located. Around the central body are arranged five aisle with independent structures.

In the perimetal zones a unidirectional lining solution was planned with post-tensioned ribs supported on flat beams. In the central zone, basically destined the distribution and vertical communication between common areas, lights are positioned between the pillars of 9,60m in two directions. Through this illumination, a reticular lining was planned.

According to the needs of the interior spaces we can find the opaque piece, the piece of trellis or neither, so that we can discover the different views regarding the park and the city.

URV University Campus
© Pedro Pegenaute

In the area of the ground access porch, a coating is placed on the ceramic seal of galvanized steel plates, on support system also made with galvanized steel profiles.


URV University Campus
Floor Plan
URV University Campus
Location Plan
URV University Campus
Location
URV University Campus
Planta en Vista Ojo de Pez
URV University Campus
Implantation


URV University Campus
Diagram
URV University Campus
Diagram
URV University Campus
Diagram


URV University Campus
Diagram
URV University Campus
Diagram
URV University Campus
Diagram
URV University Campus
Diagram


URV University Campus
Details
URV University Campus
Details


URV University Campus
Section Details
URV University Campus
Section Details
URV University Campus
Section Details
URV University Campus
Section Details


URV University Campus

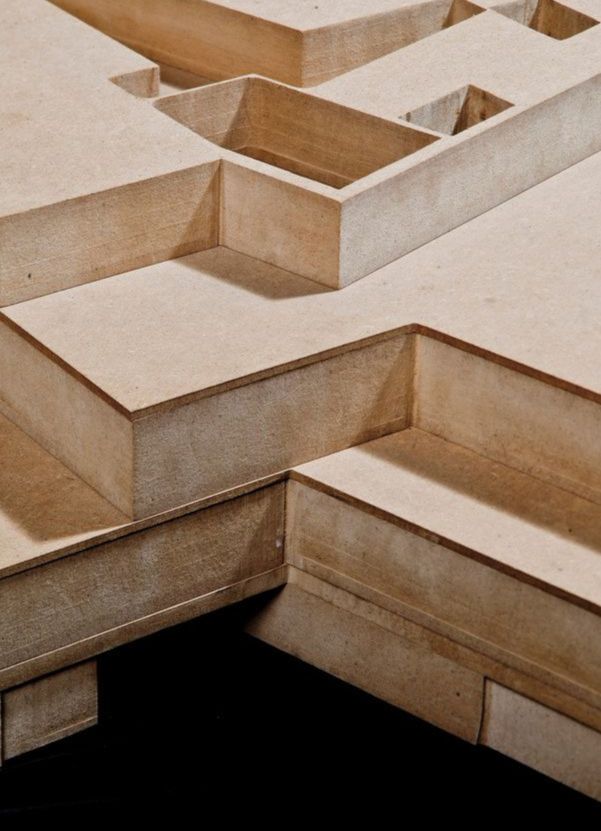

Mock-Up
URV University Campus
Mock-Up


URV University Campus
Axonometrics
URV University Campus
Section
