Alfred Taubman Wing

Alfred Taubman Wing
© James Haefner

ALFRED TAUBMAN WING

Preston Scott Cohen

MECHANICAL AND ELECTRICAL ENGINEERS
Integrated Design Solutions

MANUFACTURERS
Acuity Brands, BASWA acoustic, Centria, Firestone Building Products, Focal Point Lights, Guardian Glass, Haworth, Honeywell, Lithonia Lighting, Lumenwerx, McKeon, Schlage, Sherwin-Williams, Smoke Guard, Super Sky Skylights, Von Duprin, Wausau Window and Wall Systems, thyssenkrupp, Algona Hardwoods, Inc., Mod Interiors, National Block Company

GENERAL CONTRACTOR
The Christman Company

STRUCTURAL ENGINEERS
SDI Structures

LANDSCAPE
Beckett and Raider

CIVIL ENGINEERS
Beckett and Raider

MECHANICAL AND ELECTRICAL ENGINEERS
Integrated Design Solutions

LANDSCAPE AND CIVIL ENGINEERS
Beckett and Raider

ARCHITECT OF RECORD
Integrated Design Solutions

PHOTOGRAPHS
James Haefner

AREA
36000 ft²

YEAR
2017

LOCATION
Ann Arbor, United States

CATEGORY
Educational Architecture

Text description provided by architect.

Among the most important and interesting challenges was a twofold demand:

Alfred Taubman Wing
© James Haefner
Alfred Taubman Wing
© James Haefner

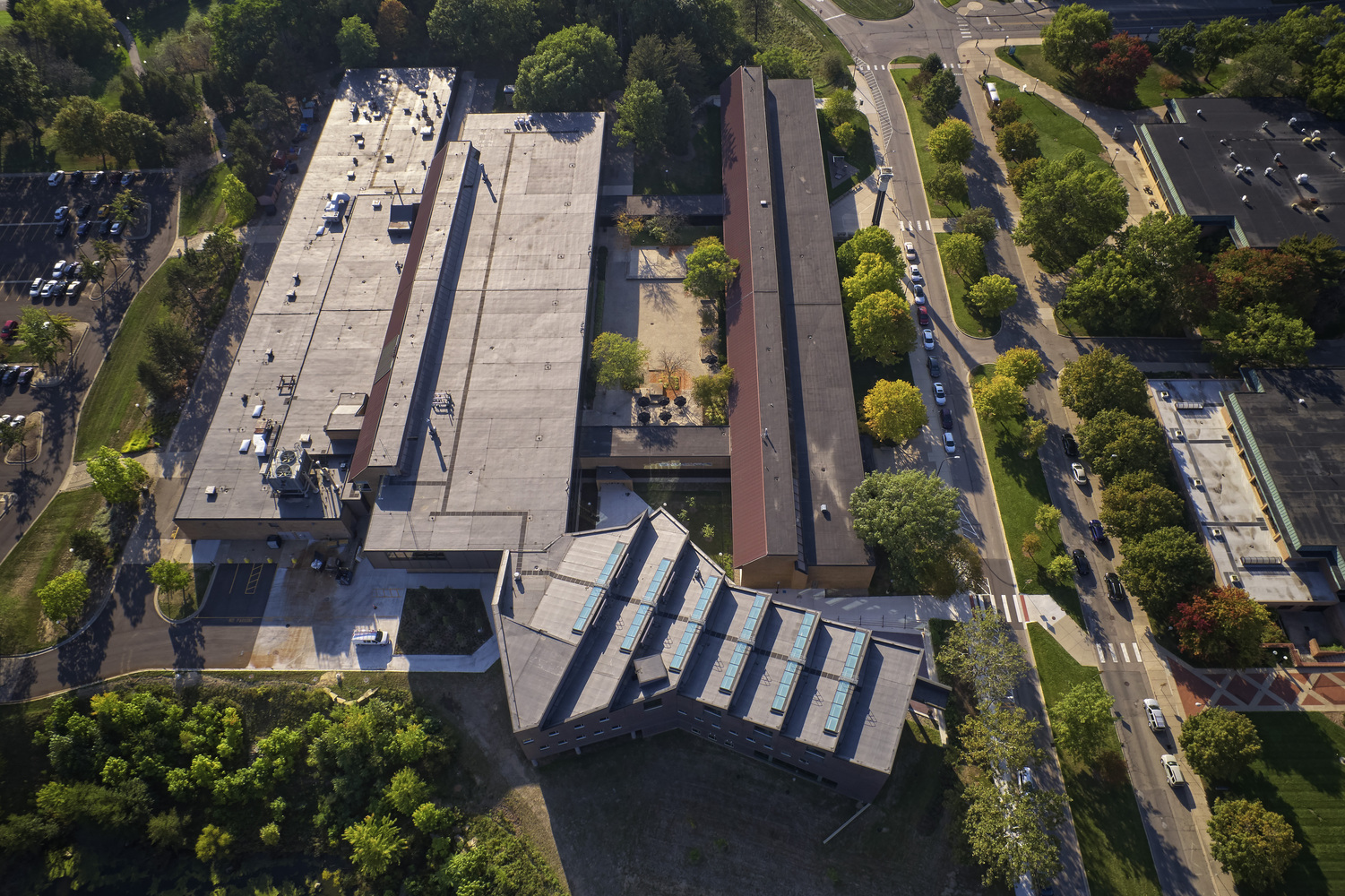

on the one hand, to create a 36,000 ft2 building that would stretch from the existing architecture /planning wing of the college, past the art wing, all the way to Bonisteel Blvd, and on the other hand to make this building that is on the eastern end of the existing building act as if it is in the center of the school, in order that it will serve as the nexus of circulation for all students and faculty.

In short, the goal was to establish a center within a linear edge building. In order to make the square footage of the three-story building stretch as far as it needed to, half of the ground floor was evacuated, which created an outdoor experimental gallery for student projects.

Alfred Taubman Wing
© James Haefner
Alfred Taubman Wing
© James Haefner

Lifting the commons off the ground this way solved several other problems; it permitted the courtyard between the existing and new buildings to remain open to the valley and retention pond to the east,

allowed the new building to create a path through – between the existing and the new -, resolved the disparity in height between the new plenums and the existing building’s, and thereby established an ascending and continuous sequence of interior spaces.

Alfred Taubman Wing
© James Haefner
Alfred Taubman Wing
© James Haefner

The main space, called the commons, is composed of two pairs of ramps linked by a spiral-like suspended stair.

The solid parts of the railings are kept low to enable viewing of the central space from afar and to articulate a remarkable scale effect.

Alfred Taubman Wing
© James Haefner
Alfred Taubman Wing
© James Haefner

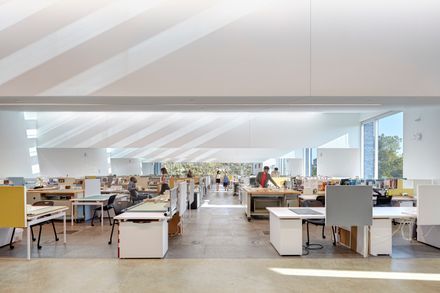

The commons is a continuous space encircled by the new and existing studios, as well as all the other essential spaces of the program: the lounges for architecture and planning students, faculty offices, and a remarkably tiered set of meeting and reading rooms.

Its function is to serve as a lounge, a space in which to hold reviews, a workspace for large fabrication projects, a space for important occasions and dinners, and a space for lectures and discussions.The facades combine modest vernacular and cultural building character.

Alfred Taubman Wing
© James Haefner
Alfred Taubman Wing
© James Haefner

The brick pattern, which weaves running bond and soldier’s coursing, is composed to formalize implicit shadows or folds that extend from the sawtooth profile to the windows.

Four large windows address distant views from the studio; the smaller individual office windows reveal the changing levels within the building.

Alfred Taubman Wing
© James Haefner
Alfred Taubman Wing
© James Haefner
Alfred Taubman Wing
© James Haefner


Alfred Taubman Wing
© James Haefner
Alfred Taubman Wing
© James Haefner
Alfred Taubman Wing
© James Haefner
Alfred Taubman Wing
© James Haefner
Alfred Taubman Wing
© James Haefner
Alfred Taubman Wing
© James Haefner


Alfred Taubman Wing
Ground Floor Plan
Alfred Taubman Wing
First Floor Plan
Alfred Taubman Wing
Second Floor Plan
Alfred Taubman Wing
Section


Alfred Taubman Wing
Site Plan
