FIRE STATION OF TIANFU NEW DISTRICT

China Southwest Architectural Design and Research Institute

YEAR
2016

LOCATION
Chengdu Shi, China

CATEGORY
Fire Station

BUILDING LAYOUT

Tianfu new district is a new urban areaAs the first fire station in Tianfu new district, it integrates office, fire control, rescue, training and publicity.

Fire Station of Tianfu New District
© Courtesy of CSWADI
Fire Station of Tianfu New District
© Courtesy of CSWADI

The original station has limited building volume, scattered construction covered too much area, make it difficult to form an overall strong image.

Therefore the new design adopted centralized layout, making different function such as office building, dormitory, dining halls, multi-purpose training facility, and the public visitation gallery into an integrated arrangement as well as creating a circular layout. The function becomes compact and efficient, and creates sufficient training ground.

Fire Station of Tianfu New District
© Courtesy of CSWADI
Fire Station of Tianfu New District
© Courtesy of CSWADI

MASSING DESIGN

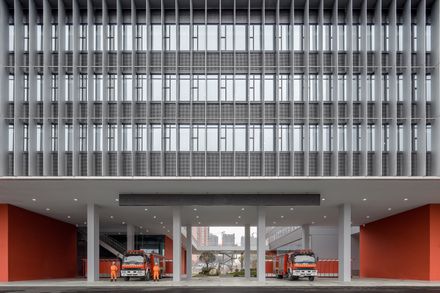

The section of the building reflects the characteristics of the fire station. In order to create more fire truck parking space and activity space, the entire ground floor is elevated.

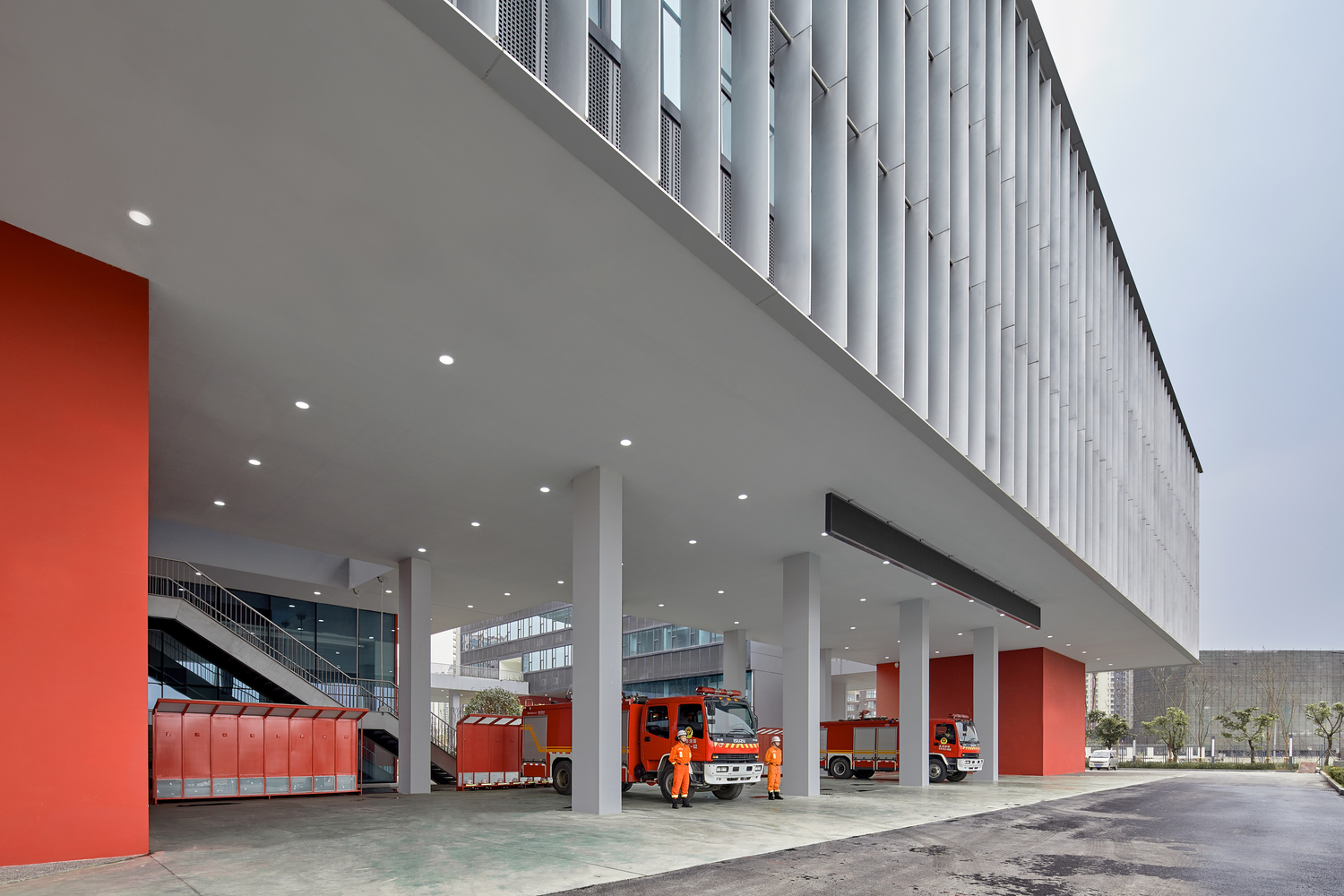

The overhead space is 8 meters high, upper massing has large-scale overhangs that produce tension for the massing.

Fire Station of Tianfu New District
© Courtesy of CSWADI
Fire Station of Tianfu New District
© Courtesy of CSWADI

The overhead layer is inserted by four red square boxes, accommodates the functions of the Battalion foyer, Detachment foyer, cafeteria and the smoke & heat training hall, forming the concept of "fire box". Two delicate outdoor steel stairs are interspersed between the overhead spaces, creating a focal point on the outdoor circulation.

Facade design breakthrough stereotyped conservative army’s building, and adopted concise and modern style. The upper cantilevered massing fitted with long wing-shaped shadings, effectively solve the problem of over exposure to sunlight, at the same time unify different internal function under a complete skin texture, highlighting army’s culture of uniformity.

Fire Station of Tianfu New District
© Courtesy of CSWADI
Fire Station of Tianfu New District
© Courtesy of CSWADI

In addition, the special facilities for fire stations, such as the combat uniform storage and closet, are also specially designed to fit into the overall concept.

Public Interaction

The fire station values public education, and by creating an independent touring circulation, the flow of visitors does not interfere with the fire department's daily operation:

Fire Station of Tianfu New District
© Courtesy of CSWADI
Fire Station of Tianfu New District
© Courtesy of CSWADI

First, the publics visit the fire fighting vehicles under the overhead space, and then go through the outdoor stairway to visit the gallery on the second floor, then access to the multi-purpose training hall for fire fighting training, and then arrived in the south edge viewing platform on the second floor, the platform is in front of the training ground, easy for army review and public viewing.

Finally, the steel stair in the central round opening can lead visitors to the training ground, completes the independent touring circulation. This convenient strategy for public will become a function highlight for the next generation of fire station.

Fire Station of Tianfu New District
© Courtesy of CSWADI
Fire Station of Tianfu New District
© Courtesy of CSWADI

Sustainable Design

The station is an environmental friendly demonstrative project for the army. Courtyard greenery is a tradition for army dormitory. The main building is arranged in "U" shape, introducing the sunlight and natural air into the green environment.

Thebuilding uses technical strategies such as ground level elevated ventilation, rain water recycle, training hall celling level side-window ventilation, green roof, vertical façade sun shades and permeable concrete paving to improve the architectural micro climate.

Fire Station of Tianfu New District
© Courtesy of CSWADI


Fire Station of Tianfu New District
Elevation
Fire Station of Tianfu New District
North Elevation
Fire Station of Tianfu New District
Section
Fire Station of Tianfu New District
Diagram


Fire Station of Tianfu New District
Diagram
Fire Station of Tianfu New District
Diagram


Fire Station of Tianfu New District
Ground Floor Plan
Fire Station of Tianfu New District
Second Floor Plan
Fire Station of Tianfu New District
Third Floor Plan
Fire Station of Tianfu New District
Four Floor Plan


Fire Station of Tianfu New District
Site Plan
Fire Station of Tianfu New District
Site
