CHILD EDUCATION CENTER

Planta33 Arquitectura. Rodrigo Muñoz García

INSTALLATION
Sergio Calvo y Natalia Balmaseda

LOCATION
Talavera De La Reina, Spain

AREA
976 m²

YEAR
2011

PHOTOGRAPHS
Miguel De Guzmán

COLLABORATORS
Sergio Calvo, Marita Martín, Patricia Pintado, Valentina Bidone, Iván Barreira

QUANTITY SURVEYOR
Jose Luis Rocha Tofiño

BUDGET
983.720 Euros

COST
1007,90 Euros/m2

STRUCTURE
GV 408

CLIENT
Consejería de Educación y Ciencia de la JCCM

Child Education Center
© Miguel de Guzmán
Child Education Center
© Miguel de Guzmán

The work consist of an enlargement of an nursery and primary school of which number of students has recently grown.

Child Education Center
© Miguel de Guzmán
Child Education Center
© Miguel de Guzmán

The design includes two different projects: a new classroom building for pre-school education and a sport hall.

A strict scale and an accurate stitching with the surrounding buildings are needed due to the small size of existing free space.

The 3 to 5-year-old children´s building is located in the wider area of a triangular space with all classrooms facing south.

Its floor plan is based on a trapezoidal geometric mesh that is more appropiated to the triangular shape of site, avoiding the usual monotony of the standard right-angled classroom buildings.

Child Education Center
© Miguel de Guzmán
Child Education Center
© Miguel de Guzmán

The building includes nine classrooms, presenting itself as two parallel pieces connected by a glazed corridor and sewn by an external system of beams.

The basic cell of the tissue differentiates two tipes of classrooms, each with identical outdoor areas.

Each classroom has an horizontal flat ceiling that shelters access, storage areas and toilets. When toilets has not facade, it gets top lighting and ventilation of skylights.

Child Education Center
© Miguel de Guzmán
Child Education Center
© Miguel de Guzmán

Collective spaces and teacher´s room are created by multiplying the scale of basic cell giving shape to a spacious lobby.

This space fluenty guides to classrooms and is also used for psychomotor activity lesson. In the south area, the building reveals a leisure area for common use with lots of deciduous trees.

Child Education Center
© Miguel de Guzmán


Child Education Center
© Miguel de Guzmán
Child Education Center
© Miguel de Guzmán
Child Education Center
© Miguel de Guzmán
Child Education Center
© Miguel de Guzmán
Child Education Center
© Miguel de Guzmán
Child Education Center
© Miguel de Guzmán
Child Education Center
© Miguel de Guzmán
Child Education Center
© Miguel de Guzmán
Child Education Center
© Miguel de Guzmán
Child Education Center
© Miguel de Guzmán


Child Education Center
Section
Child Education Center
Section
Child Education Center
Elevations
Child Education Center
Site Plan


Child Education Center

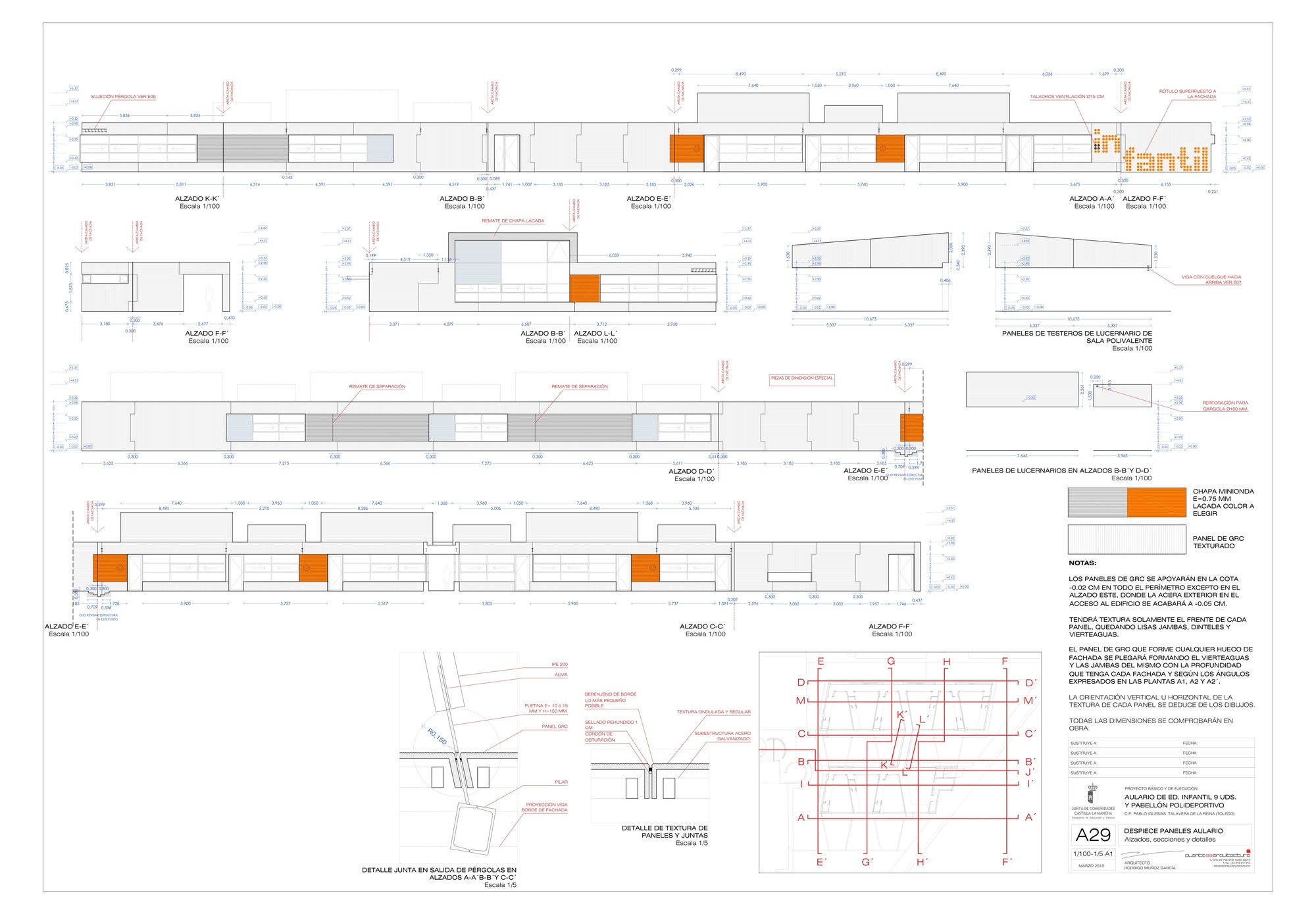

Detail
Child Education Center
Detail
Child Education Center
Detail
Child Education Center
Detail


Child Education Center
Plan
Child Education Center
Roof Plan


Child Education Center

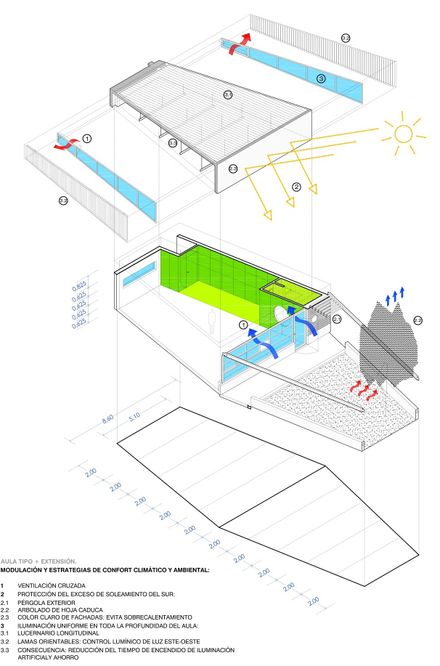

Axon
Child Education Center
Axon
