PINS DE LA BRUME HOTEL

GOA Architects

ARCHITECTS
GOA Architects

CATEGORY
Hotels

YEAR
2012

LANDSCAPE DESIGN
Z+T Studio,Shanghai

DESIGN TEAM
Chen Binxin, Li Zheng

LOCATION
Hangzhou, China

INTERIOR DESIGN
PAL,Hongkong

PROJECT CHIEF MANAGER
He Jun

AREA
5500 m²

Text description provided by architect.

Pins De La Brume Hotel is on side of the entrance road of Lingyin Temple, Hangzhou, looking far into the North Peak. The original building is masonry structure built at the end of 20th century.

Pins De La Brume Hotel
Courtesy of GOA Architects
Pins De La Brume Hotel
Courtesy of GOA Architects

The client hoped to upgrade it into a modern business hotel with traditional Chinese approach. Our design emphasized on arranging the space sequence of the buildings, establishing the utilization of interior and exterior spaces and visual relationship, and upgrading the exterior façade.

The main entrance of the building was moved to the south gable from the location facing to the central courtyard. The new fire exit staircase was enclosed by glass curtain wall with wood screen inside to create the metaphor of “lantern”.

Pins De La Brume Hotel
Courtesy of GOA Architects
Pins De La Brume Hotel
Courtesy of GOA Architects

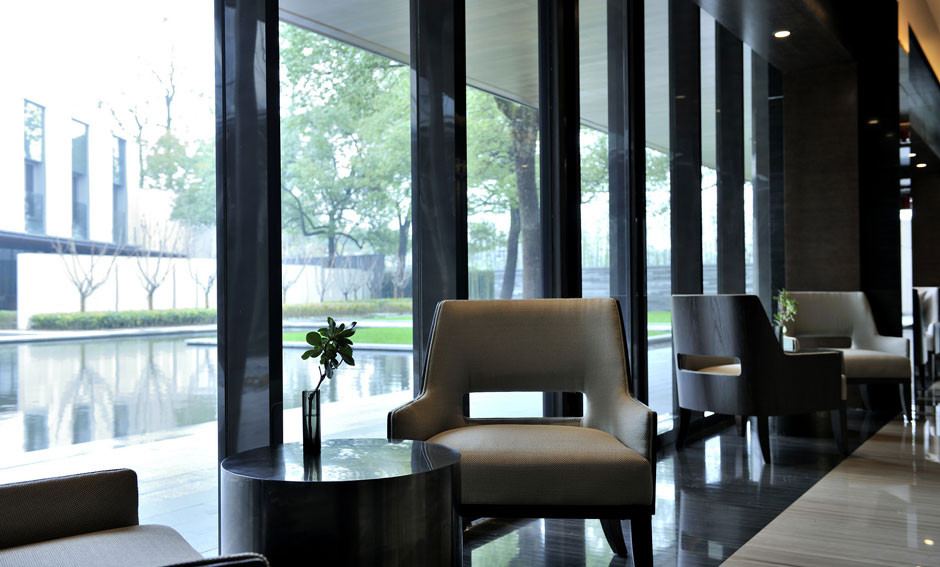

The first floor of the south building provided a continuous long hallway by consolidating the structure, and faced to the central courtyard enclosed by the buildings.

The continuous and profound overhang indicated the extension of the space towards outside. Guests might enjoy the natural landscape reflected by the “water mirror” under the canopy.

Pins De La Brume Hotel
Courtesy of GOA Architects
Pins De La Brume Hotel
Courtesy of GOA Architects

An independent entrance of the restaurant was located on Linyin Road on the north. A triangular canopy was the connection between the road and the buildings in multi-directions.

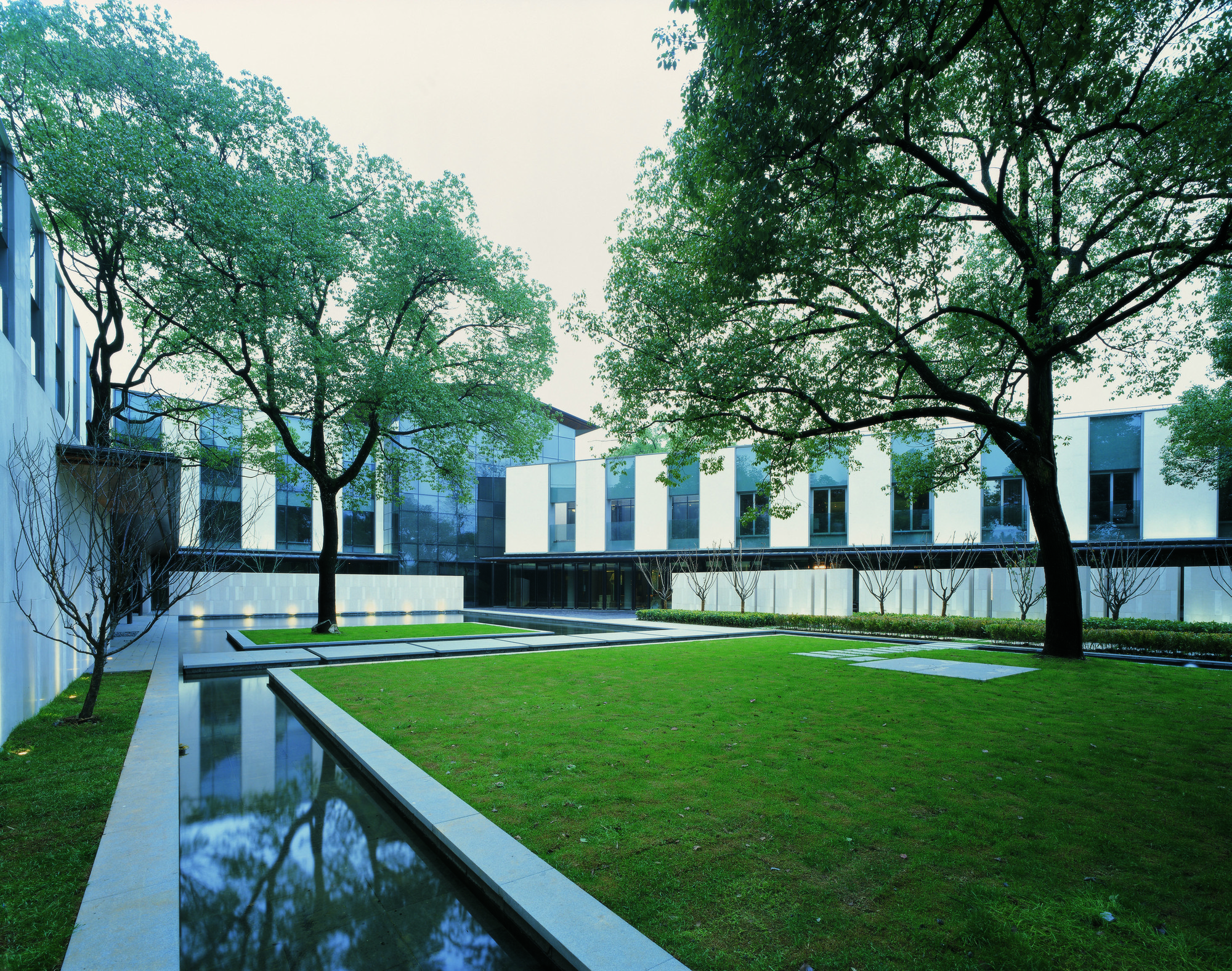

There was a lawn and a “water mirror” in the central courtyard, which were the key landscape elements of the public space together with the reserved camphor tree here.

Pins De La Brume Hotel
Courtesy of GOA Architects
Pins De La Brume Hotel
Courtesy of GOA Architects

An outdoor swimming pool was located at the open space area on the south. Guests on the ground floor may directly jump into the pool from their rooms.

The upgraded roof top could be an outdoor restaurant facing to the North Peak, or be a garden for parties. The presidential suite on the top floor of the building had its own private roof deck enclosed by glass curtain wall.

Pins De La Brume Hotel
Courtesy of GOA Architects
Pins De La Brume Hotel
Courtesy of GOA Architects

The building façade was divided into several simple forms by different facade materials. The façade was divided into two sections by the eave based on the interior functions.

The lower section was enclosed by transparent glass walls and landscape walls, creating extended horizontal composition.

Pins De La Brume Hotel
Courtesy of GOA Architects
Pins De La Brume Hotel
Courtesy of GOA Architects
Pins De La Brume Hotel
Courtesy of GOA Architects
Pins De La Brume Hotel
Courtesy of GOA Architects

The material of the suspended ceilings underneath of the eave was warm color solid wood.Vertical lines were used on the upper section.

The vertical light color stone walls and glass balconies of the guestrooms created dark and bright rhythm.

Pins De La Brume Hotel
Courtesy of GOA Architects
Pins De La Brume Hotel
Courtesy of GOA Architects

The simple, smooth and delicate material combination provided the building with quiet, introverted, exquisite and noble characters.


Pins De La Brume Hotel
First Floor Plan
Pins De La Brume Hotel

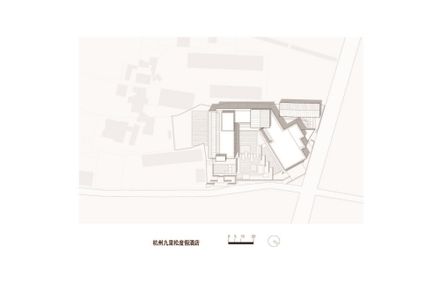

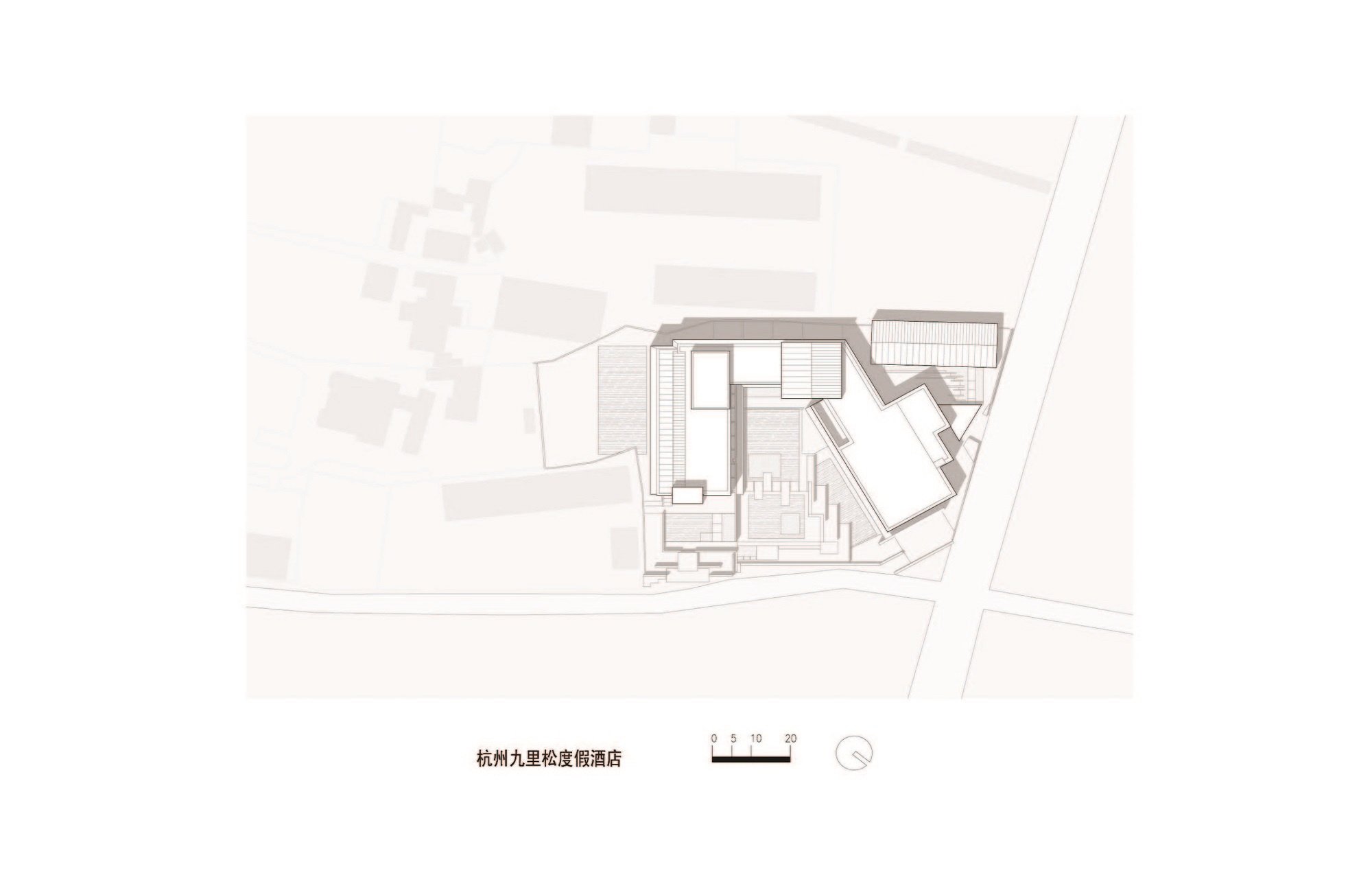

Site Plan


Pins De La Brume Hotel
Elevation
Pins De La Brume Hotel
Elevation
