SHELTER HOUSE

Punto Arquitectónico

LOCATION
Mérida, mexico

CATEGORY
Houses

AUTHORS ARCHITECTS
Alejandra Molina, Israel Ramírez, Mauricio Rosales

MANUFACTURERS
Interalum, Palorosa, Unserhaus

AREA
505m²

YEAR
2016

PHOTOGRAPHS
Tamara Uribe

COLLABORATING ARCHITECTS
Cristina Cámara, Rolando Lizarraga, Nalley Osorio, Gabriel Mendoza, Sebastian Montalvo, Cristopher Estrella, Manuel Ferrer

This project seeks to be a private and intimate place for a family of five.

Shelter House
© Tamara Uribe
Shelter House
© Tamara Uribe
Shelter House
© Tamara Uribe

The program is divided into two levels, leaving on the ground floor the public zone, semi-public and services; Upstairs the rooms.

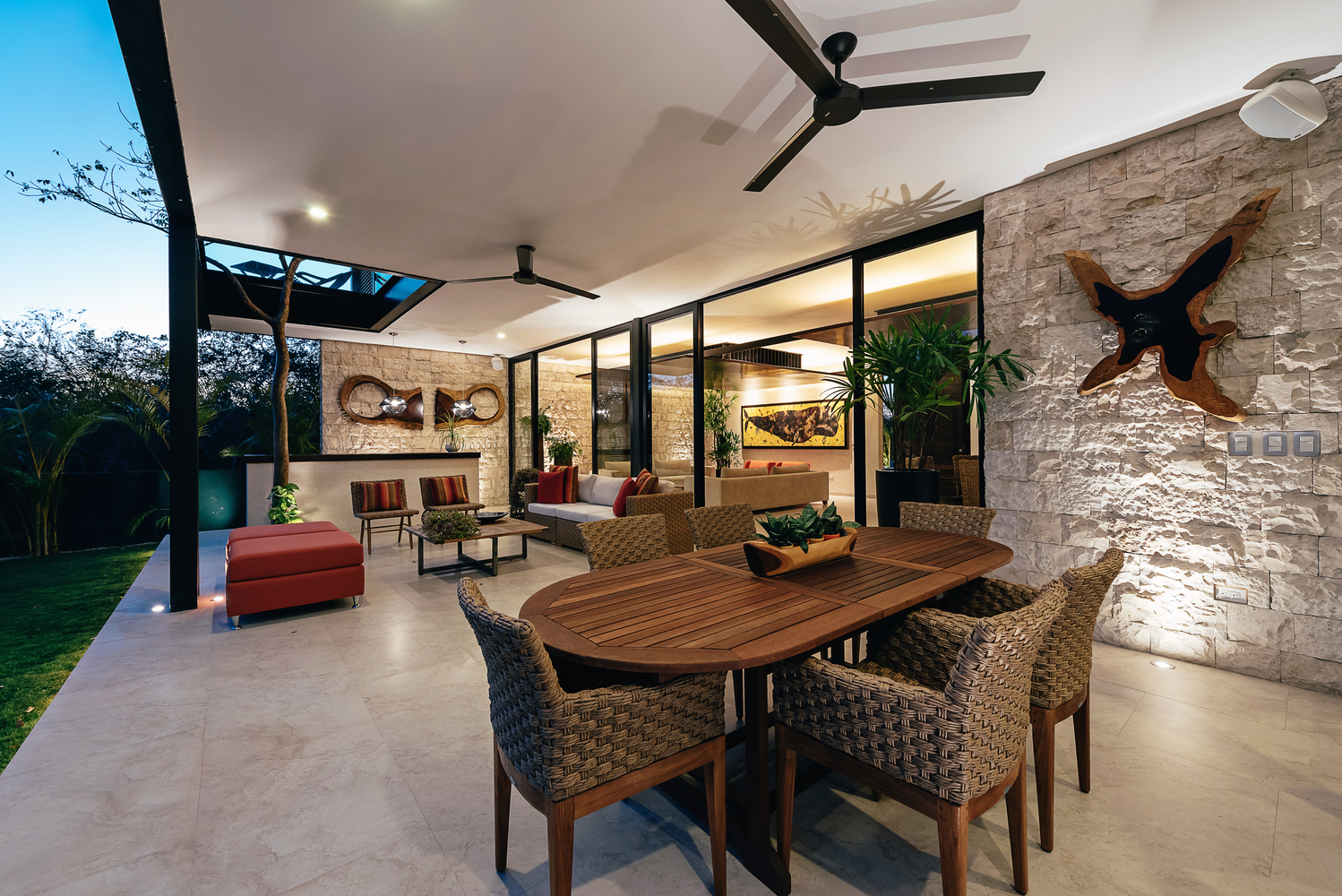

Located in the center of the site, the social area composed of living room and dining room develops parallel to the back yard, accompanied in its entire length by the terrace.

Shelter House
© Tamara Uribe
Shelter House
© Tamara Uribe

The house opens completely towards the garden views, remaining blind and airtight towards the road.

The interior space is delimited by sliding wooden walls, which allow integrating the rooms in different configurations according to the use and privacy required.

Shelter House
© Tamara Uribe
Shelter House
© Tamara Uribe

The living and dining room can be integrated into a single space with the kitchen, also the kitchen can be integrated with the TV room. The TV room is configured as a transparent volume that dialogues with the terrace and the garden.

Shelter House
© Tamara Uribe
Shelter House
© Tamara Uribe

Before the social area, as part of the facade takes place the volume of services, which configured as an element of monolithic appearance, serves as the first filter or barrier, increasing the feeling of privacy both from the street to the house and home on the street.

Shelter House
© Tamara Uribe
Shelter House
© Tamara Uribe

Upstairs, on the perimeter the bedrooms take place, emphasizing the views to the outside, these rooms converge in a private familiar room.

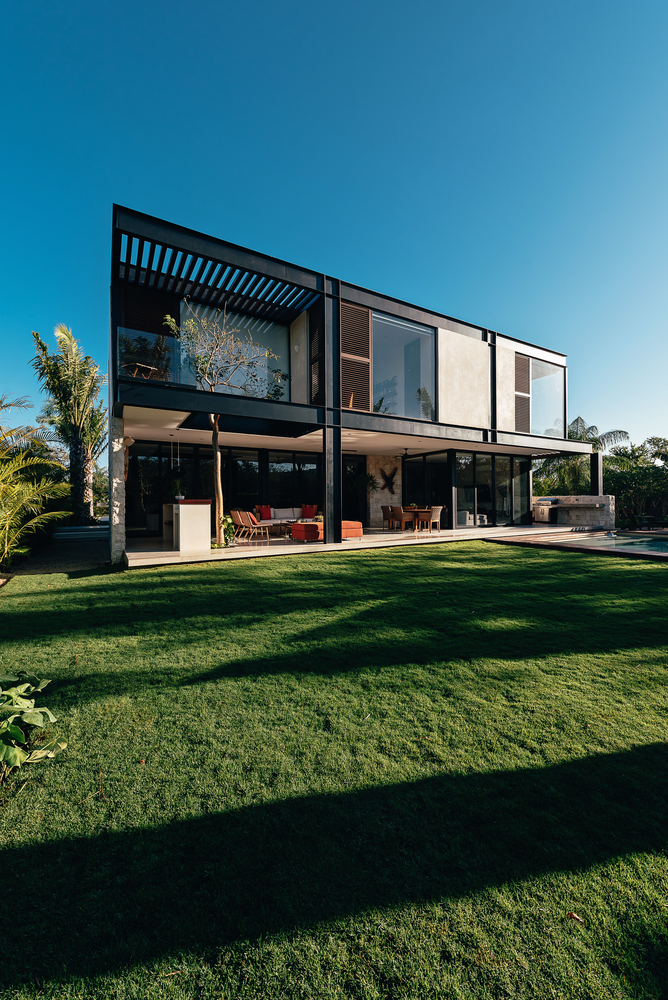

The house, materialized as a bunker on the ground floor, with solid stone walls of the region, looking almost impermeable from the street; in a contrary way, the rear facade opens completely to the outside through large windows emphasizing the relation with the exterior.

Shelter House
© Tamara Uribe


Shelter House
Courtesy of Arq. Bernardo Arredondo
Shelter House
Courtesy of Arq. Bernardo Arredondo
Shelter House
Courtesy of Arq. Bernardo Arredondo
Shelter House
Courtesy of Arq. Bernardo Arredondo
Shelter House
Courtesy of Arq. Bernardo Arredondo
Shelter House
Courtesy of Arq. Bernardo Arredondo
Shelter House
Courtesy of Arq. Bernardo Arredondo
Shelter House
Courtesy of Arq. Bernardo Arredondo
Shelter House
Courtesy of Arq. Bernardo Arredondo
Shelter House
Courtesy of Arq. Bernardo Arredondo


Shelter House

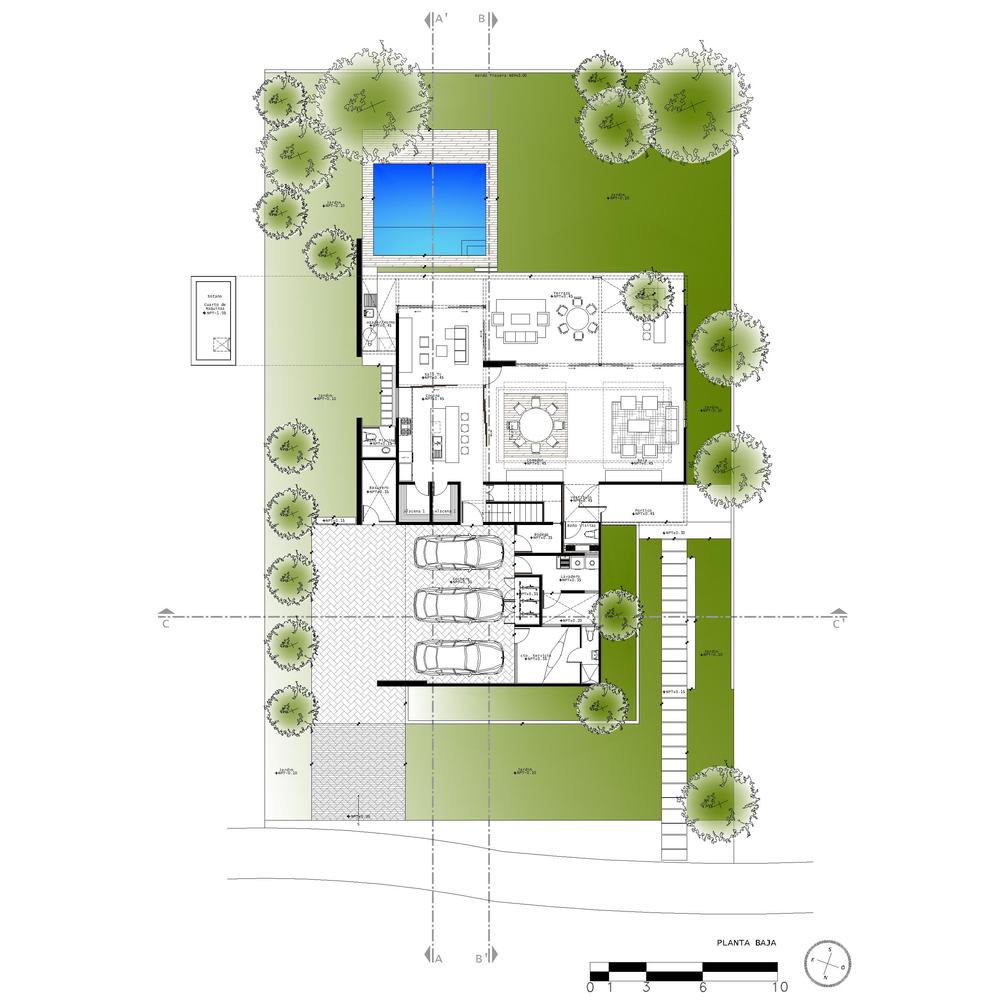

Lower Floor Plan
Shelter House
Roof Floor Plan
Shelter House
Upper Floor Plan


Shelter House
Elevations
Shelter House
Section


Shelter House
Terrain View Axonometric
Shelter House
Site View Axonometric
Shelter House
Exploded Axonometric
Shelter House
Ground View Axonometric


Shelter House
Bunker Axonometric
Shelter House
People Distribution Diagram
Shelter House
Integration Diagram
Shelter House
Volume Diagram
