Serrano Monjaraz Arquitectos

Casa Tierra

Casa Tierra
© Pedro Hiriart

CASA TIERRA

Serrano Monjaraz Arquitectos

CATEGORY
Houses

LOCATION
Mexico

AREA
676 m²

YEAR
2012

PHOTOGRAPHS
Pedro Hiriart

For the design of Casa Tierra (Earth House) the project was developed in order to be friendly with the surroundings and with a high energetic performance respecting all the premises in the Cumbres de Santa Fe master plan and establishing how the architects consider all the XXI century houses should be done.

Casa Tierra
© Pedro Hiriart
Casa Tierra
© Pedro Hiriart
Casa Tierra
© Pedro Hiriart

The project is supported on the conscience that has always been Serrano Monjaraz Arquitectos trade mark when developing architecture.

As any other project it is adequate to the environment and also responds to the sustainable design regulations that have been increasing in the last years.

Casa Tierra
© Pedro Hiriart
Casa Tierra
© Pedro Hiriart

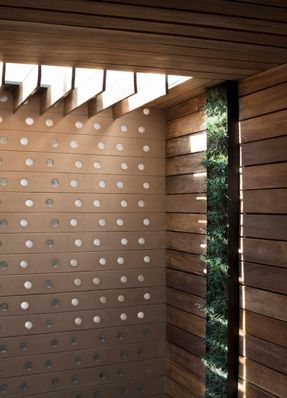

The construction system of Casa Tierra was done with Pressed Earth Blocks (PEB) made from soil of the same lot.

This system was selected for being cost and energy efficient, fire and pest resistant, virtually soundproof, durable and structurally sound and aesthetically pleasing.

Casa Tierra
© Pedro Hiriart
Casa Tierra
© Pedro Hiriart
Casa Tierra
© Pedro Hiriart
Casa Tierra
© Pedro Hiriart

PEB provides complete architectural freedom and is made from non-toxic readily available natural raw material. Compared to other systems, it is more flexible and does not affect the width of the walls.

The soil was pressed with 3% of concrete and 7% of lime, being 90% of the material needed for the construction obtained directly from the lot.

Casa Tierra is an example of the rational use of all the resources and the total respect for the surrounding environment.

Casa Tierra
© Pedro Hiriart
Casa Tierra
© Pedro Hiriart
Casa Tierra
© Pedro Hiriart

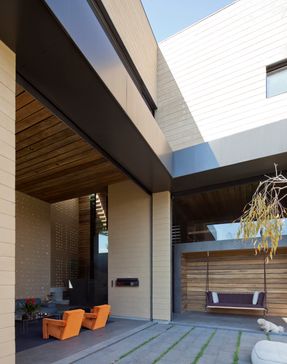

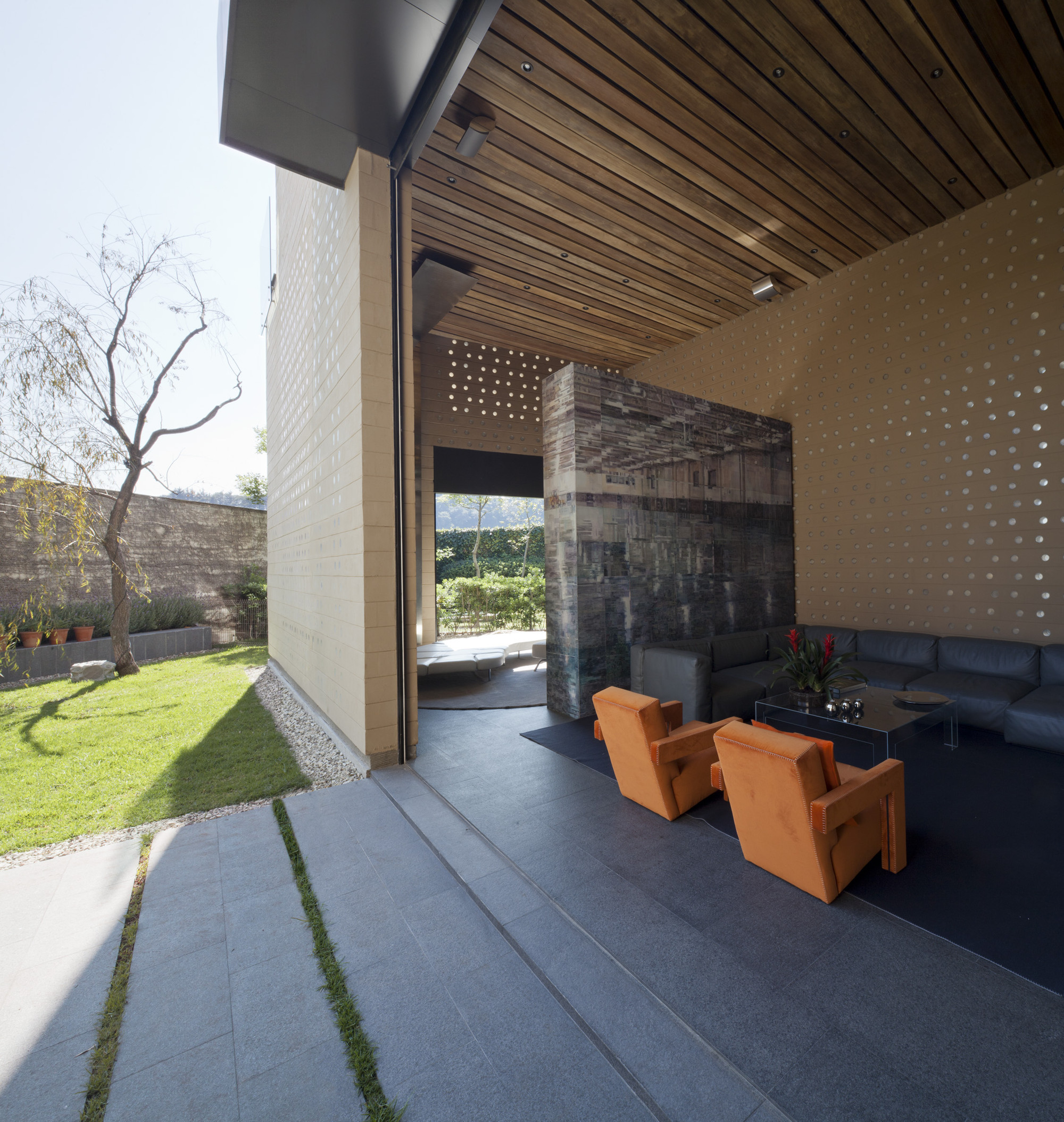

In its design all the guidelines of the complex were followed and elements that characterize its urbanization, such as: natural stone, apparent concrete in grey, black and white shades were incorporated.

The gardens around the house were integrated to the natural surroundings to create a complete atmosphere.

Casa Tierra
© Pedro Hiriart


Casa Tierra
© Pedro Hiriart
Casa Tierra
© Pedro Hiriart
Casa Tierra
© Pedro Hiriart
Casa Tierra
© Pedro Hiriart
Casa Tierra
© Pedro Hiriart


Casa Tierra

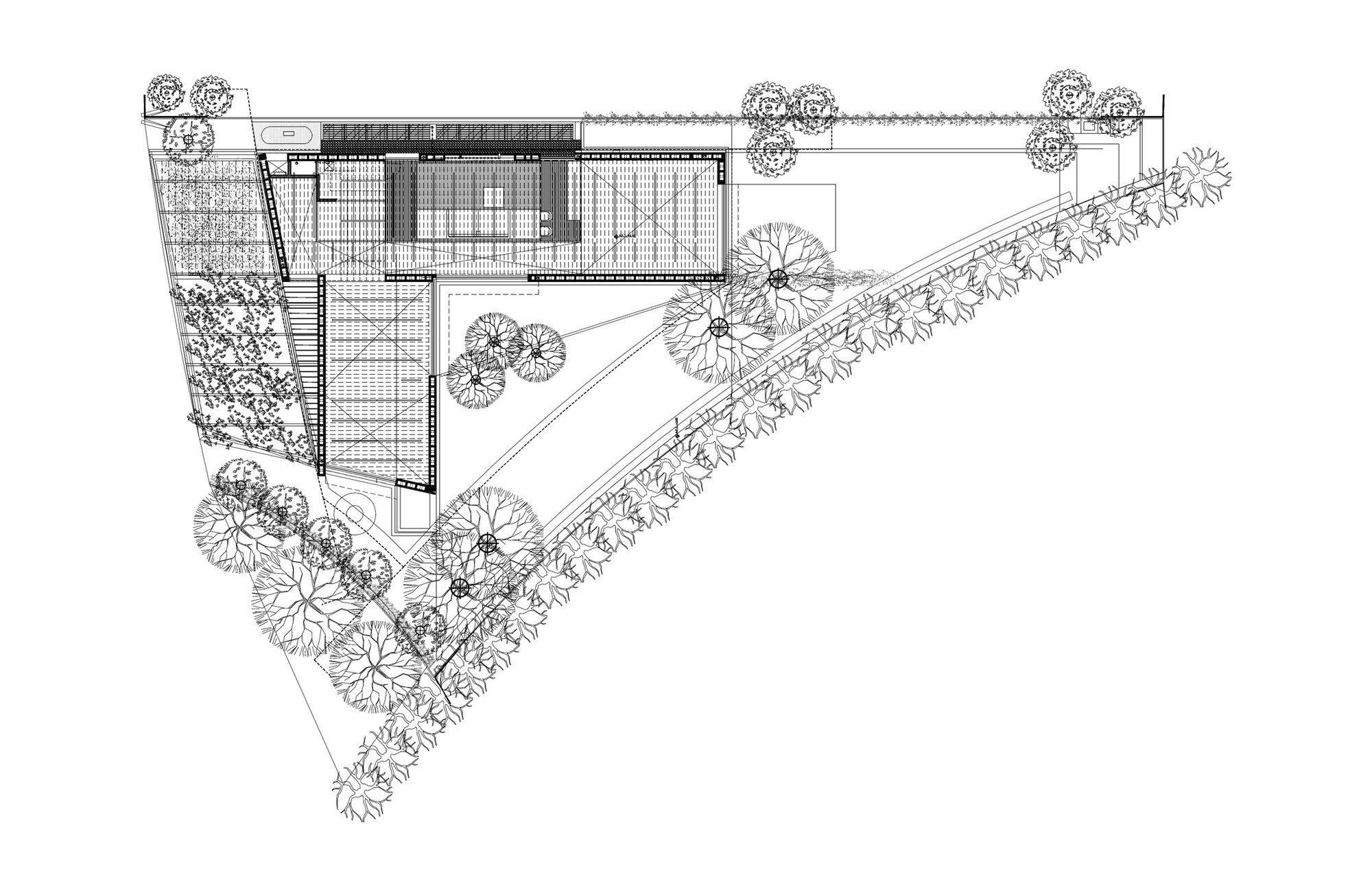

Floor Plan
Casa Tierra
Floor Plan
Casa Tierra
Floor Plan
Casa Tierra
Floor Plan


Casa Tierra
Elevation
Casa Tierra
Elevation
Casa Tierra
Elevation
Casa Tierra
Elevation


Casa Tierra
Section
Casa Tierra
Section
