SAN MATEO HOUSING RECONSTRUCTION

MCEA | ARQUITECTURA + NAOS 04 ARQUITECTOS

CATEGORY
Office buildings, refurbishment

CATEGORY
Lorca, spain

AREA
23

COUNTRY
Spain

YEAR
2016

ACOUSTIC
Sonen

STRUCTURE
José Antonio Hernández Cañadas / QL Ingeniería / ALIVA Ingenieros

MANUFACTURERS
Cortizo, Isover, Levantina, Otis, PAMESA CERAMICA, Porcelanosa Grupo

ARCHITECTS
Mcea | arquitectura + naos 04 arquitectos

INSTALLATIONS
Juan Manuel Vázquez Sánchez / ATP Ingenieros / DM Ingeniería

EJECUTION DIRECTION
Acrópolis Arquitectura


CONSTRUCTION
Dragados tecopsa

CITY
Lorca

The old residential building of San Mateo was among the most iconic structures of the city of Lorca, due to its unusual configuration with a central space opening onto Juan Carlos I Avenue.

San Mateo Housing Reconstruction
© David Frutos
San Mateo Housing Reconstruction
© David Frutos
San Mateo Housing Reconstruction
© David Frutos
San Mateo Housing Reconstruction
© David Frutos

Having sustained serious damage during the earthquake of May 11th, 2011, its complete demolition was undertaken a month later.

In October 2011, the building’s Community of Owners announced a competition of ideas to select the most appropriate project for the reconstruction of their homes.

The contest guidelines made special mention of the need for design projects to establish a structure of ownership reflecting that of the original building, so that each of the owners could regain the position they had previously occupied in the complex.

San Mateo Housing Reconstruction
© David Frutos
San Mateo Housing Reconstruction
© David Frutos

The proposal submitted by MCEA | ARQUITECTURA and NAOS 04 ARQUITECTOS envisioned the architectural project as an instrument capable of making reconstruction viable through achieving the necessary consensus of all owners within the building.

Thus it was seen as essential to incorporate into the draft process the experiences and different ways of living that each of the owners had developed over time, so that the reconstruction and occupation of new homes could be made the least traumatic possible.

San Mateo Housing Reconstruction
San Mateo Housing Reconstruction
© David Frutos
San Mateo Housing Reconstruction
© David Frutos

Similarly, owners were also given the opportunity to incorporate into the project their current and future needs, through the desig© David Frutosn of flexible layouts that led in many cases to the availability of either new a single dwelling or two smaller ones.

This participatory process, in which all owners were individually involved with the design team, consisted primarily of the following phases:

1. In the first phase the needs of each individual owner were defined by filling out detailed forms reflecting all the proposals and comments which they considered relevant.

2. In the second phase of work a process of designing housing typologies was undertaken, one which embraced all proposals for distribution received in the first phase.

San Mateo Housing Reconstruction
© David Frutos
San Mateo Housing Reconstruction
© David Frutos

3. A third phase of work was then developed in which each of the owners were given the different typologies defined on the vertical of their home, in order to select the one which best suited their needs and finally to introduce those specific changes considered opportune by each owner.

The end result of this participatory process was reflected in the final draft, which included 45 different dwelling typologies, thus achieving the acceptance of, and identification with, owners in the jointly developed project.

This process, which incorporated the willingness of each individual owner to contribute to the ordering and management of the whole group of dwellings, also sought to reflect a similar ethos in the design of the façade, through a general system of shutters in which the individual of owners could change the overall composition, thus obtaining an image of the building in constant flux and adaption to the needs of the individuals therein.

San Mateo Housing Reconstruction
© David Frutos


San Mateo Housing Reconstruction

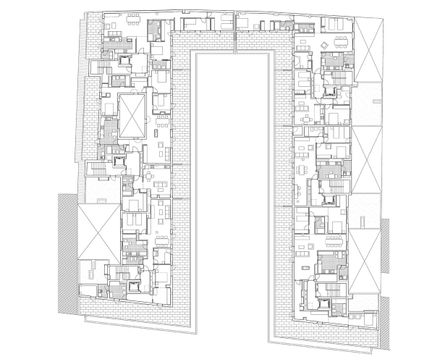

Floor Plan 01
San Mateo Housing Reconstruction
Floor Plan 02
San Mateo Housing Reconstruction
Floor Plan 03


San Mateo Housing Reconstruction
Floor Plan 00
San Mateo Housing Reconstruction
Floor Plan 01
San Mateo Housing Reconstruction
Floor Plan 02
San Mateo Housing Reconstruction
Floor Plan 03
San Mateo Housing Reconstruction
Floor Plan 04
San Mateo Housing Reconstruction
Floor Plan 06
San Mateo Housing Reconstruction
Floor Plan 07
San Mateo Housing Reconstruction
Floor Plan 08


San Mateo Housing Reconstruction
Section


San Mateo Housing Reconstruction
Elevation
San Mateo Housing Reconstruction
Elevation


San Mateo Housing Reconstruction
Site Plan
