EMILIANO ZAPATA BUILDING

HGR Arquitectos

ARCHITECTS
HGR Arquitectos

STRUCTURAL DESIGN
Mata y Triana Ingenieros Consultores

MANUFACTURERS
Daltile, Cappa, Construlita, Escenium HAUS, Firenze, Gravita, Llano de la Torre, Novaceramic, Saint Johann

ARCHITECT IN CHARGE
Marcos Hagerman

EXECUTIVE DRAWING
Rodrigo Durán, Cocoy Arenas

GRAPHIC DESIGN
LEOLAB

DEVELOPER
Ciudad Vertical

FACILITIES
zMP Instalaciones

PHOTOGRAPHS
Diana Arnau

AREA
3504

YEAR
2017

LOCATION
Ciudad de méxico, mexico

CATEGORY
Apartments

Emiliano Zapata Building
© Diana Arnau
Emiliano Zapata Building
© Diana Arnau

Text description provided by architect.

EMILIANO ZAPATA is a six floor Housing Project with 25 units located in Eje 7 “A” Sur General Emiliano Zapata, on a central neighborhood of Mexico City.

Emiliano Zapata Building
© Diana Arnau
Emiliano Zapata Building
© Diana Arnau

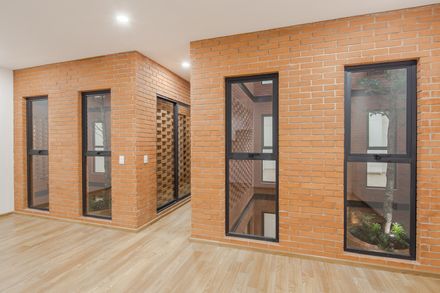

The project proposes 25 apartments between 82 and 91sqm, which are divided internally through 5 central patios. Each patio separates the common area from the private area in each apartment.

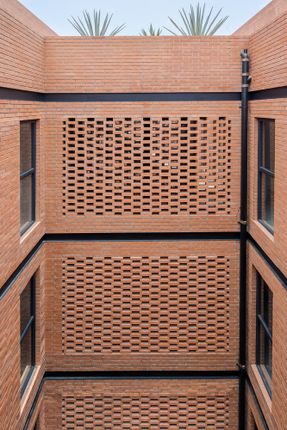

These areas are connected by bridges confined by a brick lattice that helps to give privacy and ventilation to each unit.

Emiliano Zapata Building
© Diana Arnau
Emiliano Zapata Building
© Diana Arnau

The building functions as a single tower, having a single elevator core and an emergency staircase that flies along the entire eastern facade.

Each level accommodates five apartments, which are accessed through an open corridor.

Emiliano Zapata Building
© Diana Arnau
Emiliano Zapata Building
© Diana Arnau

The building has a lobby on the ground floor located at level +/- 0.00m, which is directly connected to the vertical circulation core. All living spaces have ventilation and natural lighting.

The roof is equipped with 10 private roofgardens for the apartments of the fourth and fifth level.

Emiliano Zapata Building
© Diana Arnau
Emiliano Zapata Building
© Diana Arnau

To comply the 20% of free area that the city requires, five patios are accommodated at the center of the building.

In each patio, a liquidambar tree was planted helping give privacy and better views to each apartment.

Emiliano Zapata Building
© Diana Arnau
Emiliano Zapata Building
© Diana Arnau

On the other hand, on the east side, the building is separated from the surrounding houses, creating a long access courtyard.

The whole building was designed with natural and durable materials such as brick, volcanic stone and wood.

Emiliano Zapata Building
© Diana Arnau
Emiliano Zapata Building
© Diana Arnau

The proposed vegetation is endemic and requires little maintenance.

With this project we achieve that all the units have good privacy, lighting and acoustic insulation, even being next to a very busy avenue in Mexico City.

Emiliano Zapata Building
© Diana Arnau
Emiliano Zapata Building
© Diana Arnau
Emiliano Zapata Building
© Diana Arnau


Emiliano Zapata Building
© Diana Arnau
Emiliano Zapata Building
© Diana Arnau
Emiliano Zapata Building
© Diana Arnau
Emiliano Zapata Building
© Diana Arnau


Emiliano Zapata Building
© Diana Arnau
Emiliano Zapata Building
© Diana Arnau
Emiliano Zapata Building
© Diana Arnau


Emiliano Zapata Building
Access Plan
Emiliano Zapata Building

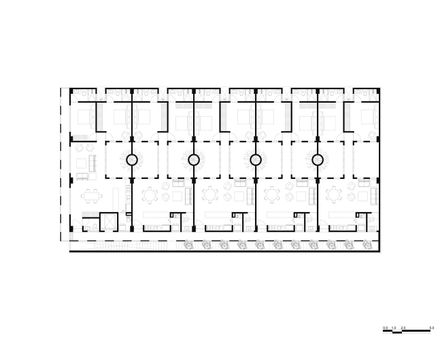

Type Plan
Emiliano Zapata Building
Roof Plan


Emiliano Zapata Building
Longitudinal Section
Emiliano Zapata Building
Lateral Facade
