Nine Bridges Pergola

Nine Bridges Pergola
© Archframe

NINE BRIDGES PERGOLA

Joho Architecture

ARCHITECTS
Joho Architecture

CITY
Seogwipo-s

LOCATION
Seogwipo-si, South Korea

CATEGORY
Hospitality Architecture

AREA
264 m²

YEAR
2016

PHOTOGRAPHS
Archframe

MANUFACTURERS
IlJIN Unisco, Jeju Basalt

CONSTRUCTION
CJ Engineering & Construction + IlJin Unisco

COUNTRY
South Korea

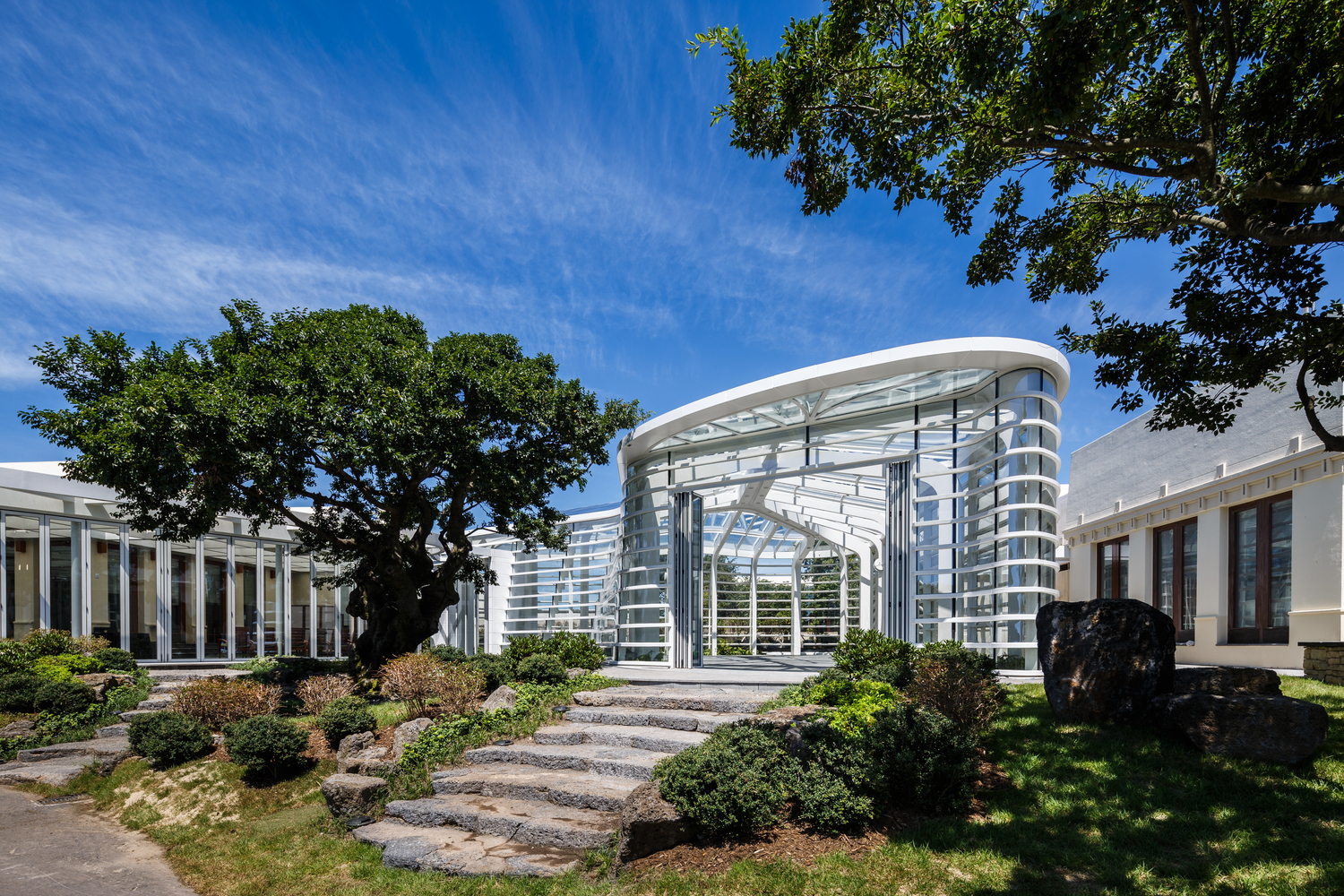

The Pergola of The Golf Club at NINE BRIDGES is a structure built on a location that honors an old sacred tree.The Chinese hackberry, which stood for roughly 600 years before the present golf course was constructed, unconsciously instated a place of animism.

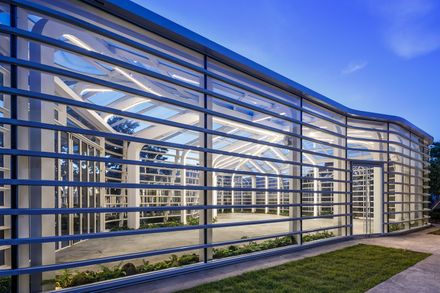

Nine Bridges Pergola
© Archframe
Nine Bridges Pergola
© Archframe

The pergola rearranges the site in accordance with the orientation of an aged tree and finds its project motifs in natural algorithms.

Inspired by the essential structures of natural algorithms, we have devised a ‘dual-duct system’ that integrates both the structure and the facility. The inner duct is used for ventilation and wrapped with a 12mm thick steel frame to form the overall structure.

Nine Bridges Pergola
© Archframe
Nine Bridges Pergola
© Archframe

The two ducts are covered with highly dense insulating material in between, to prevent dew condensation from indoor-outdoor temperature difference when operating cooling and heating systems.

To control this organic form finished with double curved surfaces, 6 main structures and 19 substructures were used. About 160 atypical, semi-tempered pair panes of glasses were placed on the structure and roughly 280 curved panes of glasses were applied on the flank.

Nine Bridges Pergola
© Archframe
Nine Bridges Pergola
© Archframe

440 glass panes of differing sizes were manufactured in a factory in China and assembled onto a locally manufactured structure.The inner structure produced at a factory near Seoul was disassembled into 80 pieces and shipped to Jeju Island for reassembly. The semi-tempered paired glass panes, with 140 different curvatures, were manufactured at the Chinese factory and assembled in Korea.

Nine Bridges Pergola
© Archframe
Nine Bridges Pergola
© Archframe

This was a task that required sophistication, only allowing for a less than 5mm difference between the materials manufactured separately in Korea and China when they were to be reassembled at the site.

Nine Bridges Pergola
© Archframe
Nine Bridges Pergola
© Archframe

The structure was mainly divided into six strands had a ventilation duct installed with 48 duct pipes to respond to the outside air temperature and to maintain a consistent indoor temperature.


Nine Bridges Pergola
Site Plan
Nine Bridges Pergola
Floor Plan


Nine Bridges Pergola
Sectional Perspective 1
Nine Bridges Pergola
Sectional Perspective 2


Nine Bridges Pergola

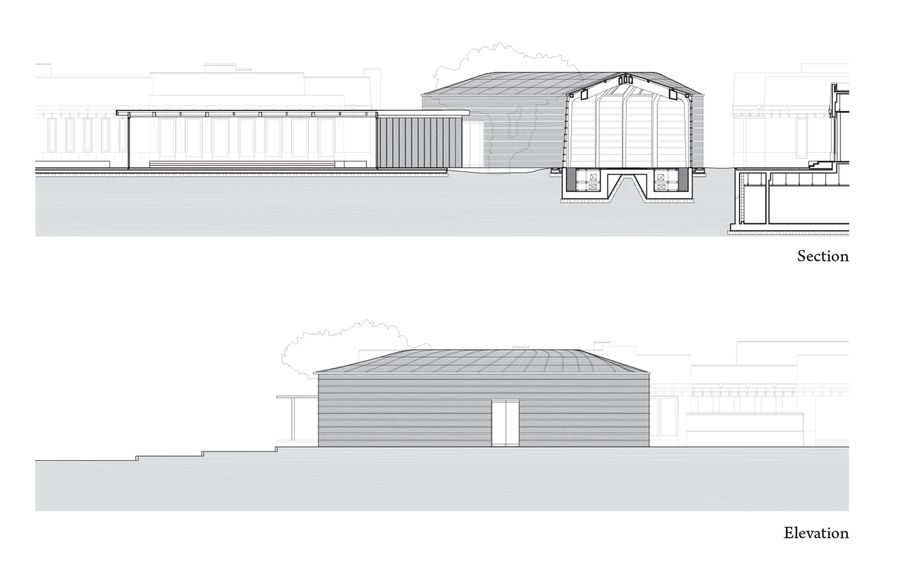

Section and Elevation
