VENA CAVA WINERY

TAC Taller de Arquitectura Contextual

ARCHITECTS
TAC Taller de Arquitectura Contextual

BUILDER
Taller de Arquitectura Contextual

PHOTOGRAPHS
Yoshihiro Koitani

YEAR
2012

LOCATION
Ensenada, Mexico

CATEGORY
Hotels, Restaurants & Bars, Winery

Text description provided by architect.

The Building is located in the most important wine region in Mexico, the Guadalupe Valley in Ejido El Porvenir which is 20 km east of the city of Ensenada, Baja California.

Vena Cava Winery
© Yoshihiro Koitani
Vena Cava Winery
© Yoshihiro Koitani

It is a valley perpendicular to the sea, prevailing winds of Marian Humboldt current, surrounded by deserts and rugged mountains.

In this valley the Dominican missionaries settled forming this site a place where the landscape for viticulture is very peculiar.

Vena Cava Winery
© Yoshihiro Koitani
Vena Cava Winery
© Yoshihiro Koitani

This project is an exercise in recycling but it's a project that works with the landscape, using waste to mimic the building with the environment, based on these ideas began playing and they took a step even in constant development, viticulture dare of marine debris.

This did pose a way to bring the sea to the valley, the culture of the border, "Yonke culture" in which garbage and other wastes are combined with the landscape, to people in the community there is no difference between the Garbage and the natural environment, the two are in the collective memory.

Vena Cava Winery
© Yoshihiro Koitani
Vena Cava Winery
© Yoshihiro Koitani

This is the first Wine of Author to be built in Mexico. Seeking to represent the philosophy of everything in the buildings, and the sailor was winemaker and vineyards today became their new lifestyle.

The building is part of a Hotelier-gourmet, within which each ingredient is maintained complex and in-situ processing, wine is one of them.

Vena Cava Winery
© Peter Stranger
Vena Cava Winery
© Peter Stranger

The choice of the definitive place to locate the plant did the same way as the Zapotec Monte Alban chose Teotihuacan Teotihuacan or reading the landscape with stars, the correspondence of the mountains.

The stars are infallible reference elements for the location work with the landscape by what comes of it, each element of the plan referred to an emergency in the landscape, we seek the location but also functionality, access to the site, winds, crops and equipment, dictating that the location was in a small mountain to serve us as a landmark in the landscape.

Vena Cava Winery
© Peter Stranger
Vena Cava Winery
© Peter Stranger
Vena Cava Winery
© Peter Stranger

The provision only after the location due to the efficiency of both energy and functions as wine making.

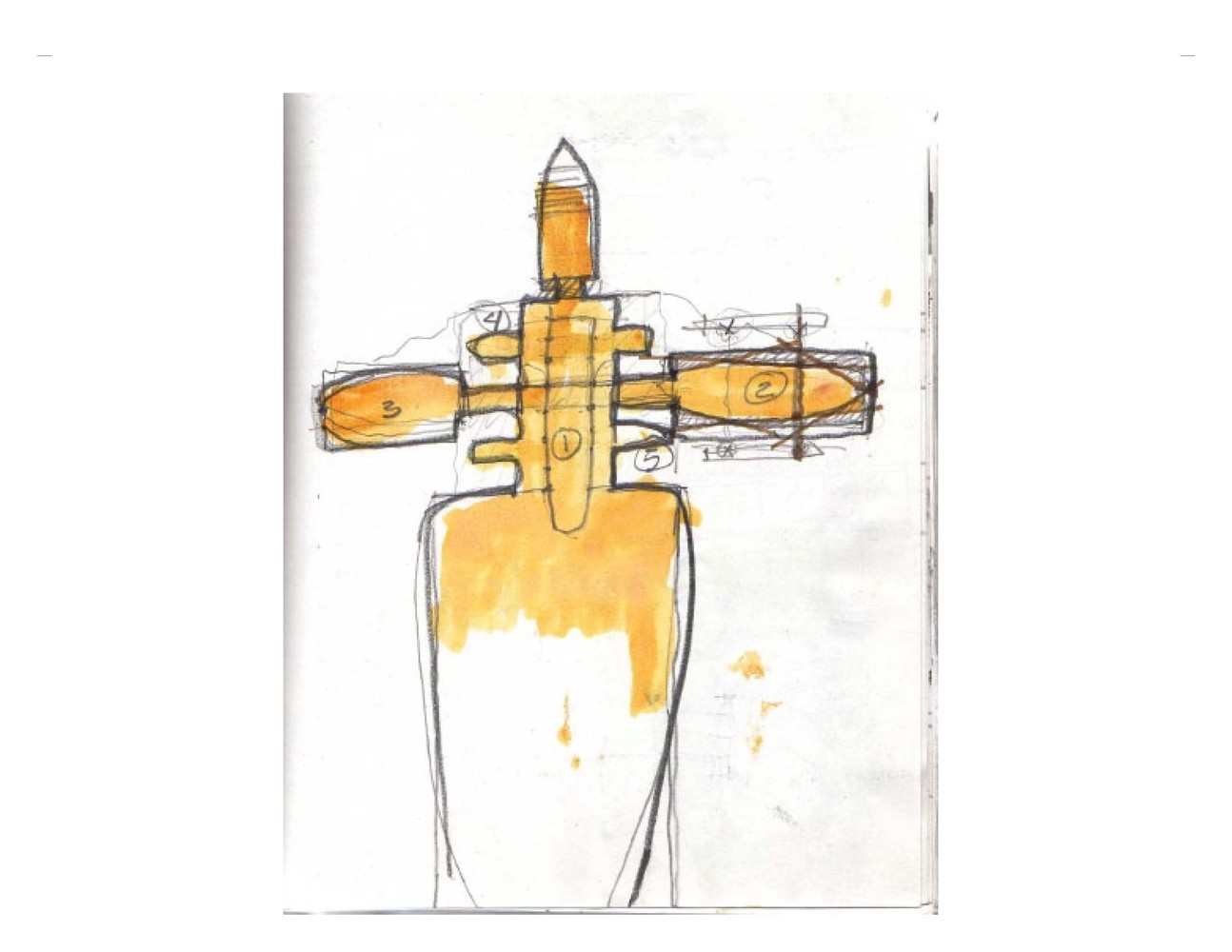

Is a radial pattern that is most efficient for industrial production, is the element that contains fewer distances between parts and thus the most efficient for the production of a fluid.

Use gravity to give wine processes more efficient control of aeration and care in the manufacturing processes of wine aeration is an important control element and thus eliminate the use of pumps for the processes need be by gravity .

Vena Cava Winery
© Peter Stranger
Vena Cava Winery
© Yoshihiro Koitani
Vena Cava Winery
© Yoshihiro Koitani

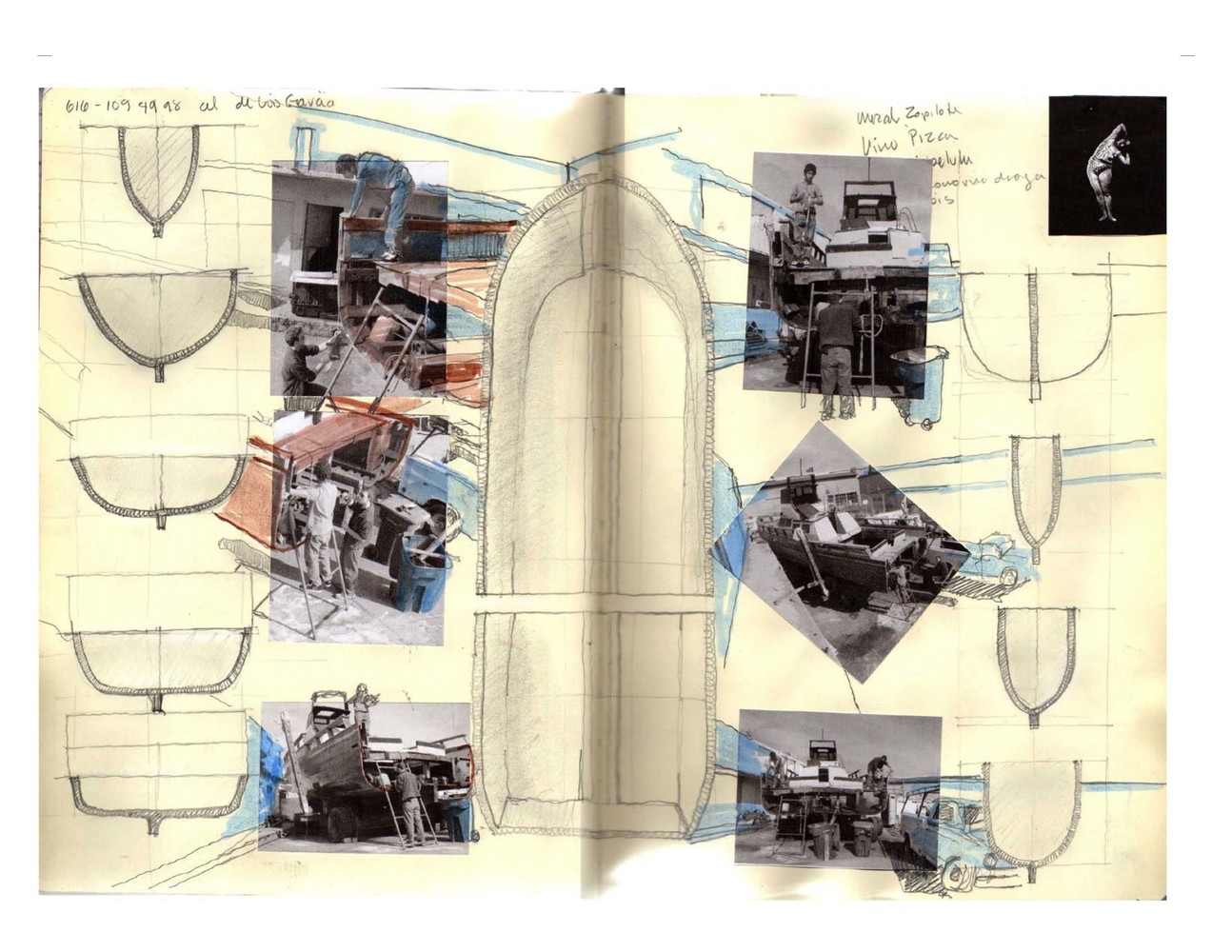

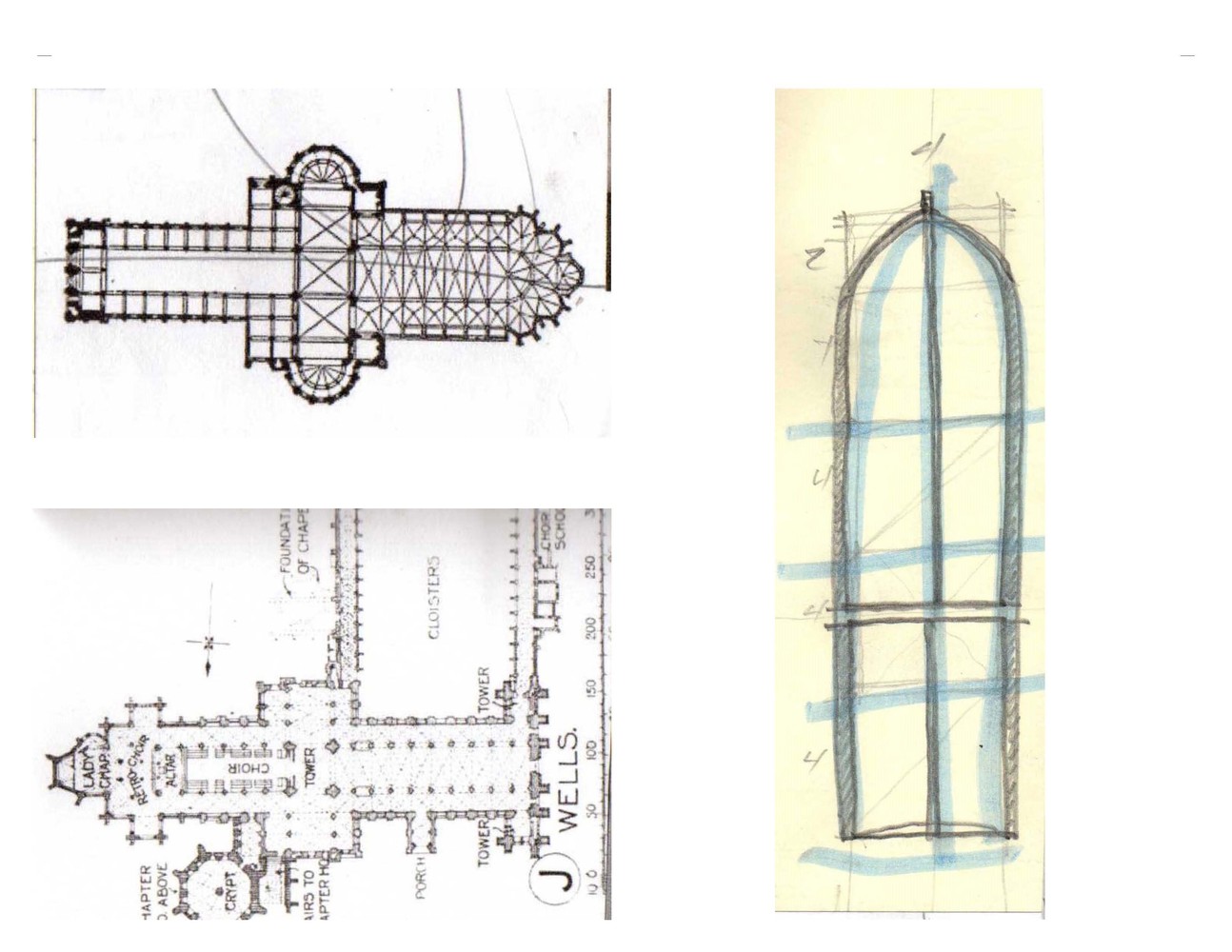

To control the temperature, insulate the building with the earth of the place, for which we use the rough cuts, leaving the soil bare and working only the floors and ceilings, which are made with boats discarded by the port to be used Domes as canon, in the style of the ancient builders who built boats like churches.


Vena Cava Winery
© Yoshihiro Koitani
Vena Cava Winery
© Yoshihiro Koitani
Vena Cava Winery
© Yoshihiro Koitani

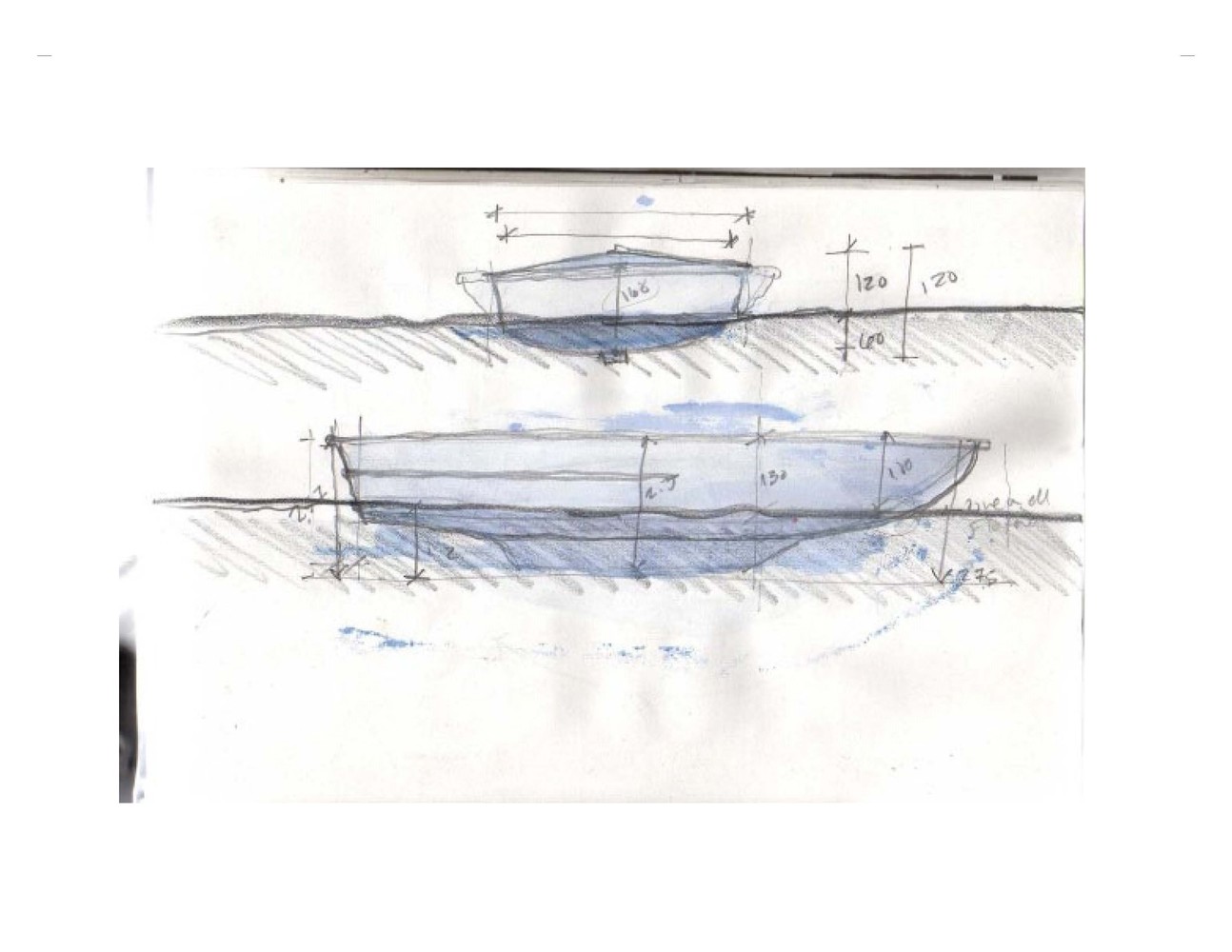

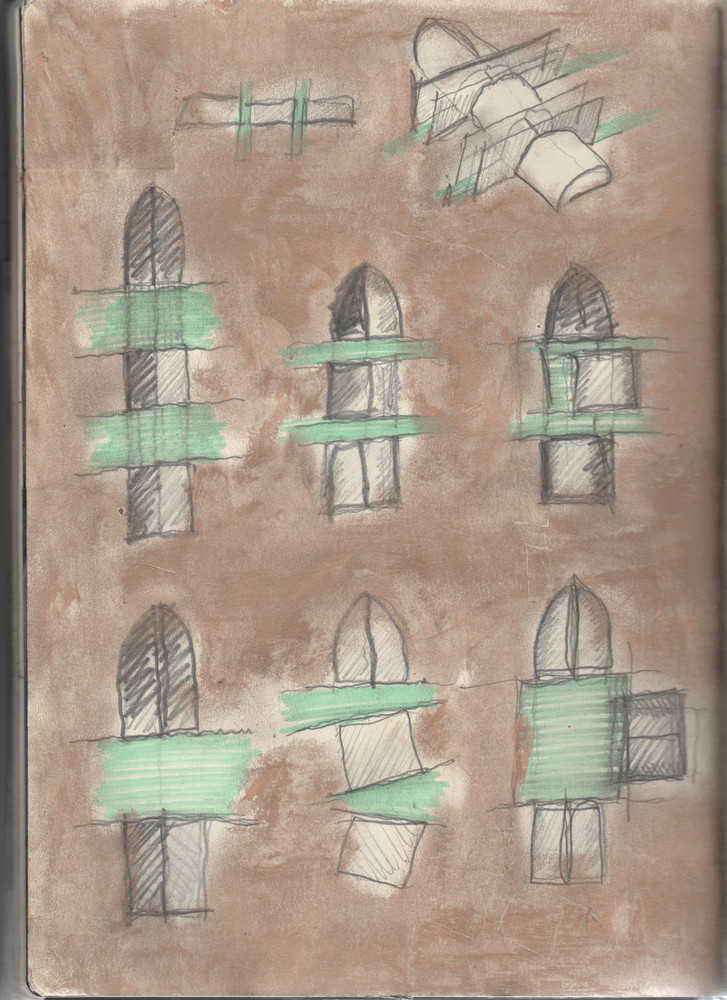

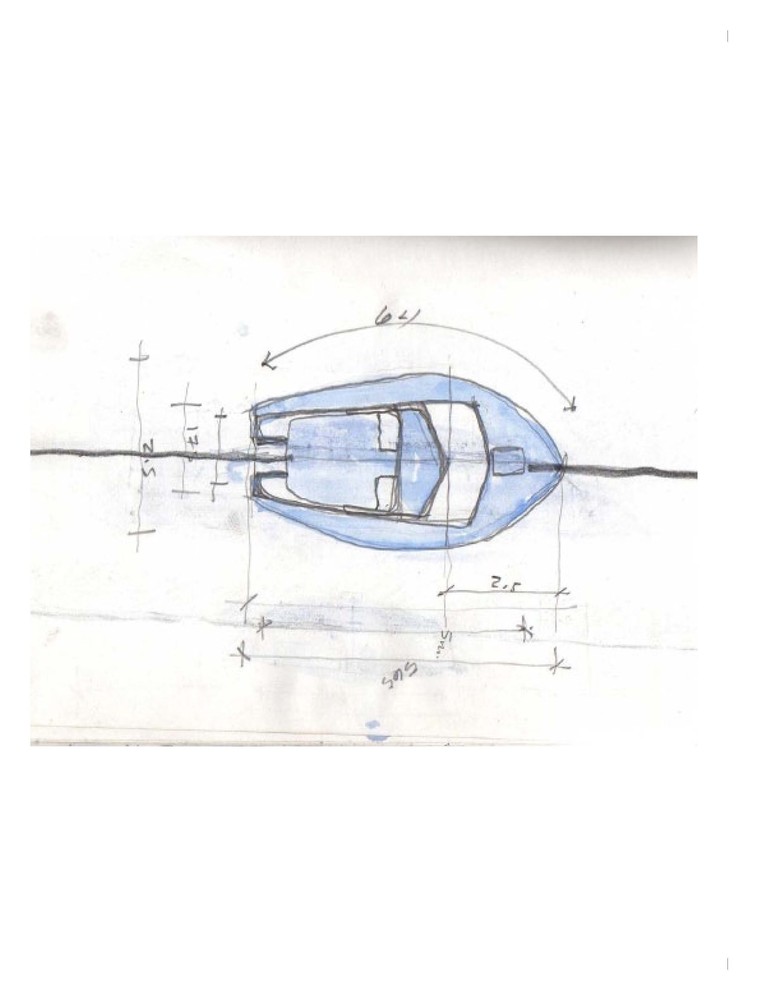

Vena Cava Winery
Courtesy of TAC
Vena Cava Winery
Courtesy of TAC


Vena Cava Winery
Courtesy of TAC
Vena Cava Winery
Courtesy of TAC
Vena Cava Winery
Courtesy of TAC
Vena Cava Winery
Courtesy of TAC
Vena Cava Winery
Courtesy of TAC
Vena Cava Winery
Courtesy of TAC


Vena Cava Winery
Courtesy of TAC
Vena Cava Winery
Courtesy of TAC
Vena Cava Winery
Courtesy of TAC


Vena Cava Winery

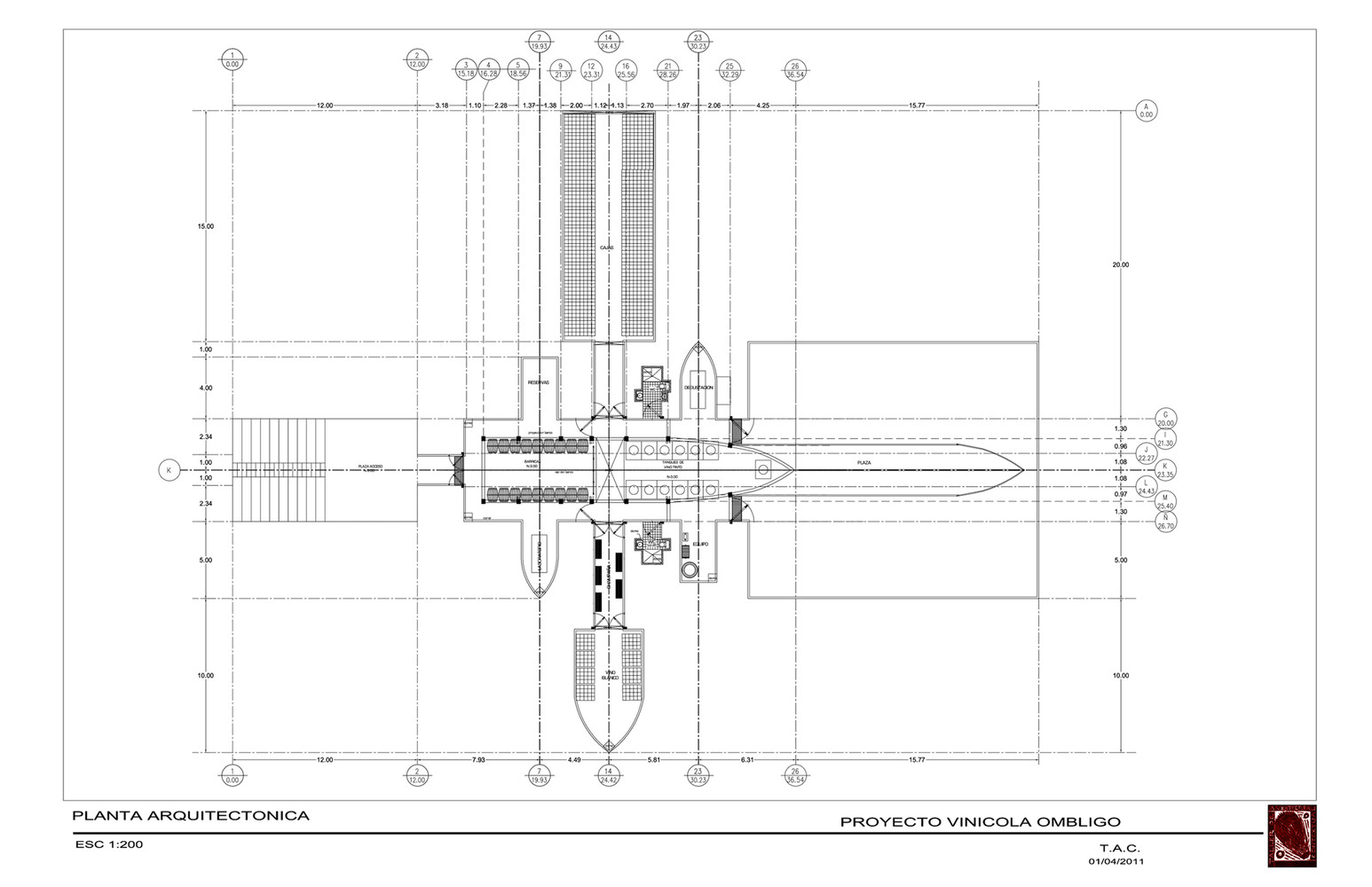

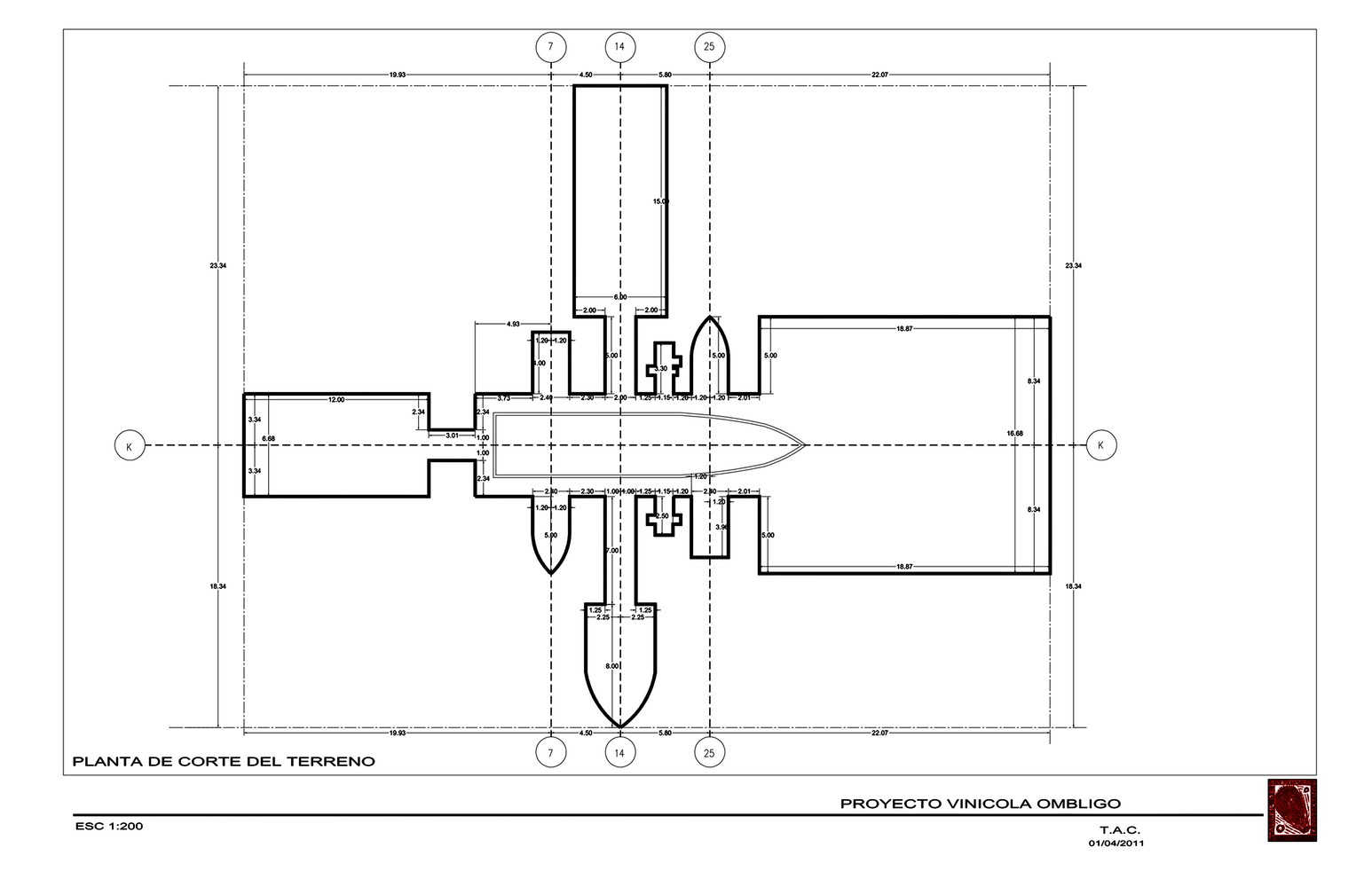

Floor Plan
Vena Cava Winery

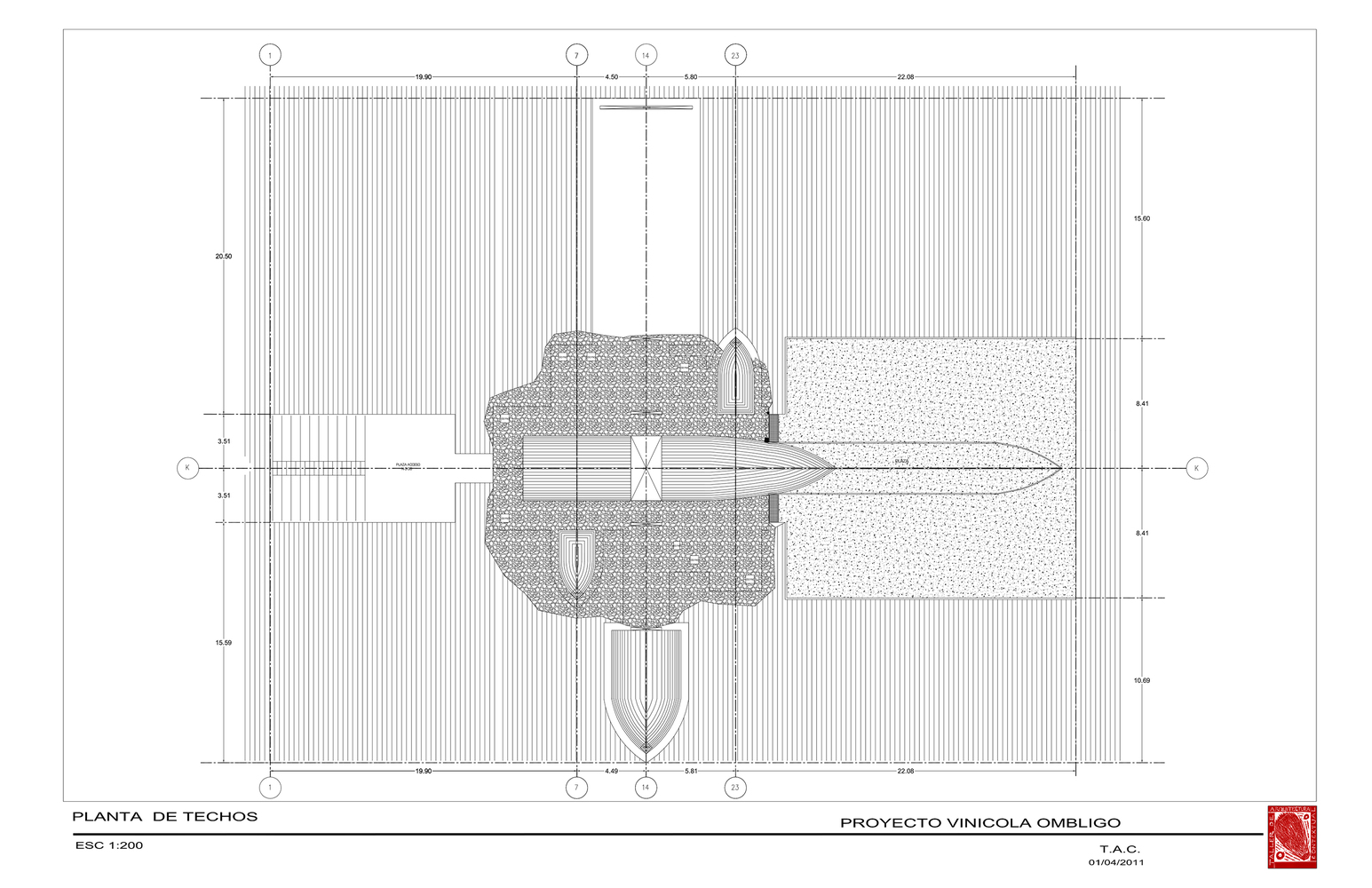

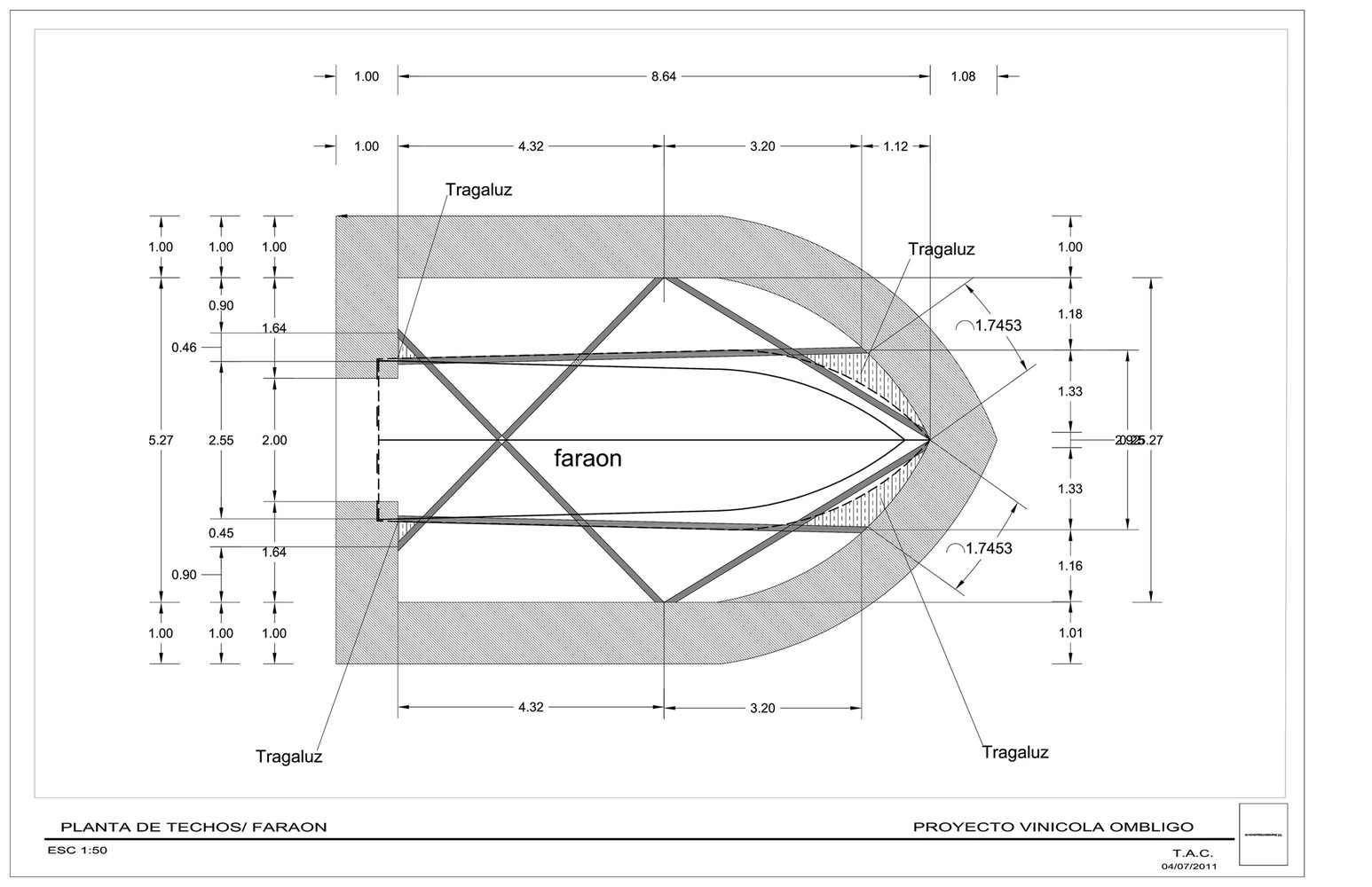

Roof Plan
Vena Cava Winery
Site Plan
Vena Cava Winery
Plot Section


Vena Cava Winery

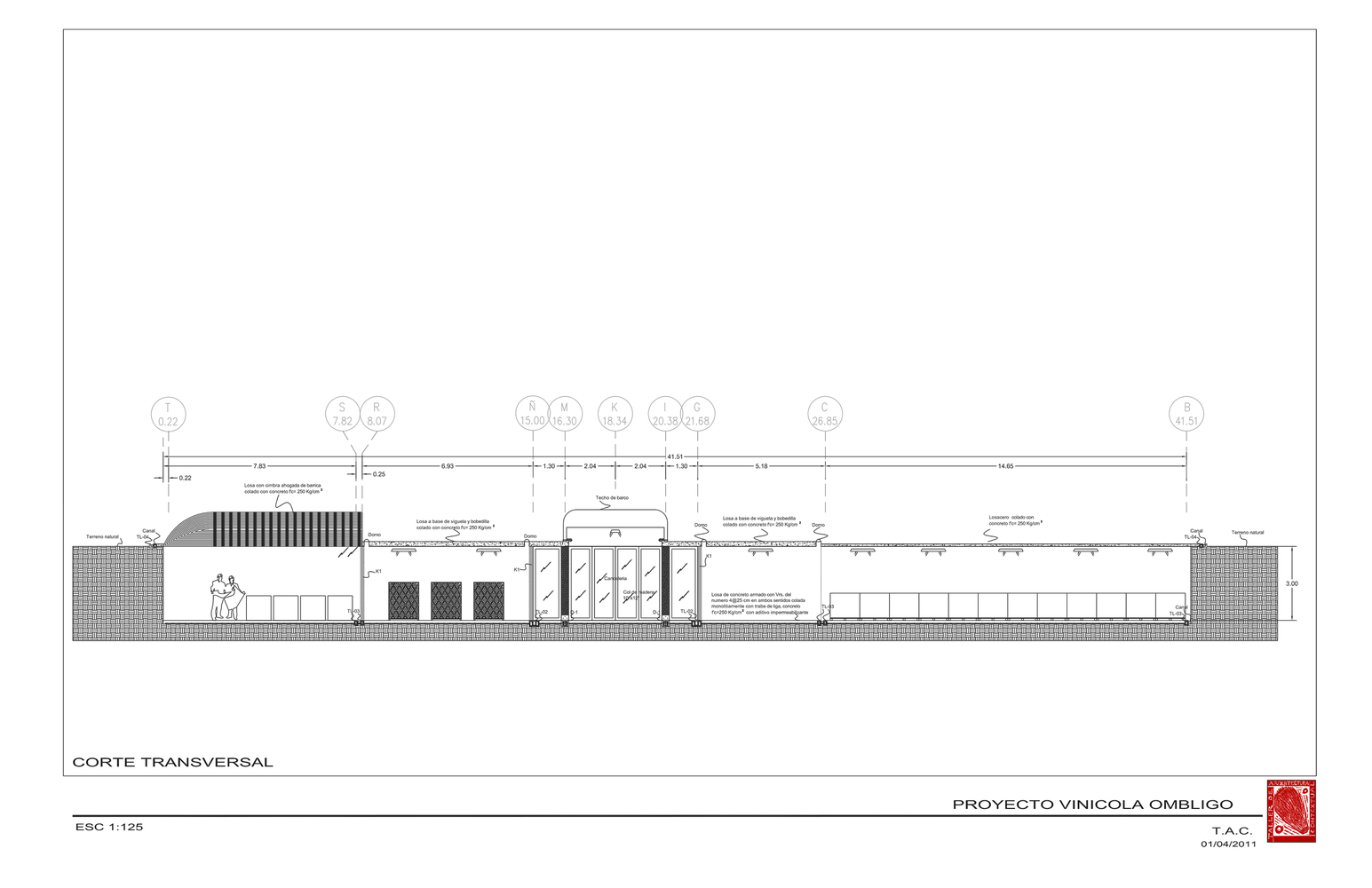

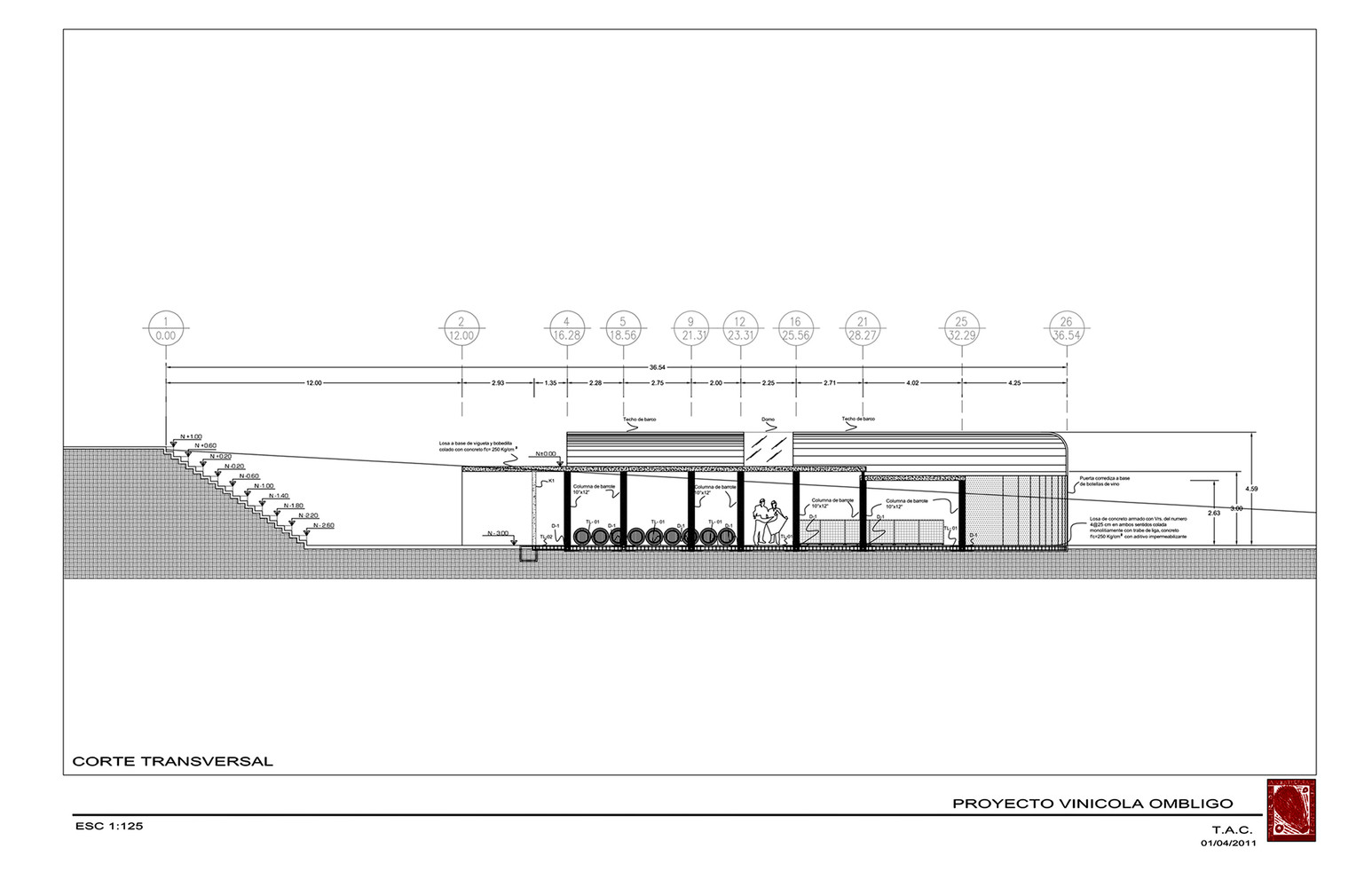

Section
Vena Cava Winery

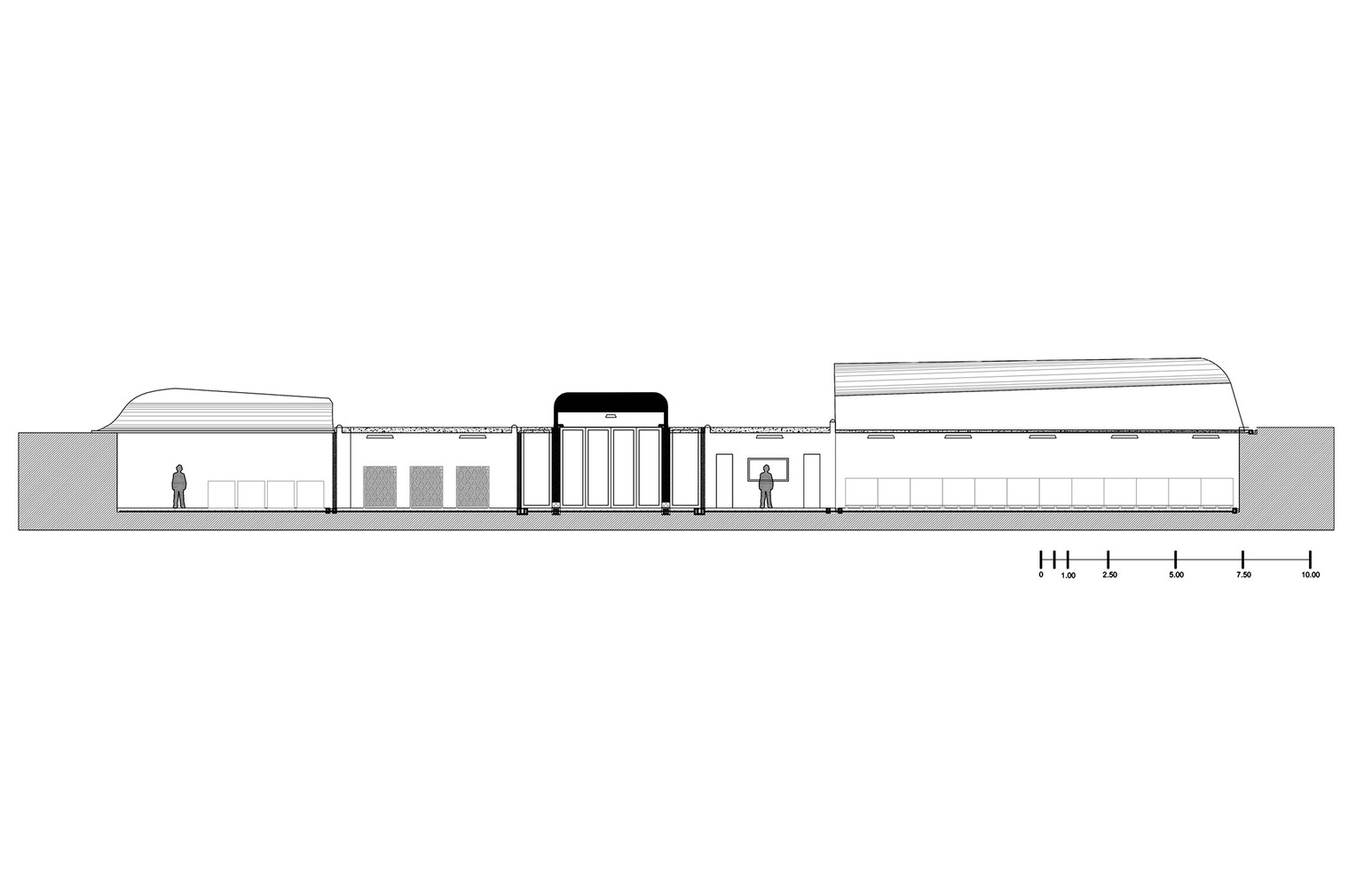

Longitudinal Section
Vena Cava Winery

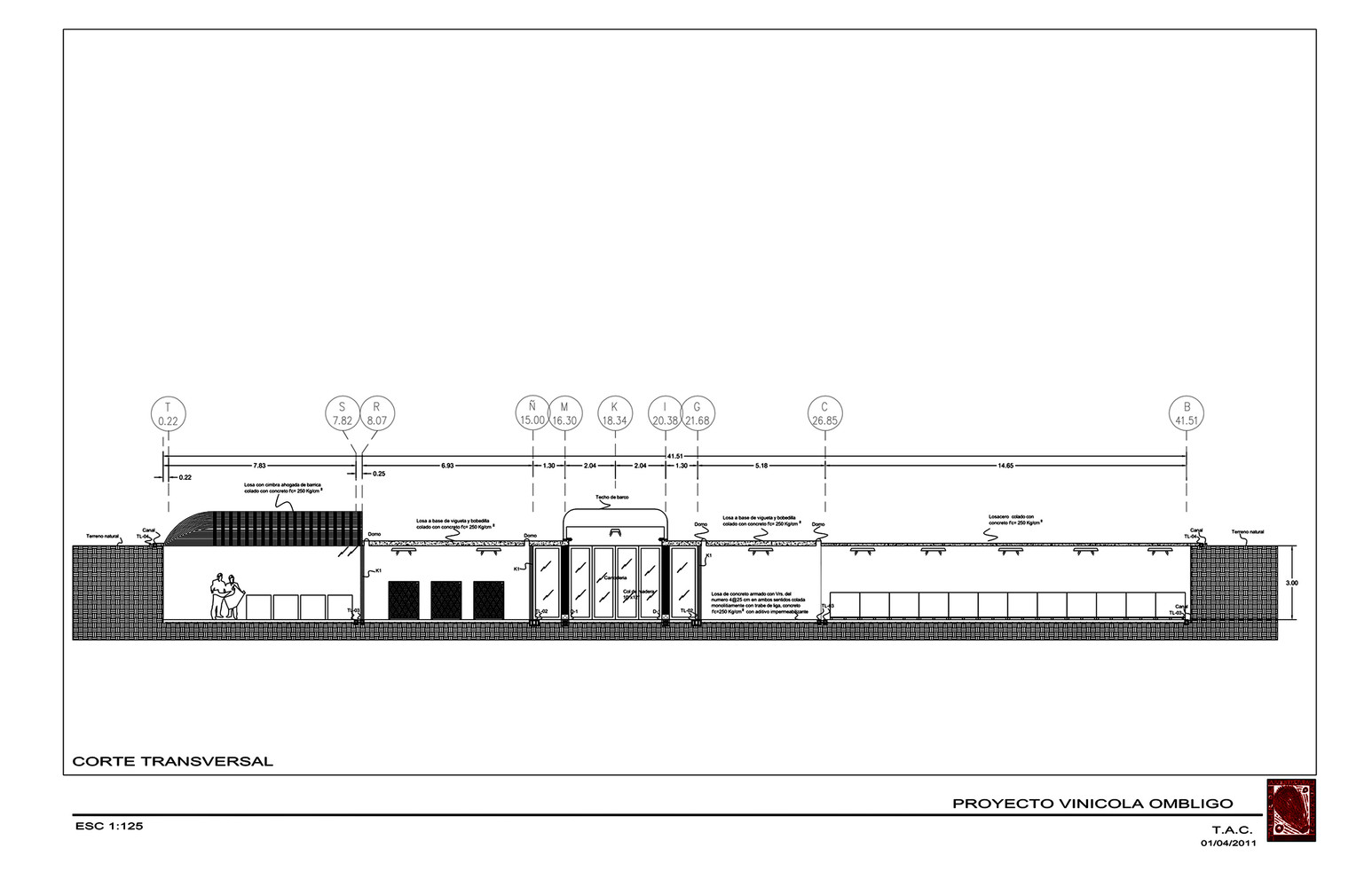

Short Section 1
Vena Cava Winery
Short Section 2


Vena Cava Winery

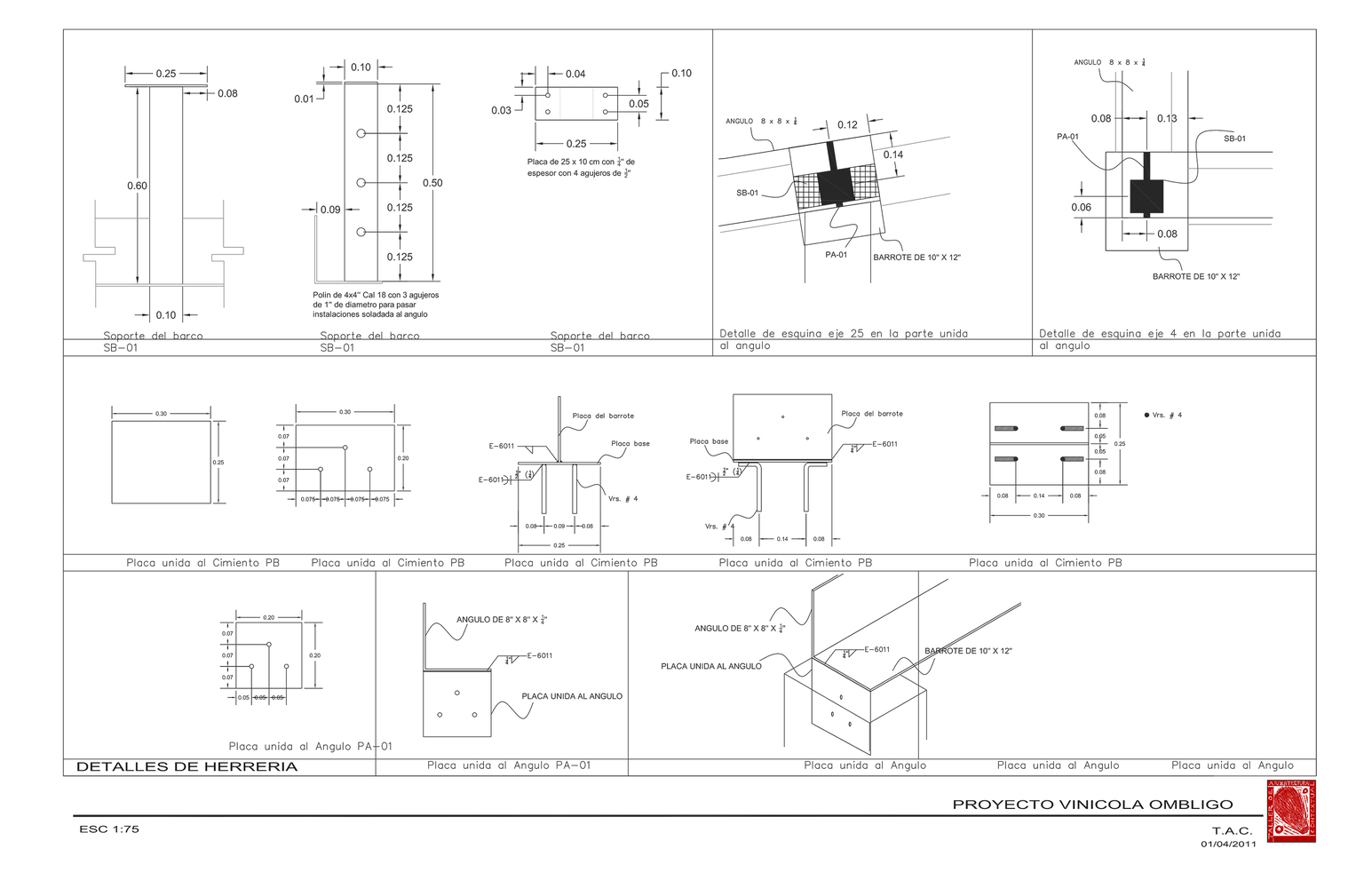

Detail
Vena Cava Winery
Detail
