INSERTION BELOW CHIMNEY

Original Design Studio

ARCHITECTS
Original Design Studio

LOCATION
Shanghai, China

CATEGORY
Factory

AREA
3000 m²

YEAR
2011

PHOTOGRAPHS
Zhang Siye - Wang Yuan - Sun Jialong

Text description provided by architect.

The Nanshi power station’s 165-meter-tall chimney standing by the Huangpu River has been well-known since it was transformed to a huge thermometer in the 2010 Shanghai Expo.

Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong
Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong

Next to it, the station’s main factory building was eventually revived as the Shanghai’s new contemporary art museum, namely the Power Station of Art.

As a result, there rises a huge demand of car parking and a garage is severely necessary.

Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong
Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong
Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong
Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong
Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong

It is a great challenge to build a garage at the foot of the chimney as the site is very limited. With the volume of 100×20×9m, the building stretches along the roads and surround

The chimney in a “U” shape, responding to the north yard of the museum.The smooth as-cast-finish concrete dialogues with the rough concrete and the exposed structure shows respect to the old factory building.

The continuous 150mm-thick as-cast-finish concrete wall folds and wraps all the programs: car parking, bicycle parking and ramps at the two ends.

Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong
Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong
Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong

Through the long window on the second floor, there shows the crowns of trees alongside the roads and further the opposite side of the Huangpu River. The 1000sqm roof platform provides a lively space for diverse activities.

Its 9m height level enables people to look over the tree crowns and see the river banks. A white bridge is added, connecting the main building and the chimney, in order to satisfy the future exhibition function in the chimney.

Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong
Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong

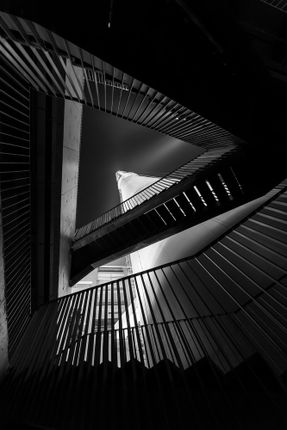

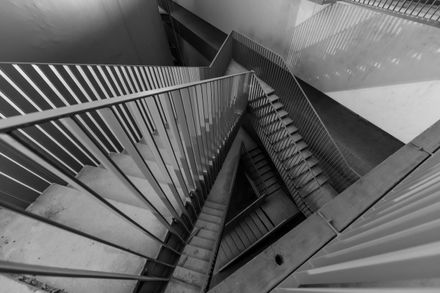

Two triangle staircases are hung onto the concrete wall without additional columns and one may feel the chimney is touchable when wandering on the staircases.

A short bridge connects the garage and the chimney, creating interaction. Four skylights provide natural illumination and meanwhile enhance the visitors’ perception of the existence of the chimney.

Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong
Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong
Insertion Below Chimney
© Zhang Siye - Wang Yuan - Sun Jialong

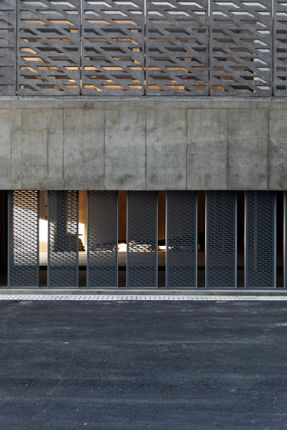

The white pebbles on the second floor make the light pervade over the space and the hollowed pattern on the concrete wall reflects the outline of the fire escape stairs in the main building.

In fact, from the very beginning of the design, the architects had decided to leave multiple possibilities for the function of the second floor; it could be bicycle parking, art studio, or café, etc.


Insertion Below Chimney
South Elevation
Insertion Below Chimney

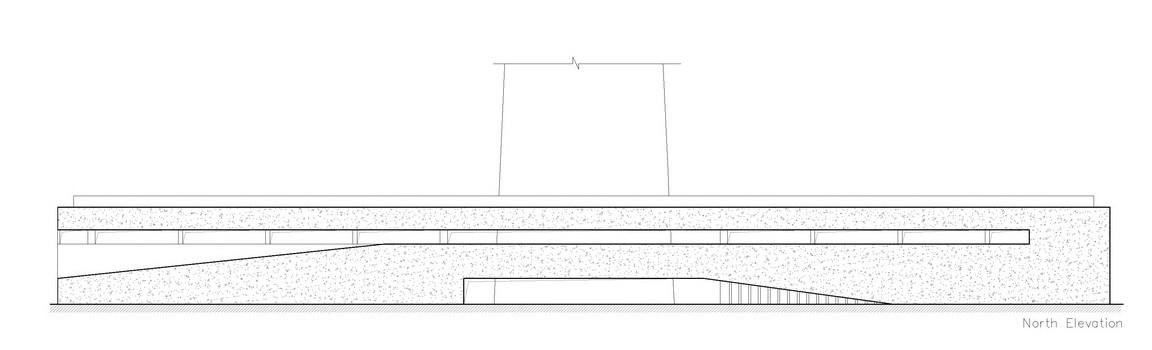

North Elevation
Insertion Below Chimney
West Elevation
Insertion Below Chimney

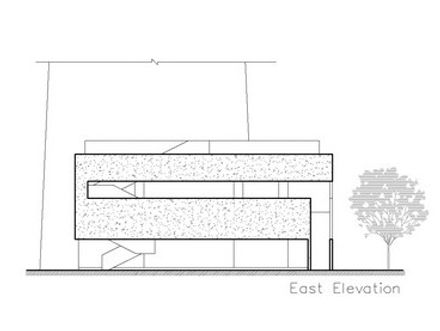

East Elevation


Insertion Below Chimney
Cross Section
Insertion Below Chimney

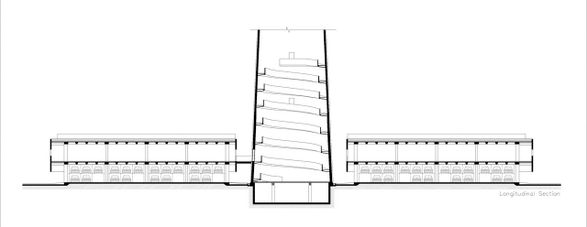

Longitudinal Section


Insertion Below Chimney
Ground Floor Plan
Insertion Below Chimney
First Floor Plan
Insertion Below Chimney
Roof Floor Plan
