JAGAT TOWER

Sindhu Hadiprana Design Consultant & Studio Sa_e

MANUFACTURERS
Toto, Asahimas, Seven

DESIGN PRINCIPAL
Sindhu Hadiprana & Ario Andito

CONTRACTOR
PT. Total Bangun Persada

STRUCTURE
PT. Perkasa Carista Estetika

M & E
PT. Policipta Multi Desain

OWNER
Pt. Jagat Konstruksi Abdipersada

PHOTOGRAPHS
Lindung Soemarhadi

AREA
13575 m²

YEAR
2017

LOCATION
Grogol Petamburan, Indonesia

CATEGORY
Institutional Buildings

Text description provided by architect.

Situated in Jalan Tomang Raya Jakarta, Jagat Tower is the new office of Jagat Construction, a company engaged in construction field.

Jagat Tower
© Lindung Soemarhadi
Jagat Tower
© Lindung Soemarhadi
Jagat Tower
© Lindung Soemarhadi

The client asks the architect to design an office tower not only as their main office but also as a rental office.

Its total area is 1740,5m2, and consist of 9 floors. On the lower ground there are lobby and banking hall, 2nd-8th floors are for tenant office and 9th floor for the most private function, meeting room / ballroom room.

The main aim of design was to create an effective and efficient space program of office.

Jagat Tower
© Lindung Soemarhadi
Jagat Tower
© Lindung Soemarhadi
Jagat Tower
© Lindung Soemarhadi

To achieve the desired level of effectiveness and efficiency, the architect tried to arrange the building mass in such a way.

With the length of site 42m, the form of a large-volume building should be avoided because it will ruin the urban fabric of the city.The mass composition of the building must be able to break the massive and bulky mass.

Jagat Tower
© Lindung Soemarhadi
Jagat Tower
© Lindung Soemarhadi

After several attempts, the architect decide that the most suitable mass arrangement for this building is stacked one.

Such mass configurations also allow the architect to add open space serves as a communal space on the roof of 6th, 8th, and 9th floor. With a “stacked box” mass configuration, building efficiency can reach up to 80%, quiet effective for a comercial building.

Jagat Tower
© Lindung Soemarhadi
Jagat Tower
© Lindung Soemarhadi

This communal space also serves as a socialization space for workers.Actually it’s not an easy job to convince the client about the importance of these communal space.But in the end the architect is able to convince the client how important this communal space is to the workers. Because the space for socializing will increase the effectiveness in work.

As for the facade concept itself, the facade exploration illustrates an equalizer to analogize the company's progress flow with 3 blue boxes.

Jagat Tower
© Lindung Soemarhadi
Jagat Tower
© Lindung Soemarhadi
Jagat Tower
© Lindung Soemarhadi

The inspiration also comes from the “san” character in chinese number means three. It’s the analogy of the number of generation of Jagat Construction.

The building facade is designed with double glass system. With this facade system, the gap between the glass will trap the heat and noise from the outside so it can reduce the heat and noise from the outside of the office.

The glass selection also important. The selected glass is a kind of glass with low OTTV value.

Jagat Tower
© Lindung Soemarhadi
Jagat Tower
© Lindung Soemarhadi
Jagat Tower
© Lindung Soemarhadi

Another facade feature added by the architect is the vertical aluminium bars. This aluminium bar fuctioan as a sun shading for this office building.


Jagat Tower
© Lindung Soemarhadi
Jagat Tower
© Lindung Soemarhadi


Jagat Tower
© Lindung Soemarhadi


Jagat Tower

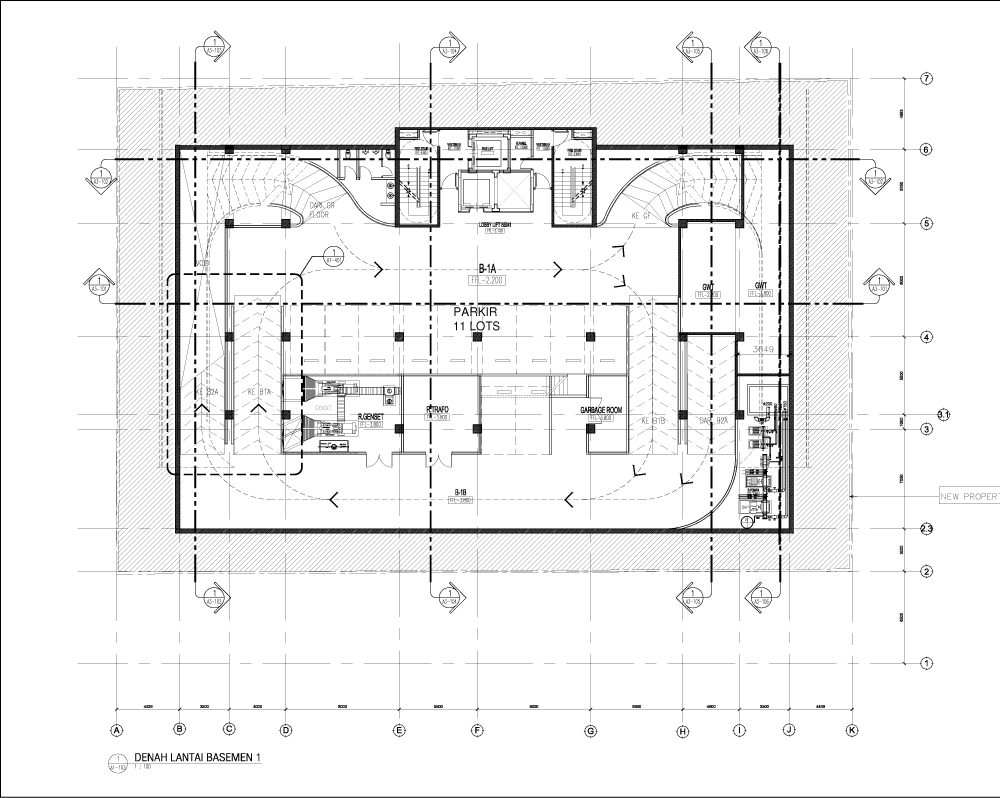

1st Basement Floor
Jagat Tower

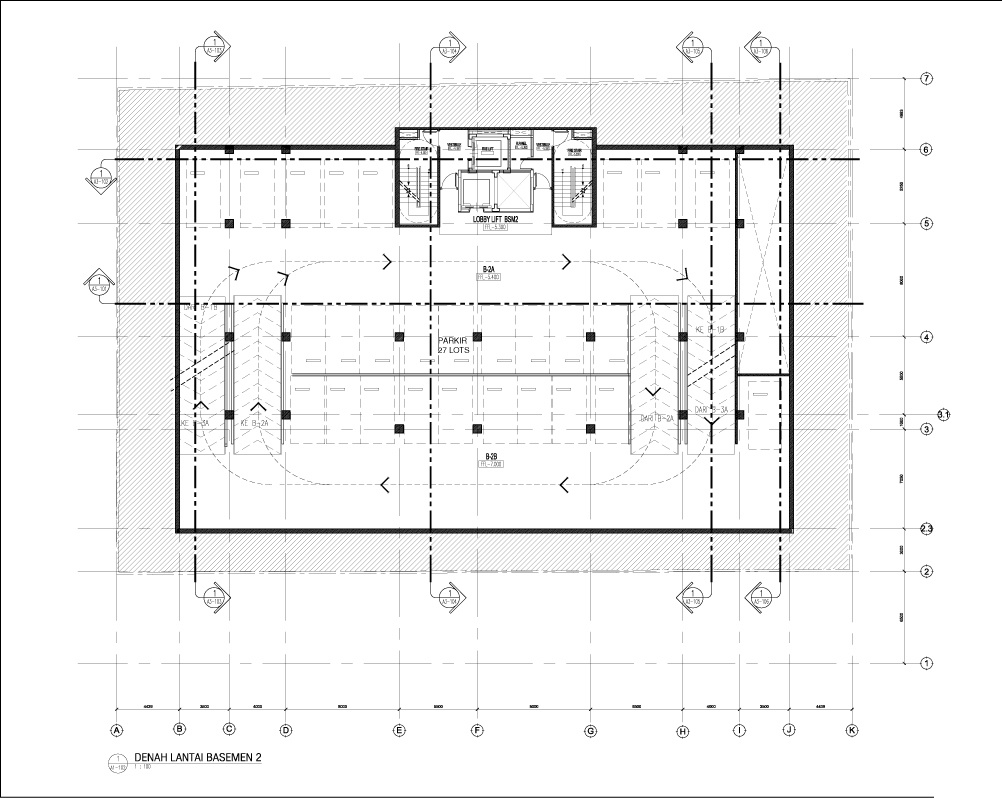

2nd Basement Floor
Jagat Tower

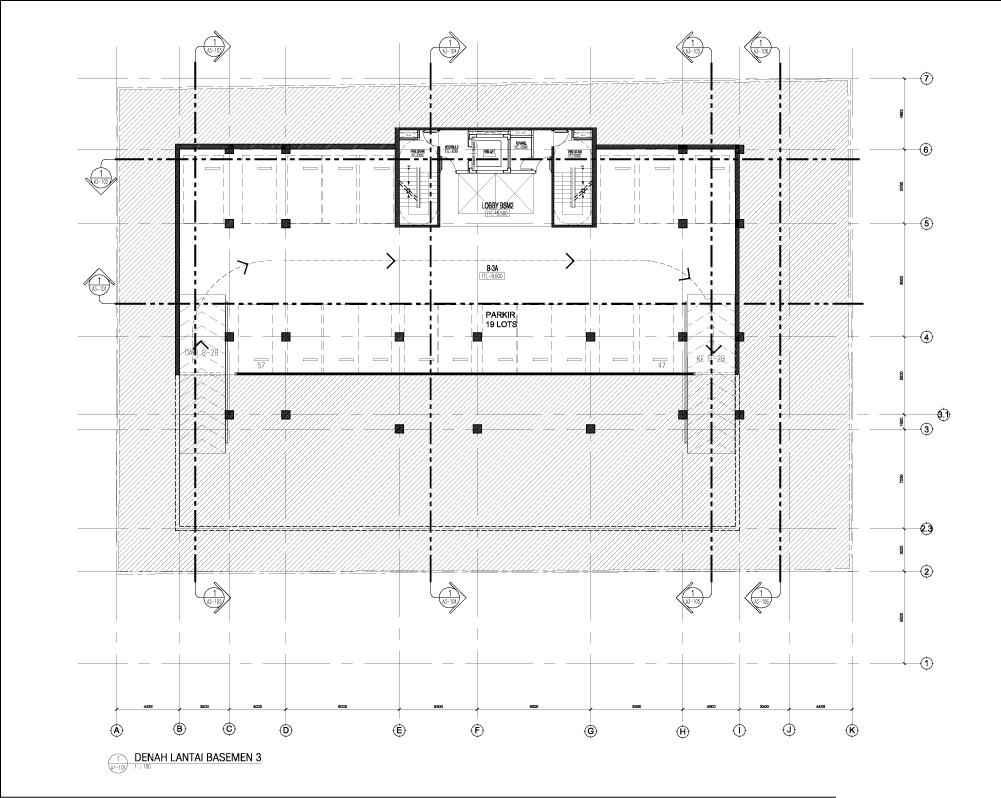

3rd Basement Floor
Jagat Tower

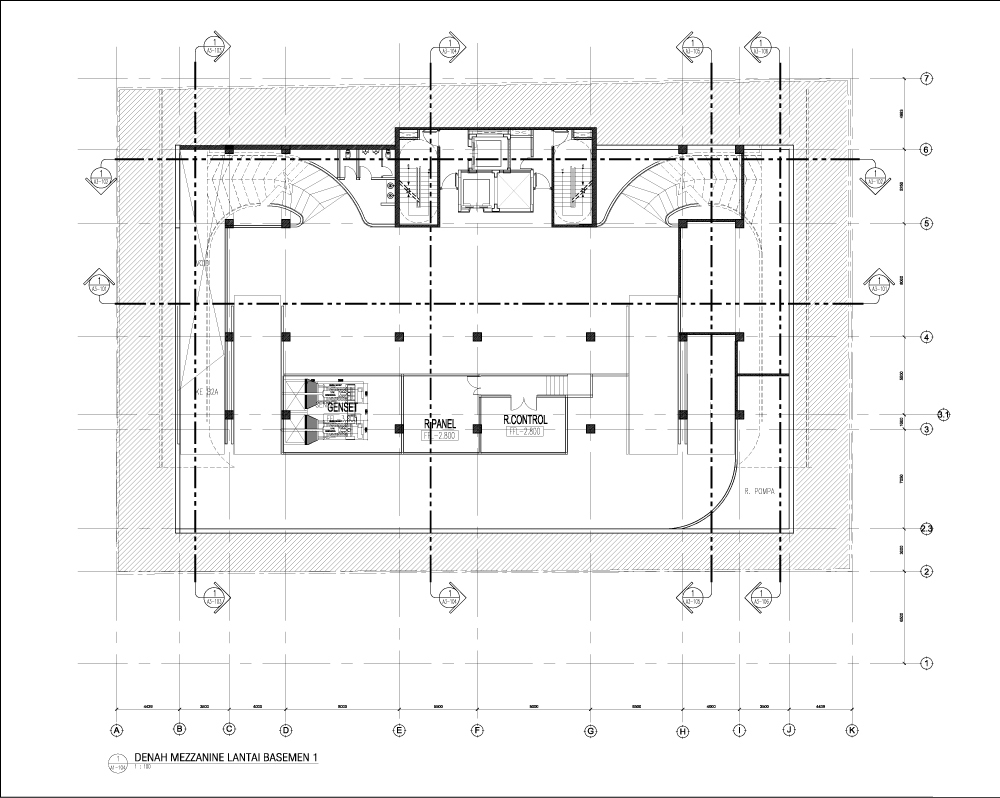

Mezzanine Basement


Jagat Tower

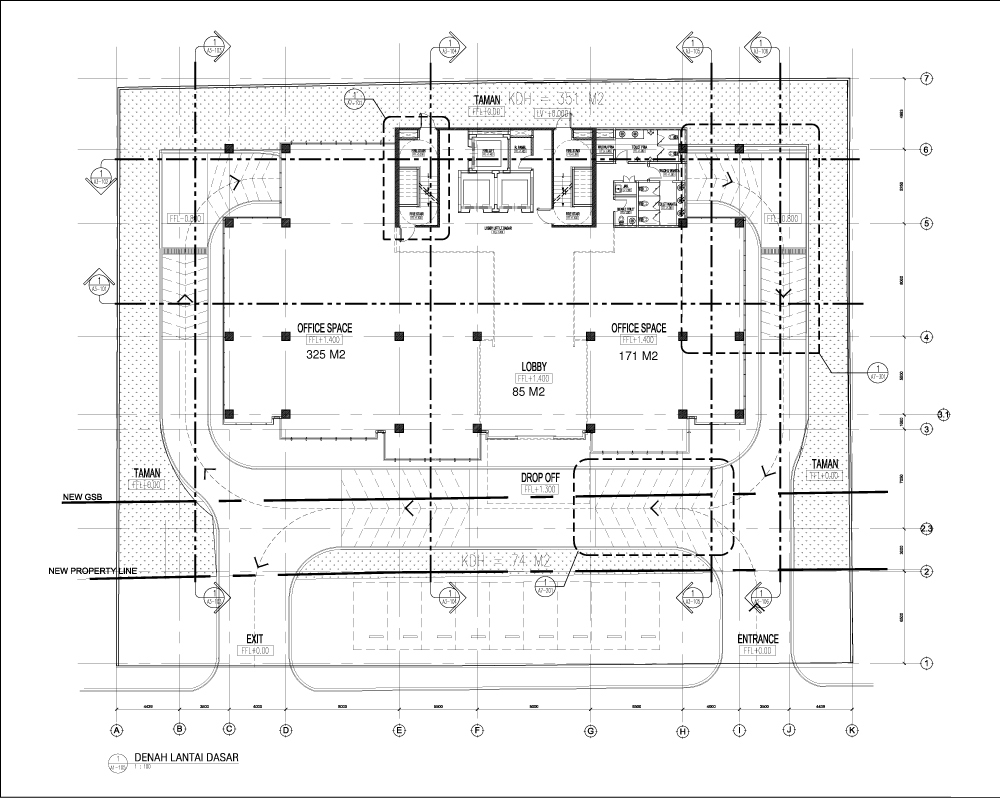

1st Floor Plan
Jagat Tower

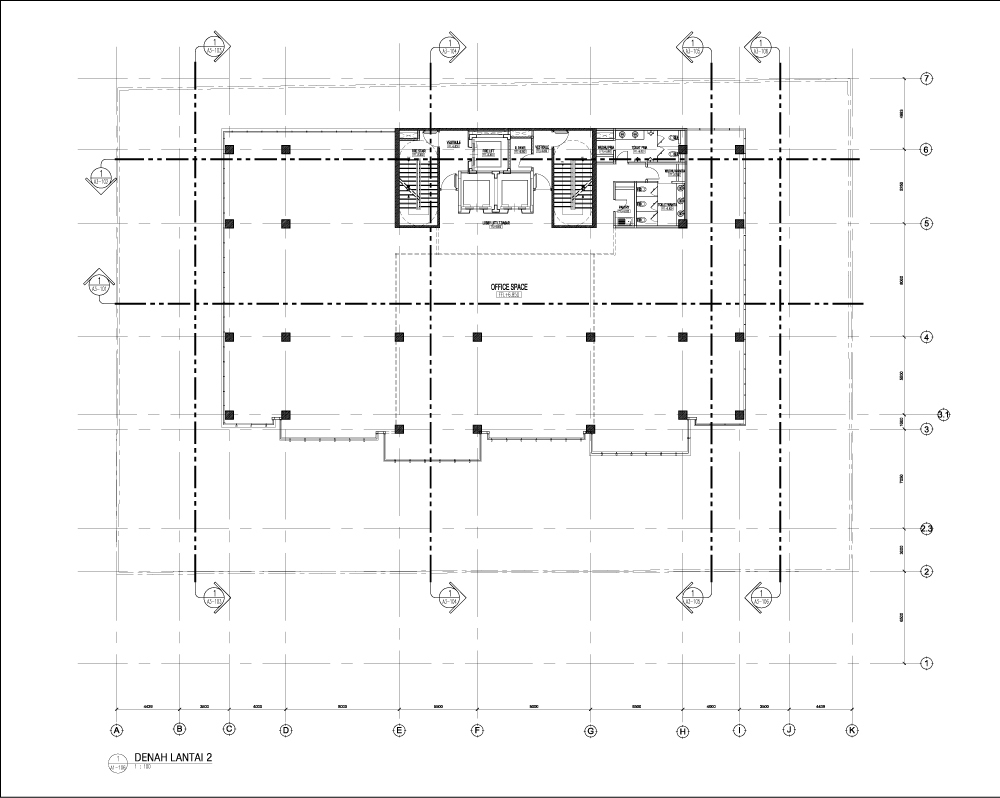

2nd Floor Plan
Jagat Tower
3rd Floor Plan
Jagat Tower
4th Floor Plan
Jagat Tower

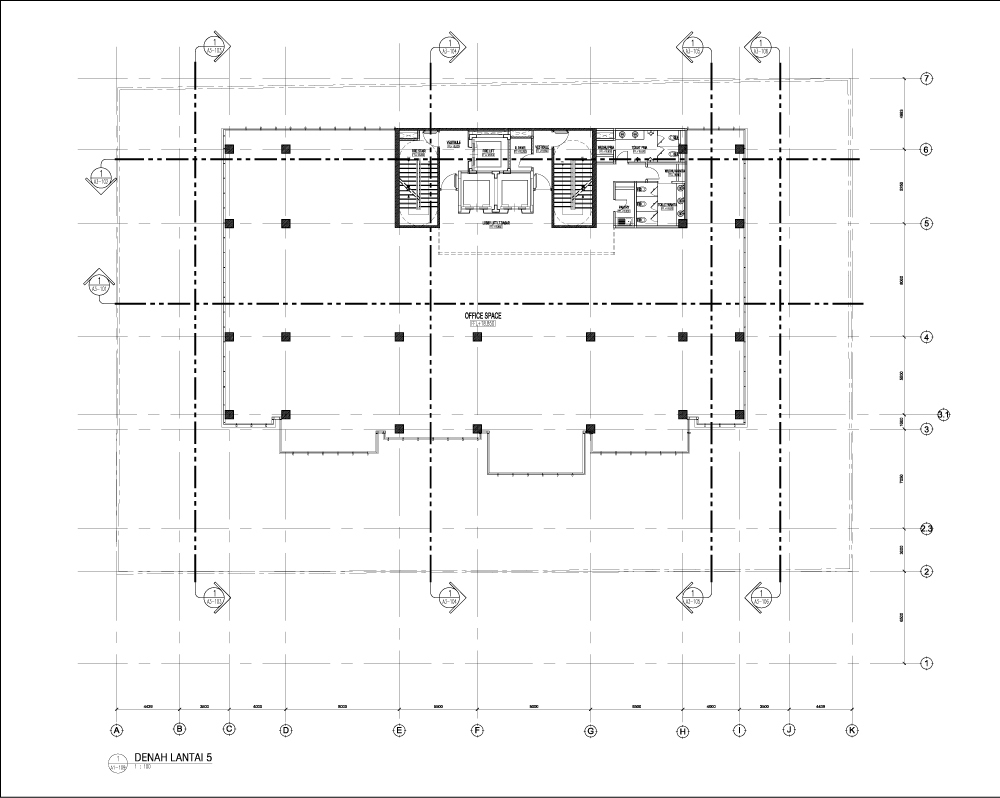

5th Floor Plan
Jagat Tower

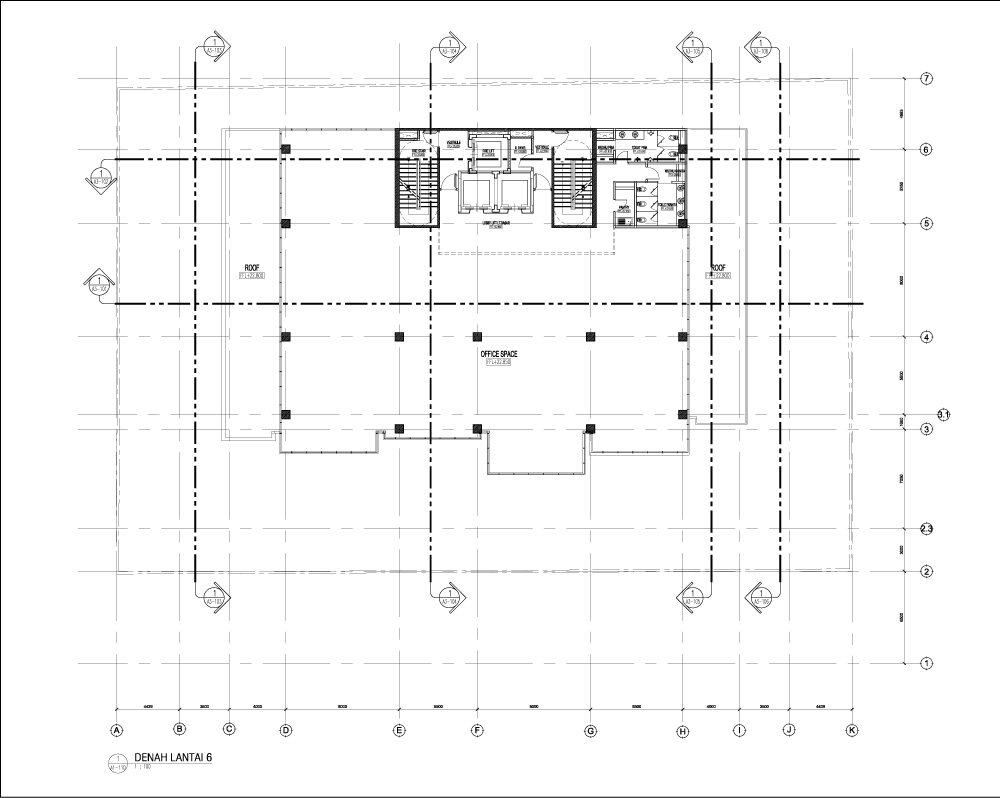

6th Floor Plan
Jagat Tower

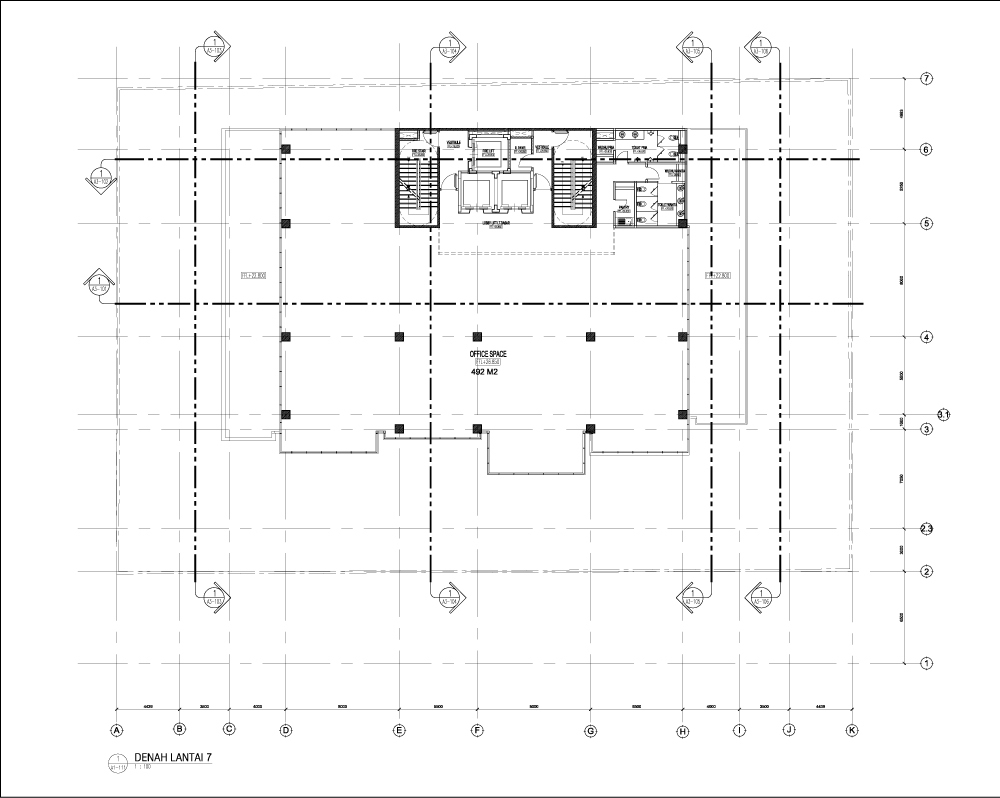

7th Floor Plan
Jagat Tower

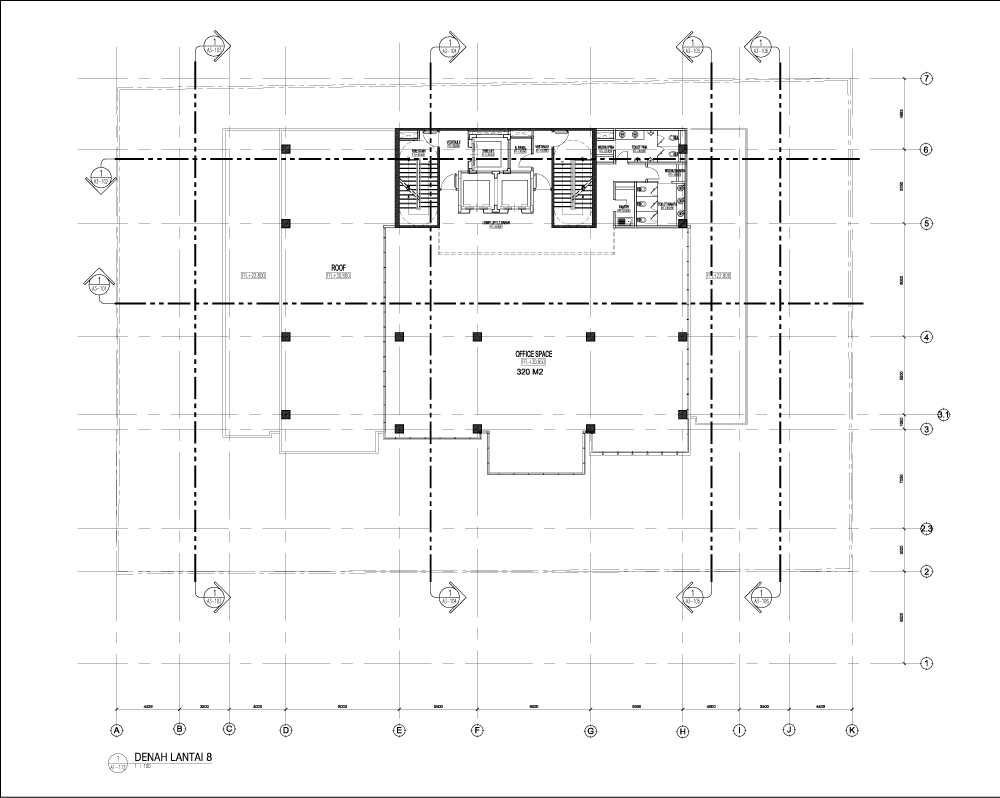

8th Floor Plan
Jagat Tower

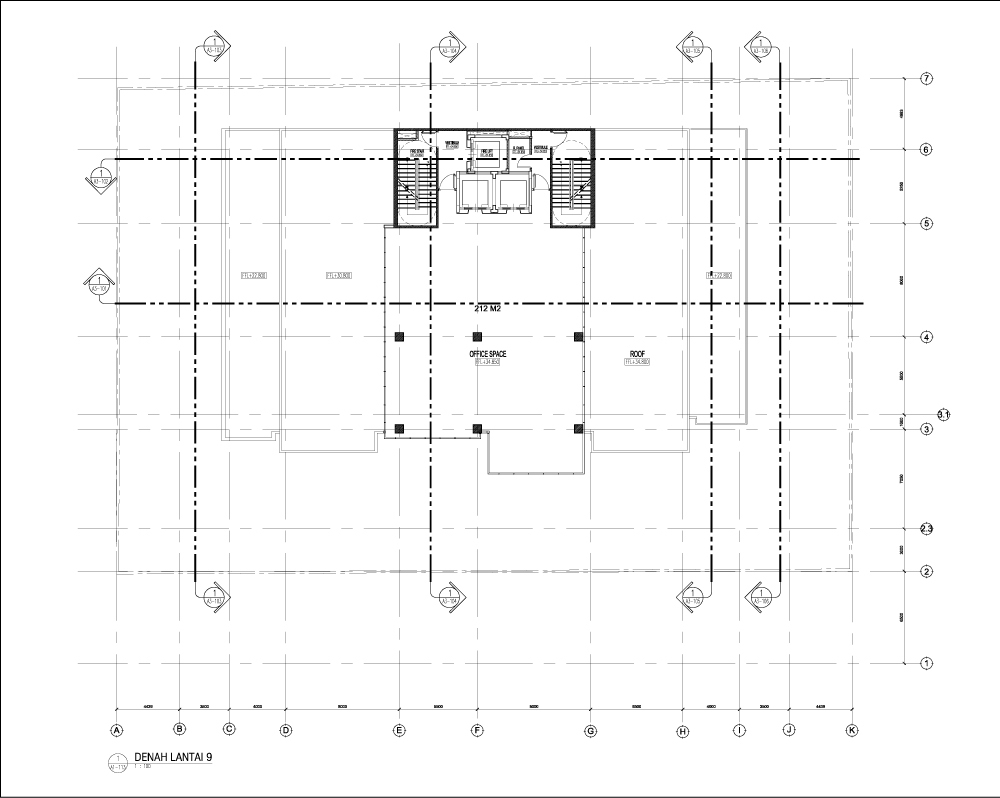

9th Floor Plan


Jagat Tower

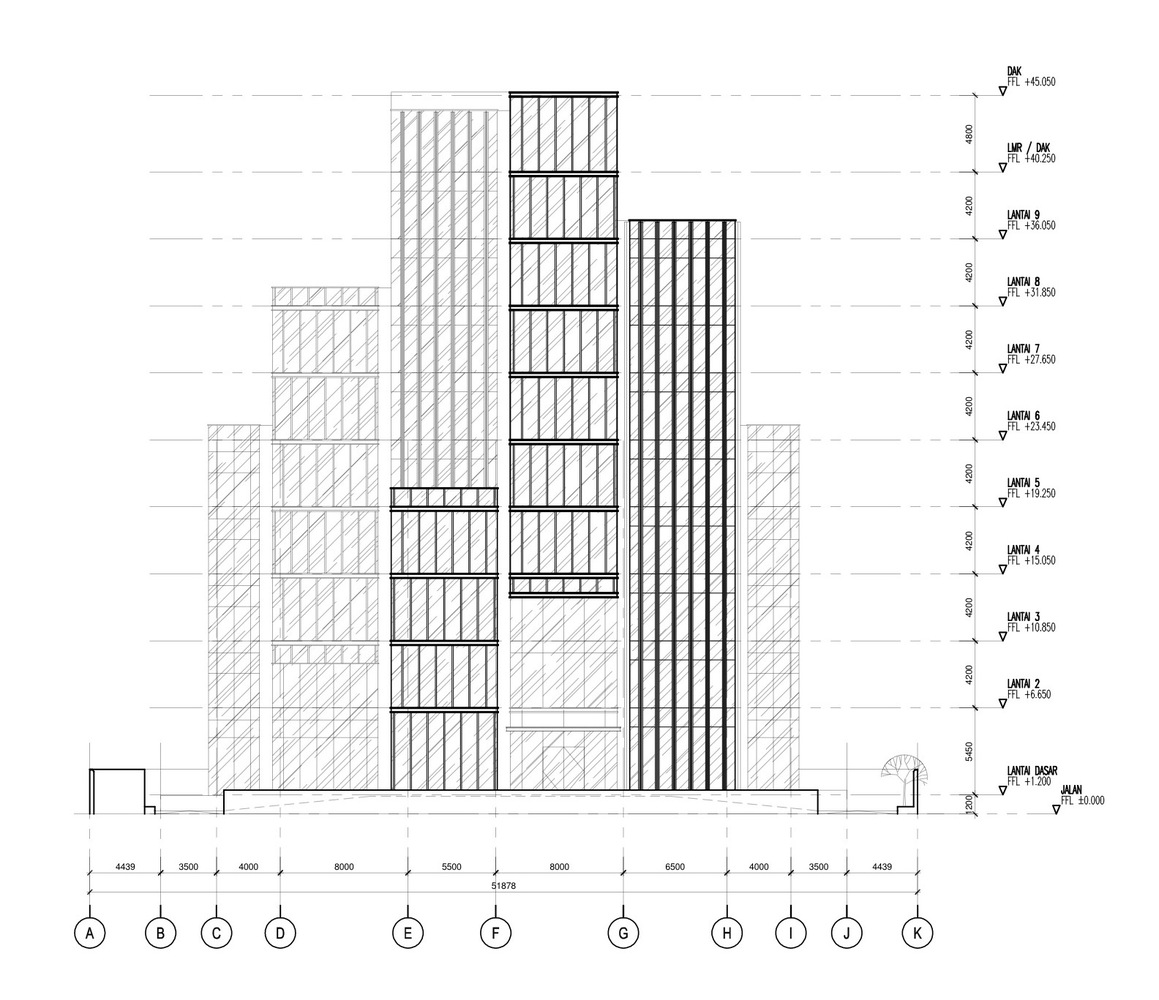

Elevation
Jagat Tower
Sections
