Zhaojun Museum

Zhaojun Museum
© Haiting Sun

ZHAOJUN MUSEUM

CADG-Qistudio

ARCHITECST
CADG-Qistudio

PHOTOGRAPHS
Haiting Sun, Guangyuan Zhang

MANUFACTURERS
北京宝贵石艺科技, 洪雅竹元科技

LOCATION
Hohhot, China

AREA
15092 m²

CATEGORY
Museum

YEAR
2017

Text description provided by architect.

haojun Museum locates 9 kilometers to the south Hohhot and 20 kilometers to Hohhot Baita International Airport. The museum was completed in August, 2017. After repeated verification and comparisons, the new site of Zhaojun Museum was eventually selected to locate at the starting point of Zhaojun Green Tomb south axis.

Zhaojun Museum
© Haiting Sun
Zhaojun Museum
© Haiting Sun

Since the massive architecture is set at the origin of paved path and the south front of scenic spot, it will reform the site to create a new axis, and then be connected to the Zhaojun Aotsuka - built 2000 years ago in time and space.

Reappearance and Recreation According to the archaeological researches, Zhaojun Aotsuka was built in Han Dynasty 2000 years ago and rammed with earth. The height of current Zhaojun Aotsuka is around 31 meters. The new museum intends to pay tribute to Zhaojun Aotsuka by representing construction statue and emotio

Zhaojun Museum
© Haiting Sun
Zhaojun Museum
© Haiting Sun

Traversing and Gathering The large funnel-wedge-shaped sunken plaza on the southern side of the museum is designed to gather visitors to the park’ s entrance space compulsively to a certain extend. It also intends to create more possibilities for interactivity.

The massing of the museum makes way for the central axis, allowing the Zhaojun Aotsuka to be visible from the outside, and even from the city road.

Zhaojun Museum
© Haiting Sun
Zhaojun Museum
© Haiting Sun

As people pass through the axis, the image of the Zhaojun Aotsuka varies from visible to invisible, from disappeared to exposed, which creates interactions with people.

Synergy and Difference The modernity of contemporary craftsmanship does not fit the original intention of the new museum and the huge mound conceived by us.

Zhaojun Museum
© Haiting Sun
Zhaojun Museum
© Haiting Sun

Therefore, we adopt a different approach from the classic language of modern architecture, and let the material be the main body of the space by the means of less artificial.

Relying on research, we aware of the concrete will show the same characteristics by mold and retarder. At the same time, we show contemporary technology by not fixing slab joints.

Zhaojun Museum
© Haiting Sun
Zhaojun Museum
© Haiting Sun

In the project, we used glued bamboo as "wood", not only because of the material's recyclability and wood appearance, but also because it is superior to the mechanical properties of wood. Large canopy is completely formed by the structure, which performs a better tensile property of the glued bamboo.

The Interior Scene and the External Environment
The interior material logic still extends the outdoor "earth and wood" feelings. We put forward the concept of "room scene" of public space that is forming different space "Scene" in the same space at different angles.

Zhaojun Museum
© Guangyuan Zhang
Zhaojun Museum
© Haiting Sun

The "positive and negative" triangular window at the axis of the building penetrates the axis landscape of the scenic spot, and gives an interesting "picture frame", it will connect the building interior and exterior together.

Compared with the interior, we design a broader environment: The continuous epidermis of a triangle is formed by grass planting and imitation of rammed concrete surface, constructing the micro terrain ups and downs, spreading the control of the building over the wider earth.

Zhaojun Museum
© Haiting Sun


Zhaojun Museum
Model-Top
Zhaojun Museum
Model-Structure
Zhaojun Museum
Model-Perspective


Zhaojun Museum

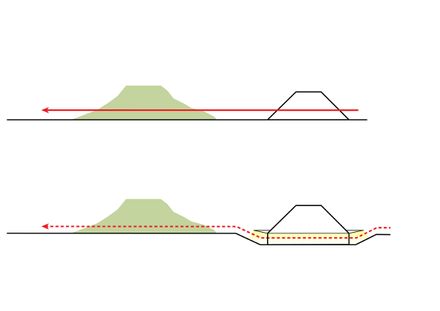

Diagram
Zhaojun Museum
Diagram


Zhaojun Museum
Satellite Image of Building Site
Zhaojun Museum
Sight Line Analysis


Zhaojun Museum
Underground Floor Plan
Zhaojun Museum
First Floor Plan
Zhaojun Museum
Second Floor Plan
Zhaojun Museum
Roof Plan


Zhaojun Museum
Section
Zhaojun Museum
Section
Zhaojun Museum
Section
Zhaojun Museum
East and West Elevations
Zhaojun Museum
North Elevation
Zhaojun Museum
South Elevation


Zhaojun Museum
Detail
Zhaojun Museum
Detail
Zhaojun Museum
Detail
Zhaojun Museum
Site Plan
Zhaojun Museum
Site Plan
