House Duurzaamheid

House Duurzaamheid
© Thomas Mayer

HOUSE DUURZAAMHEID

Archi3o

ARCHITECTS
Archi3o

CONTRACTOR
Fraanje aannemingsbedrijf, Lewedorp

DOMOTICA
BeNext

MANUFACTURERS
Derix, Gutex, Ortner

CONSTRUCTION
Keetels

CLIENTS
Rakhorst family

BUILDING PHYSICS
Syneff consult

PHOTOGRAPHS
Thomas Mayer

AREA
210 m²

YEAR
2017

LOCATION
Cadzand, The Netherlands

CATEGORY
Houses

Text description provided by architect.

This project near the Dutch coast was built for a very special client who is an innovator in home atomization and well-known advocate for sustainable architecture.

For the design of his holiday home he selected architecture cooperation Archi3o.

House Duurzaamheid
© Thomas Mayer
House Duurzaamheid
© Thomas Mayer

Project architect Renz Pijnenborgh, being a pioneer in Biobased and healthy architecture, created the house to be a synergy of nature and technology.

Precision building with cross-laminated timber

The house composed of 3 wedge-shaped elements was for the most part prefabricated in a factory in Germany.

The ‘building kit’ which was assembled at the site was machine milled directly from the design of the architects which was made in 3D BIM.

House Duurzaamheid
© Thomas Mayer
House Duurzaamheid
© Thomas Mayer

This made it possible to build extremely accurate and actually take advantage of intelligent modelling and built ‘smart’.

In only three days the basics of the house were assembled, including all cavities and holes needed for installations which were fully integrated.

House Duurzaamheid
© Thomas Mayer
House Duurzaamheid
© Thomas Mayer
House Duurzaamheid
© Thomas Mayer

This was important since the wooden body of the house, walls, floors and roofs, are left in plain sight throughout the whole house.

SUSTAINABLE INNOVATION

Building an innovative fully self-sufficient and sustainable holiday home was the goal set by the client from the beginning.

Setting an example was at least as important to him as the fact that he wanted to create a great getaway for his family.

House Duurzaamheid
© Thomas Mayer
House Duurzaamheid
© Thomas Mayer
House Duurzaamheid
© Thomas Mayer

Besides the smart cross laminated structure, the house boasts a foundation of aerated concrete, a super insulated skin of hemp fibers, geothermal and mass heating, a 19 kilowatt solar roof providing enough energy for the house.

The cars and some of the neighbors when the family is out, bio-based materials, natural ventilation and of course fully integrated state of the art home automation which has its own 48 volts’ network powered by the solar charged home batteries.

House Duurzaamheid
© Thomas Mayer
House Duurzaamheid
© Thomas Mayer
House Duurzaamheid
© Thomas Mayer


House Duurzaamheid
© Thomas Mayer
House Duurzaamheid
© Thomas Mayer
House Duurzaamheid
© Thomas Mayer
House Duurzaamheid
© Thomas Mayer
House Duurzaamheid
© Thomas Mayer
House Duurzaamheid
© Thomas Mayer


House Duurzaamheid
Elevations
House Duurzaamheid
Sections


House Duurzaamheid
Ground Floor Plan
House Duurzaamheid
First Floor Plan


House Duurzaamheid
Detail 1
House Duurzaamheid
Detail 2
House Duurzaamheid
Detail 3
House Duurzaamheid
Detail 4
House Duurzaamheid
Detail 5
House Duurzaamheid
Detail 6
House Duurzaamheid

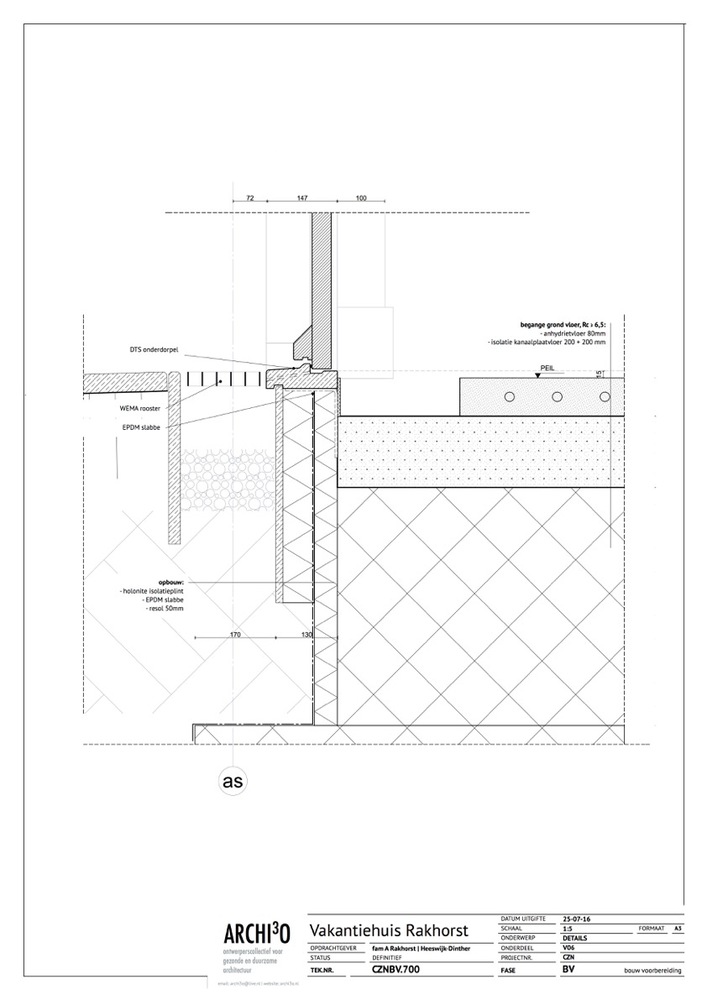

Detail 7
