Marc Koehler Architects

House with 11 Views

House with 11 Views
© Filip Dujardin

HOUSE WITH 11 VIEWS

Marc Koehler Architects

CATEGORY
Houses

LOCATION
Almere, The Netherlands

CLIENT
Private

AREA
240 m²

CONTRACTOR
Reytec Innovations

PHOTOGRAPHS
Filip Dujardin

PROJECT TEAM
Marc Koehler, Thomas Wellink, Carlos Moreira, Maarten Verhelst, Robbert Verheij

YEAR
2017

Text description provided by architect.

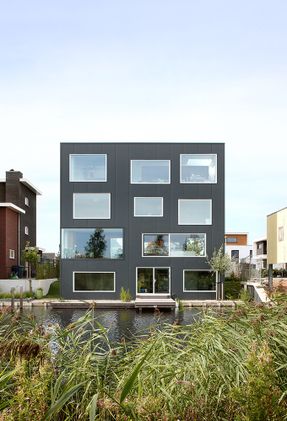

Five small artificial islands mark the border between the suburban expansion of Almere Stad -the new neighborhood ‘Noorderplassen West’- and the nature area ‘Noorderplassen’. House with 11 views is located on one of these islands. Although the distinction between culture and nature is palpable, both are part of the same polder landscape.

House with 11 Views
© Filip Dujardin
House with 11 Views
© Filip Dujardin

A landscape that had its origin on the design table and was created out of nothing.  With this context in mind, the villa was designed as an abstract white box, that stands on the island as an object.

In the design historicizing architectural references were avoided since it would simply ignore the fact that this environment is new.

 A more abstract, conceptual approach was chosen, offering the freedom to experiment and to apply unconventional materials and construction plerincips. The abstract architecture also offers the direct environment the freedom to develop its own identity. The client asked for a house with a industrial and loft-like appearance with a maximum floor area at a low building cost.

House with 11 Views
© Filip Dujardin
House with 11 Views
© Filip Dujardin

In order to meet the clients wishes the house was built in an unconventional way: a building method which is normally seen in the construction of industrial halls. A steel frame clad with sandwich elements of corrugated steel and polyurethane insulation. This has resulted in the raw and industrial look of the design. The four floors have their own character and function.

The ground floor is designed like a boathouse with a garage. From there the residents have direct access to the wooden deck and the water. The living spaces and the kitchen are located on the first floor, where the large windows on both sides of the house visually connect the front yard and the nature area the Noorderplassen at the back of the house.

House with 11 Views
© Filip Dujardin
House with 11 Views
© Filip Dujardin

The second floor contains the private bedrooms and the top floor works as a multifunctional penthouse. The impressive view on the ‘Noorderplassen’ and the ‘IJsselmeer’ has inspired to create windows that frame different parts of the landscape.

In the search for the right proportions of the windowframes, eleven 17th-century Dutch landscape-paintings served as a direct example. By showing the similarity between the landscape paintings and the view on the Noorderplassen, the specific qualities of the landscape such as the Dutch light are emphasized.

House with 11 Views
© Filip Dujardin
House with 11 Views
© Filip Dujardin

Because extra insulation and gypsum board was added to the innerside of the steelframe, the windowsills are extra deep. This offers the inhabitants the experience of sitting inside the view.

The windows all have an integrated sunscreen with an unique print. The graphic depicts a zoom in on the original painting with a color gradient over it. Which creates a warm and atmospheric setting when the screens are down.

House with 11 Views
© Filip Dujardin


House with 11 Views

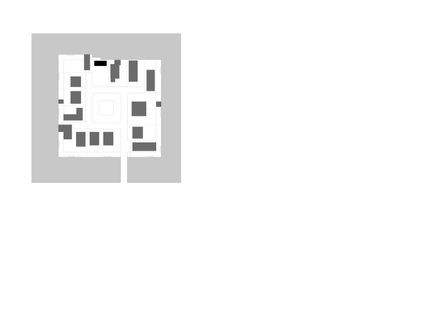

Site Plan
House with 11 Views
Second Floor Plan
House with 11 Views
Ground Floor Plan
House with 11 Views
Basement Plan
House with 11 Views
First Floor Plan


House with 11 Views
Facade
House with 11 Views
South Facade


House with 11 Views
Section AA

House with 11 Views
North Facade and section BB
