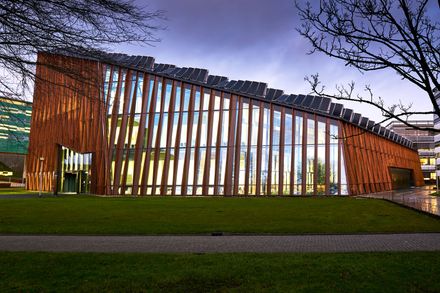

Energy Academy Europe
© Ronald Zijlstra

ENERGY ACADEMY EUROPE

Broekbakema + De Unie Architecten

ARCHITECTS
Broekbakema, De Unie Architecten

LOCATION
Groningen, The Netherlands

CATEGORY
University

YEAR
2016

PHOTOGRAPHS
Ronald Zijlstra, Egbert de Boer

MANUFACTURERS
Brakel Atmos, De Groot Vroomshoop, MAARS, Rollecate, Houkesloot

AREA
12676

STRUCTURAL ENGINEEING
Wassenaar

BUILDING SERVICES
ARUP

BUILDING PHYSICS
DGMR

PROJECT MANAGEMENT
ICS Adviseurs

CONTRACTOR
Friso-Koopmans

OWNER
Rijksuniversiteit Groningen

Text description provided by architect.

The Energy Academy Europe (EAE) is the most sustainable education building of The Netherlands.

Energy Academy Europe
© Egbert de Boer
Energy Academy Europe
© Ronald Zijlstra

The natural elements of earth, water, air, and sunlight are used innovatively in a solar chimney, winter garden, atrium and air labyrinth.

Energy Academy Europe
© Ronald Zijlstra
Energy Academy Europe
© Ronald Zijlstra

This results in both a BREEAM Outstanding score and an energy-positive structure that will completely offset its carbon footprint within 40 years.

Energy Academy Europe
© Egbert de Boer
Energy Academy Europe
© Ronald Zijlstra

Located at the Zernike Campus in Groningen in the north of The Netherlands, the EAE is an institute where industry, education, and research join in order to innovate in the field of energy.

Appropriately their accommodation itself is designed as a topnotch example of innovation and sustainability. The Energy Academy has been selected as the winner of the International BREEAM Awards 2017 in the category Mixed Use & Other.

Energy Academy Europe
© Ronald Zijlstra
Energy Academy Europe
© Ronald Zijlstra

A large central atrium connects the two programmatic halves of the structure that includes education and laboratories on one side and offices and laboratories on the other.

The split level floors share common decks where people can meet and overlook the atrium, turning it into the heart of the building bringing together researchers, office workers, laboratory personnel, and students.

Energy Academy Europe
© Ronald Zijlstra
Energy Academy Europe
© Ronald Zijlstra

Sustainability formed the base of the design from the first moment onward, based on the Broekbakema philosophy “inspired by nature, powered by people”. A low-tech approach was chosen to utilize the four natural elements to its utmost potential.

In a 200m-long walkable labyrinth under the building, the earth is used to pre-cool or pre-heat fresh ventilation air. A solar chimney at the top of the roof creates a natural airflow through the structure, pulling fresh air from the winter garden through the labyrinth, atrium and glass shafts at the north façade.

Energy Academy Europe
© Ronald Zijlstra
Energy Academy Europe
© Ronald Zijlstra

Rainwater is collected and used to flush toilets and irrigate the plentiful green in the building. The innovative 3D roof allows maximum harvesting of daylight and energy by using 150% of the roof surface: 50% of the roof is covered with vertical and slanted PV, allowing the remaining 50% of the roof to be used for daylight. Only when these natural sources are not sufficient in keeping interior comfort levels, backup systems jump in for heating, ventilation, and lighting.

An additional challenge during the design phase was the risks of earthquakes in Groningen. The building structure was made earthquake-resistant by connecting the split-level ramps for additional stiffness. In addition, the facades are detailed with the ability to cope with externally caused distortions. The Energy Academy is not just an innovative and sustainable building but is also future-proof and ready to tackle future challenges.

Energy Academy Europe
© Ronald Zijlstra

The design of the Energy Academy was fully coordinated by Broekbakema, with all disciplines working together in a BIM environment. By having close contact with the different user groups who would occupy the building, an optimal layout and functioning of the building was guaranteed. To quote the owner, this allowed for a building “where meeting and knowledge-sharing are central, which shows innovation and energy whilst still feeling natural.”


Energy Academy Europe
Ground Floor Plan
Energy Academy Europe
First Floor Plan
Energy Academy Europe
Second Floor Plan
Energy Academy Europe
Third Floor Plan
Energy Academy Europe
Fourth Floor Plan
Energy Academy Europe
Rooftop Plan


Energy Academy Europe
Section A
Energy Academy Europe
Section B
Energy Academy Europe
Functions Section


Energy Academy Europe
Concept Scheme


Energy Academy Europe
Situation Plan
