VISTA-FOLDING TOWER

Doarchi

ARCHITECTS
Doarchi

LOCATION
Linyi, China

CATEGORY
Office Buildings

AREA
57457 m²

PHOTOGRAPHS
Schran Image

CONSTRCTION
Shanghai Linzhi Architectural Decoration Construction Company

YEAR
2017

BUILDING HEIGHT
96 m

CURTAIN WALL CONSULTANT
Zhao Baoyu

CLIENT
Zhengneng Group Ltd

Text description provided by architect.

Modern skyscrapers liberate human activities from gravity. Skyscraper featured by verticality makes us break away from familiar senses and consciousness of being existing. “An existence without evidences” is not only the description of varied skyscrapers but also of the life it accommodated.

Vista-Folding Tower
© Schran Image

Architecture should respond to its specific site actively and establish dialogue with its context, thereby bringing correlation of spatial experiences and continuity of visual consciousness, which makes people, space, movement, and event tied to environment in a bigger scale.

Yimeng Mountain lies across the East China plain and Yi River runs from mountain land in middle south of Shandong province, meandering eastwards through Linyi city.

Vista-Folding Tower
© Schran Image
Vista-Folding Tower
© Schran Image

The site is located in Lanshan area in Linyi city. It faces Yi River in east, and in west, it is beside Yizhou road which is a traffic artery of the city.

The twin-track Yanshi railway both for passengers and goods lies in south of it and cross-river bridge of Taoran road connects the airport and railway station that are on tow sides of the river.

It’s in the intersection of waterway, highway, and railway transportation. Views of the site are varied.

Vista-Folding Tower
© Schran Image
Vista-Folding Tower
© Schran Image

In north and east sides, the straight line of the plan is folded up to the river in the east side, which forms triangular spaces around the margin of the building. to lead the people’s eye is looking forwards the view from Yi river.

Vista-Folding Tower
© Schran Image
Vista-Folding Tower
© Schran Image

Every folding unit is 2.1-meter long. So, the scale of it is suitable for two to three persons to have rest and enjoy the awesome view around the building.

Vista-Folding Tower
© Schran Image
Vista-Folding Tower
© Schran Image

The east and west sides are folded up perpendicularly to face the river and the urban respectively. Overall, it forms a condition that the fluid facade is relatively more see-through in southeast and more solid in northwest to respond its particular context.

In vertical direction, components run though the whole facade. Around the top and the bottom of the tower, the facade components change from line to surface rhythmically.

Vista-Folding Tower
© Schran Image
Vista-Folding Tower
© Schran Image

The detailed facade on podium plus the middle and the top of the tower, shaped the integrity of the building.

Near to the ground, the facade of the podium is detailed by folded iridescence aluminum panels in geometrical form.

Vista-Folding Tower
© Schran Image
Vista-Folding Tower
© Schran Image

The alternate reflections of natural light and surrounding scenes from the aluminum panels and the glasses gives the facade spatial characteristic.

Physically, the façade of architecture exists in a unmitigated static state but in environment, the time and space give it correlation between dynamic and static characters.

When people walking around the building, its facade seems to compose a cento where light and shadow flows alternately, the void and solid mixes gradually.

Vista-Folding Tower
© Schran Image
Vista-Folding Tower
© Schran Image

People, architecture, and environment are no longer distinctive individuals but they produce a vivid scene with their interrelationship.

The penetration between inside and outside and the interdependence of movement and stillness give a sense of ambiguity, which is our exploration of the dynamic facade correlation.

Vista-Folding Tower
© Schran Image


Vista-Folding Tower

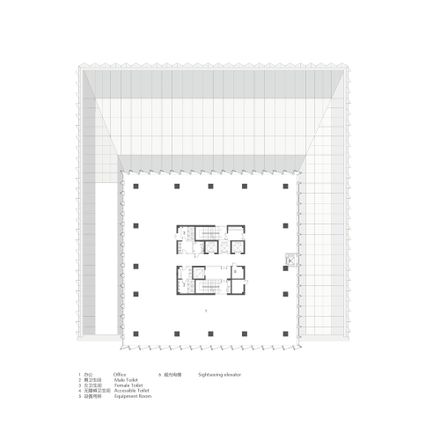

Typical Floor
Vista-Folding Tower
5th Floor
Vista-Folding Tower

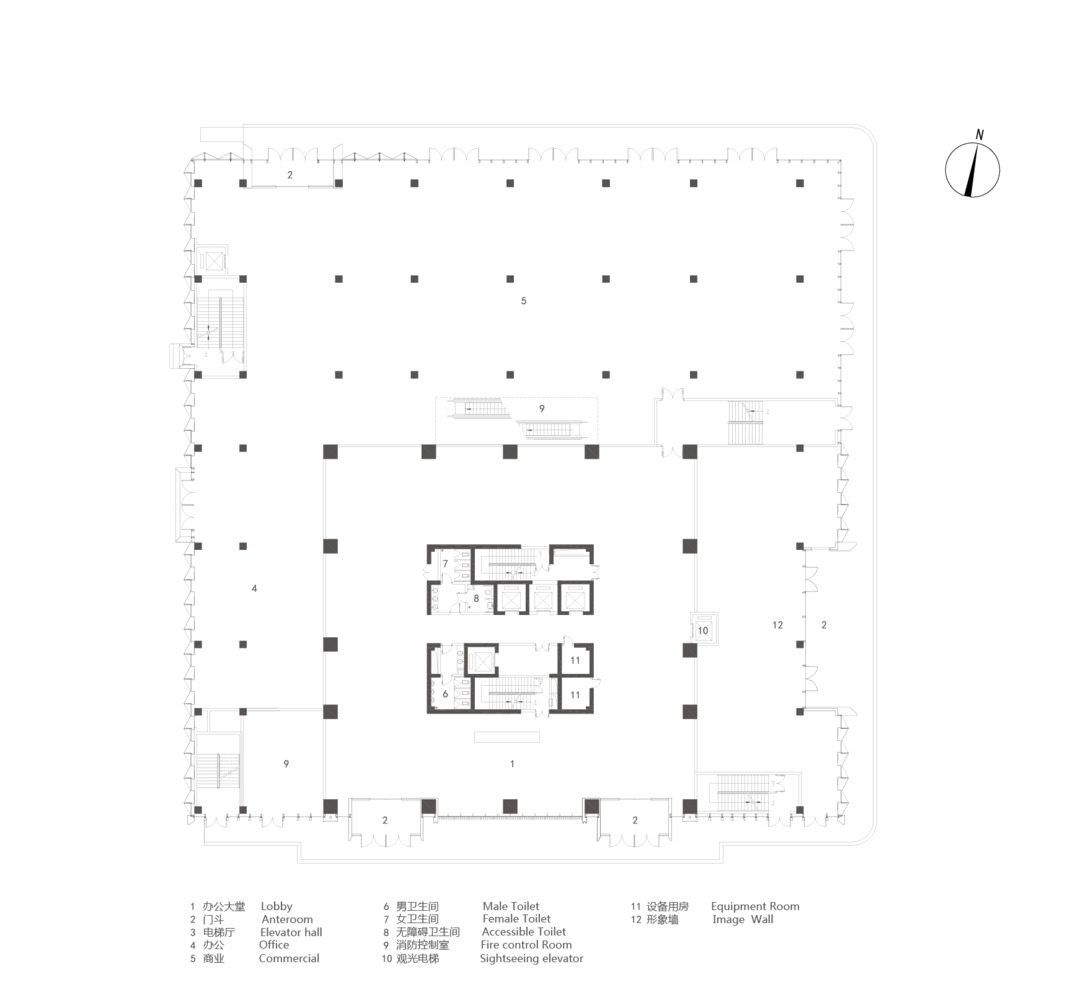

Ground Floor


Vista-Folding Tower

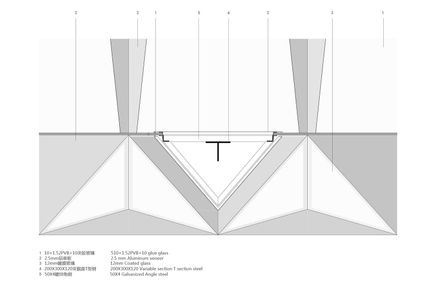

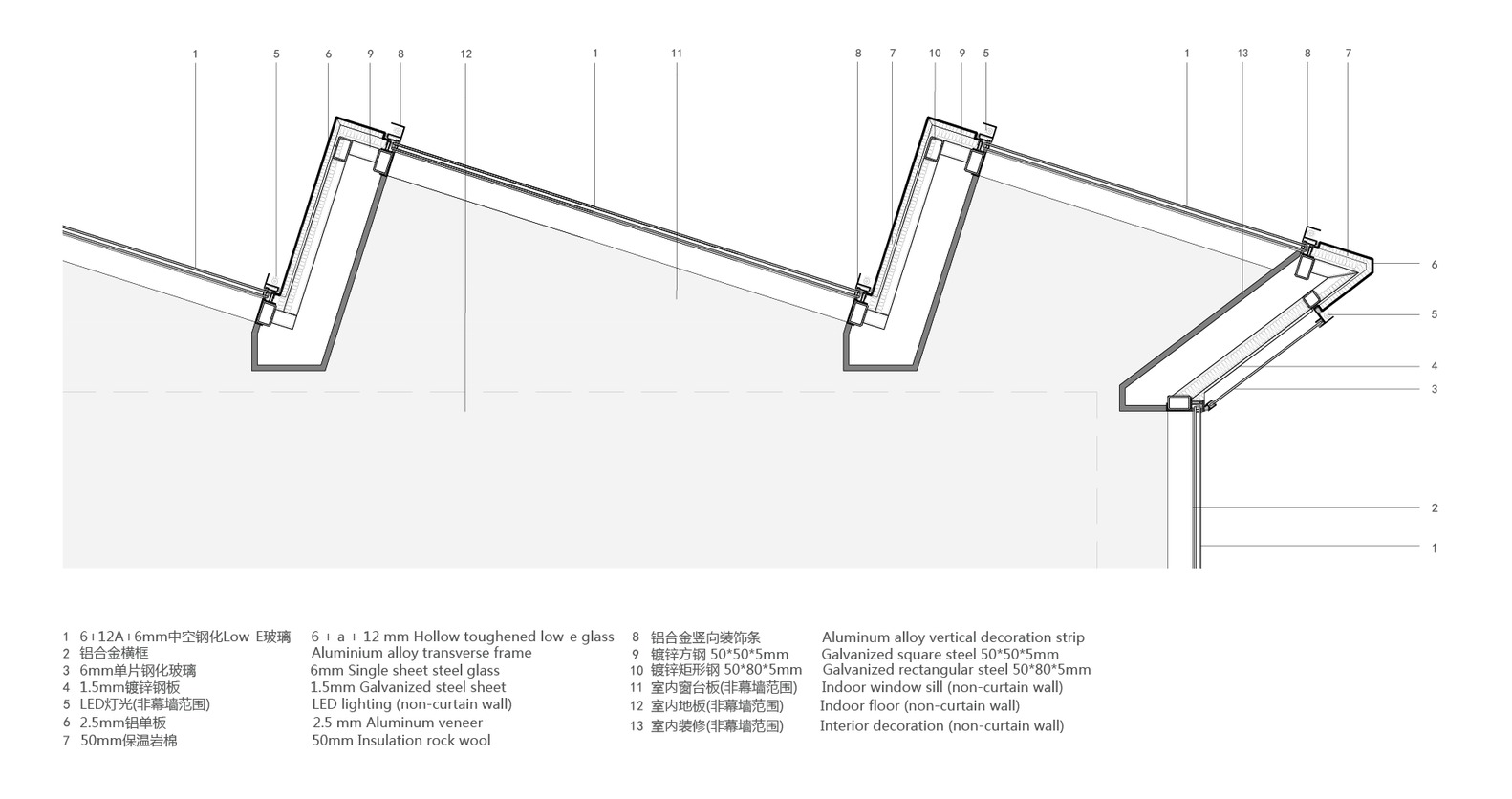

Details
Vista-Folding Tower
Details
Vista-Folding Tower
Details


Vista-Folding Tower
Elevation


Vista-Folding Tower
Vista-Folding Tower
Model


Vista-Folding Tower
Situation
