Dellekamp Schleich

Bulgaria 533

Bulgaria 533
© Sandra Pereznieto

BULGARIA 533

Dellekamp Arquitectos

ARCHITECTS
Dellekamp Arquitectos

MANUFACTURERS
Barandales, Mexicana de Mosaicos

PHOTOGRAPHS
Sandra Pereznieto

AREA
1840 m²

YEAR
2017

LOCATION
Ciudad De México, Mexico

CATEGORY
Apartments

Text description provided by architect.

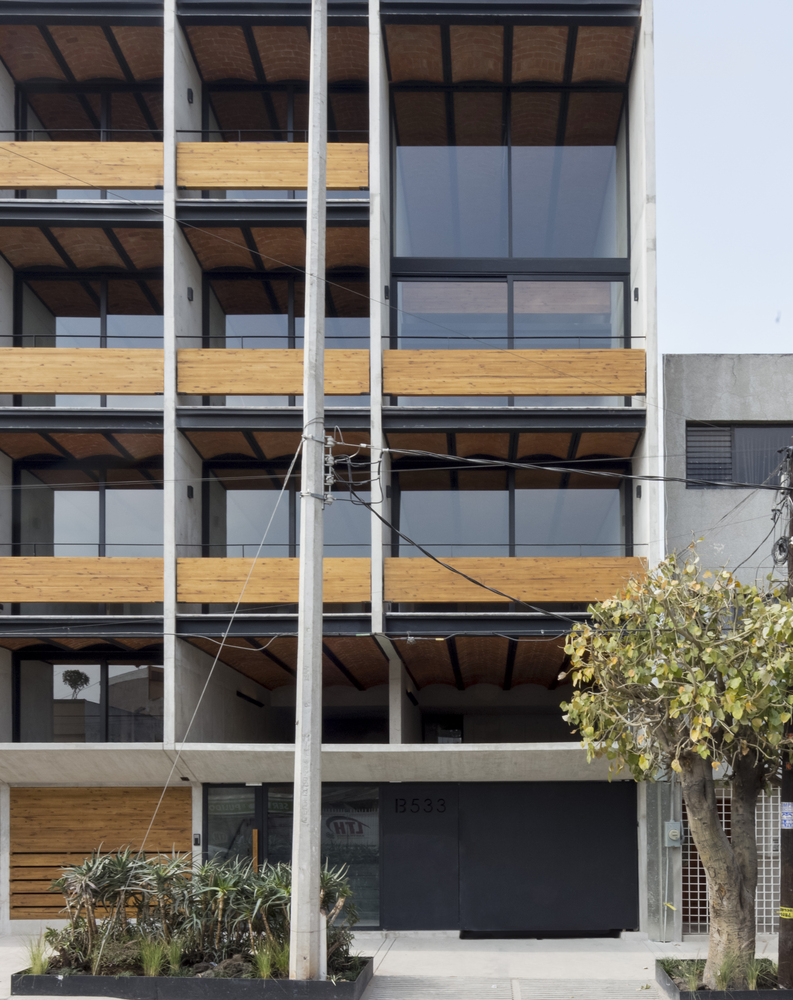

This apartment building by Dellekamp Arquitectos is located in Benito Juárez, Mexico City, was conceived as a middle-class housing development for young families.

The main premise of the project was to develop housing within the market range that offered a materiality and spatiality above the standard.

Bulgaria 533
© Sandra Pereznieto
Bulgaria 533
© Sandra Pereznieto
Bulgaria 533
© Sandra Pereznieto

Each apartment was divided into two habitable modules, one containing the living room, dining room, and services core, while the second is a room with closet and bathroom.

The project was woven together with the possibility of having one, two or three bedrooms apartments.

Some of them (apartment with street view) are complemented with an outside terrace, while others have an attractive roof garden.

Bulgaria 533
© Sandra Pereznieto
Bulgaria 533
© Sandra Pereznieto

The project has a very clear integration between space and structure.

All the materials are used in an apparent way to emphasize their plastic characteristics.

Bulgaria 533
© Sandra Pereznieto
Bulgaria 533
© Sandra Pereznieto
Bulgaria 533
© Sandra Pereznieto

The functional scheme of the habitable units allowed to have a clear scheme of constructive systems.

Which consists of: a central circulation with double heights and entrance of light to the center of the building.

This one with metal structure and roofs of brick vault; around the circulation are the accesses and core service with kitchens.

Bulgaria 533
© Sandra Pereznieto
Bulgaria 533
© Sandra Pereznieto
Bulgaria 533
© Sandra Pereznieto

Bathrooms and washrooms, load-bearing walls of apparent concrete and solid slab of concrete for the installations.

Finally, towards the front and rear facade rooms with double heights, rooms and dining rooms with walls of apparent concrete load and brick vaults.

One of the most recurrent themes during the design process of this work was the need for material honesty in all its spaces, using in a clear way the constructive methods of brick vaults, casting of concrete walls, floors of Terrazzo, railings, and walls of laminated wood.

Bulgaria 533
© Sandra Pereznieto


Bulgaria 533
© Sandra Pereznieto
Bulgaria 533
© Sandra Pereznieto
Bulgaria 533
© Sandra Pereznieto
Bulgaria 533
© Sandra Pereznieto
Bulgaria 533
© Sandra Pereznieto
Bulgaria 533
© Sandra Pereznieto


Bulgaria 533

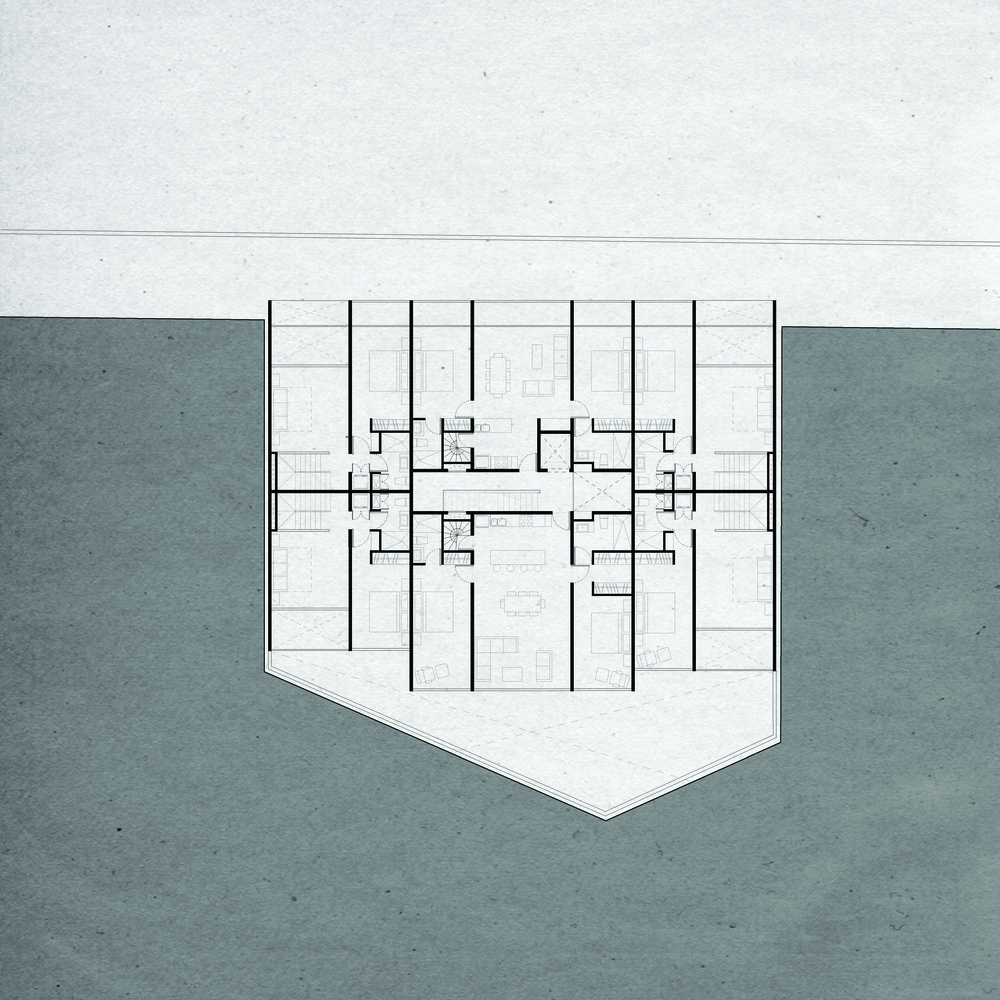

Under Ground Floor
Bulgaria 533
Ground Floor
Bulgaria 533
4th Floor
Bulgaria 533
3rd Floor
Bulgaria 533
2nd Floor
Bulgaria 533
1st Floor
Bulgaria 533
2nd Floor Under Ground


Bulgaria 533
Section 3
Bulgaria 533
Section 2
Bulgaria 533
Section 1
