Waterside Buddist Shrine

Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO

WATERSIDE BUDDIST SHRINE

ARCHSTUDIO

ARCHITECTS
Archstudio

WATER ELECTRICITY DESIGN
Baowei Zheng

STRUCTURAL DESIGN
Fuhua Zhang

PHOTOGRAPHER
Weiqi Jin

AREA
169 m²

YEAR
2017

LOCATION
Tangshan, China

CATEGORY
Worship

Text description provided by architect.

This is a place for Buddhist mediation, thinking and contemplation, as well as a place satisfying the needs of daily life.

Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO

The building is located in the forest by the riverside. Along the river, there is a mound, behind which is a great stretch of open field and sporadic vegetable greenhouses.

The design started from the connection between the building and nature, adopts the method of earthing to hide the building under the earth mound while presenting the divine temperament of nature with flowing interior space.

A place with power of perception where trees, water, Buddha and human coexist is thus created.

Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO

To remain trees along the river perfectly intact, the building plan avoids all trunks. Shape of the plan looks like branches extending under the existing forest.

Five separated and continuous spaces are created within the building by two axis, among which one is north-south going and another one goes along the river.

The five “branches” represent five spaces of different functions: entrance, Buddhist meditation room, tea room, living room and bathroom, which form a strolling-style experience together.

Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO

The building remains close to trees and natural scenery. The entrance faces two trees; people need to walk into the building through a narrow path under the trees.

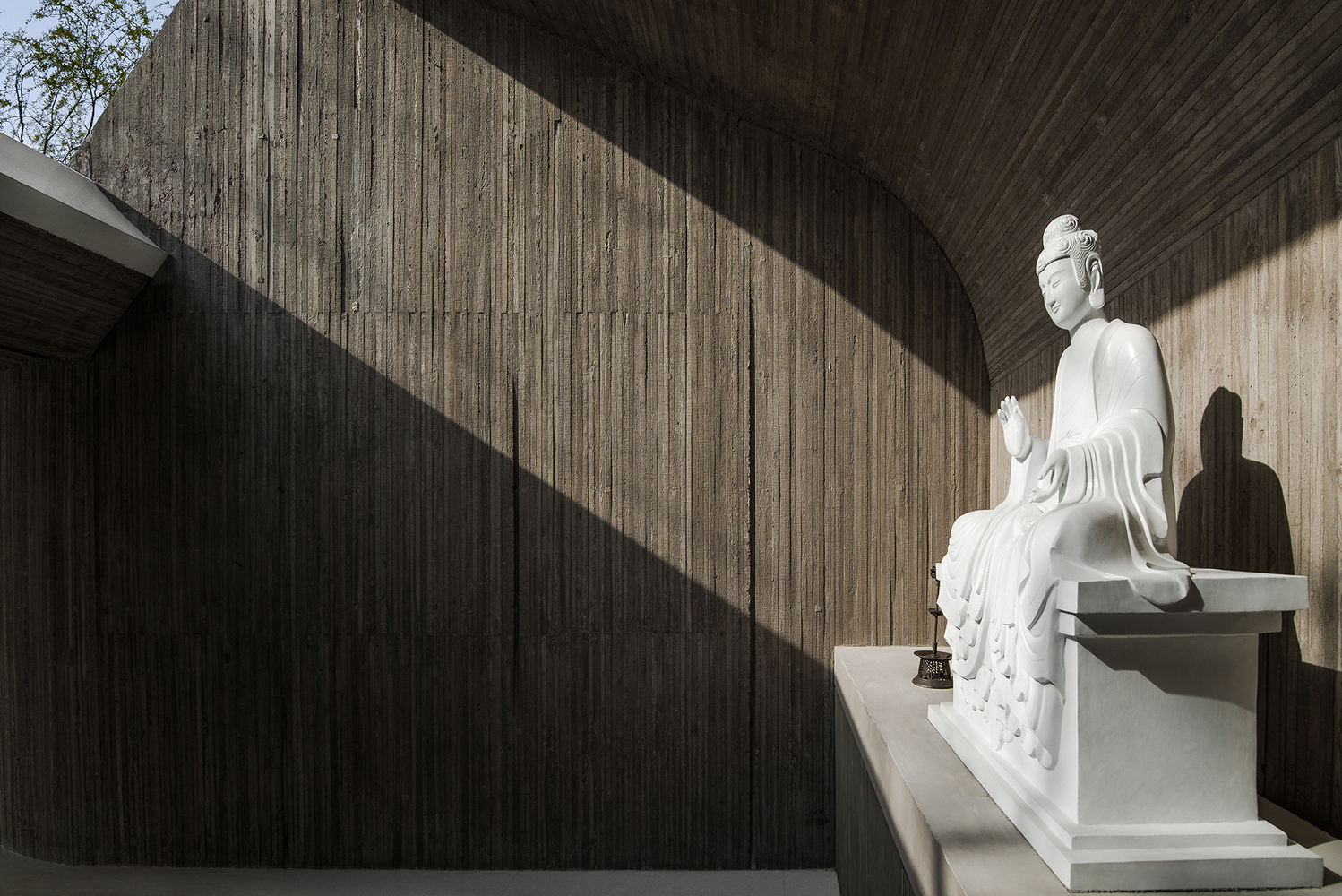

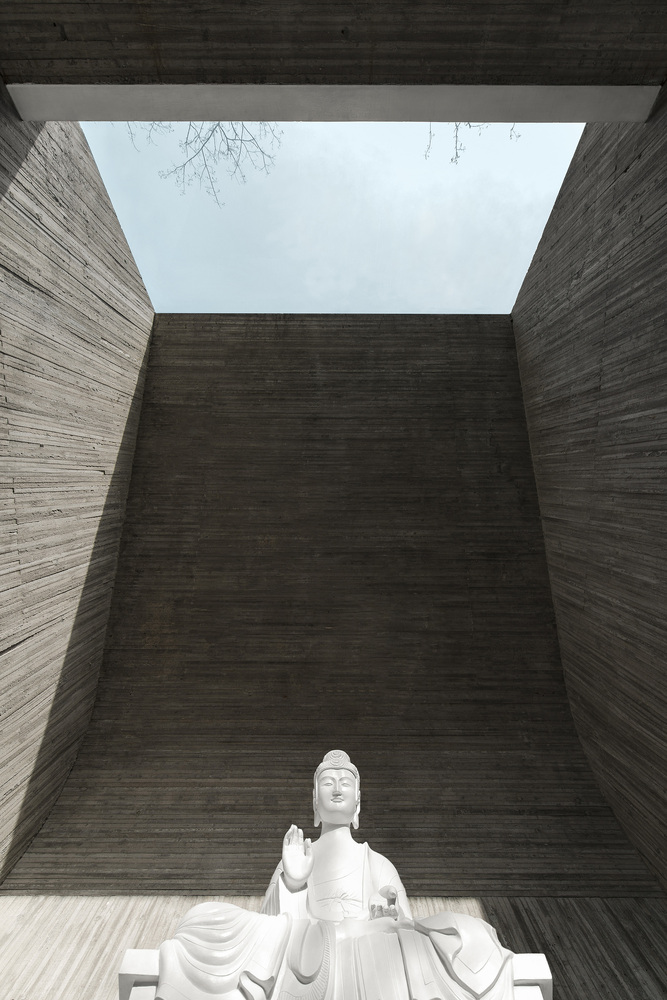

The shrine is against the wall and facing the water, where the light and the shadow of the trees get through the skylight and flow into the interior space softly along the curved wall, exaggerating the light of Buddha.

Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO

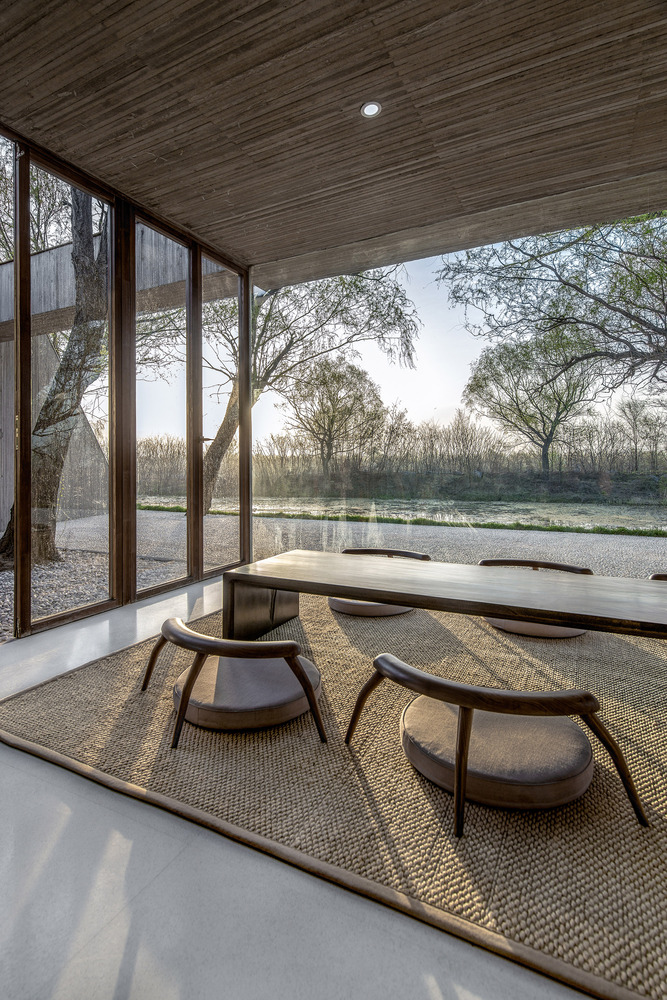

The tea room opens completely to the pool which is filled with lotus, and trees on both sides of the tea room has become part of the courtyard, creating a fun of tea tasting and sight-viewing.

The lounge is separated from other parts of the building by a bamboo courtyard; such division enables daily life varies with different hours of a day.

Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO

The whole building is covered with earth and becomes an extension of the land, as another “mound” which could be used under the trees.

The relationship with nature further extends to the use of materials. Integral concreting is used in walls and the roof of the building.

Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO

The concrete formwork is pieced together with pine strips of 3cm width, in this way natural wood grain and vertical linear texture are impressed on the interior surface, creating a soft and warm feeling to the cold concrete materials.

Built-in-furniture is custom-made with wood strips, whose grey wood grain is a little bit different from the concrete walls. Smooth terrazzo is used for the interior floor, where there is thin grain of stone on the surface, and it maps the outdoor natural landscape into the interior space.

Cement grouting with white pebbles is adopted in outdoor flooring, which creates a difference in sense of touch between indoor and outdoor floor.

Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO

To reflect natural texture of the materials, solid wood is used for all doors and windows. Zen stresses on complying with nature and being part of nature.

That is also the goal of the design for this space—taking use of space, structure and material to stimulate human perception, thus helping man and building to find the charm of nature even in an ordinary rural landscape, and to coexist with nature.

Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO


Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO


Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO
Waterside Buddist Shrine
© Courtesy of ARCHSTUDIO


Waterside Buddist Shrine
Model 1
Waterside Buddist Shrine

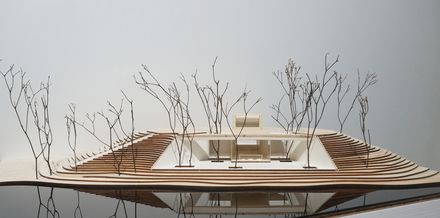

Model 2
Waterside Buddist Shrine
Model


Waterside Buddist Shrine
Section Details
Waterside Buddist Shrine
Section


Waterside Buddist Shrine

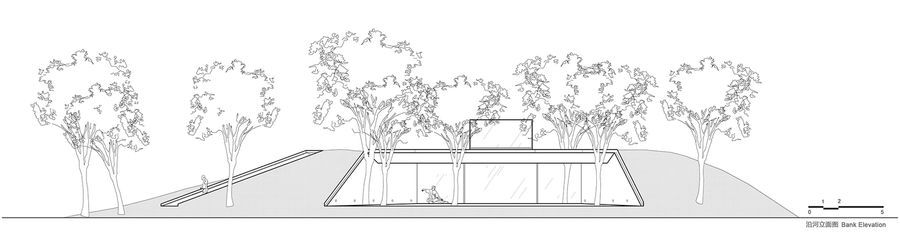

Elevation
Waterside Buddist Shrine
East Elevation


Waterside Buddist Shrine
Sketch Model


Waterside Buddist Shrine

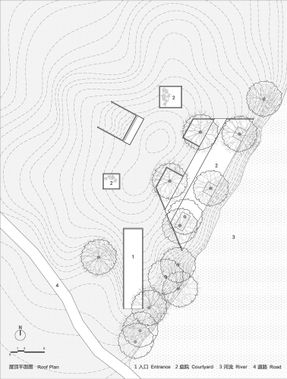

Roof Plan
Waterside Buddist Shrine
Floor Plan
Waterside Buddist Shrine
Site Plan


Waterside Buddist Shrine
Aerial View
Waterside Buddist Shrine
Diagram
