MILLGROVE HOUSE

Toms + McNally Design

CATEGORY
House

LOCATION
Toronto, canada

ARCHITECTS
Toms + McNally Design

AREA
7100

YEAR
2017

PHOTOGRAPHS
Revelateur Studio

STRUCTURAL
Blackwell Engineering

MANUFACTURERS
Inline Fiberglass, NanaWall, IMETCO, Owen, Terzani

MECHANICAL
mcCallum Sather

ELECTRICAL
Keith Seguin Engineering

LANDSCAPE
Adesso Design

MILLWORK (KITCHEN, BATHROOM & DINING ROOM)
Cranberry Hill Kitchens \ Ellen Preston

SEPTIC
Amec Foster Wheeler

CONTRACTORS
Keith Strub Construction (concrete), Entz Brothers Construction (carpentry), CMS Electric (electrical), G&A Masonry (masonry), Vipond (sprinklers), Cranberry Hill Kitchens (millwork), Shademaster Landscaping (Landscape), Cardi Construction (Earthwork), Praxy (zinc siding), Inline Fibreglass (windows), Barber Glass (glass guards), Caswell Maintenance (roof), Green Method (mechanical).

For Toms + McNally Design, Architecture is a response to context.Millgrove House, located in rural Hamilton, sits on a property that contained an abandoned apple orchard, and a hay-growing farm for local use.

Millgrove House
© Revelateur Studio
Millgrove House
© Revelateur Studio
Millgrove House
© Revelateur Studio
Millgrove House
© Revelateur Studio

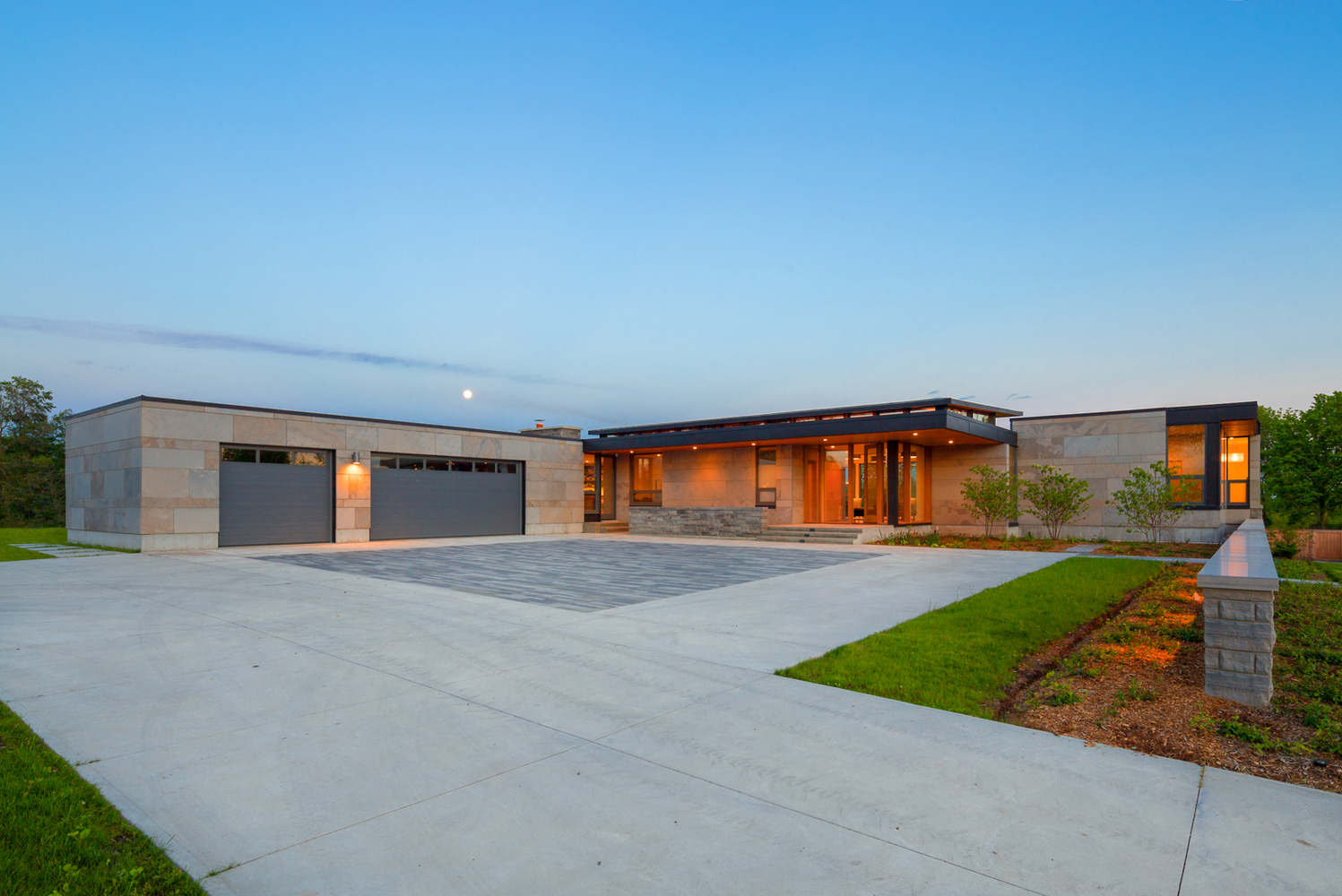

Situated between mature treelines and forests, the site is gently rolling. As a result, the design strategy was to use the topography in order to maintain a modest appearance from the street while providing a spacious home for a middle-aged couple with four adult children.

A place to live in comfortably, entertain and grow older, the house aims to accommodate their expanding family including the grandchildren.

Millgrove House
© Revelateur Studio
Millgrove House
© Revelateur Studio
Millgrove House
© Revelateur Studio

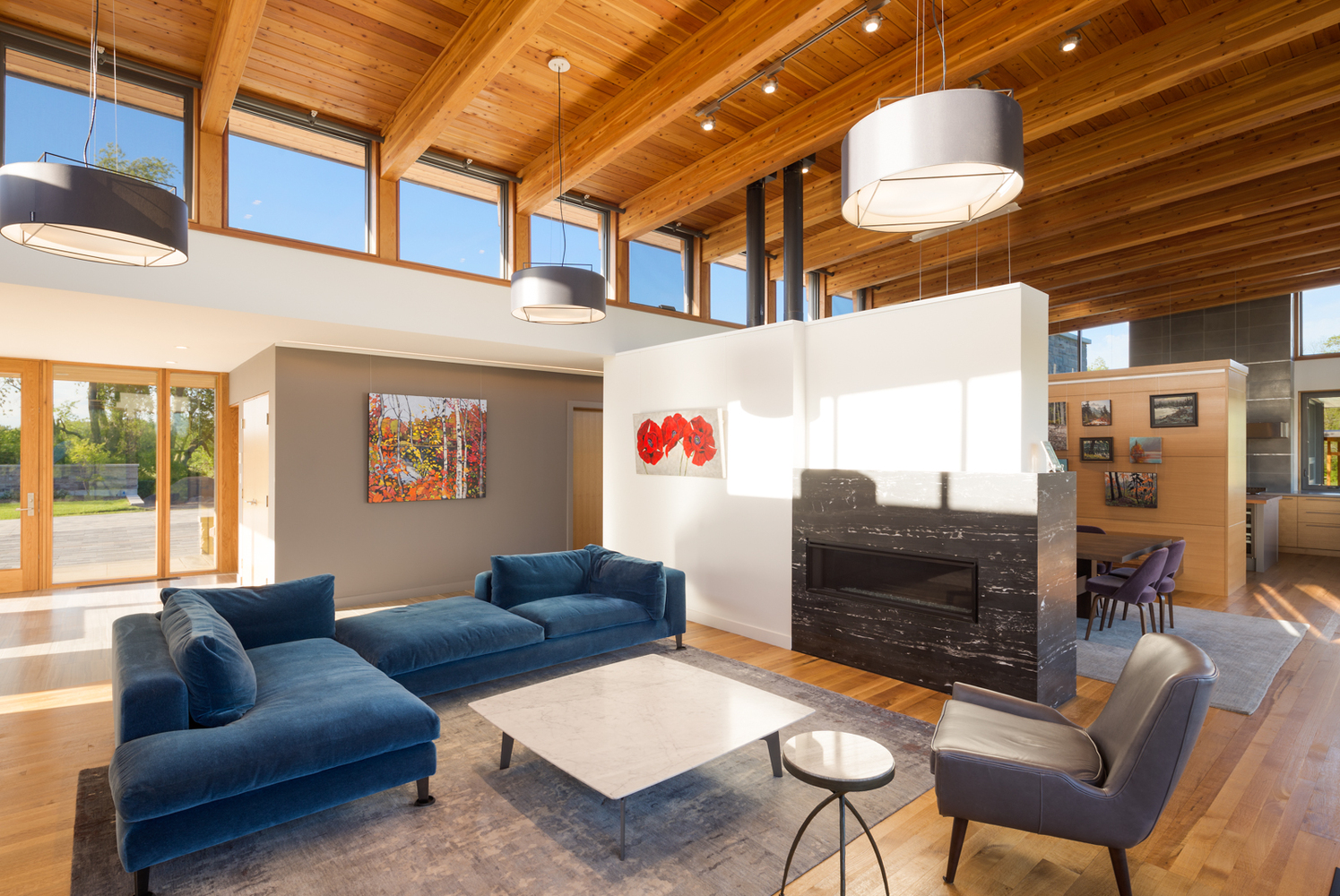

The kitchen, dining and living rooms—the spaces in which they cook, spend time and make memories together—are the focal points of the of the house.

Millgrove House
© Revelateur Studio
Millgrove House
© Revelateur Studio

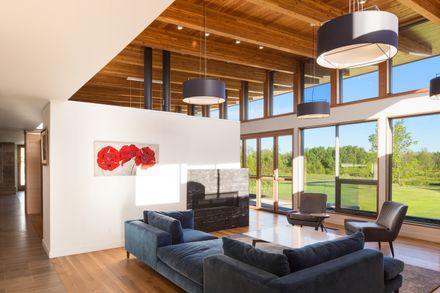

These spaces are combined in one generous volume capped with a sloped douglas fir roof rising to the south, opening up expansive views of the meadows and forests.

Millgrove House
© Revelateur Studio
Millgrove House
© Revelateur Studio

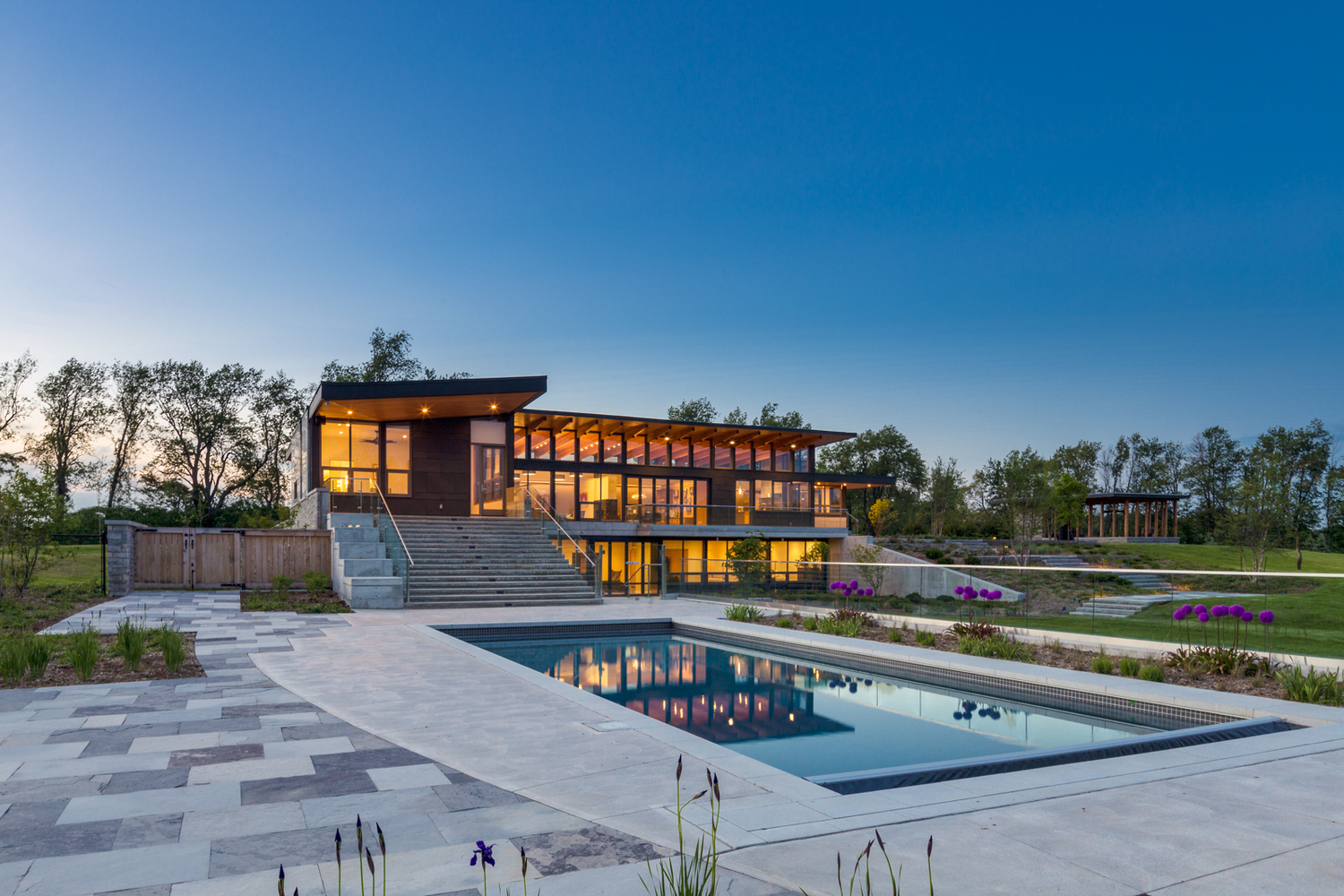

The lower level—a walkout made possible by the topography of the site—is kept almost entirely column free, keeping it bright and not obscuring views of the landscape.

In addition to building a house that responds to the context and unique lifestyles of the client, the team at Toms + McNally Design experimented with how space is defined and used natural materials and day lighting to bring joy to the residents.

Millgrove House
© Revelateur Studio
Millgrove House
© Revelateur Studio

Using natural materials was very important to the client, thus the palette for the project includes three types of wood (douglas fir roof beams and deck, walnut and white oak flooring) as well as limestone, and zinc.

Millgrove House
© Revelateur Studio
Millgrove House
© Revelateur Studio

The Mechanical System includes Geothermal cooling and heating as well as central boiler for in-floor heating and domestic hot water.

Millgrove House
© Revelateur Studio
Millgrove House
© Revelateur Studio

To add to the home’s energy efficiency, the windows respond to their exposure (ie, north is different than south), deep overhangs provide passive shading, heat is provided through in-slab piping, and double stud exterior walls allow for continuous insulation.

The Electrical System is comprised of LED lighting with solar panels on the roof of the nearby accessory building.

Millgrove House
© Revelateur Studio
Millgrove House
© Revelateur Studio
Millgrove House
© Revelateur Studio
Millgrove House
© Revelateur Studio

 Structurally, the foundation and the basement are in concrete with a post tensioned concrete beam at the main level; wood stud structure frames the main level with Douglas fir beams and tongue and groove decking on a concealed steel frame forming the main central volume.

In addition to the wood, limestone (from quarries near Owen Sound) is used throughout the project as cladding, exterior hardscaping, interior tile flooring, and surround the real wood burning fireplace. Dark grey zinc flashings and wall panels give the building a polished, sophisticated appearance.

Millgrove House
© Revelateur Studio
Millgrove House
© Revelateur Studio

The team, at Toms + McNally Design, collaborates with their clients to creatively respond to their project and its unique characteristics. They see problems as opportunities, combining context, space, and a respect of materiality and environment to create enduring architecture.

For this project, they provided Construction Management services as well as design. This approach allowed for a high level of finish and control of the finished product.

Millgrove House
© Revelateur Studio

https://youtu.be/JwfqkSwnNRE

© Revelateur Studio

Millgrove House is a globally-impressive architecture that intentionally appears to have stemmed from its context, in Hamilton Ontario, into a home for a growing family.


Millgrove House
Site plan
Millgrove House
Plan
