RIETWIERDE COMMUNITY SCHOOL

Moke Architecten

LOCATION
Groningen, The Netherlands

CATEGORY
Schools

AREA
5500 m²

YEAR
2016

MANUFACTURERS
Mosa, FSB, Forbo Flooring Systems, Oranit, Saint-Gobain

PHOTOGRAPHS
Thijs Wolzak

COLLABORATORS
Annegien van Dijk

On the periphery of a nondescript residential area in Groningen, Gianni Cito designed a large building for two schools, two childcare centres and a playground.

Rietwierde Community School
© Thijs Wolzak
Rietwierde Community School
© Thijs Wolzak

From the outset, the end users played an important role in this project, engaging in regular dialogue with the architect during workshops.

One of the significant outcomes was the proposal to share out-of-school care facilities, play rooms, gym, kitchen, staff room, science classroom and the playground.

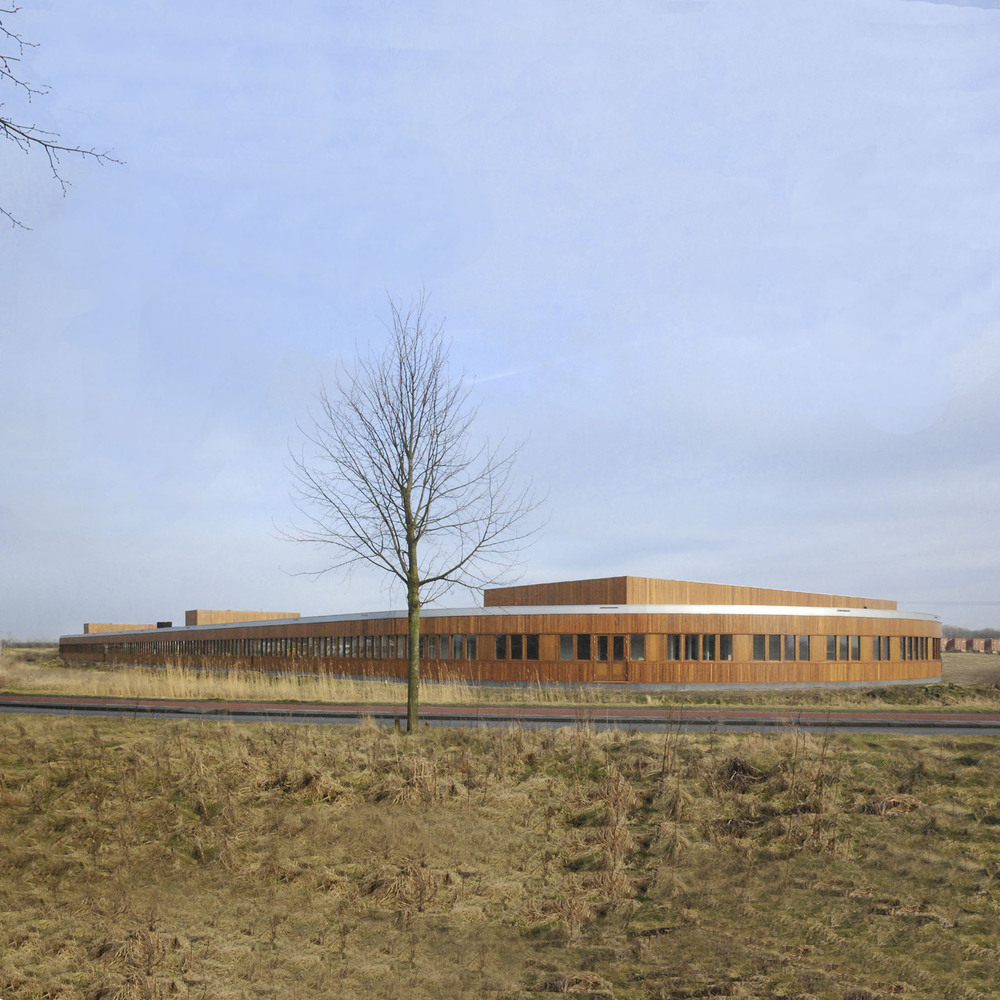

This resulted in a large, linear building, built entirely from environmentally friendly sustainable wood, which folds itself around the playground like a paperclip.

Rietwierde Community School
© Thijs Wolzak
Rietwierde Community School
© Thijs Wolzak

The new community school is one storey high and the entire building is slightly raised above the ground plane.

A continuous, shallow flight of steps serves not only as the transition between building and playground, but also as an outdoor space for various classes.

A deep canopy above the steps shelters the children from rain and sun.

On the outer side of the building is a long corridor which occasionally widens into meeting or play areas and which connects the otherwise introverted building with the surrounding landscape.

Rietwierde Community School
© Thijs Wolzak
Rietwierde Community School
© Thijs Wolzak

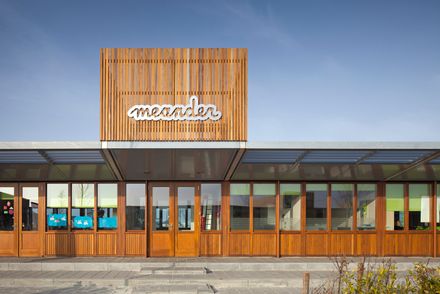

Each school has its own entrance and all the classrooms can also be accessed from the playground.

Simple measures, such as large sliding or revolving doors, allow classrooms to be connected to one another or to the wide corridor.

This allows for a wide range of spatial configurations appropriate to the different forms of education, while also enabling the school, childcare centres and playgroup to establish new links with one another.

Rietwierde Community School
© Thijs Wolzak


Rietwierde Community School
Situation Plan
Rietwierde Community School
Plan


Rietwierde Community School
Sections Sc 1:150
Rietwierde Community School
Sections Sc 1:150
Rietwierde Community School

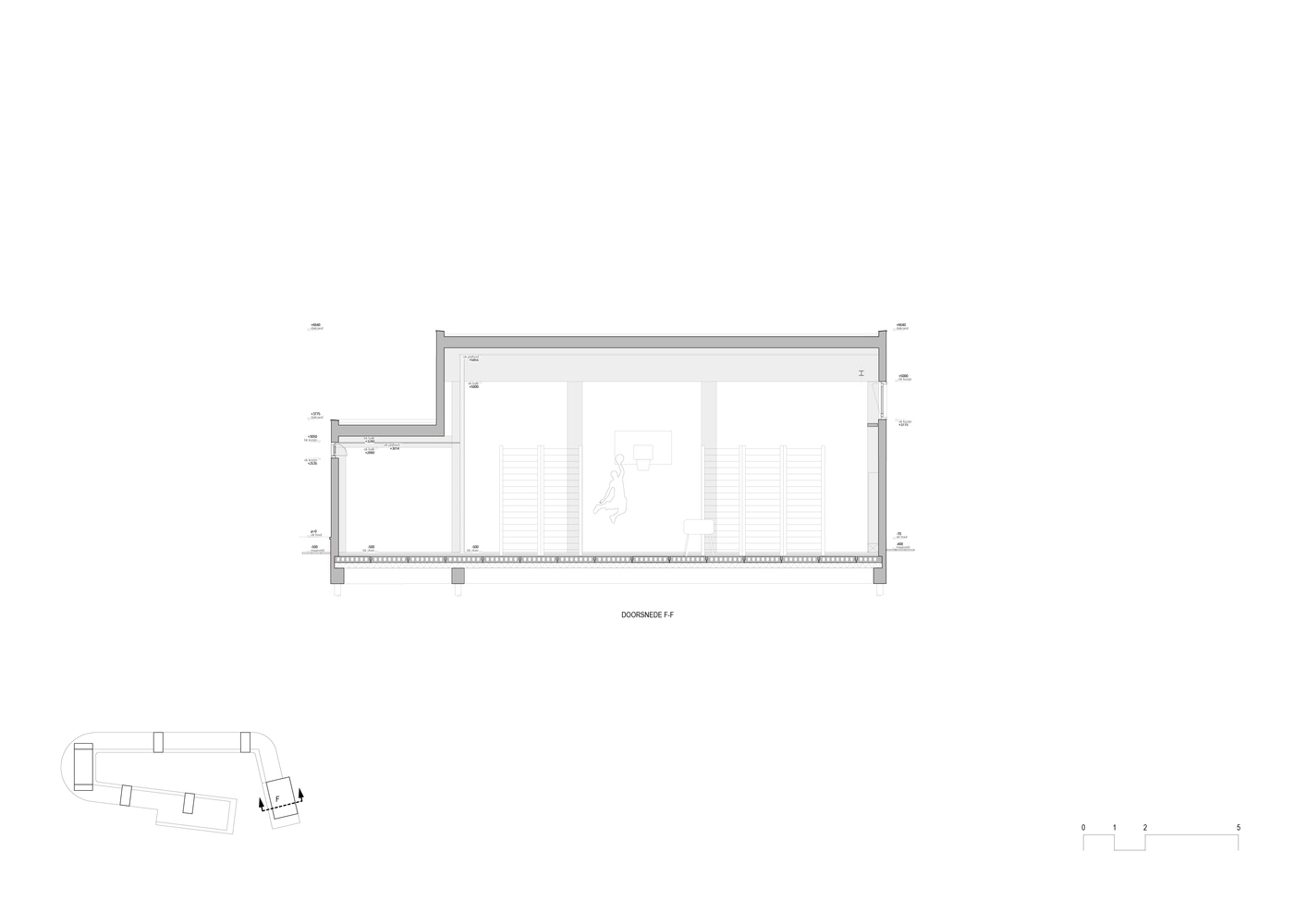

Section
Rietwierde Community School
Section


Rietwierde Community School
Elevations Sc 1:500
Rietwierde Community School
Elevation Sc1:500
Rietwierde Community School
Elevation
Rietwierde Community School
Site Plan
