FIMS AND NURSING BUILDING

Architects Tillmann Ruth Robinson

LOCATION
London, Canada

CATEGORY
Medical Facilities, University

AREA
136000 ft²

PHOTOGRAPHS
Lisa Logan, Scott Webb, Jessica Ginzel

YEAR
2016

MANUFACTURER
LiveRoof, Owen Sound Ledgerock, Alumicor, Belden, Eramosa, Koroseal

The new Academic Building on Western University’s main campus will be the home for the Arthur Labatt Family School of Nursing (JLFSN) and Faculty of Information and Media Studies (FIMS).

Fims And Nursing Building
© Scott Webb
Fims And Nursing Building
© Scott Webb
Fims And Nursing Building
© Scott Webb

Located on a significant site at the entrance to an area of the campus that is under major redevelopment, the Academic Building responds to the importance of a strong international presence in learning and research-intensive universities.

In pursuit of this, JLFSN and FIMS will make available a range of environments; flexible instructional spaces, action learning labs, clinical training and computer laboratories, media studies studios, library science facilities, faculty/staff offices, research spaces, and student spaces.

Four components will converge on this site to provide a range of learning and social environments. Two, the ALFSN and FIMS are co-locating programs here with the goal of encouraging boundary-crossing in the Academic Building as well as across campus and into the global academic community.

Fims And Nursing Building
© Scott Webb
Fims And Nursing Building
© Jessica Ginzel

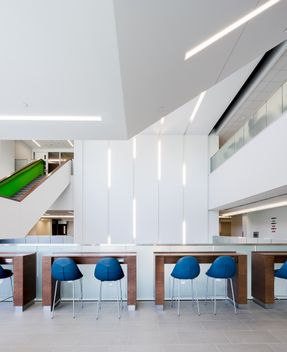

The third, general use classrooms (GU), will be available for use by the JLFSN and FIMS as well other campus faculties and will offer a number of instruction spaces, from 48-seat Active Learning Classrooms, to 60-seat flexible general purpose rooms and 130-seat formal lecture rooms.

It is centrally located within the first three floors to acts as expansion space for both Nursing and FIMS. The fourth component, a key initiative at the University, is the shared common space that will provide the opportunities for the convergence of people and ideas.

Fims And Nursing Building
© Scott Webb
Fims And Nursing Building
© Scott Webb

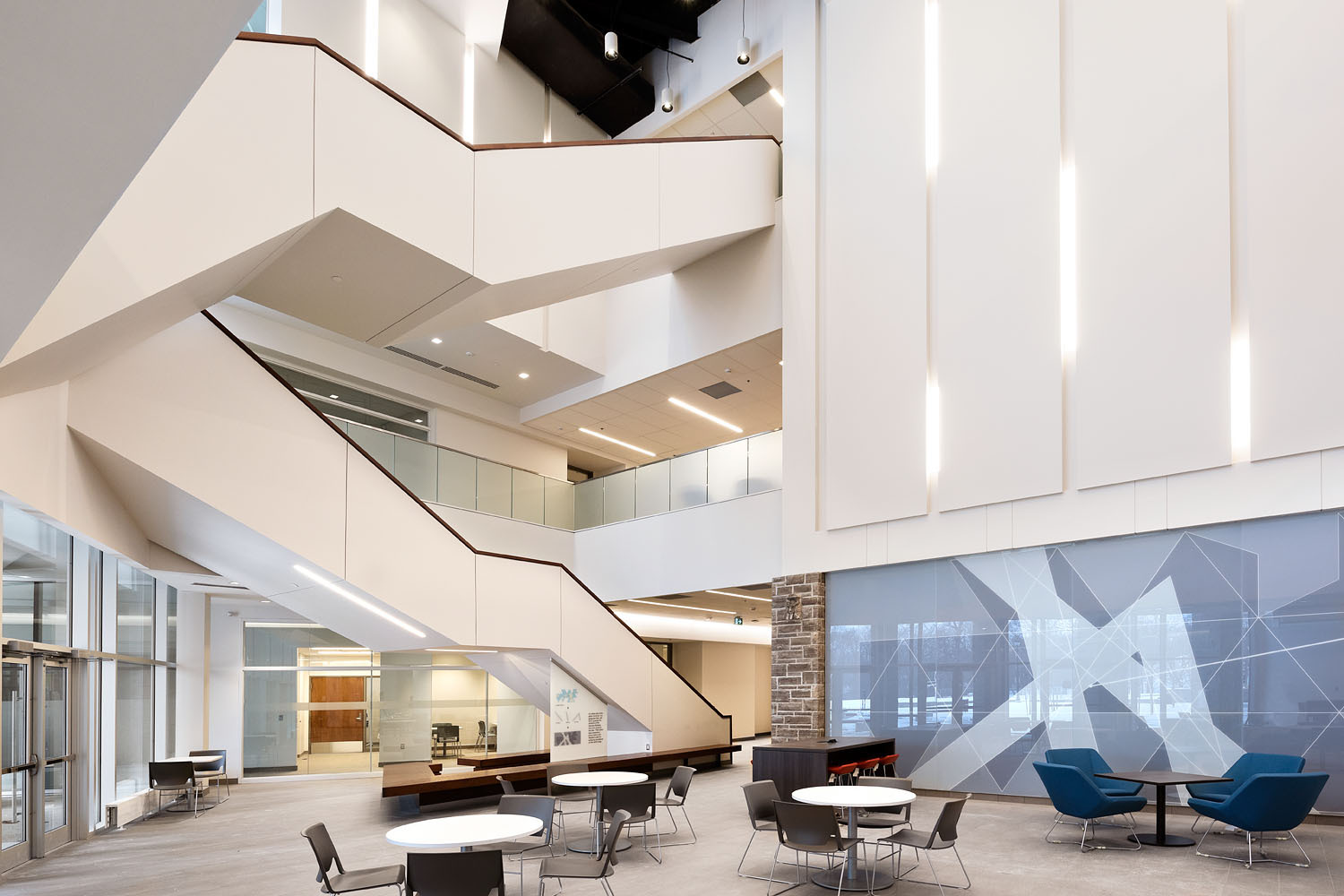

The design generated by the coming together of these four components expresses and strengthens connections. Its form takes advantage of the existing movements of students and faculty travelling across campus.

Existing pedestrian routes inform choreographed paths of travel through the JLFSN, FIMS and common spaces intersecting at the central atrium.

Also, woven into the arrangement of these components will be generous cantilevered outlooks towards the playing fields and Thames River beyond, reciprocal views that will be the evidence of the vibrant spaces within.

Fims And Nursing Building
© Jessica Ginzel
Fims And Nursing Building
© Lisa Logan

Also of importance in the design of the Academic Building is the legibility and clarity of each of the components – particularly the client’s direction of providing a unique identity for each of FIMS and Nursing.

The width of the wing sets up a rhythm of solids and voids along the streetscape which is consistent with the campus scale in this area.

Fims And Nursing Building
© Scott Webb
Fims And Nursing Building
© Lisa Logan

The north wing is primarily the FIMS wing, with its entrance on Lambton Drive. At grade it angles towards the intersection and the Music Building across the intersection.

The upper two floors remain perpendicular to the street edge and cantilever towards the river to the east and the South Valley precinct to the west, acting as a gateway to this area of campus.

The three-storey south wing – the School of Nursing – is adjacent to Labatt Health Sciences Building. The dedicated entrance to Nursing, provided on Huron Drive is defined by a covered portico and located to connect with the adjacent building.

Fims And Nursing Building
© Lisa Logan


Fims And Nursing Building

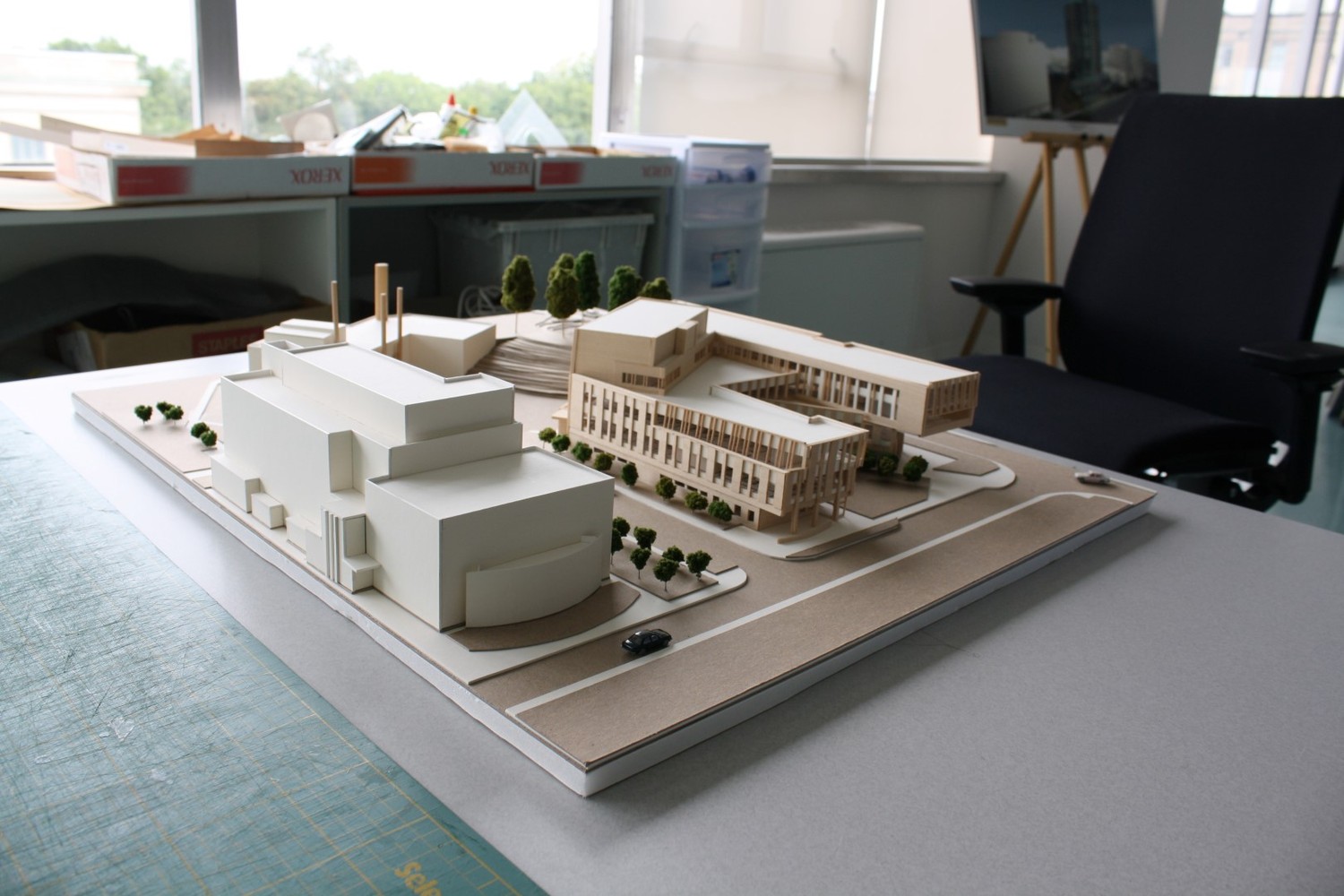

Model - East Elevation
Fims And Nursing Building
Model - North Elevation
Fims And Nursing Building
Render - North Elevation
Fims And Nursing Building
Southeast perspective


Fims And Nursing Building
Section - Offices and Meeting
Fims And Nursing Building
Section - Common Spaces
Fims And Nursing Building
Section - Offices and Meeting
Fims And Nursing Building
Section - Common Spaces
Fims And Nursing Building
Section
Fims And Nursing Building
Section
Fims And Nursing Building
Section


Fims And Nursing Building
South Elevation
Fims And Nursing Building

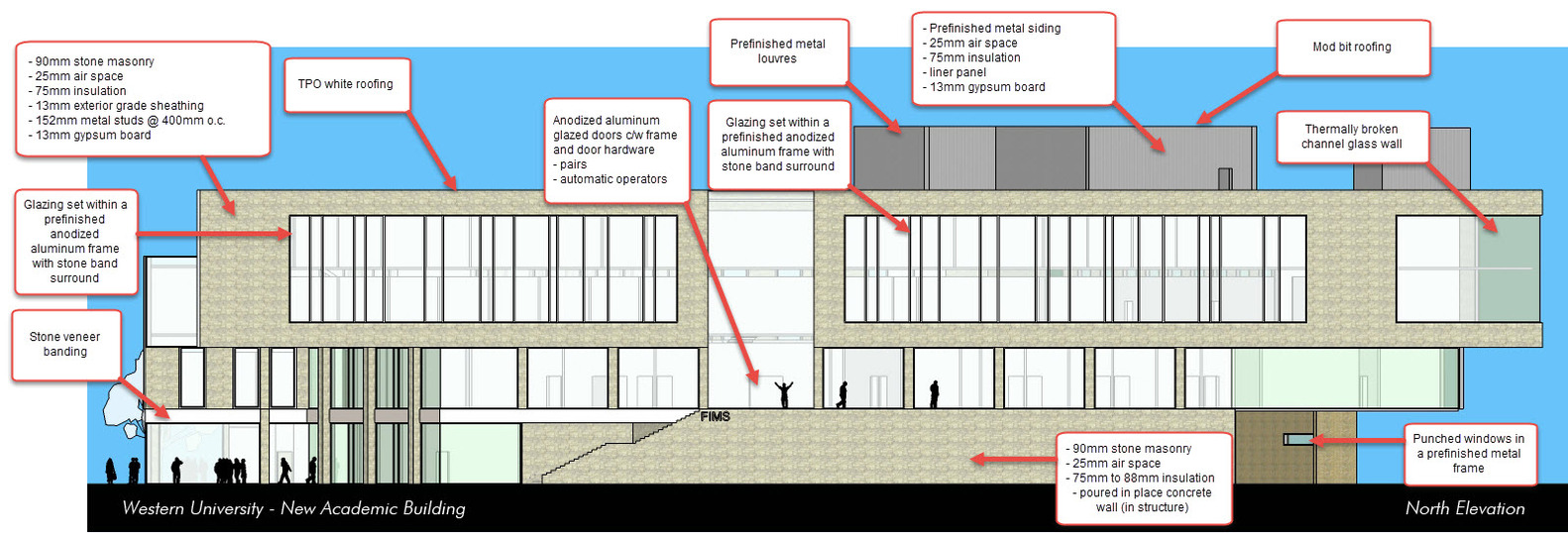

North Elevation
Fims And Nursing Building
South Elevation
Fims And Nursing Building
North Elevation
Fims And Nursing Building
West Elevation
Fims And Nursing Building
East Elevation


Fims And Nursing Building
Courtesy of architects Tillmann Ruth Robinson
Fims And Nursing Building
Courtesy of architects Tillmann Ruth Robinson
Fims And Nursing Building
Courtesy of architects Tillmann Ruth Robinson

Fims And Nursing Building
Sketch 01
Fims And Nursing Building
Sketch 02


Fims And Nursing Building
Sketch option 01
Fims And Nursing Building
Sketch option 02
Fims And Nursing Building
Sketch option 03


Fims And Nursing Building
Diagram - Floor plan
Fims And Nursing Building
Diagram - First floor plan
Fims And Nursing Building
Diagram - First floor plan


Fims And Nursing Building
Existing
Fims And Nursing Building
Ground floor plan
Fims And Nursing Building
First floor plan
Fims And Nursing Building
Second floor plan
Fims And Nursing Building
Third floor plan
Fims And Nursing Building
Fourth floor plan


Fims And Nursing Building

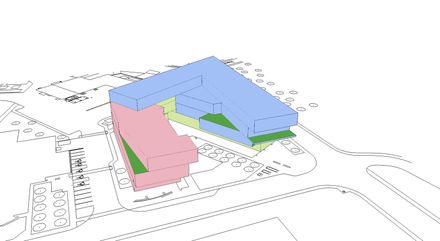

Exploded axonometry - Program
Fims And Nursing Building
Program blocks


Fims And Nursing Building
First floor plan
Fims And Nursing Building
Second floor plan
Fims And Nursing Building
Third floor plan
Fims And Nursing Building
Second floor plan
Fims And Nursing Building
Third floor plan
