GELM ANNEX

Díaz Paunetto Arquitectos

AREA
256 m²

COLLABORATORS
Víctor Díaz Paunetto Aia, Ariel Santiago Aee, Alberto De La Cruz Aee, Néstor Lebrón Aee, Jimme Vélez, Danniely Staback,

CONSULTING ENGINEER
Roberto Agramonte Pe

ELECTROMECHANICS
Francisco Mate Pe

CLIENT
PuertoRican Family Institute, Inc.

The project involves a second commission from the Guardería Ecológica La Mina. Like the first commission, the structure was in a state of neglect for 20 years, where it was once part of a set of structures devoted to vocational training facilities and then volunteer corps.

Gelm Annex
Courtesy of Díaz Paunetto Arquitectos
Gelm Annex
Courtesy of Díaz Paunetto Arquitectos

The building was used as a sports and recreation hall on the first floor and cosmetology salon on the second. The structure is a typical module of pre-designed concrete used by the Department of Education for school expansions since the 1960s, with a second floor in block walls and a wooden roof that was completely collapsed when we arrived at the project.

Being an ecological school, the building footprint should remain unchanged and so it was not demolished, even though this idea was tempting, instead the school was completely recovered.

Gelm Annex
Courtesy of Díaz Paunetto Arquitectos
Gelm Annex
Courtesy of Díaz Paunetto Arquitectos

The structure would now serve as a multipurpose room where the school could offer meetings for parents, seminars and training for teachers, among other uses, as well as storage on the first floor to support other schools in the area belonging to the client.

The building had some big challenges in terms of costs and timing given that only 6 months were granted for its design and construction, a concept under which the commission was requested.

In terms of design, the second floor had the potential to have a commanding view of the original nursery, consisting of one floor only and the recreation area for children.

Gelm Annex
Courtesy of Díaz Paunetto Arquitectos
Gelm Annex
Courtesy of Díaz Paunetto Arquitectos

A concrete slab roof that extended up the staircase was created to provide shelter from the rain and sun, and a glass volume was designed towards the vegetation and the play area.

In formal terms this volume would act as a screen or display for the nursery, creating different readings while allowing light to enter the space and enjoy the views.

The challenge of harmonizing the rest of the structure bordered on its demolition, so we decided to line the building in a weathering steel cladding, a high durability and low maintenance material, drilled with a pattern allusive of the bamboos surrounding it.

Gelm Annex
Courtesy of Díaz Paunetto Arquitectos
Gelm Annex
Courtesy of Díaz Paunetto Arquitectos
Gelm Annex
Courtesy of Díaz Paunetto Arquitectos

This allows light to filter into the space and establishes a dialogue with the environment. Colored glass panes were incorporated into the sliding glass doors, alluding to the colors used in the nursery, which bathe the interior with color.


Gelm Annex
Detail
Gelm Annex
Diagram


Gelm Annex
Plan
Gelm Annex
Plan

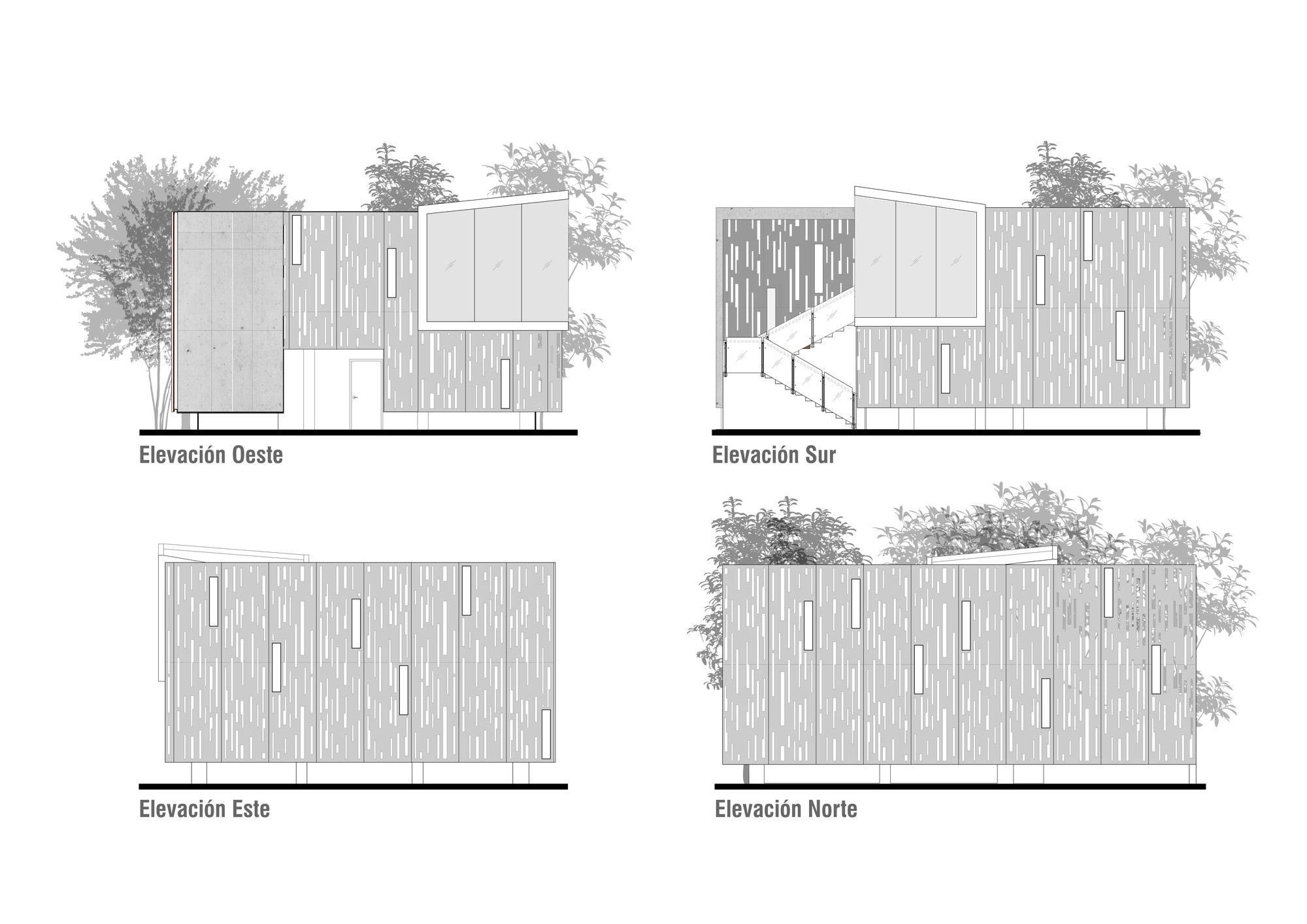

Gelm Annex
Elevation
