TULA HOUSE

Patkau Architects

CONTRACTOR
J Toelle Construction LTD. Guy Holmes, Site Superintendent

MECHANICAL ENGINEERING
Hirschfield Williams Timmins

  STRUCTURAL ENGINEERS
Peterson Galloway

MANUFACTURERS
Swisspearl

PRODUCTS USED IN THIS PROJECT
Fiber Cements / Cements

CLIENT
Eric Peterson And Christina Munck

PHOTOGRAPHS
James Dow

AREA
4350 ft²

YEAR
2012

LOCATION
Strathcona, Canada

CATEGORY
Houses

Tula House
© James Dow
Tula House
© James Dow

Perched 44 feet above the Pacific Ocean on a remote island, the Tula House reflects the casual irregularity of the sites rock ledges, beach, and forest in both its geometric and spatial order.

Tula House
© James Dow
Tula House
© James Dow

The topography of the site is highly irregular; the prospects diverse.

Views to the east stretch over the open water and islands of the Strait of Georgia to the mountain ranges on the mainland of British Columbia.

Tula House
© James Dow
Tula House
© James Dow

Views to the south overlook a small tidal basin. Moss covered basalt hills are interspersed among treed expanses and richly vegetated crevices, valleys and swales.

Stands of red alder and big-leafed maple enliven the predominantly dark Douglas fir forest.

Tula House
© James Dow
Tula House
© James Dow

The shoreline below the house is littered with the flotsam and jetsam of the ocean where logs and rocks have been tossed around by the tides and storms like a child’s game of “pickup sticks”. One site is actually many sites.

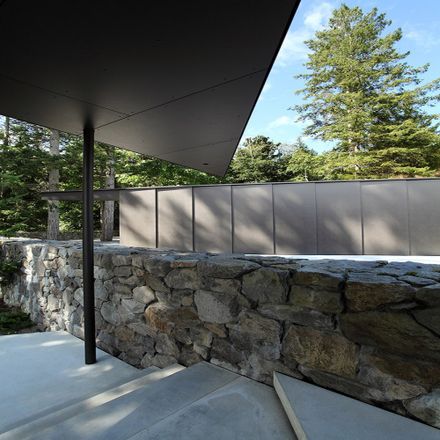

The house cultivates a sense of dwelling with, and within, such diversity. Low rock walls edge a gravel approach to the house.

Tula House
© James Dow
Tula House
© James Dow

A loose arrangement of concrete walls, clad in staggered fibre-cement panels, begins to describe space.

These panels are black in color. From a distance, the house visually recedes into the dark forest.

Tula House
© James Dow
Tula House
© James Dow

The roof, planted in moss and native ground covers, appears from above to be continuous with the surrounding ground plane.

Groundwater flows continuously through the site where it is captured momentarily within an entry courtyard. The ground plane of the courtyard and interior floor of the house are large shard-like concrete plates.

Tula House
© James Dow
Tula House
© James Dow

Within the house, spaces are defined by a series of slowly unfolding concrete walls that channel the flow of space through to ocean views.

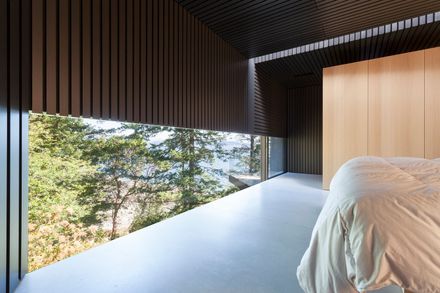

This primary flow is diverted in passage by eddies of secondary space which branch off, separating and focusing moments of diversity in the site: the small tidal basin off the kitchen nook, a ledge of moss covered rock in the bedrooms, a view back from the court to a swath of deciduous trees.

Tula House
© James Dow
Tula House
© James Dow

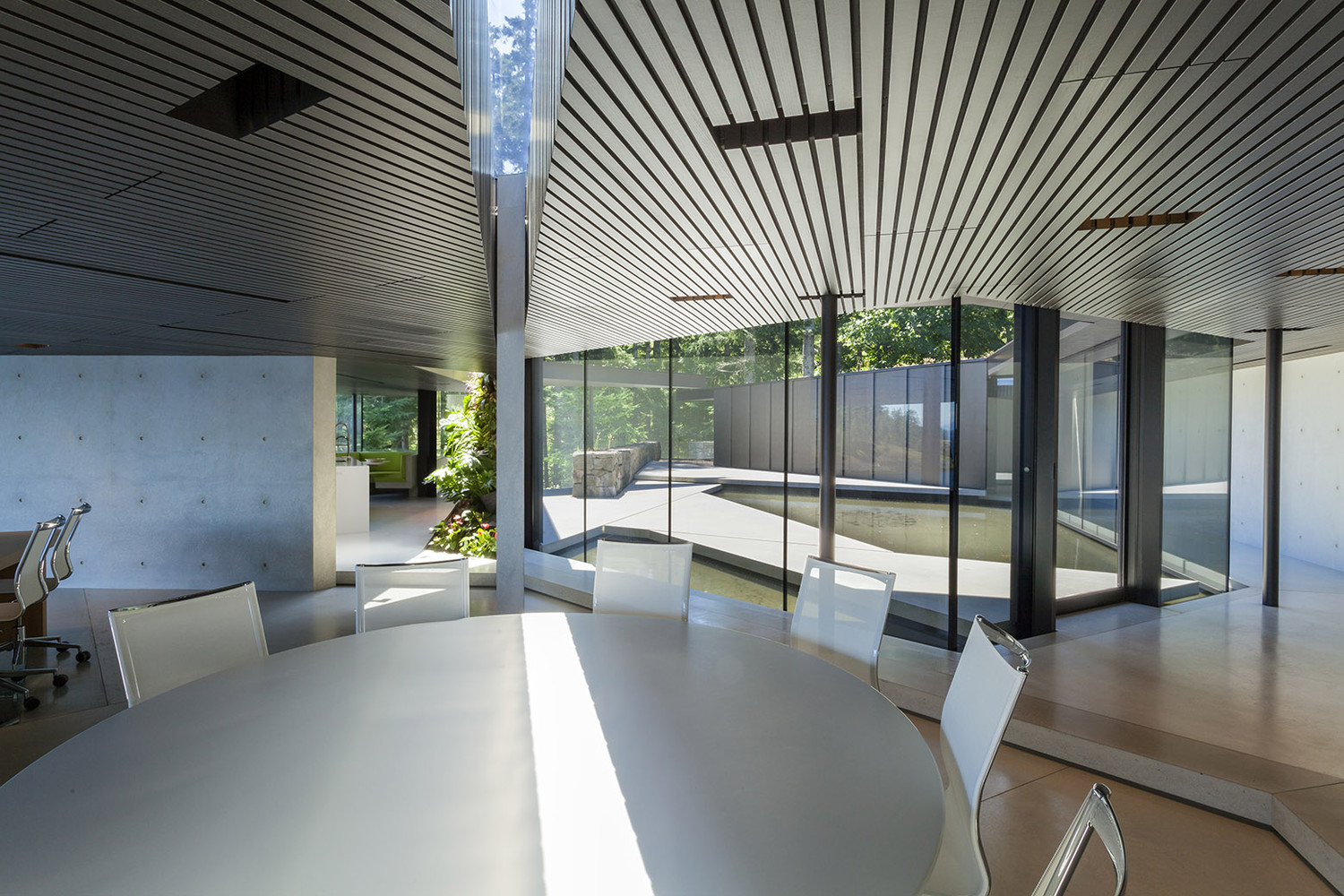

A steel-framed roof mirrors the order of concrete walls and floor plates. Narrow skylights project lines of light at oblique angles through space.

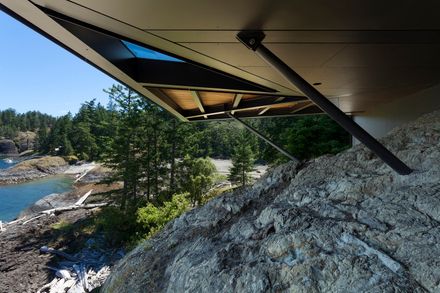

At the cliff-edge, the solidity of concrete floors is left behind. A steel-framed, wooden deck is cantilevered into the air.

Tula House
© James Dow
Tula House
© James Dow

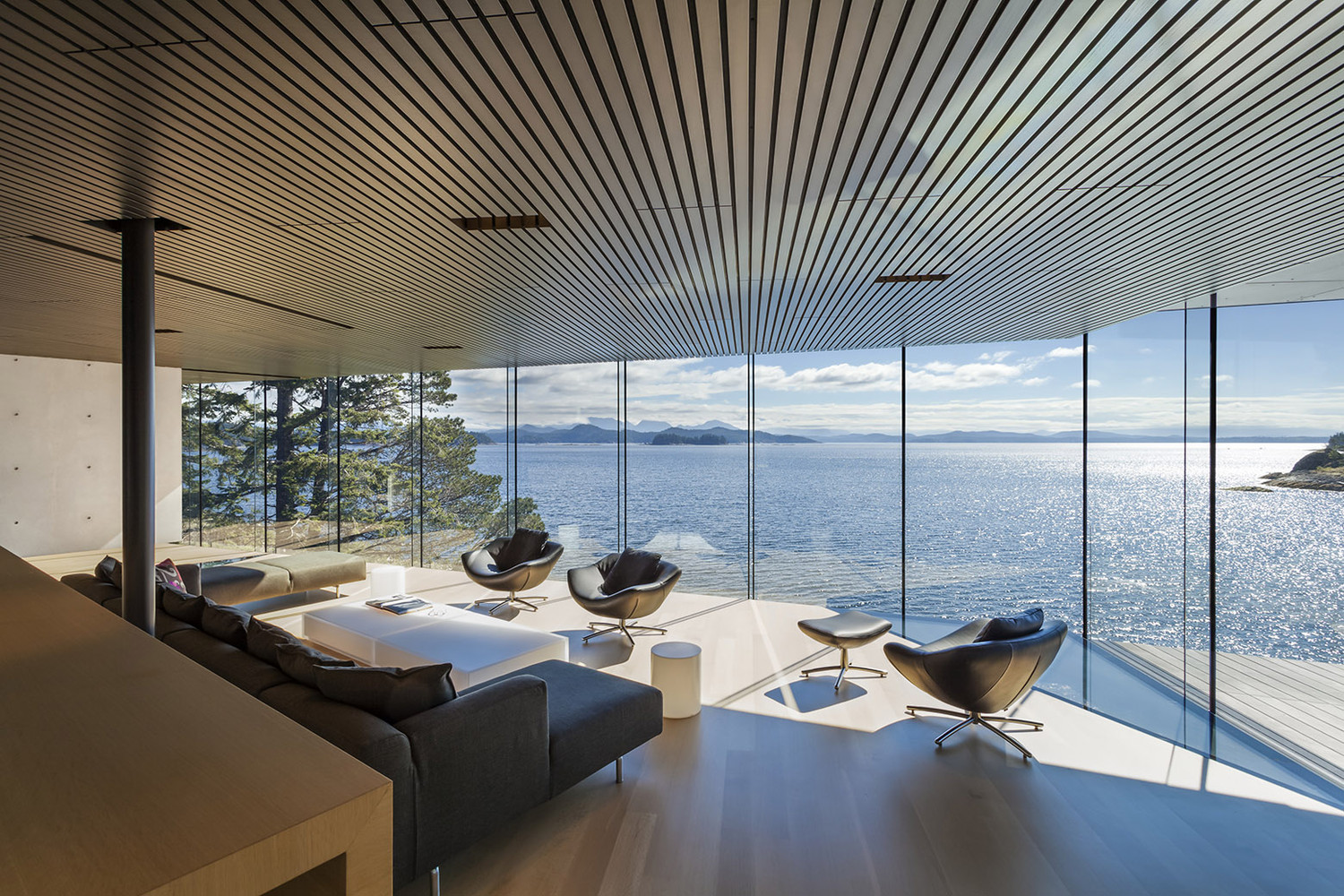

While an uninterrupted expanse of glass takes in distant, sublime views of the Straight, glazed apertures in the floor of the living room deck open vertiginously to the textures and sensual immediacy of beach and ocean below. Millwork elements float freely within the spaces like the flotsam and jetsam on the beach.


Tula House
© James Dow
Tula House
© James Dow
Tula House
© James Dow


Tula House
© James Dow
Tula House
© James Dow
Tula House
© James Dow
Tula House
© James Dow


Tula House
© James Dow
Tula House
© James Dow
Tula House
© James Dow
Tula House
© James Dow
Tula House
© James Dow


Tula House

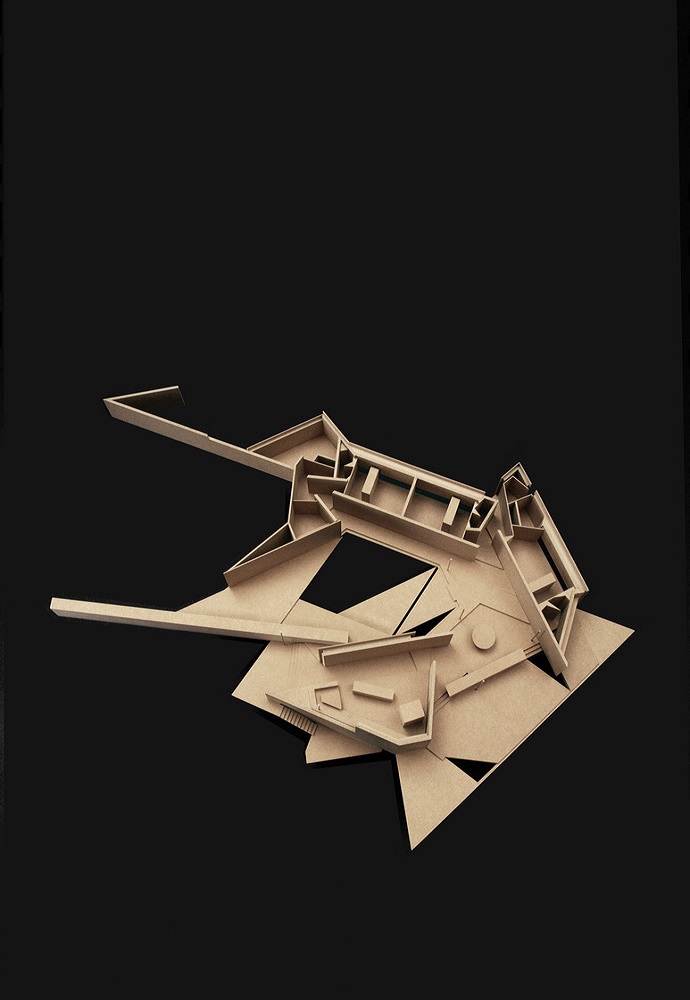

Model. Image Courtesy of Patkau Architects

Tula House
Model. Image Courtesy of Patkau Architects

Tula House
Model. Image Courtesy of Patkau Architects

Tula House
Model. Image Courtesy of Patkau Architects


Tula House
Floor Plan
Tula House
Site Plan
Tula House

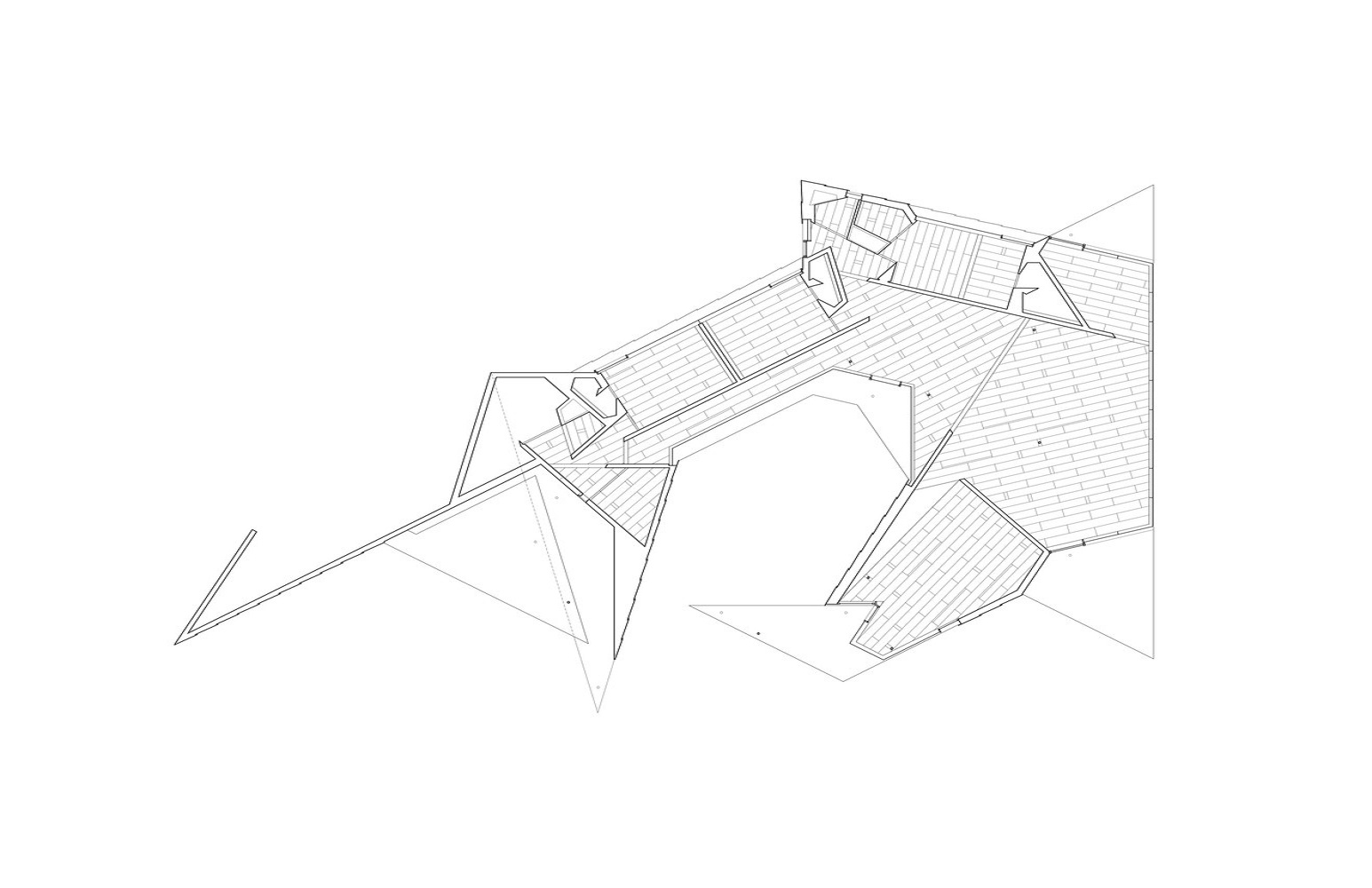

Ceiling Plan


Tula House

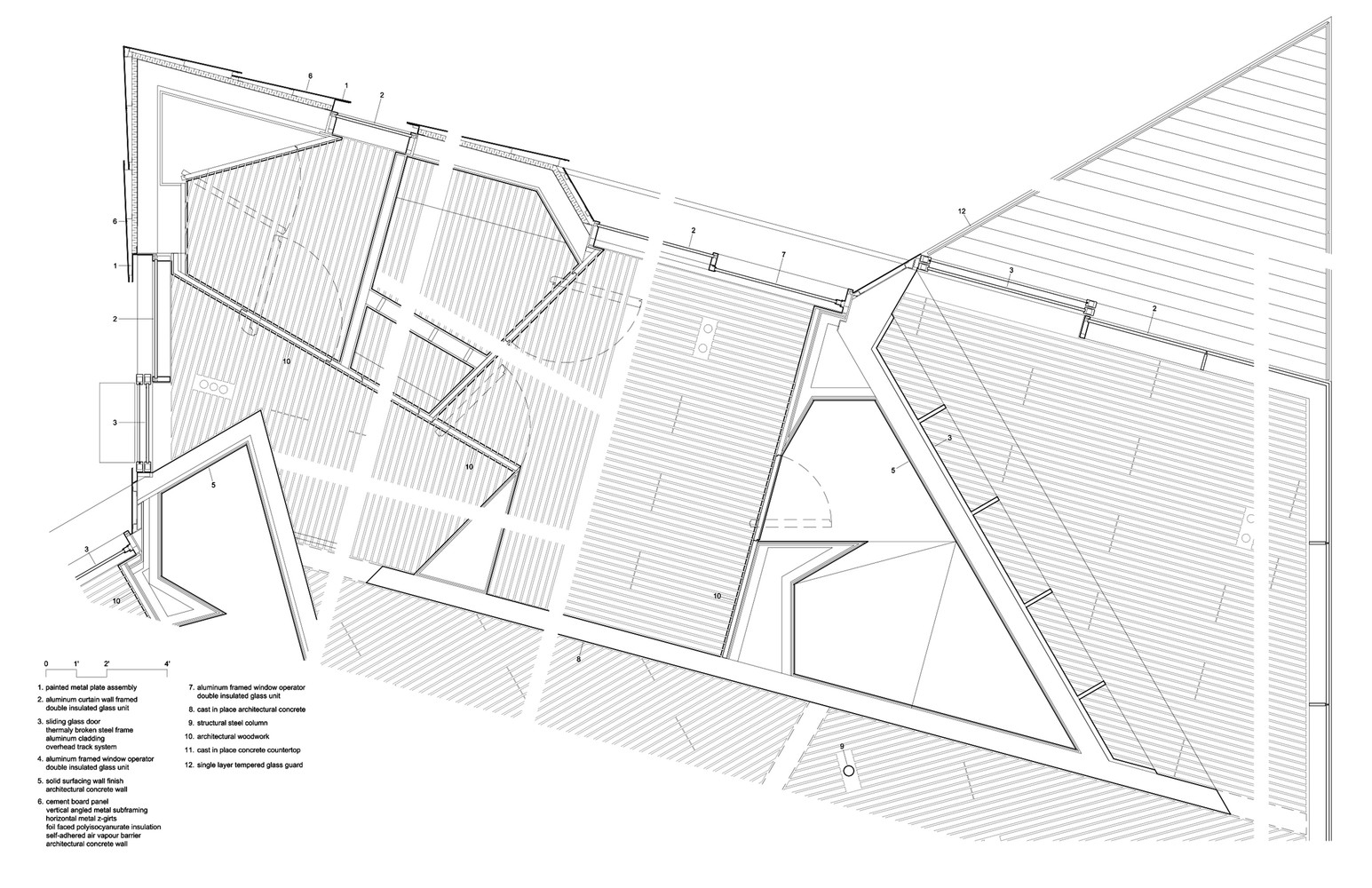

Plan Detail
Tula House
Plan Detail
Tula House
Plan Detail
Tula House
Plan Detail


Tula House
Section
Tula House
Section
Tula House
Section
Tula House
Section
Tula House
Section


Tula House

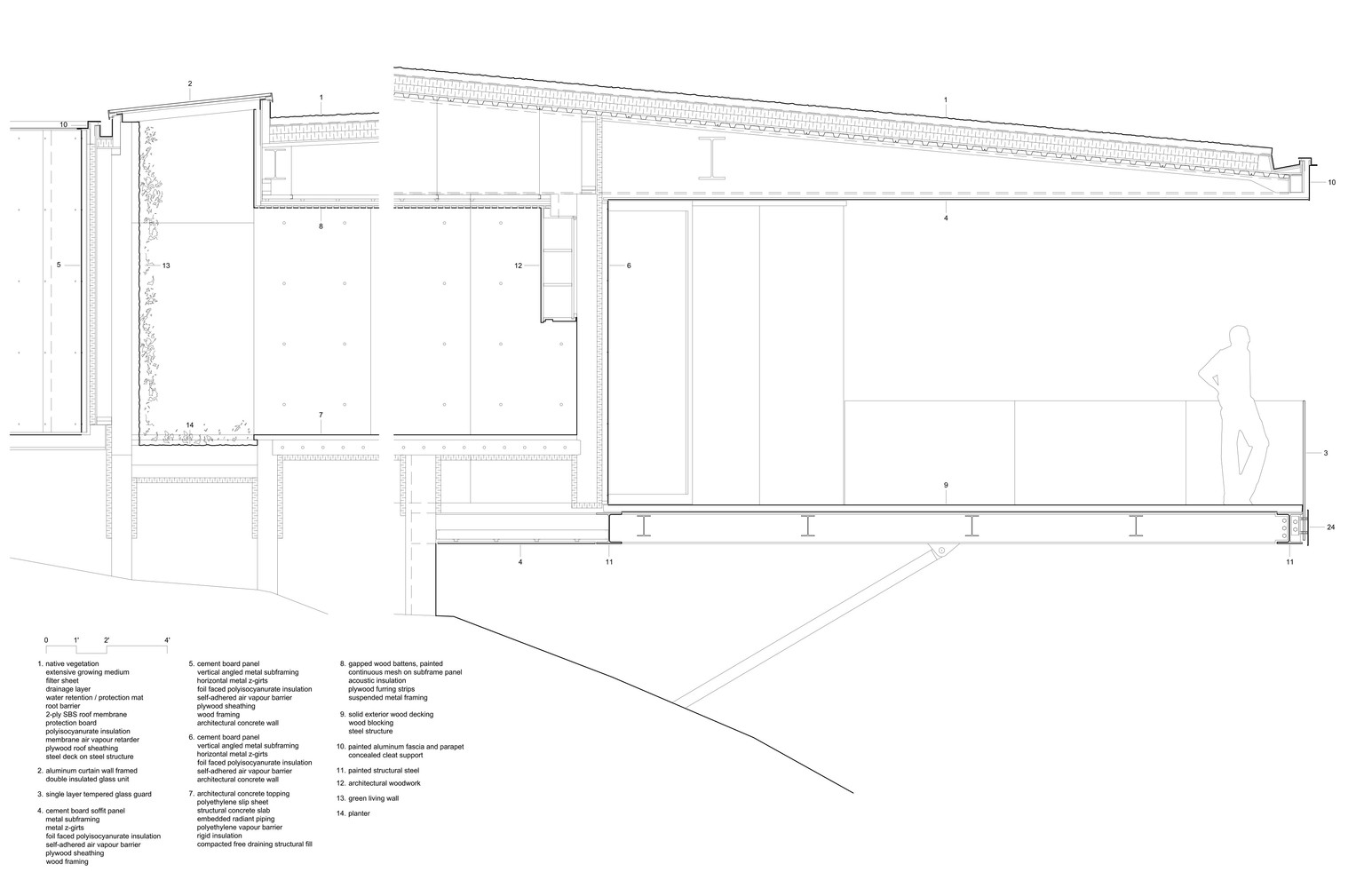

Section Detail
Tula House
Section Detail
Tula House
Section Detail
Tula House
Section Detail
Tula House
Section Detail


Tula House

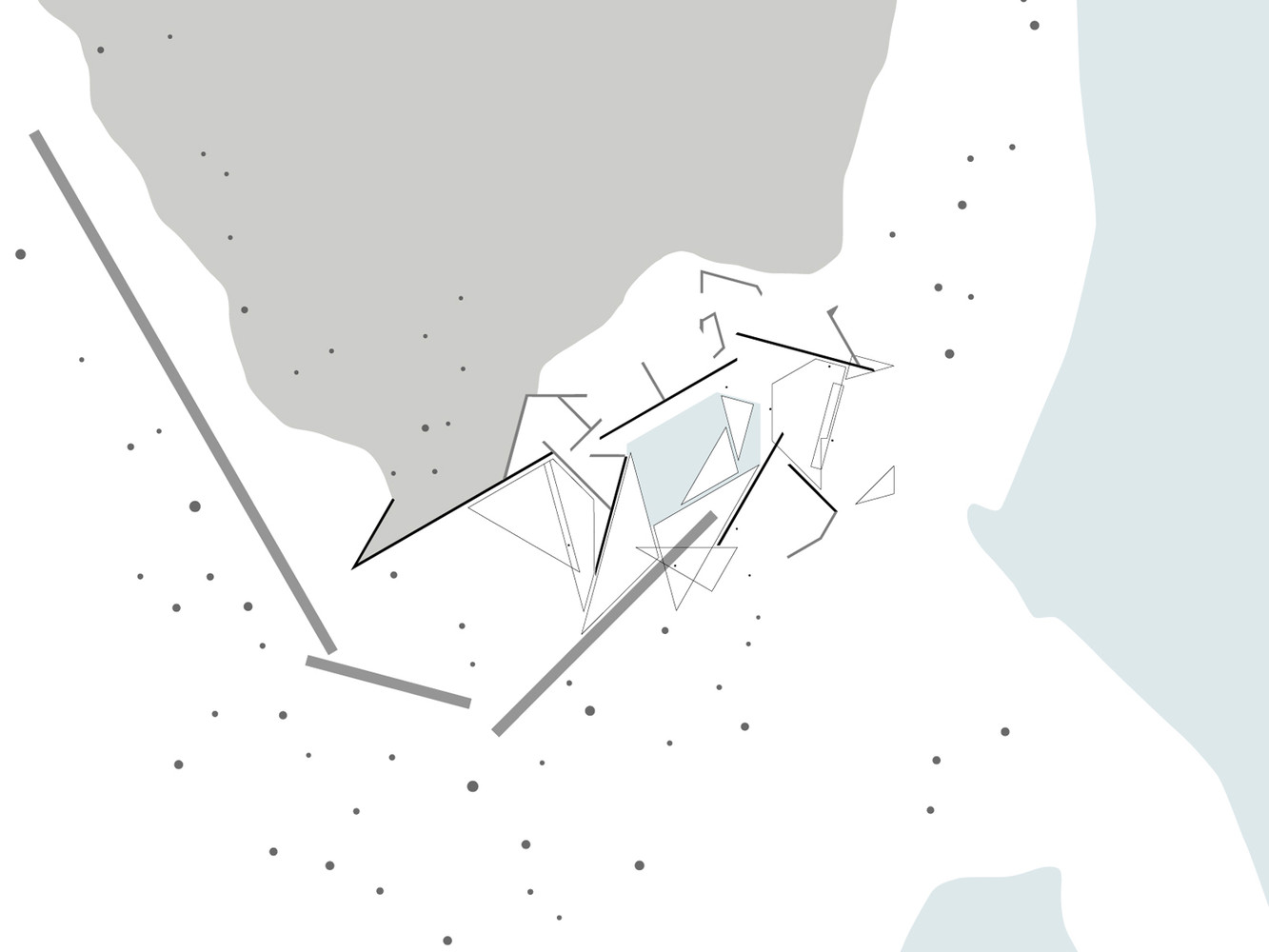

Diagram
Tula House
Diagram
Tula House
Diagram
Tula House
Diagram
Tula House
Diagram
Tula House
Diagram
Tula House
Diagram
Tula House
Diagram


Tula House
Plan & Section
Tula House


Shell Concept Diagram
