SPORTS HALL AT C.P. PABLO IGLESIAS

Planta 33 Arquitectura

CATEGORY
Sports Architecture, Educational Architecture, Extension

LOCATION
Talavera De La Reina, Spain

YEAR
2011

STRUCTURE
GV 408

CONSTRUCTOR
Construcciones San Luis 32, Cypsa

COLLABORATORS
Sergio Calvo, Marita Martín, Patricia Pintado, Valentina Bidone, Iván Barreira

INSTALLATIONS
Sergio Calvo, Natalia Balmaseda

SURVEYOR
Jose Luis Rocha Tofiño

AREA
830

BUDGET
693.088 E


The work consist of an enlargement of an nursery and primary school which number of students has recently grown.

Sports Hall at C.P. Pablo Iglesias
© Miguel de Guzmán
Sports Hall at C.P. Pablo Iglesias
© Miguel de Guzmán

The design includes two different projects: a new classroom building for pre-school education and a sport hall.

A strict scale and an accurate stitching with the surrounding buildings are needed due to the small size of existing free space.

Sports Hall at C.P. Pablo Iglesias
© Palíndromo Mészáros
Sports Hall at C.P. Pablo Iglesias
© Miguel de Guzmán

The pavilion is located in the northern part of the site, in a very compact space that borders the railway line that reaches Talavera de la Reina.

This dimensional limitation leads to locating the longest side of the building facing east-west.

The building has the traditional saw-tooth sectioned industrial typology, but in this case, having skyligths longitudinally arranged instead.

This main volume opens widely into the north so to let natural, uniform, diffuse light illuminate the space, guaranteeing athletes won’t be disturbed by glaring.

Sports Hall at C.P. Pablo Iglesias
© Miguel de Guzmán
Sports Hall at C.P. Pablo Iglesias
© Miguel de Guzmán

A unique gesture provides the solution to the entire building. Longitudinal 2.77 m wide stripes with Z-section try to accomplish the same geometry and appearance for both sections and floor plans.

Four large skyligths fold up over themselves to create a stepped floor plan that, by providing the stripes, extends to the changing rooms and storage room.

Between every two pieces, private gravel-finished patios are created to allow the proper ventilation and natural lighting of changing rooms, improving the living experience of these spaces, usually considered unimportant.

Sports Hall at C.P. Pablo Iglesias
© Miguel de Guzmán
Sports Hall at C.P. Pablo Iglesias
© Miguel de Guzmán

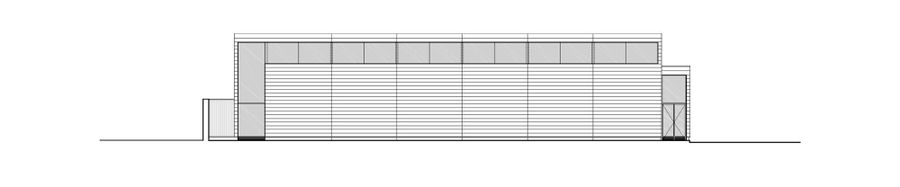

The south elevation constitutes the main façade towards schoolyard. The main entrance is aligned to the old classroom buildings by a paved axis, blending in this way with the existing pedestrian paths of the complex.

A space of transition between this area and the new pavilion building is created by a large porch that serve as a shaded area to play during breaks. This low piece built in front of the sports building box reduces the visual impact towards the school.

ASSEMBLY
An exercise of economic, light, industrialized and dry construction has been carried out. Almost every construction piece is manufactured at workshops and assembly in situ.

There was no need to lay a single brick. A good care of joints dignifies the prefabricated system, and gets to worth and values this pieces that are normally used at industrial buildings.

Sports Hall at C.P. Pablo Iglesias
© Miguel de Guzmán
Sports Hall at C.P. Pablo Iglesias
© Miguel de Guzmán

The steel plates normally used for constructions fences, here become the finishing surface material; humble, but respectable.

The 19.5 m distance is spanned by steel HEB 500 beams resting on HEB 180 columns. The longitudinal skylights are hanging down from these by steel six millimeter plates, which greatly helps to give the structure a weightless sensation.

Sports Hall at C.P. Pablo Iglesias
© Miguel de Guzmán
Sports Hall at C.P. Pablo Iglesias
© Miguel de Guzmán

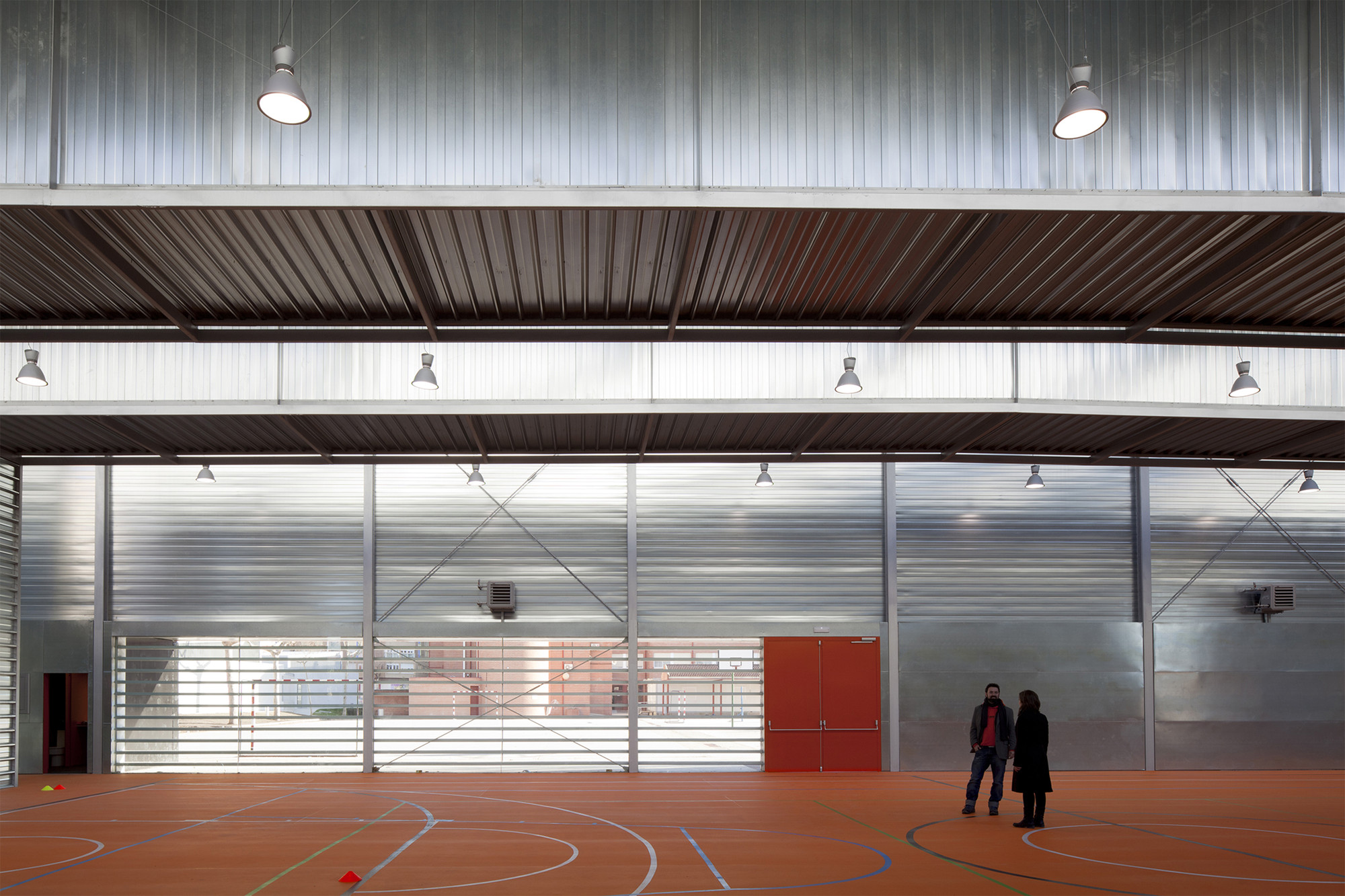

The exterior walls are made with self-supporting galvanized trays, which are exposed in the interior. Steel lacquered sheets, grey or black, close the exterior of the building.

For the deck roof, steel micro-perforated sheets are used to improve the acoustic of the room. Both the installations and the rainwater downpipes remain completely hidden inside these walls.

Sports Hall at C.P. Pablo Iglesias
© Miguel de Guzmán


Sports Hall at C.P. Pablo Iglesias
Cross Section 1
Sports Hall at C.P. Pablo Iglesias
Cross Section 2
Sports Hall at C.P. Pablo Iglesias
Cross Section 3
Sports Hall at C.P. Pablo Iglesias
Details Access


Sports Hall at C.P. Pablo Iglesias
Longitudinal Section 1
Sports Hall at C.P. Pablo Iglesias
Longitudinal Section 2
Sports Hall at C.P. Pablo Iglesias
Longitudinal Section3


Sports Hall at C.P. Pablo Iglesias
Details 1
Sports Hall at C.P. Pablo Iglesias
Details 2
Sports Hall at C.P. Pablo Iglesias
Details 3


Sports Hall at C.P. Pablo Iglesias
First Floor Plan
Sports Hall at C.P. Pablo Iglesias
Upper Floor Plan
Sports Hall at C.P. Pablo Iglesias
Detail Floor Plan A
Sports Hall at C.P. Pablo Iglesias
Detail Floor Plan B
Sports Hall at C.P. Pablo Iglesias
Detail Floor Plan C
Sports Hall at C.P. Pablo Iglesias
Detail Floor Plan D
Sports Hall at C.P. Pablo Iglesias
Site Plan
