UIAC

Landa + Martínez Arquitectos

LOCATION
León, Mexico

CATEGORY
Educational Architecture, Higher Education

AREA
0 m²

STRUCTURE & CONSTRUCTION
Postensa

INSTALLATIONS
Dare De Monterrey

COLLABORATORS
Rolando Martinez, Rubén Martinez, Berta Haddock

PROMOTOR
Universidad Iberoamericana

ARCHITECT IN CHARGE
Agustín Landa Vértiz

WINDOWS
Windows & Harware

Text description provided by architect.

The Unidad de Innovación, Aprendizaje y Competitividad (UIAC) of the Universidad Iberoamericana at León is an academic building that houses workshops, classrooms and laboratories. Its structure consists of a series of identical concrete frames that contain a double height space.

UIAC
© Jorge Vertiz Gargollo
UIAC
© Jorge Vertiz Gargollo

The frames have extensions at 45 degrees on the west facade and the roof; they work as both downspouts and brise-soleils that produce different lighting effects throughout the day. Inside, the main area has an atrium that runs along the building, with concrete slabs on the sides hanging from steel beams.

The floor of the atrium is of semi-transparent glass, which allows light into the basement.

UIAC
© Jorge Vertiz Gargollo
UIAC
© Jorge Vertiz Gargollo

The basement is also a double height space, which functions as an auditorium and space for work with heavy machinery.

At this level, classrooms and workshops are outside the concrete frames, in enclosed concrete boxes; this makes full course of the structure visible. The black polished concrete floor reflects the light and duplicates the space.

Services, installations and vertical circulations are located in four identical volumes at the building’s north and south facades.

UIAC
© Jorge Vertiz Gargollo
UIAC
© Jorge Vertiz Gargollo

Access to the building is through the space between two such modules. In the south, the main door is reached through a monumental staircase.

In the north there is a ramp in two sections. All electrical installations, voice and data are apparent so that the building is easy to reshape and it is clear that its structure and infrastructure are part of their teaching.

As a whole the building is a concrete body closed to the outside whose interiors represent a revelation to its visitors.

UIAC
© Jorge Vertiz Gargollo
UIAC
© Jorge Vertiz Gargollo
UIAC
© Jorge Vertiz Gargollo

The intention was to create peaceful spaces, conducive to study, which would take full advantage of the high-contrast light of the Mexican Bajío.

The building is an assemblage of modular elements that resulted from a rigorous exploration of geometric and structural relationships.

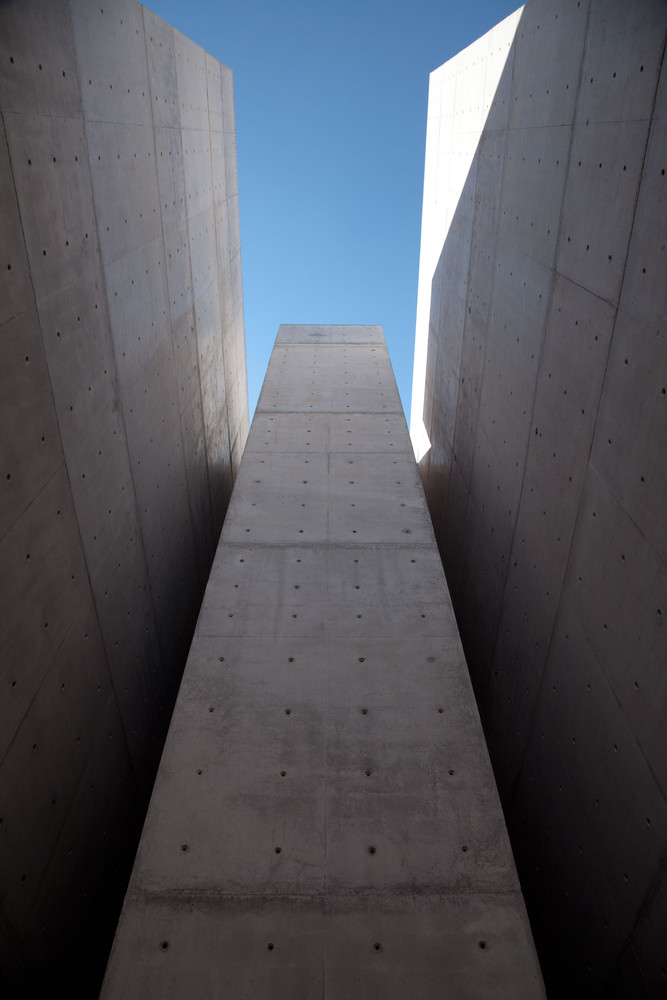

Its basic module is 1.22 x 2.44 meters, the dimensions of concrete’s formwork. Traces of the construction process can be seen on the walls and frames, which have the texture of the wooden formworks.

UIAC
© Jorge Vertiz Gargollo
UIAC
© Jorge Vertiz Gargollo

The building is part of a series of projects designed by Landa Architects that consist of concrete frames and brackets in different configurations.

Some of the building’s historical precedents include the many industrial naves designed by architects Felix Candela and Carlos Mijares, and the workshops and the main building of the School of Architecture of the UNAM’s University City, by architects Jose Villagrán Alfonso Liceaga and Xavier García Lascuráin.

UIAC
© Jorge Vertiz Gargollo
UIAC
© Jorge Vertiz Gargollo
UIAC
© Jorge Vertiz Gargollo


UIAC
Section
UIAC
Section


UIAC
Section
UIAC
Ground Floor


UIAC
Basement Plan
UIAC
Detail


UIAC

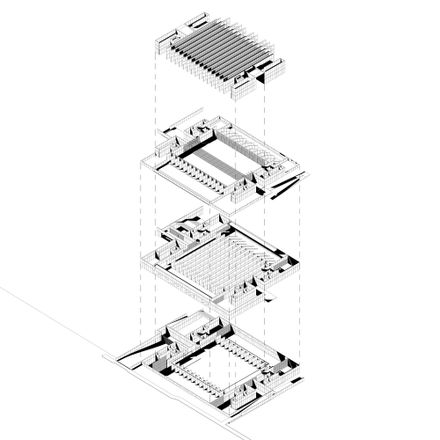

Axonometric
