Rdr Architectes SA

Rooftop Park

Rooftop Park
© Javier Agustín Rojas

ROOFTOP PARK

RDR Arquitectos

ARCHITECTS
RDR Arquitectos

AREA
215278 ft²

LOCATION
Belgrano, Argentina

CATEGORY
University, Extension

YEAR
2016

ELECTRIC
Ritec.

MANUFACTURERS
Sika, Vistosi, Angel Nesis, Blangino, F60, Lucciola

CIVIL ENGINEER
Ing. José Zaldua

THERMOMECHANICS
Frisia S.A.

SANITARY
ITISSA SA

LANDSCAPING
Grupo Landscape. (Cora Burgin, Sebastián Mouzo)

CLIENT
Universidad Torcuato Di Tella

ACOUSTIC
Gustavo Basso

ARCHITECT IN CHARGE
Jacques Richter, Ignacio Dahl Rocha, Bruno Emmer, Facundo Morando

PROJECT TEAM
Ignacio Dahl Rocha, Bruno Emmer, Nicole Michel, Rodrigo Muro, Martín Rosello, Facundo Morando, Jorgelina Tortoricci, Ovidio Lagos, Nicolás Adrián, Inés Loviseck, Gerardo Pietrobelli, Ignacio Bóscolo, Martina Portugal, Guillermo Aporsegui.

This work culminates the different stages of the Alcorta headquarters of the Torcuato Di Tella University developed since 2009 by RDR arquitectos.

Rooftop Park
© Javier Agustín Rojas
Rooftop Park
© Javier Agustín Rojas

It consists of two new levels that finish the building, built with a metal structure and glazed enclosures that rest on the pre-existing roof of the previously remodeled building, fully operational.

The fourth floor houses a restaurant, offices and classrooms, and the fifth floor is a large 2,000 m2 garden roof covering the entire length of the plant.

Rooftop Park
© Javier Agustín Rojas
Rooftop Park
© Javier Agustín Rojas
Rooftop Park
© Javier Agustín Rojas
Rooftop Park
© Javier Agustín Rojas

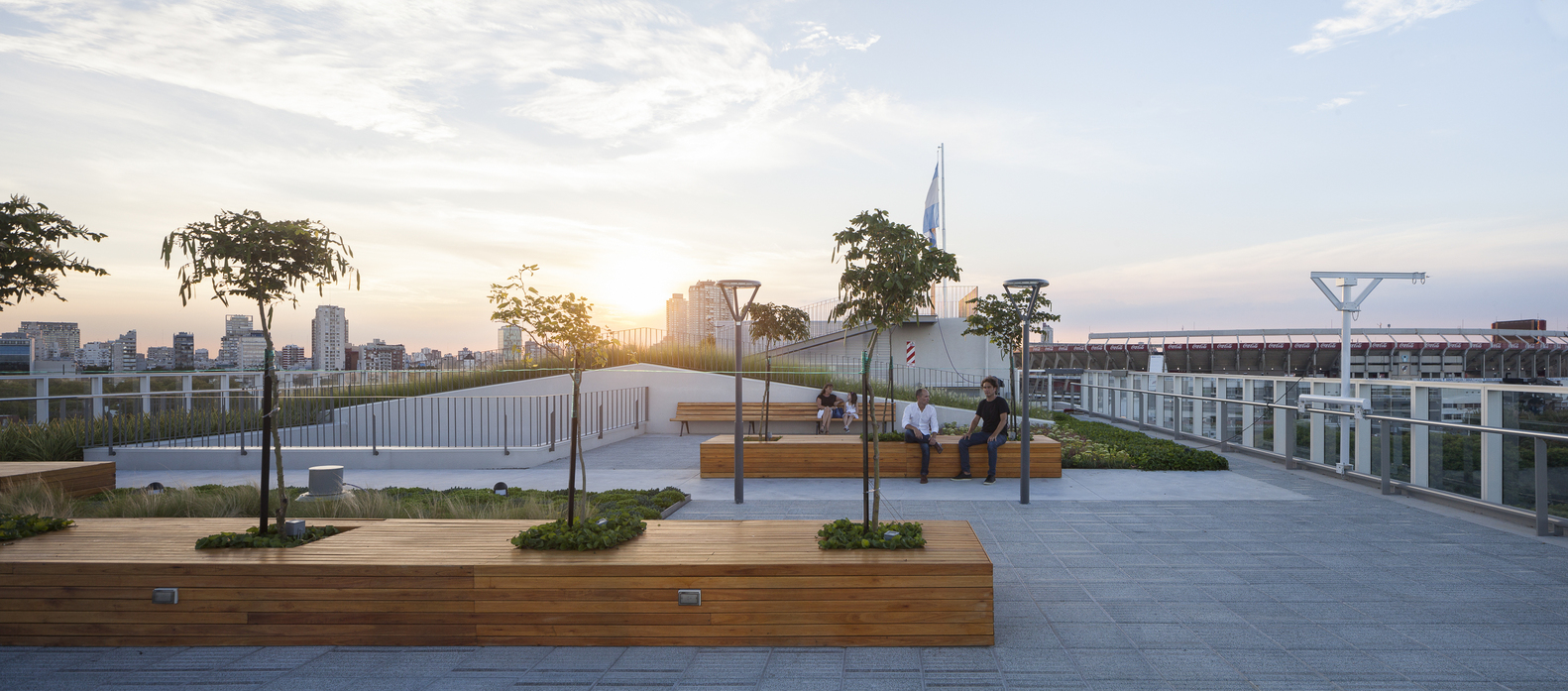

This new green space allows the University to expand its recreational areas and enjoy the open views towards the river and the city, attracting students to a new meeting place.

The terrace was conceived as a large park capable of housing both leisure and gastronomic venues as open-air auditoriums and sectors for academic and sports activities.

Rooftop Park
© Javier Agustín Rojas
Rooftop Park
© Javier Agustín Rojas
Rooftop Park
© Javier Agustín Rojas

The large folds of the roof enrich the route and generate situations of formal and informal auditoriums in the open.

Rooftop Park
© Javier Agustín Rojas
Rooftop Park
© Javier Agustín Rojas

These folds, in turn, allow three large classrooms to be housed in the lower floor, conferring the height according to their dimensions.

Rooftop Park
© Javier Agustín Rojas
Rooftop Park
© Javier Agustín Rojas

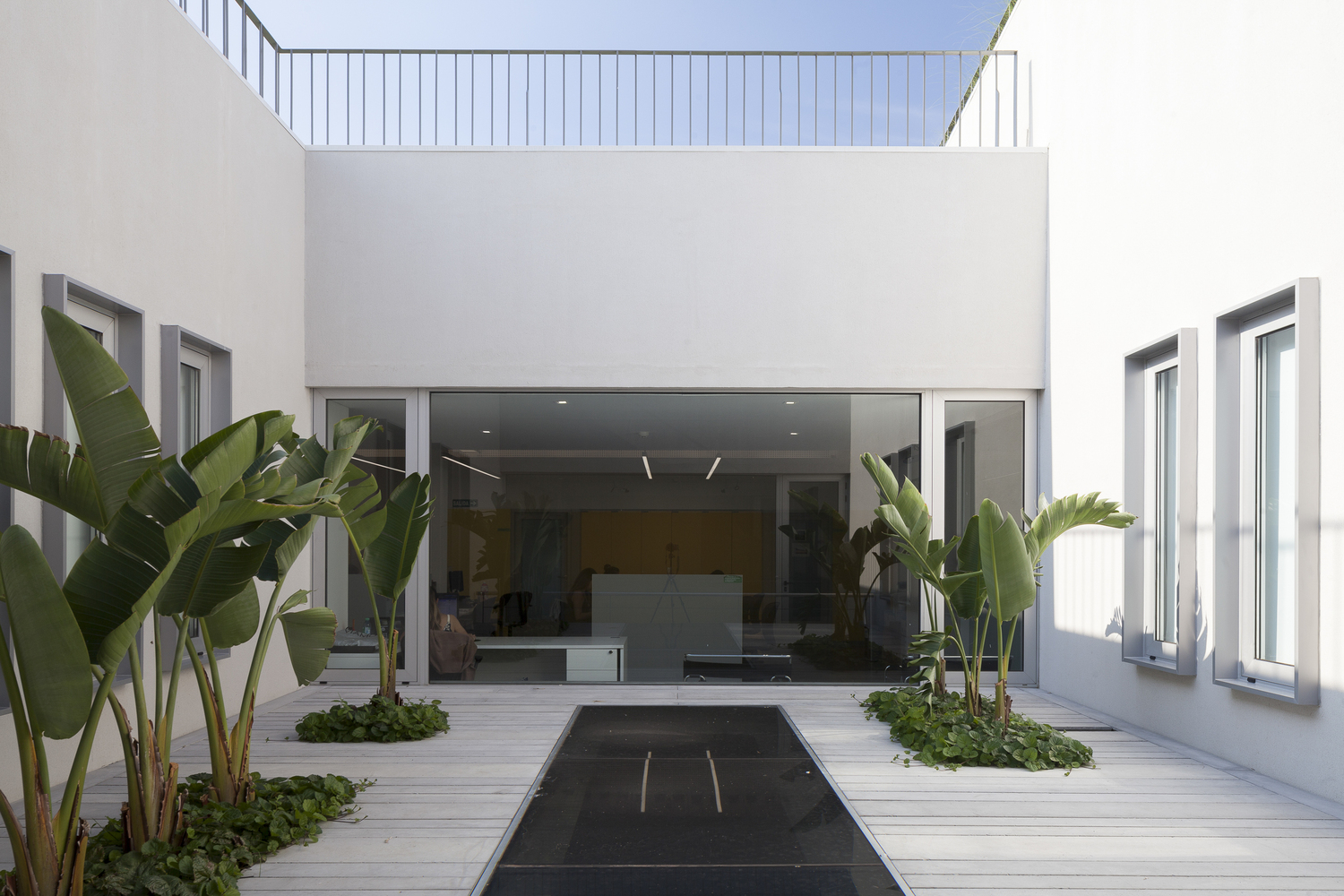

The courtyards bring light to the lower levels and contain the stairs to the terrace from the fourth floor hall.

Rooftop Park
© Javier Agustín Rojas
Rooftop Park
© Javier Agustín Rojas

This stage required a material strategy capable of building an additional level on a densely populated building without interrupting its activities.

The project took on this challenge not only by including in this instance materials such as metallic primary structures and gypsum rock ceilings and partition walls that allowed an almost exclusively dry work, but also to extend and complete the overhead light inlets and the vertical circulations forming patios through in a delicate staggering of tasks that always kept properly isolated hydrophobic, acoustically and thermally to the spaces of use in the lower levels.

Rooftop Park
© Javier Agustín Rojas
Rooftop Park
© Javier Agustín Rojas
Rooftop Park
© Javier Agustín Rojas
Rooftop Park
© Javier Agustín Rojas
Rooftop Park
© Javier Agustín Rojas
Rooftop Park
© Javier Agustín Rojas

Finally, this new architecture emerges in the garden terrace with a palette of natural materials, assembled and light, of evident contrast with the monolithic, neutral and tectonic technology of the concrete and the masonry of the pre-existing building.


Rooftop Park
5th floor plan
Rooftop Park
5th floor plan - Terrace detail A
Rooftop Park
5th floor plan - Terrace detail B


Rooftop Park
Longitudinal section

Rooftop Park
Cross section


Rooftop Park
Terrace section A
Rooftop Park

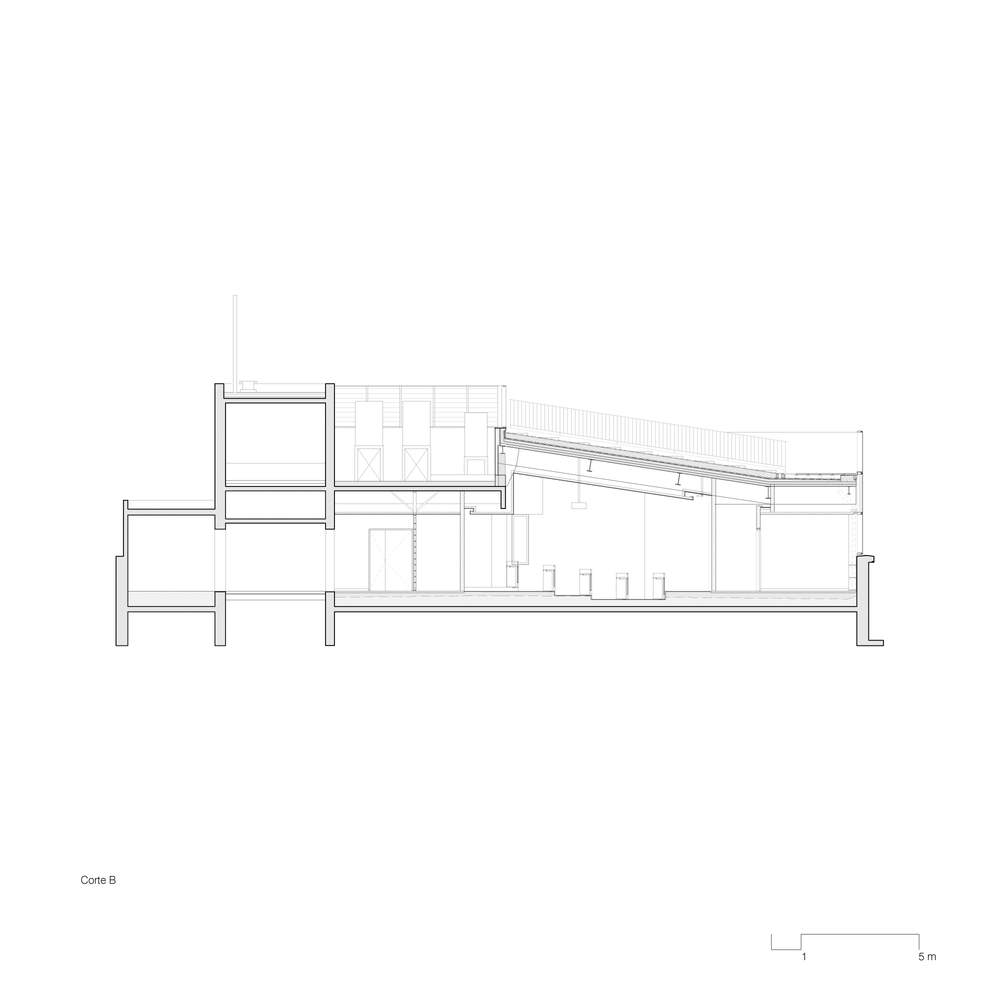

Terrace section B
Rooftop Park
Terrace section C


Rooftop Park
Axonometric

Rooftop Park
Frontal view
