The new building for the Service of State Employment in Seville is located north of the city within San Jeronimo district.

The site has an area of 3226 m² and is bounded by streets recently executed by the current planning, and the rear of the houses in the streets behind.

The new building completes the block of suburban housing in the area, and is inserted into the industrial surrounding.

Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda

This tissue is made up of factory buildings from previous decades, and new warehouses currently under construction.

This part of the city is in a frantic development. The imminent opening of the north access highway Sevilla-la Rinconada, will connect the building to the rest of the city.

The program develops an administrative surface of 3,200 m² approximate.This surface is divided into three main areas for Provincial Management, Benefits and Provincial Secretary.

Benefits and Provincial Secretary Area are located in ground floor and first respectively, and they form a transparent container which is the main volume of the building.

Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda

The rest of the ground floor contains the rooms for the Provincial Secretary, public service spaces and Syndicates, all around a small courtyard.

The scheme of circulation and operation of the building poses easily and with clearly differentiated spaces.

The setback of the stainless steel façade on the ground floor protects the access of the visitor to the building.Once inside, the entrace hall opens into a courtyard which organizes the circulation of the groundfloor around itself.

Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda

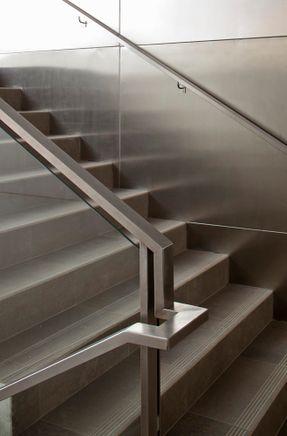

The connections among different areas are generated that way.The waiting areas are located on top of each other connected by the main staircase.

The staircase opens into a double height that accompanies the inclination of the roof.

Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda

The basement contains a parking for 64 vehicles and spaces for storage and archiving.

The entire project is built with prefabricated materials, which require less energy cost for their production, shorten lead times and minimize solid waste on site.

Structure, walls and floors are made of reinforced concrete with larger thermal inertia, becoming natural accumulators and heat radiators.

Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda

The courtyards in the development of the building allow all the spaces have cross ventilation and natural lighting.

- Solar control system: the perforations cause the light sifted for uniform illumination of the entire room by reducing the consumption of artificial light.

Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda

- Thermal control: the camera between the skin and the closure is in constant air renewal which produces the attenuating of closures warming.

- Acoustic control system: the holes in the skin cause the attenuation of airborne sound.

Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda

- Element of privacy: the skin acts as a lattice, the inside is not seen from the outside.

The area of the Union Unit is eleveted 1.20 m over the street level, allowing ventilation and natural lighting also get into the basement parking.

Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda

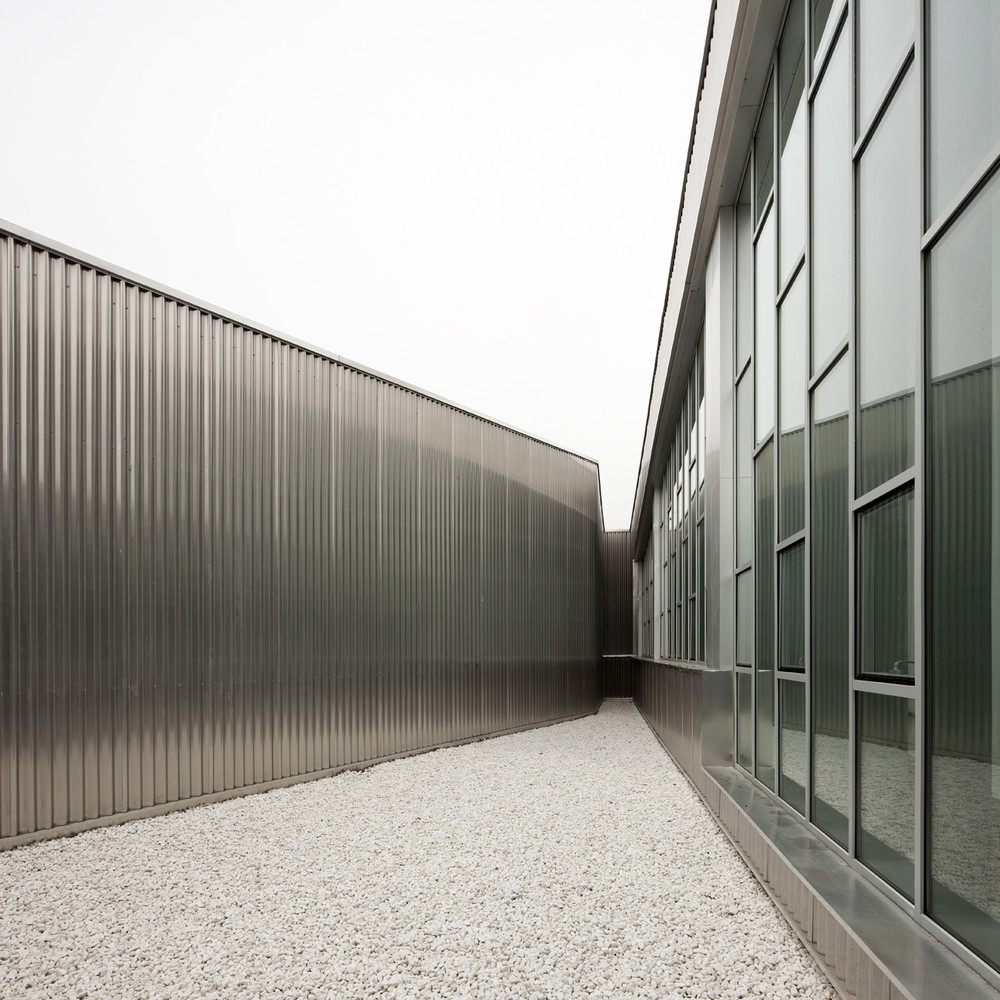

The resulting volume is embodied in a concrete and glass structure, covered with a perforated aluminiun skin over the façade and the roof.

Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda

that values the shape of the building and responds to the aesthetics of the surrounding industrial landscape.

Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda
Spee Sevilla
© Fernando Alda


Spee Sevilla

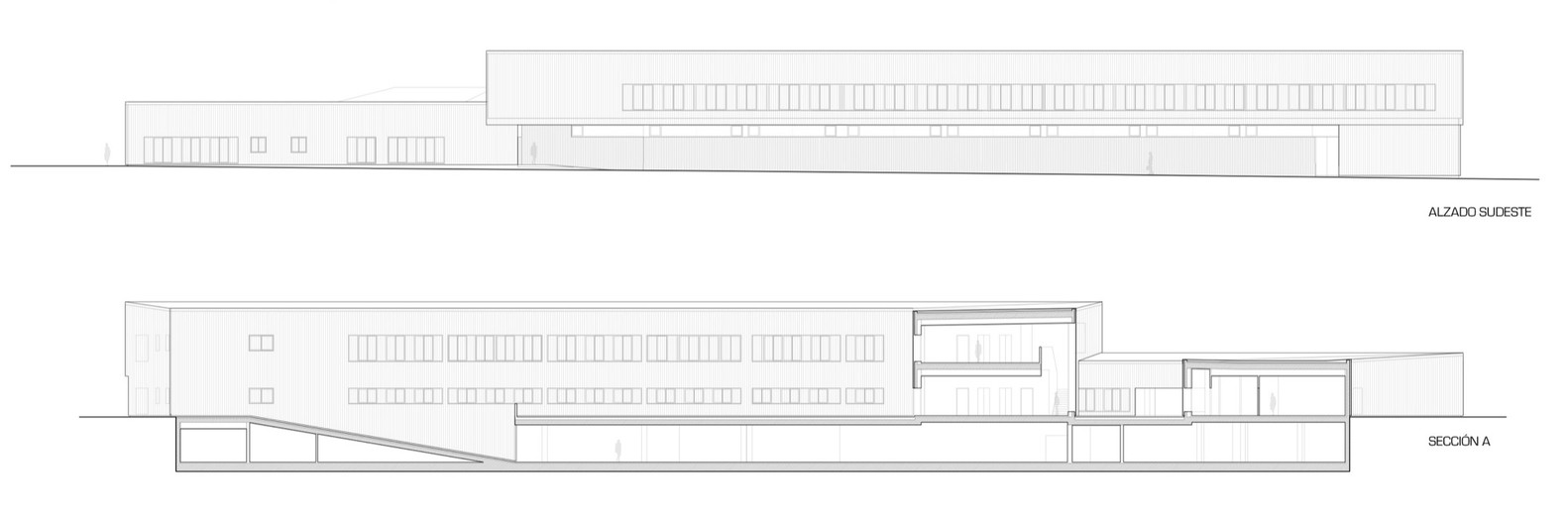

Elevations
Spee Sevilla

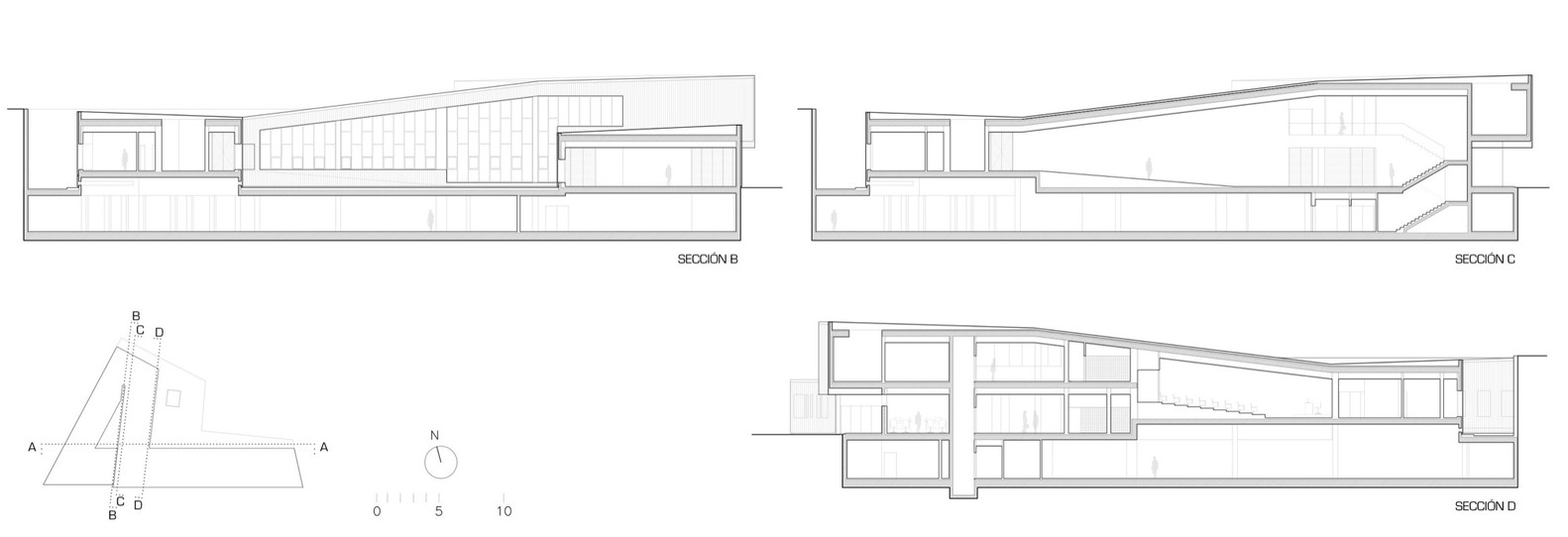

Sections


Spee Sevilla

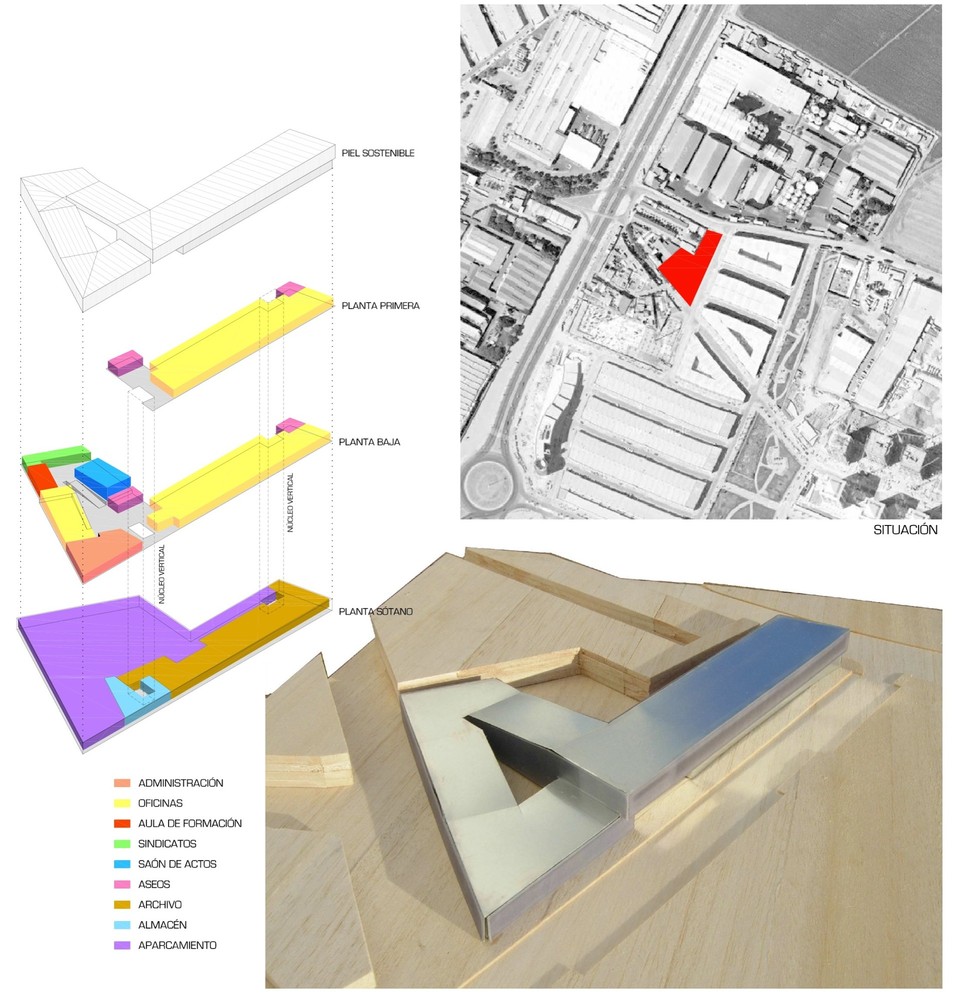

Diagrams
Spee Sevilla

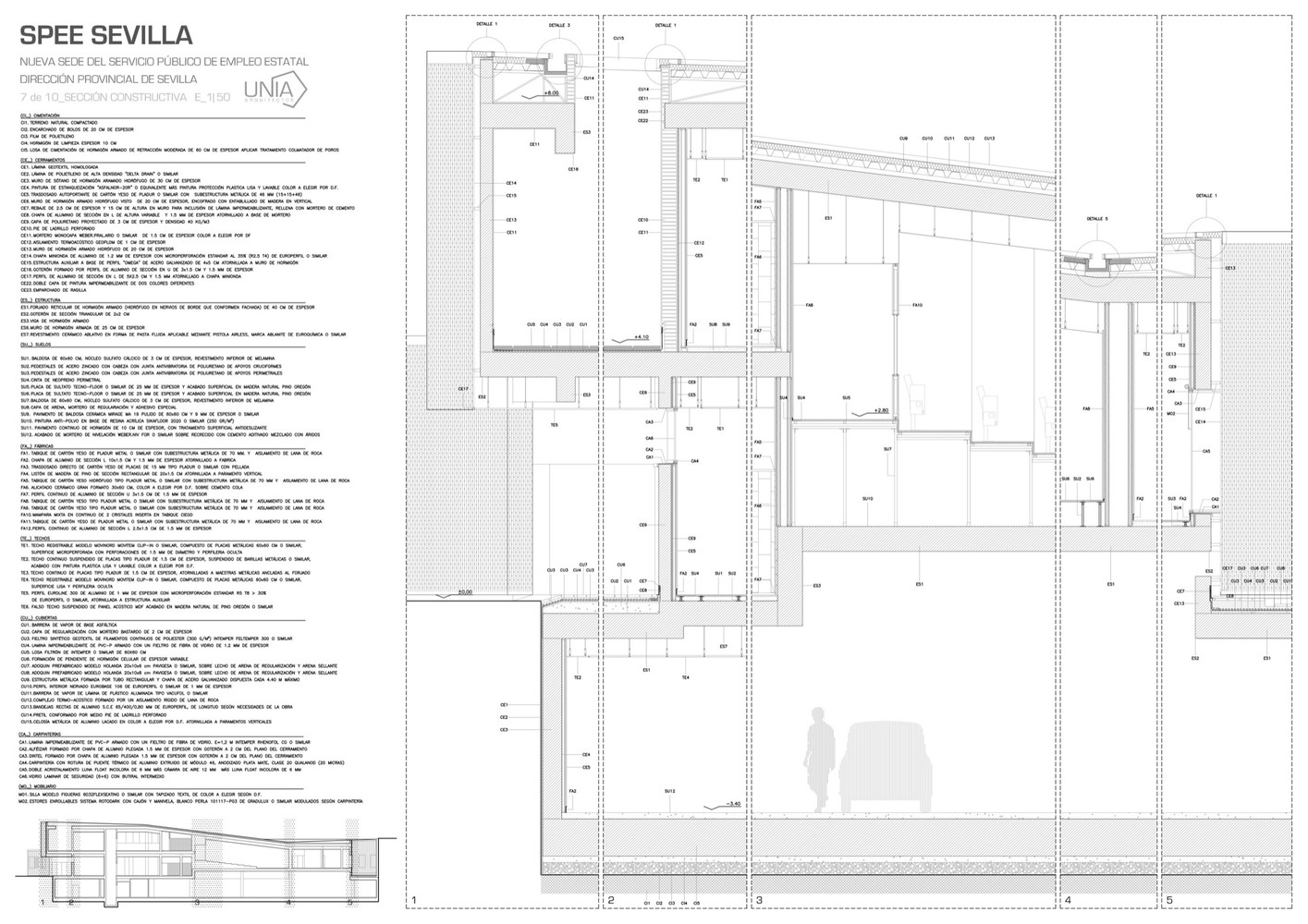

Details


Spee Sevilla

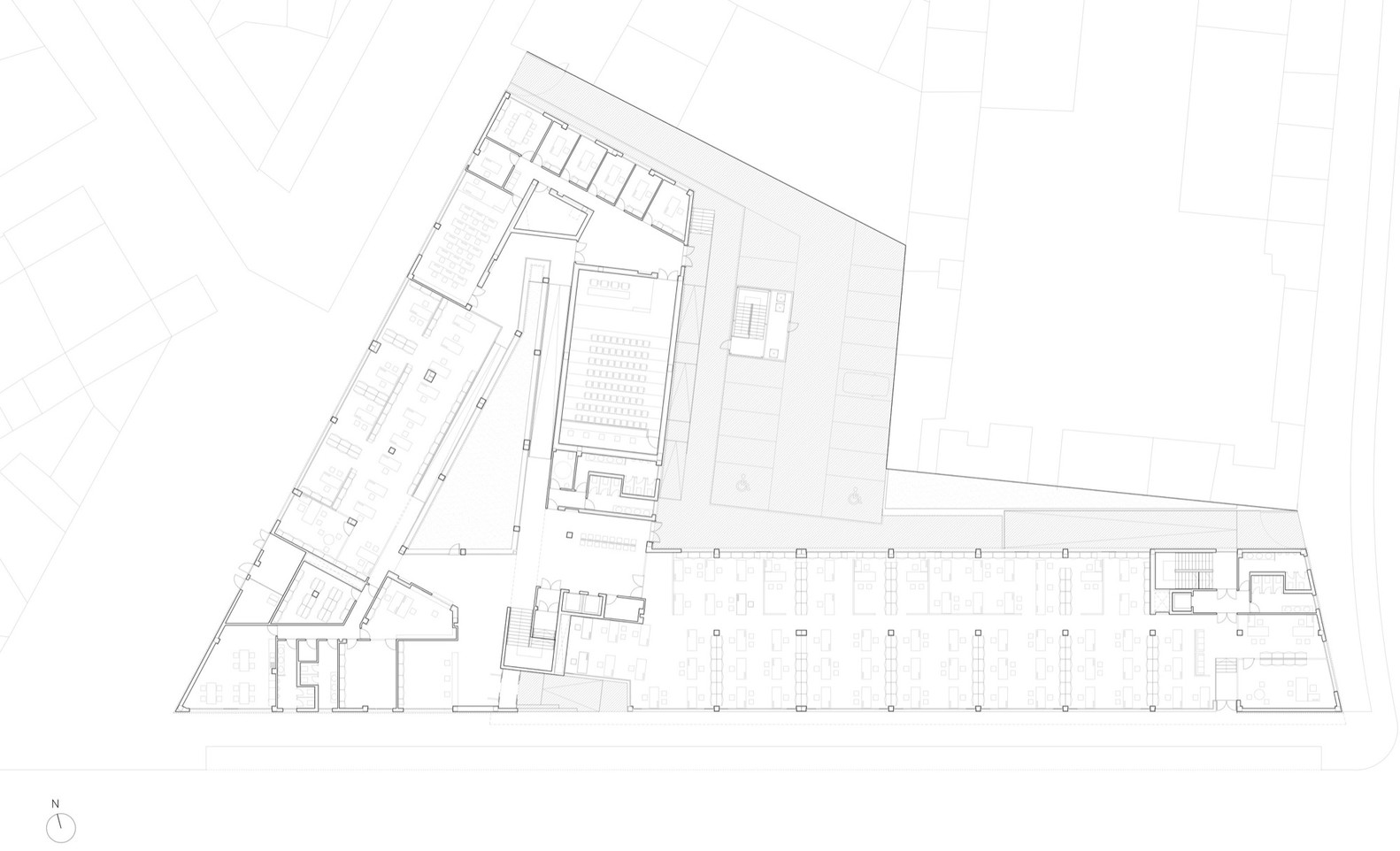

Ground floor plan
Spee Sevilla

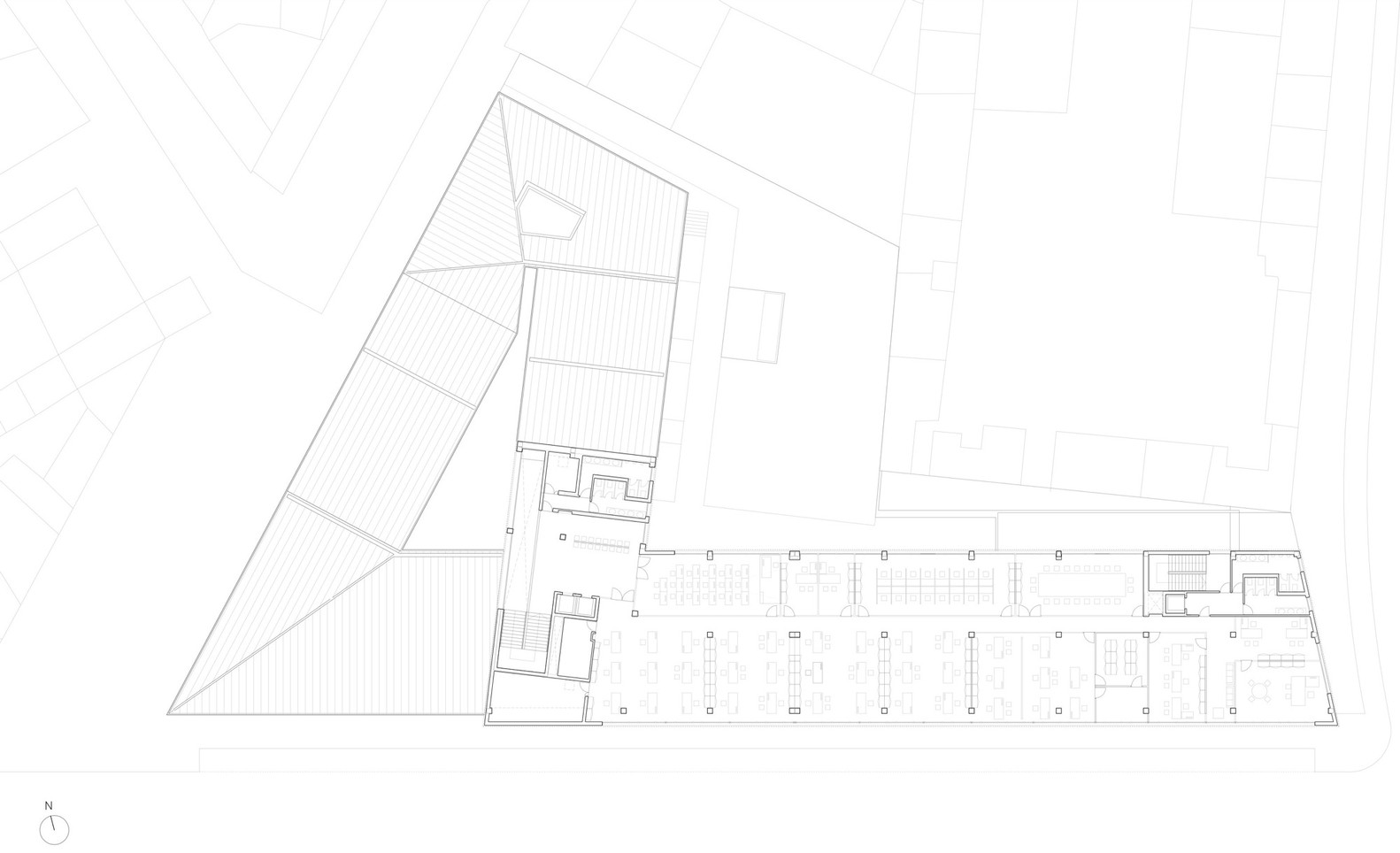

Second floor plan
Spee Sevilla

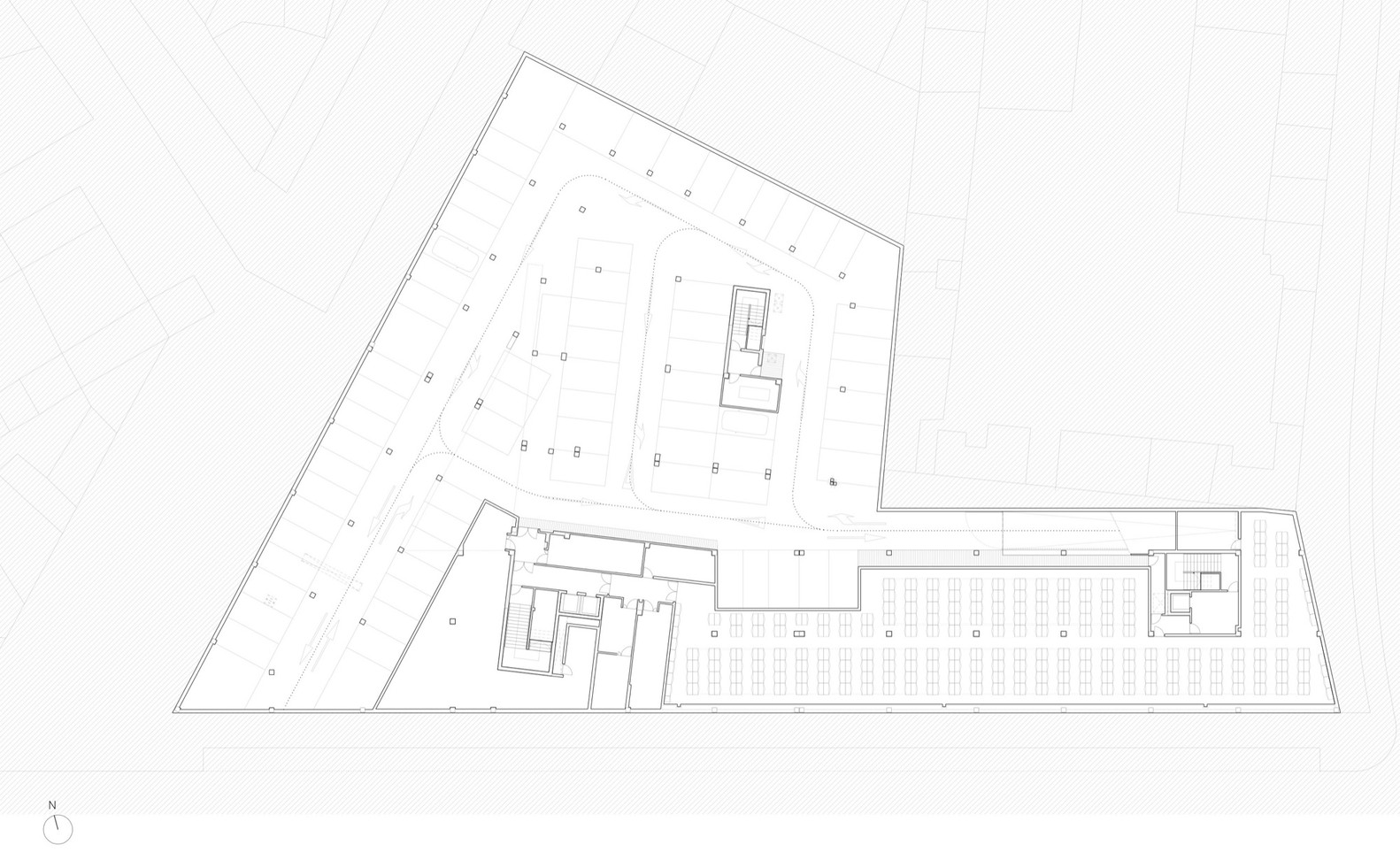

Underground floor plan
Spee Sevilla

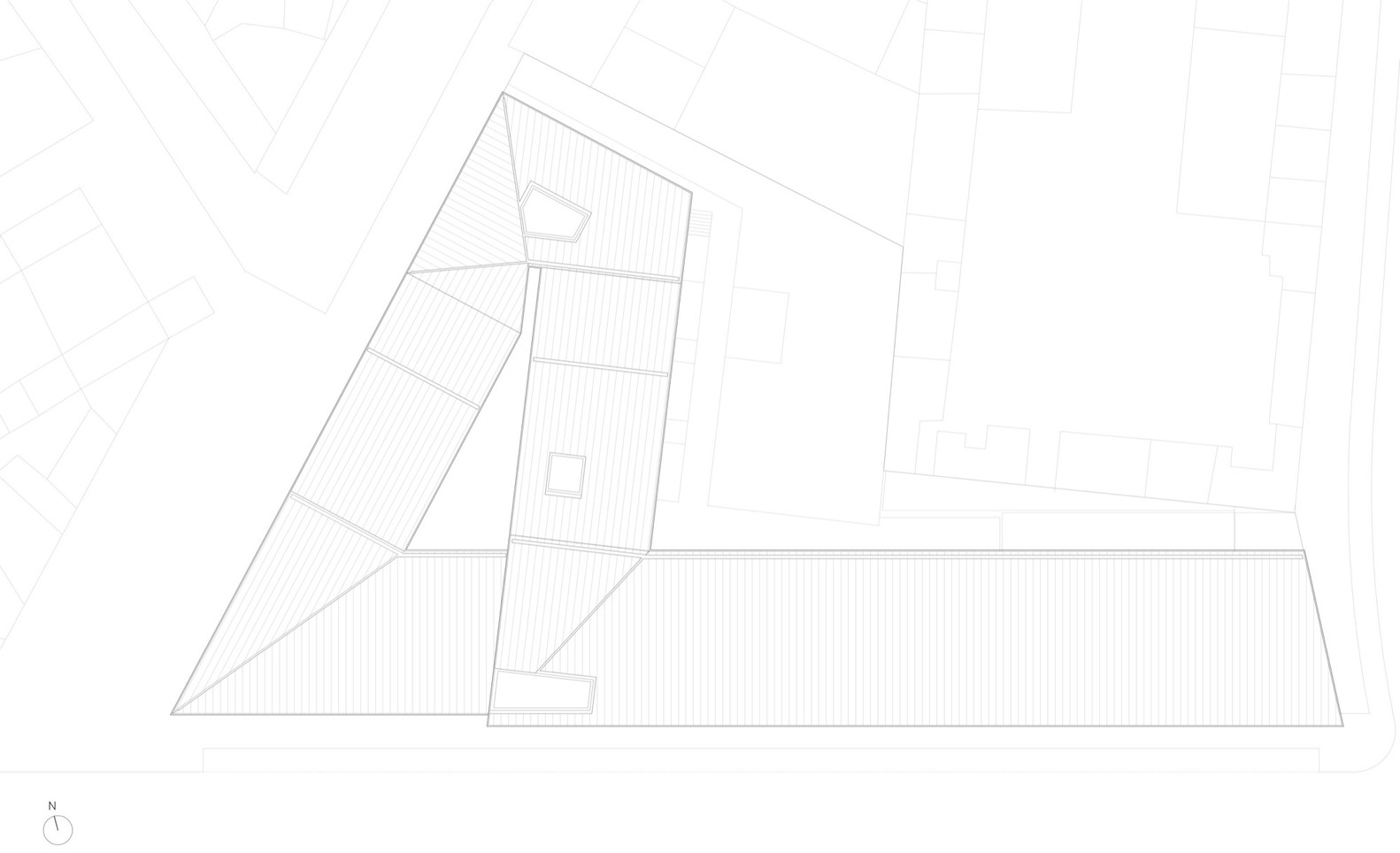

Roof plan
