INDEPENDENT PLACE

MW Architects

ARCHITECTS
MW Architects

MANUFACTURERS
Metsa Woods, Alufold, WISA

ARCHITECT IN CHARGE
Matthew Wood, Stephanie Reid

STRUCTURAL ENGINEERS
Structure Mode

CONTRACTORS
E&C Building and Design

PHOTOGRAPHS
French + Tye

AREA
25 m²

YEAR
2016

LOCATION
Greater London, United Kingdom

CATEGORY
Houses, Extension

Text description provided by architect.

The client wanted a new extension which was of a similar size to the existing conservatory, but with a bit more climatic stability, a little less glare and more privacy whilst still retaining light and the relationship to their modest Dalston garden. The clients were keen to embrace a unique design solution.

Independent Place
© French + Tye
Independent Place
© French + Tye
Independent Place
© French + Tye

MW Architects, in close collaboration with Structure Mode, designed a lightweight roof comprised of a lattice of beams

Which curve in both directions, with a stressed plywood skin. The roof is supported along the rear edge and on six square steel columns.

The design utilises the existing conservatory foundations and retains the floor slab including underfloor heating and tiles - a cost effective and practical strategy.

Independent Place
© French + Tye
Independent Place
© French + Tye
Independent Place
© French + Tye

To control solar gain and glare, the roof peels upwards to take advantage of low winter sun and maximise the visual connection to the garden.

The roof overhang shades the glazing from the high summer sun thereby creating an effectively insulated space with a tactile exciting roof.

The roof dips down along its western edge to respect the adjoining neighbours’ view by matching the eaves level of the old conservatory. A clerestory all round lifts the roof so it appears to float.

Independent Place
© French + Tye
Independent Place
© French + Tye
Independent Place
© French + Tye

A series of 3D models were developed using BIM, and then used to laser cut 1:10 scale models. The physical models and connections within were analysed and assembled to inform the design and construction process.

The final model drawings were used as the full-size CNC template. Curved roof beams were cut from LVL timber panels and then bolted together on site.

Independent Place
© French + Tye
Independent Place
© French + Tye

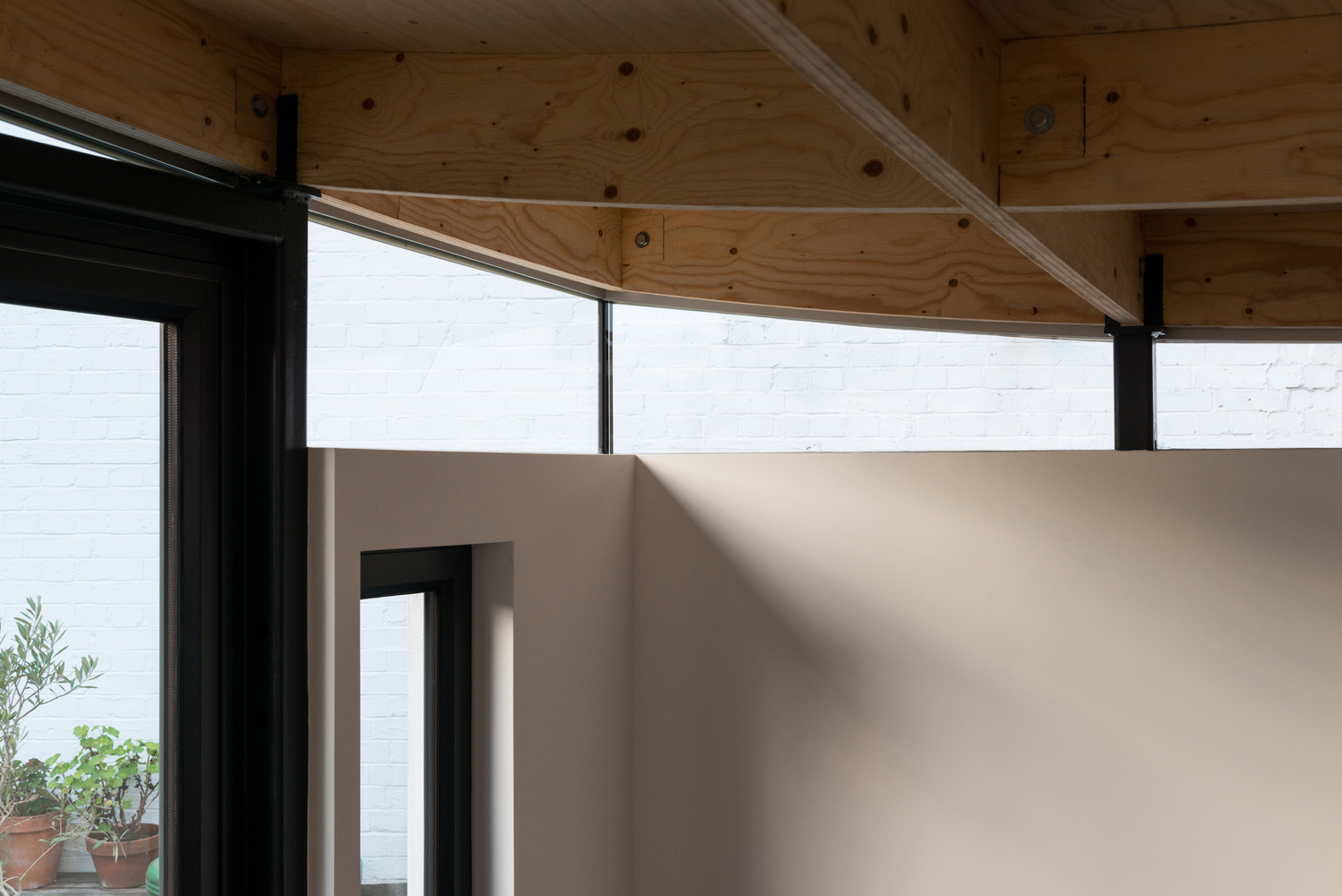

This careful material choice enabled the beams to be small enough to maintain head room, whilst each structural grid connection is self-reciprocating - the curving edges provide stability to the cantilevering eaves.

The result is a unique calm space. The roof is tactile and well within reach at its lowest points.

Independent Place
© French + Tye
Independent Place
© French + Tye

It encourages visitors to touch it and look at it. The curve draws the eye outwards and upwards.

It is an uplifting space that feels connected to the outside but isn’t overexposed as the previous fully glazed conservatory was.

The light and temperature is now well regulated, making it a functional and enjoyable space to be in.

Independent Place
© French + Tye
Independent Place
© French + Tye
Independent Place
© French + Tye
Independent Place
© French + Tye


Independent Place
© French + Tye
Independent Place
© French + Tye
Independent Place
© French + Tye
Independent Place
© French + Tye
Independent Place
© French + Tye
Independent Place
© French + Tye


Independent Place
© French + Tye
Independent Place
© French + Tye
Independent Place
© French + Tye
Independent Place
© French + Tye
Independent Place
© French + Tye
Independent Place
© French + Tye


Independent Place
After 3D render


Independent Place
Before - Rear Elevation

Independent Place
After Isometric


Independent Place
Before Ground Floor Plan

Independent Place
After Ground Floor Plan
