SLASH HOUSE

Conrad San Roman Flores

ARCHITECTS
Conrad San Roman Flores

LOCATION
Asia, Peru

CATEGORY
Houses

AREA
203 m²

YEAR
2016

MANUFACTURERS
Celima, Cemento Atlas, Pinturas Vencedor

STRUCTURE, ELECTRICAL INSTALLATIONS AND SANITARY
Bronco Construcción

PHOTOGRAPHS
Renzo Rebagliati

COLLABORATOR
Gabriela Rivera

CONSTRUCTOR
Bronco Construcción

Text description provided by architect.

The place is a condominium of beach houses 90 km at south of Lima, formed by "twin" lots arranged on an esplanade at the edge of the sea.

Slash House`
© Renzo Rebagliati
Slash House`
© Renzo Rebagliati

Due to the double lots, each one has three free fronts and a blind one that is the party wall.

The house is articulated by the outside circulation (staircase) and a central patio-garden.

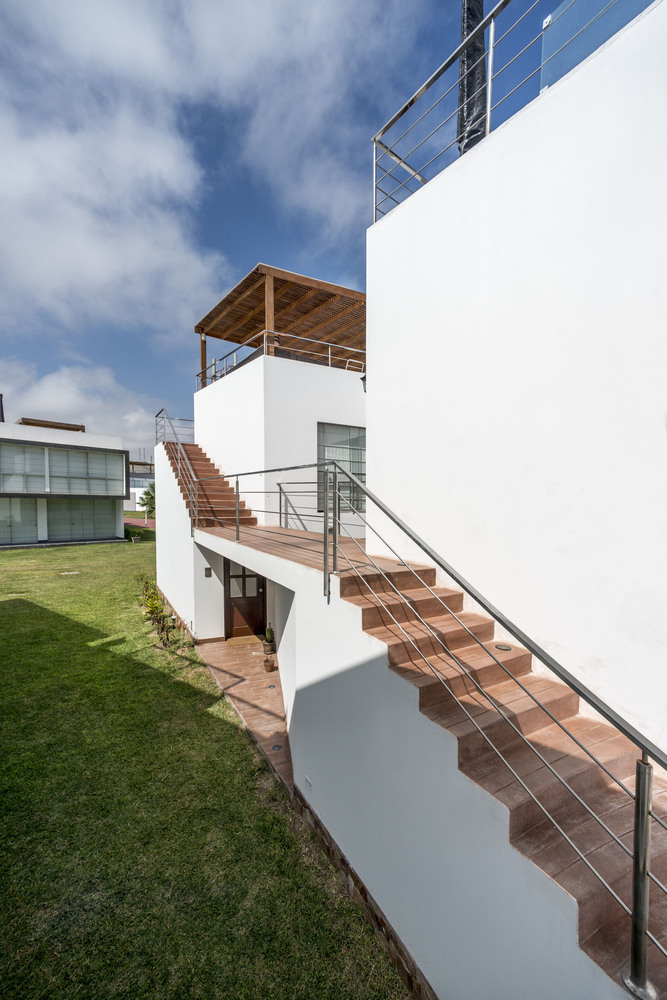

The starcaise unfolds as an ascending envelope along the three free fronts, is not only conceived as a vertical connection element, but also as a path that generates horizontal relations between spaces.

Slash House`
© Renzo Rebagliati
Slash House`
© Renzo Rebagliati
Slash House`
© Renzo Rebagliati

The essence of the project lies in the experimentation with the path and the spatial limits.

The path is the protagonist, integrates with the boundaries-edges generating continuity relations with directions and trajectories.

Slash House`
© Renzo Rebagliati
Slash House`
© Renzo Rebagliati
Slash House`
© Renzo Rebagliati

The trajectory proposes the transition between the circulation-preamble, the entrance-threshold and the space-room as fluid as possible, almost ethereal. The house is not a sum of rooms, but a single room that is transformed as you travel.

Slash House`
© Renzo Rebagliati
Slash House`
© Renzo Rebagliati

This transformation or transition from circulation spaces to room spaces and vice versa is determined by vertical and horizontal planes whose directions integrate an analysis of visuals, spatial sensations, container boundaries, function and aesthetics.

The programmatic requirements were demanding (as many rooms as possible) and, at first, a grid was created that maximized the use of space, calculating the greater number of rooms.

Slash House`
© Renzo Rebagliati
Slash House`
© Renzo Rebagliati

This analysis permitted to have a reference, with the objective that the final design does not have deficit of rooms with respect to the maximum capacity that the land could offer.

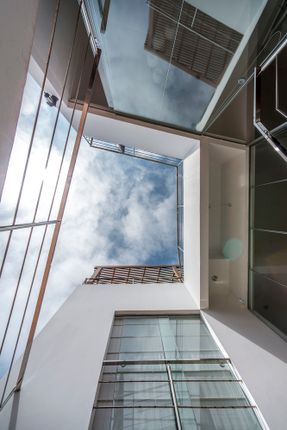

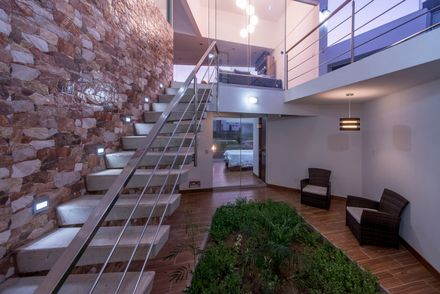

Due to the elongated geometry of the lot, a central opening was placed, the garden patio, which organizes the rooms around and addresses the optimal technical requirements of comfort, such as adequate natural lighting and the possibility of having cross ventilation in all rooms.

Slash House`
© Renzo Rebagliati
Slash House`
© Renzo Rebagliati
Slash House`
© Renzo Rebagliati

 In the first floor are located the bedrooms, in the second the social area and in the third the barbecue area and pool.

Slash House`
© Renzo Rebagliati
Slash House`
© Renzo Rebagliati
Slash House`
© Renzo Rebagliati


Slash House`
Front Elevation
Slash House`
Back Elevation
Slash House`
Side Elevation
Slash House`
Model


Slash House`
Longitudinal Section
Slash House`
Cross Section


Slash House`
Ground Floor Plan
Slash House`

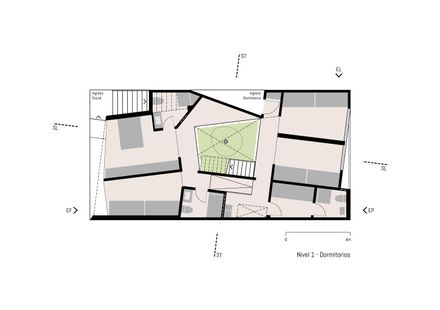

First Floor Plan
Slash House`

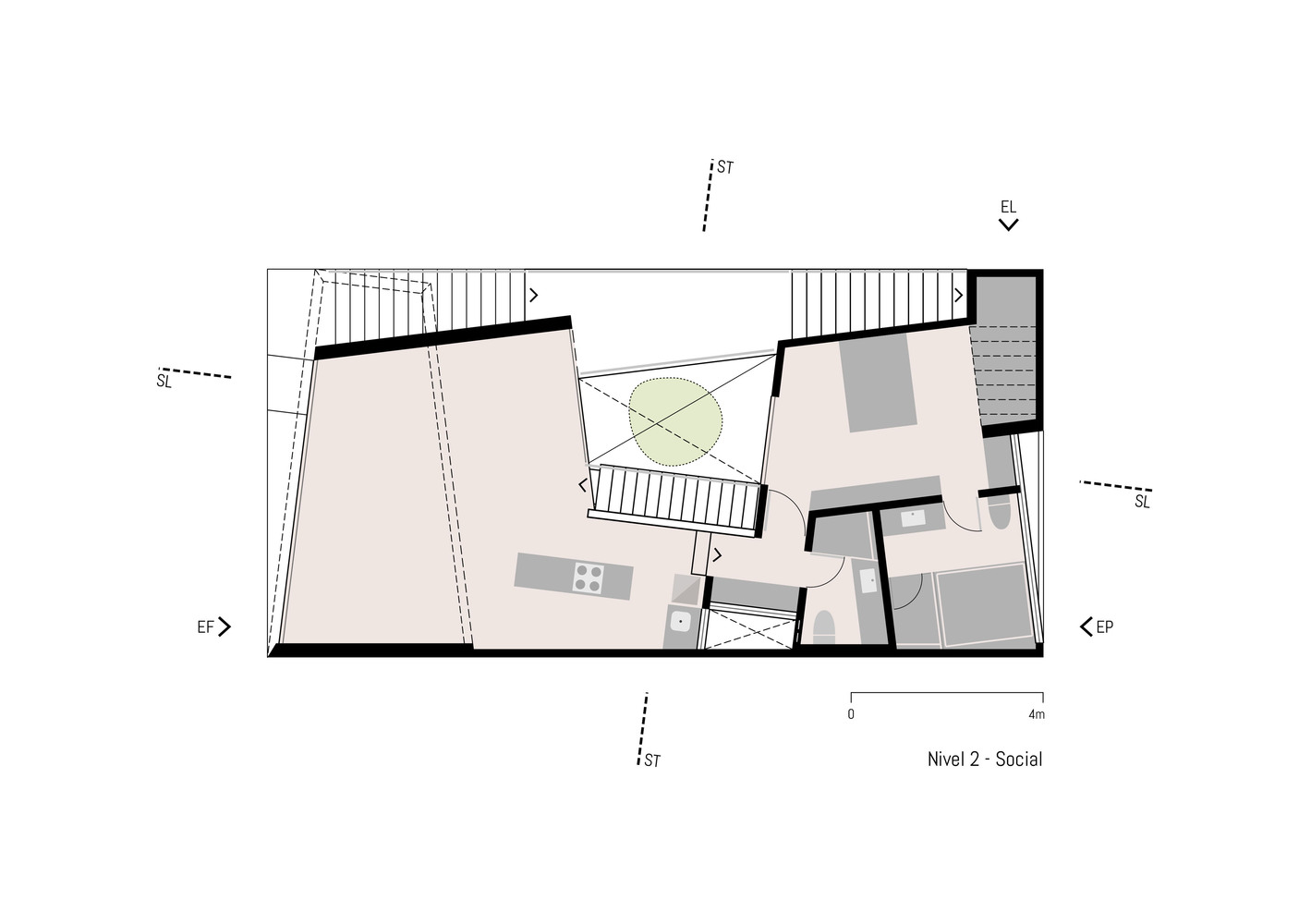

Second Floor Plan
Slash House`

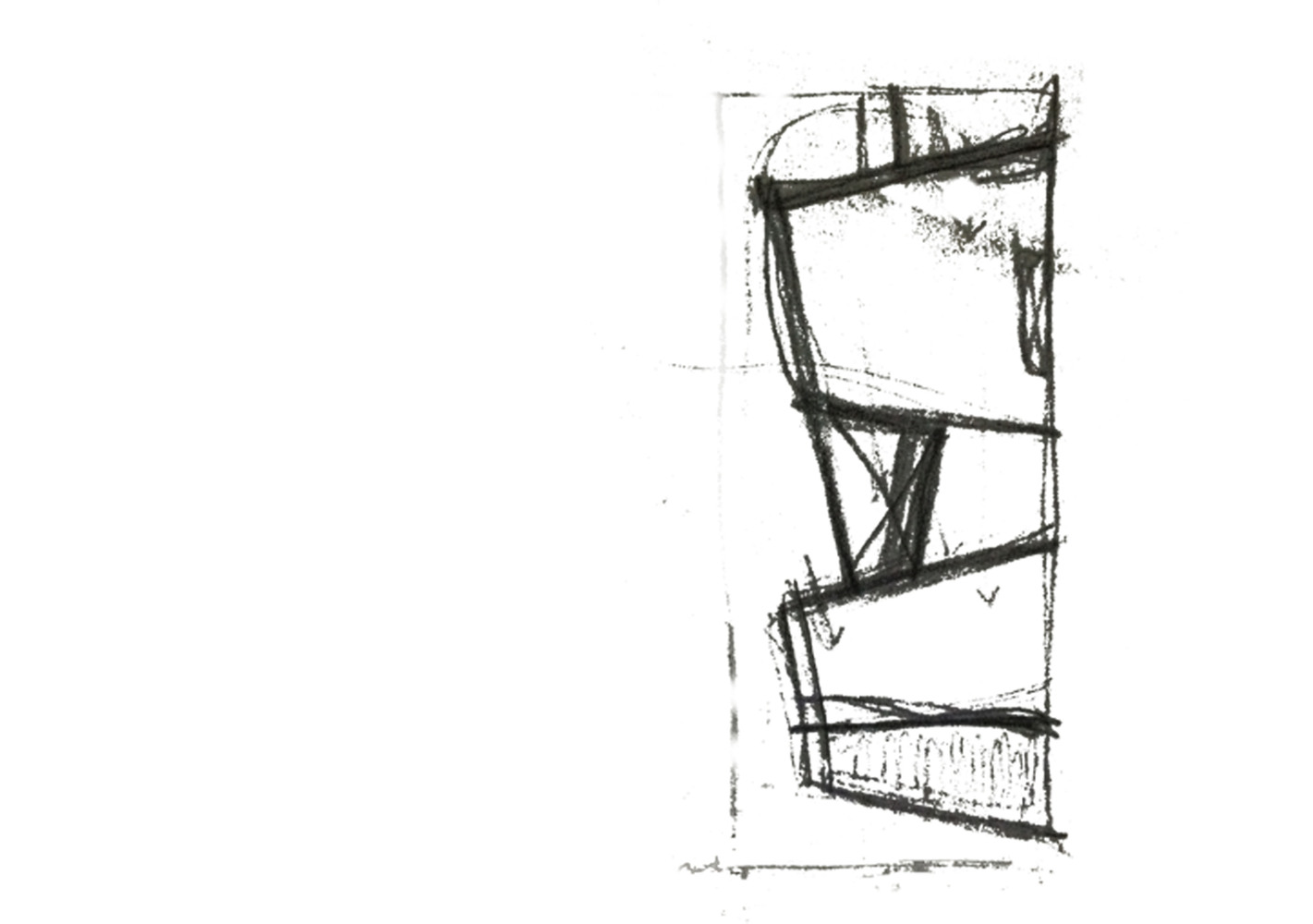

Sketch


Slash House`
Schematic Diagram

Slash House`

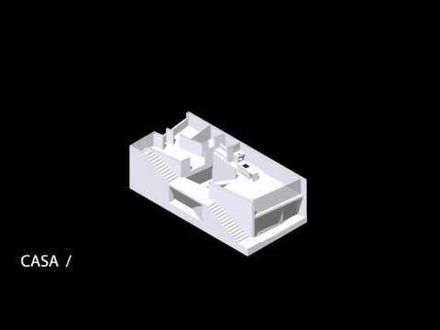

Isometric Diagram
