Text description provided by architect.

Silpakorn University had acquired a plot of land in Muang Thong Thani, a growing urban development in the northern part of greater Bangkok to build a new campus.

Flagship Building
© Beersingnoi
Flagship Building
© Beersingnoi
Flagship Building
© Beersingnoi

After the master plan was laid out, it was decided that a small building would be built to pioneer the presence of the university at the new location. The building must be designed and built within a year to be ready for the academic year of 2017.

Geodesic Design proposed a 4,000 sqm. multipurpose building that would be easily adapted to various requirements and changes.

The design also aimed for the building to be rapidly construct and could be dismantled in the future if a larger building is required.

Flagship Building
© Beersingnoi
Flagship Building
© Beersingnoi

The design direction came from the architect's evolving idea of Thai modernism.

Modern building that interacts with tropical monsoon climate. Building skin that let fresh air into built space. Natural daylight that is used in a way that interior environment still stays comfortable. Power consumption is to be considered. Construction waste is to be minimized.

Flagship Building
© Beersingnoi
Flagship Building
© Beersingnoi
Flagship Building
© Beersingnoi
Flagship Building
© Beersingnoi
Flagship Building
© Beersingnoi

The building's lightness in appearance is rooted in Thai traditional architecture. The ground floor is raised. The skin is variation of traditional Thai high pitch roof.

Flagship Building
© Beersingnoi
Flagship Building
© Beersingnoi
Flagship Building
© Beersingnoi

Overlap walls create openings that let air flow in and out.

Flagship Building
© Beersingnoi
Flagship Building
© Beersingnoi

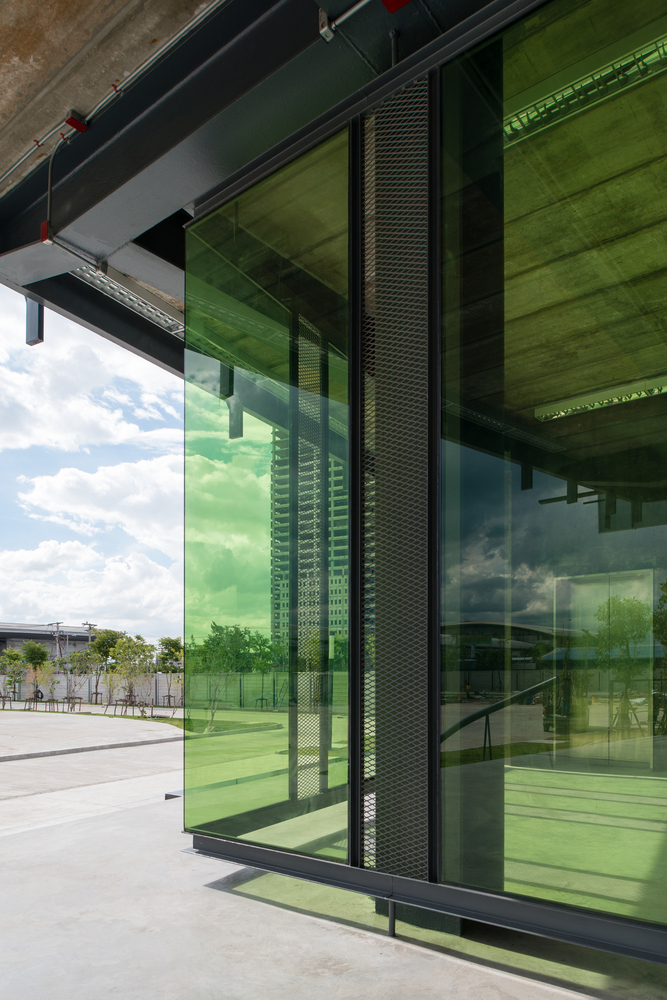

These walls of translucent polycarbonate panel filter sunlight toward proper degree of illumination. The changing of time and season can be felt from the inside. At night, the building glows.

The plans are composed of three parts. First, the main circulation space that is put on the rim as building parameter.

This circulation space act as barrier to keep out solar radiation. Surroundings are vaguely experienced through translucent skin.

Flagship Building
© Beersingnoi
Flagship Building
© Beersingnoi
Flagship Building
© Beersingnoi

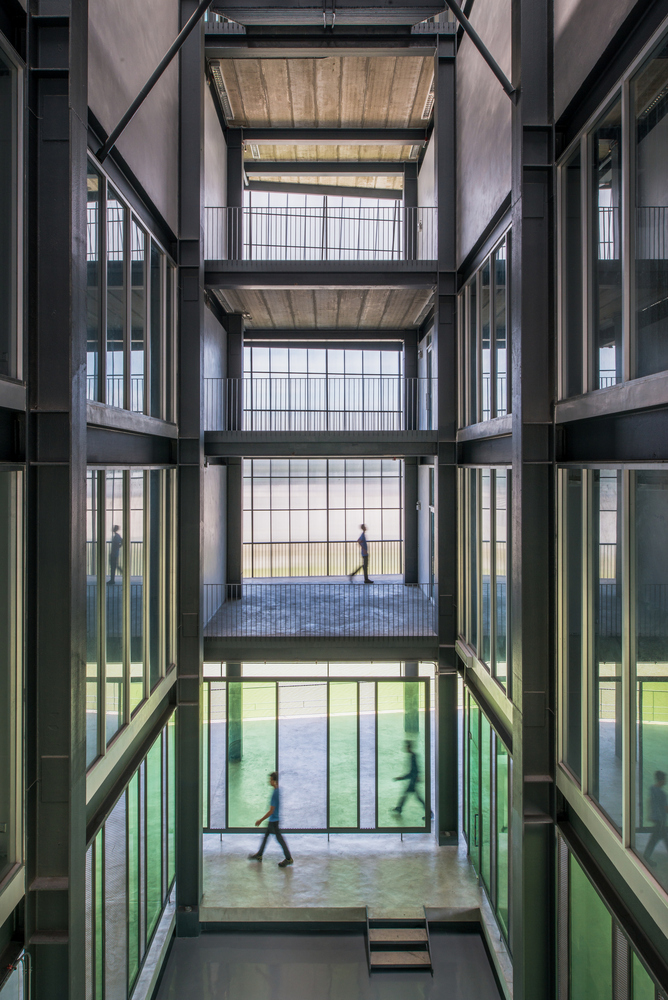

This is intended to create concentration in the classroom. Second, the center of floor plan is an open well that visually connects various ongoing activities together.

Floor height varies with various usage that can be observed and give meanings to each floor. Third, relation to landscape ; the building was built over an existing pond to take advantage of the cooling condition of the body of water

Flagship Building
© Beersingnoi
Flagship Building
© Beersingnoi
Flagship Building
© Beersingnoi

Prefabricated building parts and construction technics were used to speed up the build period. Main structure such as column, beam, stair are steel. Flooring are concrete hollowed core floor slabs.

Polycarbonate panel system can be quickly installed on steel skeleton on all four sides of the building. The top floor outer wall is of lightweight concrete panel. Roof is polyvinylchroride waterproof sheet covered fiber cement board.

Flagship Building
© Beersingnoi

https://youtu.be/dghItUrQgtk

© Beersingnoi

As the campus first building the design pioneers the architecture that is transparent , direct, sharp and simple. Shape and form that work together with engineering. The story and logic in an architecture that will inspirit into the building's habitant.


Flagship Building
Ground Floor Plan
Flagship Building
5th Floor Plan


Flagship Building
Elevations


Flagship Building
Exploded Facade
Flagship Building
Exploded Structure


Flagship Building
Ventilation
Flagship Building
Breathing Skin


Flagship Building
Interior Space
Flagship Building
Building that glows
Flagship Building
Site plan
