TRES PICOS TOWER

LBR&A

CATEGORY
Office Buildings

LOCATION
Ciudad De México, Mexico

ARCHITECTS
LBR&A

YEAR
2011

MANUFACTURERS
Honeywell, CYVSA, Estructuras Diva, MPSystems, Materiales Sela

STRUCTURAL DESIGN
Federico Alcaraz

ELECTRIL
Raúl Uribe- UIASA

PLUMBING
Francisco Garza- GMA

CONSTRUCTION
Antonella Morittu

HVAC
Sergio Armella- DYPRO

ROBOTIC PARKING
MP Systems

SPECIAL SERVICES
Alfredo Evangelista- Honeywell

CLIENT/OWNER AND CONSTRUCTION COMPANY
Fondo Hexa, S.A. de C.V.

Text description provided by architect.

The geometric complexity of the terrain, the views from the site, the large urban potential and the slender structure were the detonators of the architectural design: a free space delimited by two steel walls that support, contain and direct the views.

Tres Picos Tower
© Alfonso Merchand
Tres Picos Tower
© Alfonso Merchand
Tres Picos Tower
© Alfonso Merchand
Tres Picos Tower
© Alfonso Merchand

Careful interpretation and application of regulations allowed us to integrate in an area of 167.00 m2, more than 1,600.00 m2 of offices divided into 9 levels, room for 48 cars, and a common terrace on the top level.

Only two slender structural steel walls, along with slabs, support the gravitational and seismic loads and release the ground floor for free pedestrian flow.

Tres Picos Tower
© Alfonso Merchand
Tres Picos Tower
© Alfonso Merchand

The open plan without columns increases the profitable space. The load bearing walls are double steel panels that function as thermal insulation as well as the double glass facade on the south side.

The corporate offices program generated a significant demand for cars, resolved with an underground robotic parking that partially occupies the space under the street.

Tres Picos Tower
© Alfonso Merchand
Tres Picos Tower
© Alfonso Merchand
Tres Picos Tower
© Alfonso Merchand

The construction of the building, mainly prefabricated and assembled on site, took place over a short period of time.


Tres Picos Tower
West Elevation
Tres Picos Tower
East Elevation
Tres Picos Tower
South Elevation


Tres Picos Tower

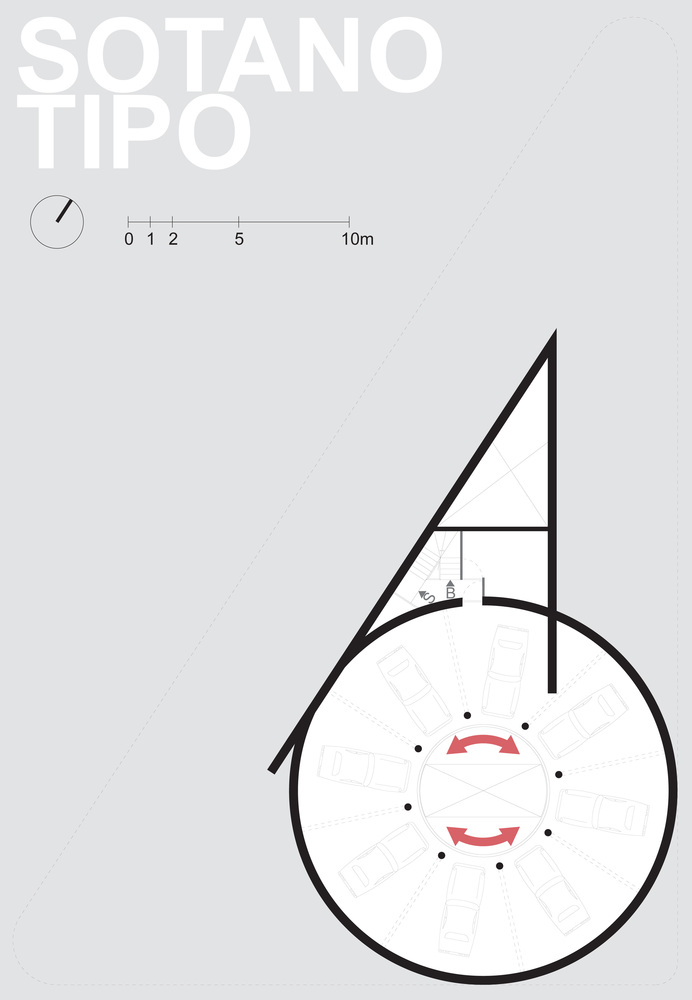

Basement Floor Plan
Tres Picos Tower

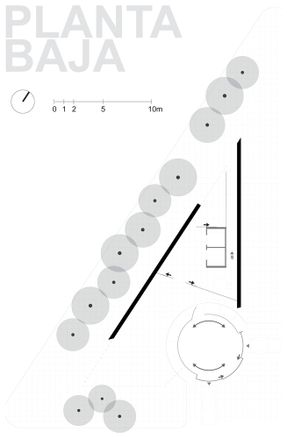

Ground Floor Plan
Tres Picos Tower
Typical Floor Plan
Tres Picos Tower
Palnta Terraza
Tres Picos Tower
Detalle
Tres Picos Tower

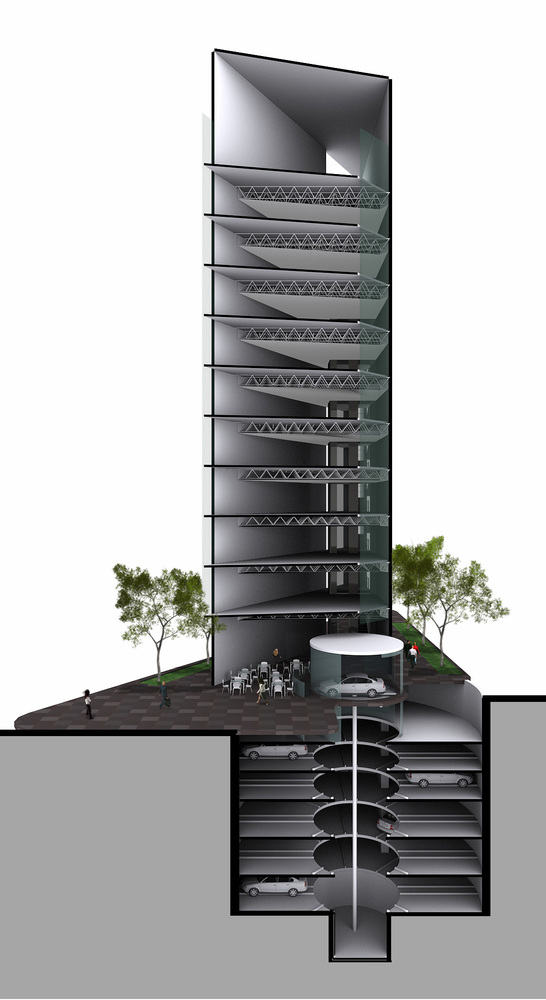

Corte Fugado
