ROOF EXTENSION OF SYLVANA HOSPITAL

2b Architectes

ARCHITECT
2b Architectes

STRUCTURAL ENGINEER
3demArch, Crissier

BUILDING PHYSICIST
Pirmin Jung, Rain

ACOUSTIC ENGINEER
Pirmin Jung, Rain

ENGINEER HVPE
Amstein+Walthert, Lausanne

MANUFACTURER
FunderMax, DuPont, Fluora

CONSTRUCTION MANAGEMENT
A.planir, Echallens

WOOD ENGINEER
Pirmin Jung, Rain

PHOTOGRAPHS
Matthieu Gafsou

AREA
1487 m²

YEAR
2016

LOCATION
Épalinges, Switzerland

CATEGORY
Rehabilitation Center

Text description provided by architect.

The University Care and Rehabilitation Centre Sylvana (CUTR) occupies a former sanatorium built in 1913 in Epalinges, a municipality situated above the City of Lausanne, on an exceptional site at the edge of the woods overlooking the entire Lake Geneva region.

Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou

To satisfy the growing demand for post-hospital rehabilitation beds, the roof optimization created space for two floors for beds and care programs by replacing the attic and roof-tree of the 1950s.

Technical and size-related constraints were integrated into an organic form that makes use of roof ridges and surfaces, thus reinterpreting the shape of the former sanatorium by seeking to make it blend in with the nearby treeline.

Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou

This strong aspiration to integration resulted in the choice of copper-coated bituminous roofing membranes, which would ultimately take on the hues of the surrounding treescape.

The new roof construction was prefabricated and largely made of wood, allowing for a limitation of additional load, while thanks to the speed of the realization, the construction deadline could be adhered to without any interruption of hospital operations.

Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou

29 rehabilitation beds in 19 rooms distributed on the two newly added floors increased the number of beds at CUTR Sylvana to 95.

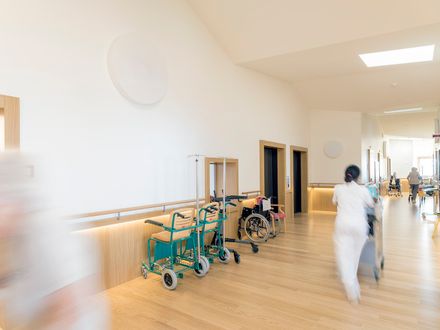

Besides these new beds, rooms were created for various care programs and facilities for ergotherapy and physiotherapy, as well as for the hospital staff, doctors, and nurses, who run this competence and care center for geriatric rehabilitation.

Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou

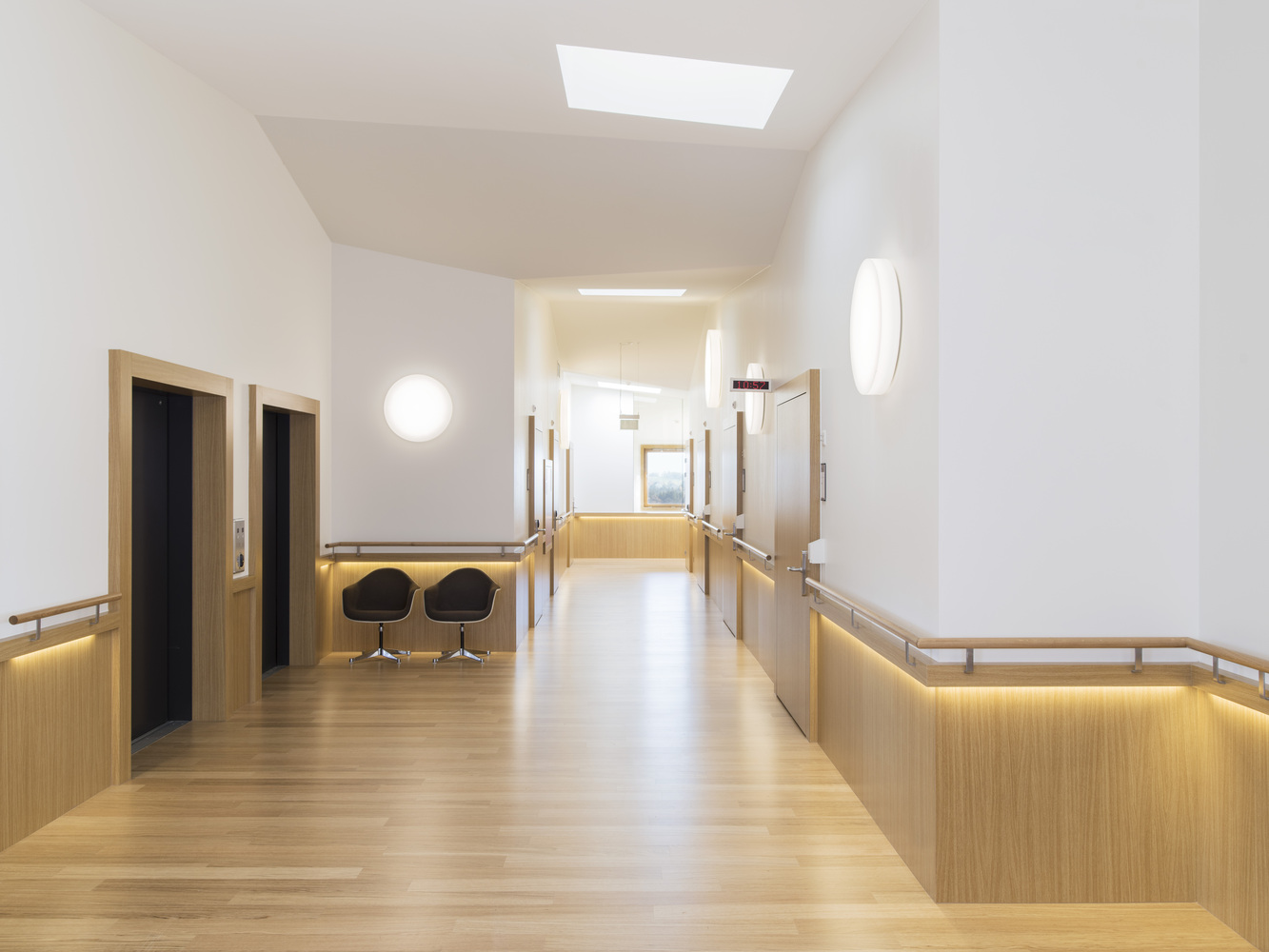

n analogy with the room organization principle of the lower floors, the various programs of the two newly added floors are clustered around a generously proportioned communal room, which was conceived of as a kind of indoor street where people can simply stroll around or engage in rehabilitation activities and exercise.

This room is a meeting place for patients and personnel and provides a high-quality point of reference as an alternative to the classic corridor/room division.

Its form automatically resulted from the organization of the variously dimensioned rooms and the arrangement of the different rooms and other facilities, which is reflected in a rich and varied spatiality.

Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou

On the topmost floor, this area is even more spacious thanks to the flow and specific shape of the roof.


Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou


Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou
Roof extension of Sylvana Hospital
© Matthieu Gafsou


Roof extension of Sylvana Hospital
North Elevation
Roof extension of Sylvana Hospital
East Elevation
Roof extension of Sylvana Hospital
West Elevation
Roof extension of Sylvana Hospital
South Elevation


Roof extension of Sylvana Hospital
Site Plan

Roof extension of Sylvana Hospital
Floors Plans


Roof extension of Sylvana Hospital
Cross Sections

Roof extension of Sylvana Hospital
Longitudinal Section


Roof extension of Sylvana Hospital
Single Room Detail
Roof extension of Sylvana Hospital
Envelope Revision Detail
Roof extension of Sylvana Hospital
Double Room Detail


Roof extension of Sylvana Hospital
Montage Scheme
Roof extension of Sylvana Hospital
Vertical Concept Scheme
Roof extension of Sylvana Hospital

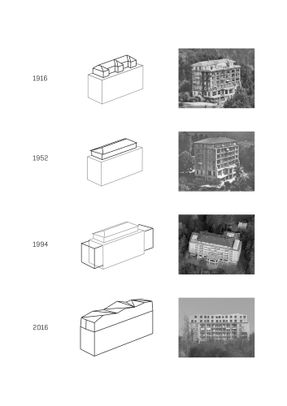

Chronologic Scheme
