Text description provided by architect.

This project is located on a site, with an area of around 1000m2, in Lugar das Carvalhinhas - Alvite, Cerva Parish, Ribeira da Pena Commune, Vila Real District.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

The project consists of a holiday home with three bedrooms, a social bathroom, a living room, a dinning room, a small kitchen with a support washbasin, pantry, and even a small outdoor swimming pool.

The terrain is sharply inclined and has a particular configuration: it is very long and narrow.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

However, the fact that it faces south allows it to receive optimal solar exposure and to enjoy a particular natural view.

The living area does not exceed 180m2.For reasons of functionality and integration, it was opted to organize the main entrance based on the street where car transit was possible.

This road leads to the northern higher part of the lot.Nevertheless, it is possible to access the house from a more rustic footpath from the south.

Its fragmentation, necessary due to the steep topography, transforms the whole into a composition of small linked and interconnected volumes, creating an unevenness that allows for a more secure and rational use of the lot.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

In this way the house's various functions are clarified with each elevation corresponding to a single compartment.

The roof functions simultaneously as pavement support for the gardens: similar to the traditional threshing floors and patios in the northern regions of the country with hilly terrain.

With a linear position at the center of the lot, an attempt was made to preserve all the pre-existing trees, as they maintain a strong presence in the area, as well as to preserve continuity with the immediate surroundings and to ensure its original characteristics.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

The form resulting from a rigorous, modular geometric abstraction establishes the necessary rotation of certain modules to adapt to the natural morphology of the terrain, respecting the distance from neighboring regulation walls, thus appearing to move naturally and with absolute freedom.

The terrain's instability together with modest economic resources gave rise to a house with triple function: the home itself and its interior space; the organization of outdoor leveled patios corresponding to the roofs of various levels which permit the outdoor use of the garden; and finally, the creation of a pedestrian link between the paths of the upper and lower levels that border this lot.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

The exterior stairs that create a link between the patios mirror the interior stairs that have the same function of linking the designed compartments that are also developed through levels.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

In this way the house itself is a path. Its form organizes a fundamental outdoor route.In this way, the exterior stairs correspond to the interior ceilings.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

Although this project presents an extreme unit in its language, from the four quadrants, its image varies completely.

It expresses its entire volumetry to the southeast, and in a different way to the northeast.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

It is radically contextualized in the northwest and southwest quadrants.

It is neither horizontal nor vertical architecture. Its location on the lot results in a slanting architecture.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

The necessity of partially burying the house comes from lack of economic means.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

In this way creates positive thermal behavior and security.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

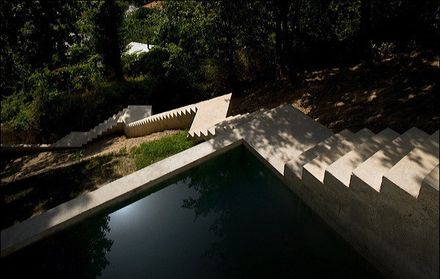

The outdoor patios solidly adapt, establishing a direct link to the garden, and the house is naturally unified with the terrain.

The choice of exposed concrete creates an idea like that of massive stones appearing naturally on the site.

In this way, expressiveness is extracted from a continuous structure of reinforced concrete, the most efficient on the lot with these characteristics, and once again making optimum use of the modest economic resources available.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

Paving stones of reinforced concrete will also be constructed, creating an air space between these and the lot, which is fundamental for guaranteeing decent waterproofing and improved thermal behavior in the terrain with such an elevated water table.

The reinforced concrete walls will contain an exterior finishing with special formwork, its stereotomy having been designed. PVC canvases will waterproof foundations, walls, and roofs.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

The roofing will be covered with thermal insulation and prefabricated, anti-slip tiles. Some patios will be filled with humus for a grass plane.

The few non-resistant walls will be built in cement blocks filled with sand. These will be plastered, coated and painted white in the interiors.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

The interior floors, doors, and baseboards are in wood, except in the water areas

The exterior doors and windows are in metal, which are double-pained for improved thermal and acoustic insulation.

Flashback: Tolo House
© Fernando Guerra | FG+SG
Flashback: Tolo House
© Fernando Guerra | FG+SG

The photographic references are relative to the site on the internet: http://www.fernandoguerra.com/tolo/
For publishing them, you should contact the photographer Fernando Guerra.


Flashback: Tolo House

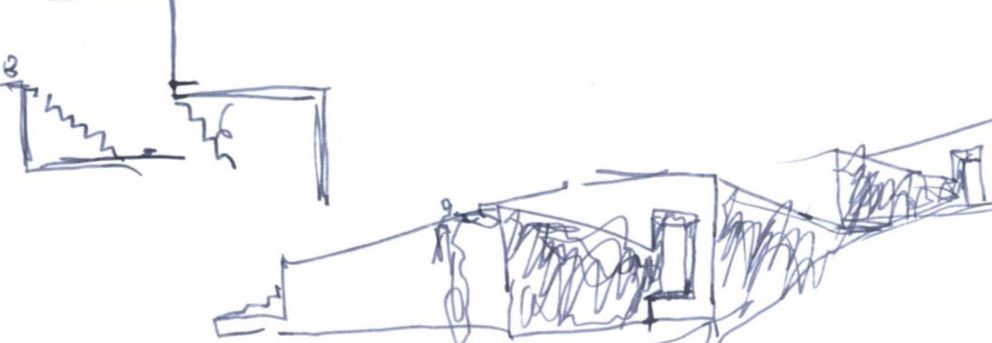

Sketch 01

Flashback: Tolo House

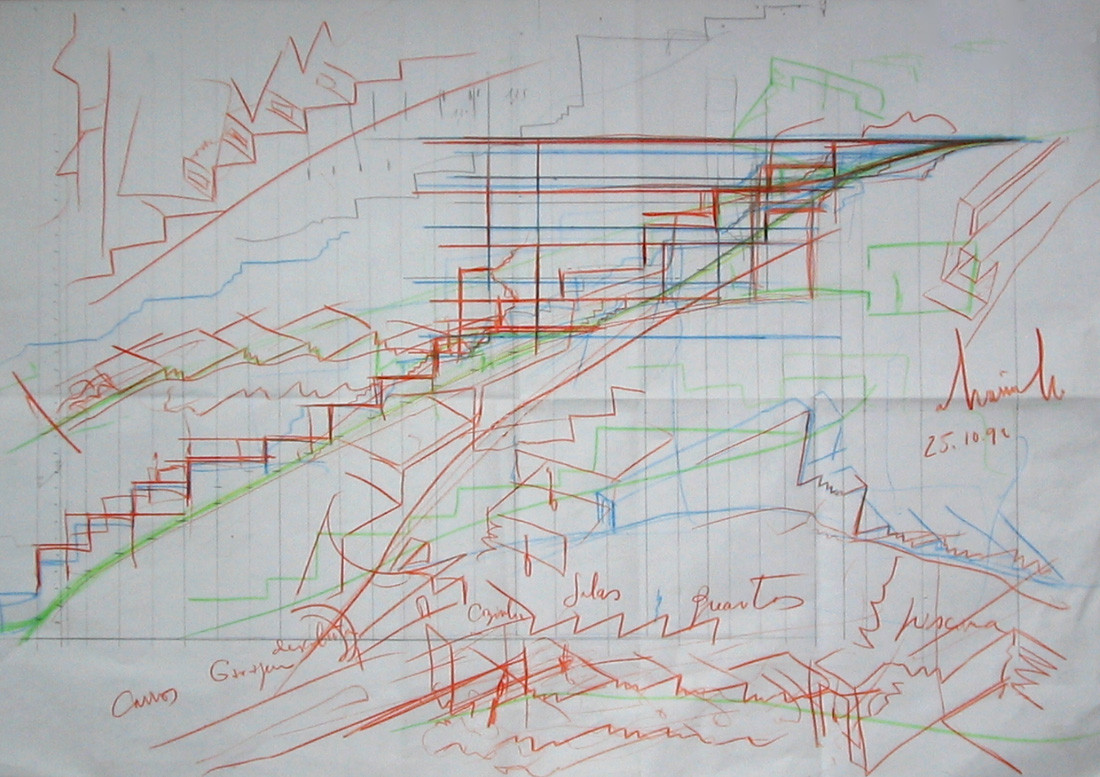

Sketch 02

Flashback: Tolo House
Sketch 03
Flashback: Tolo House
Sketch 04


Flashback: Tolo House

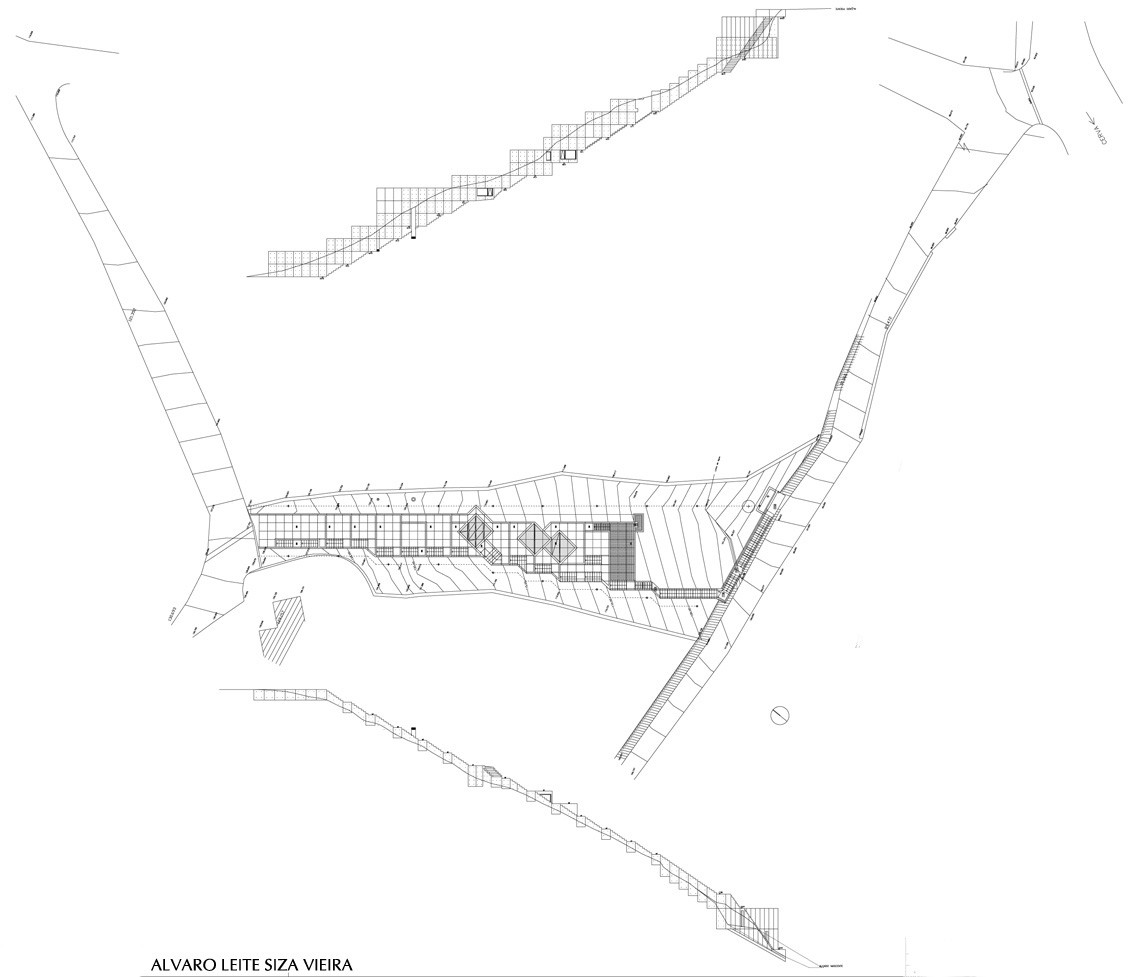

Site Plan

Flashback: Tolo House

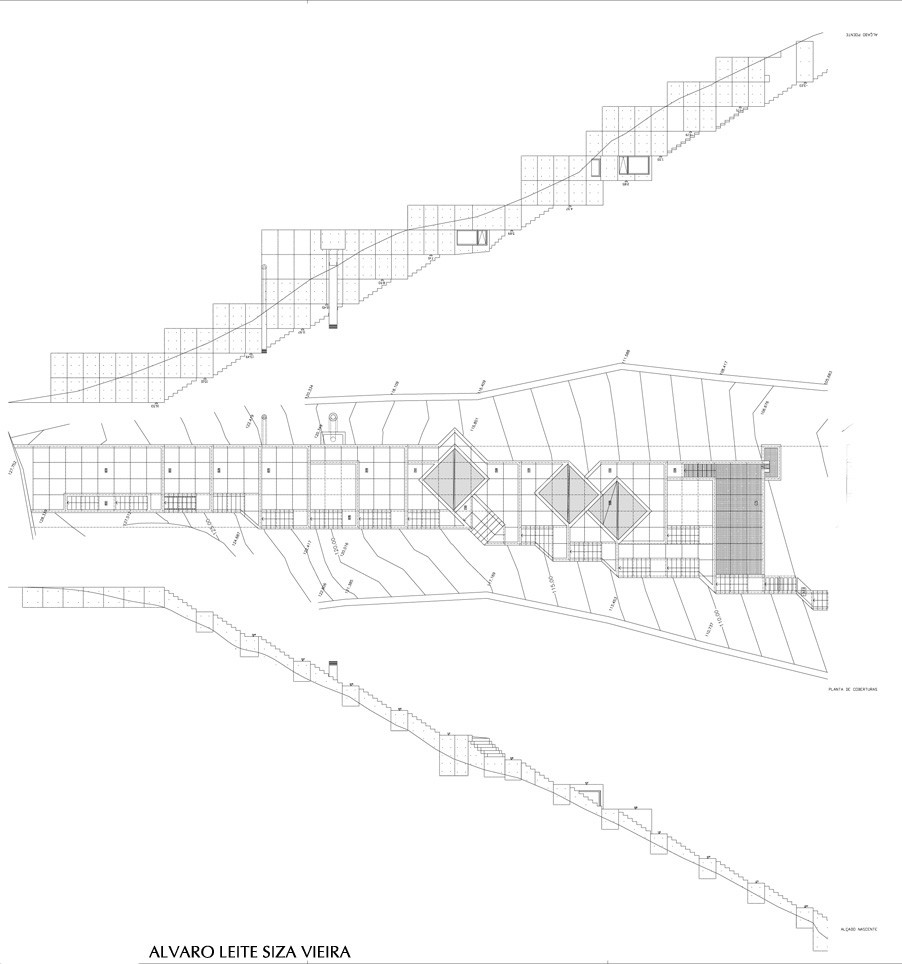

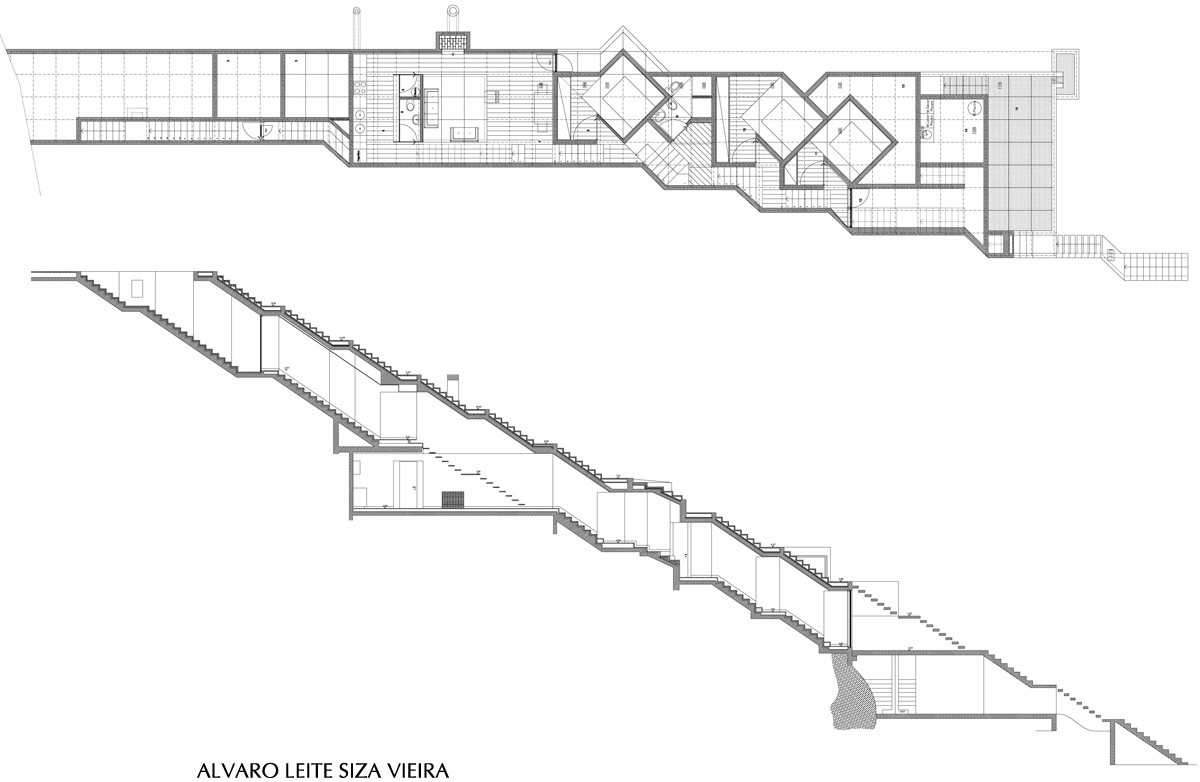

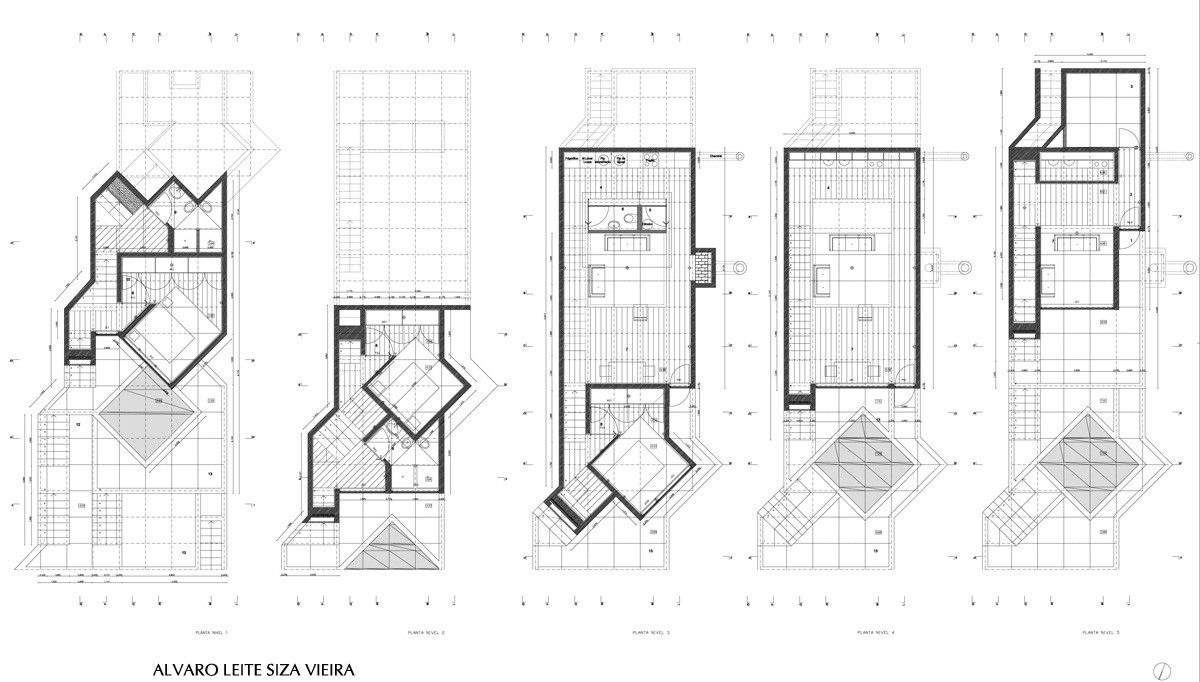

General Plans


Flashback: Tolo House

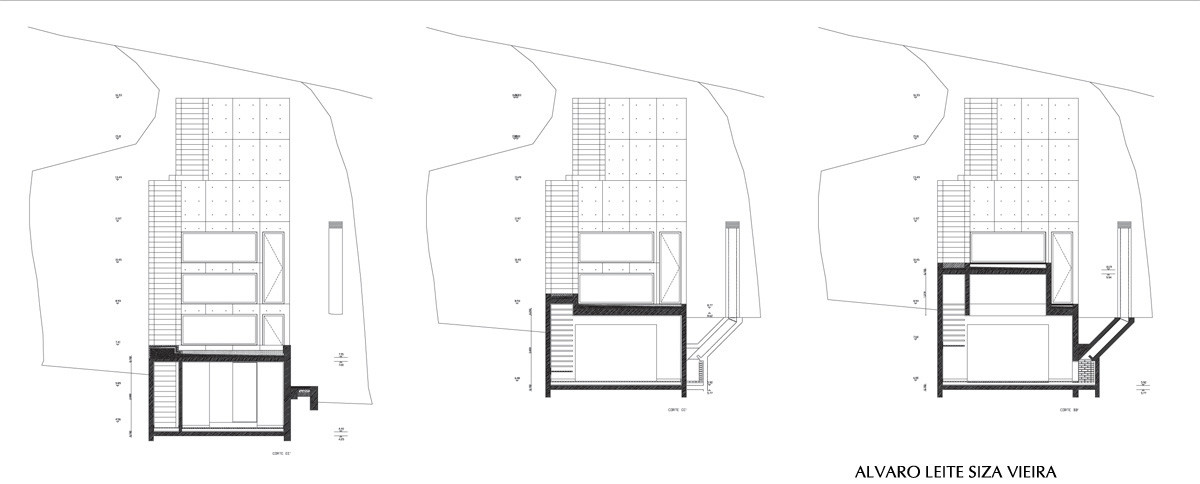

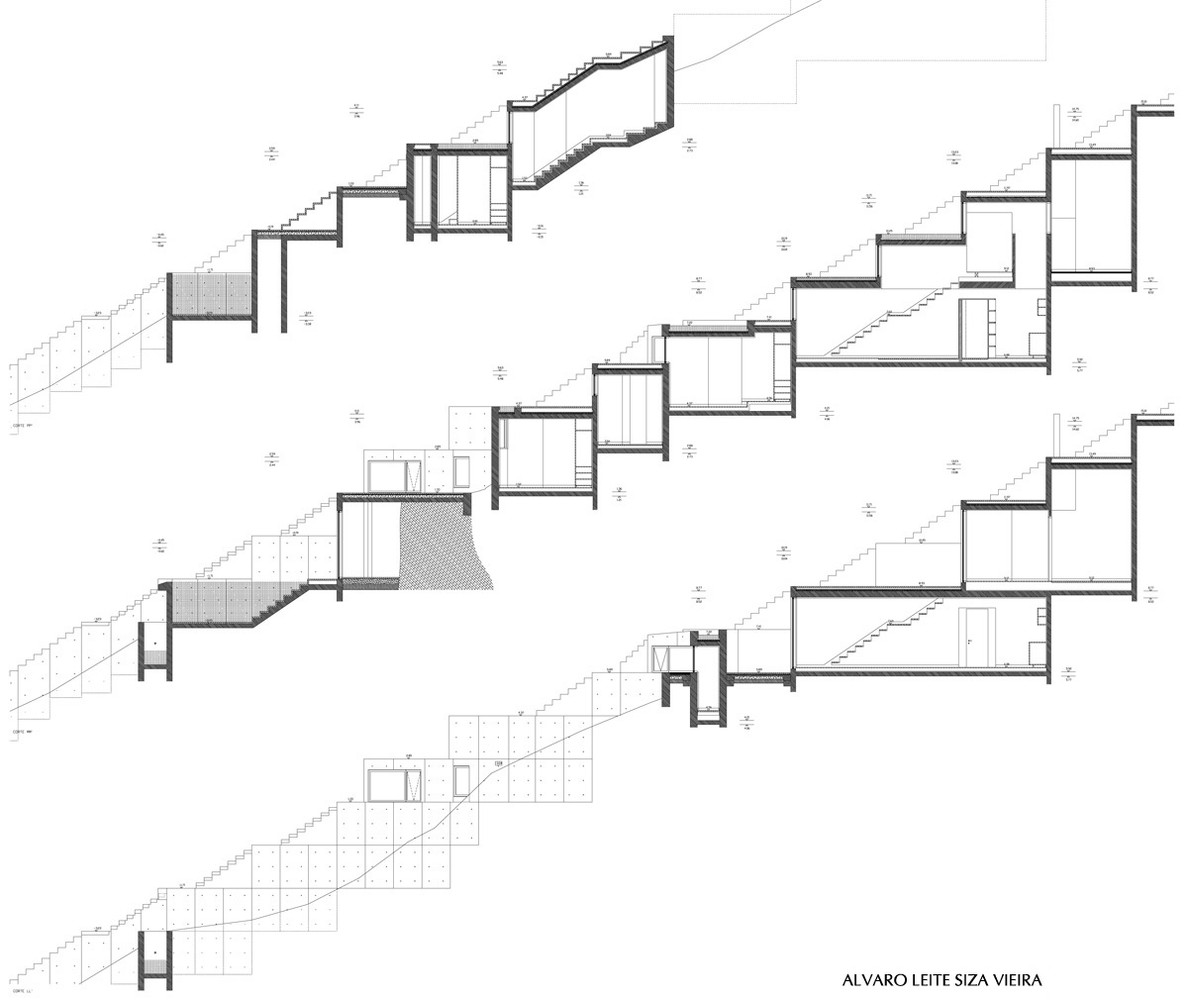

Section 01
Flashback: Tolo House
Section 02
Flashback: Tolo House
Section 04

Flashback: Tolo House
Section 05


Flashback: Tolo House

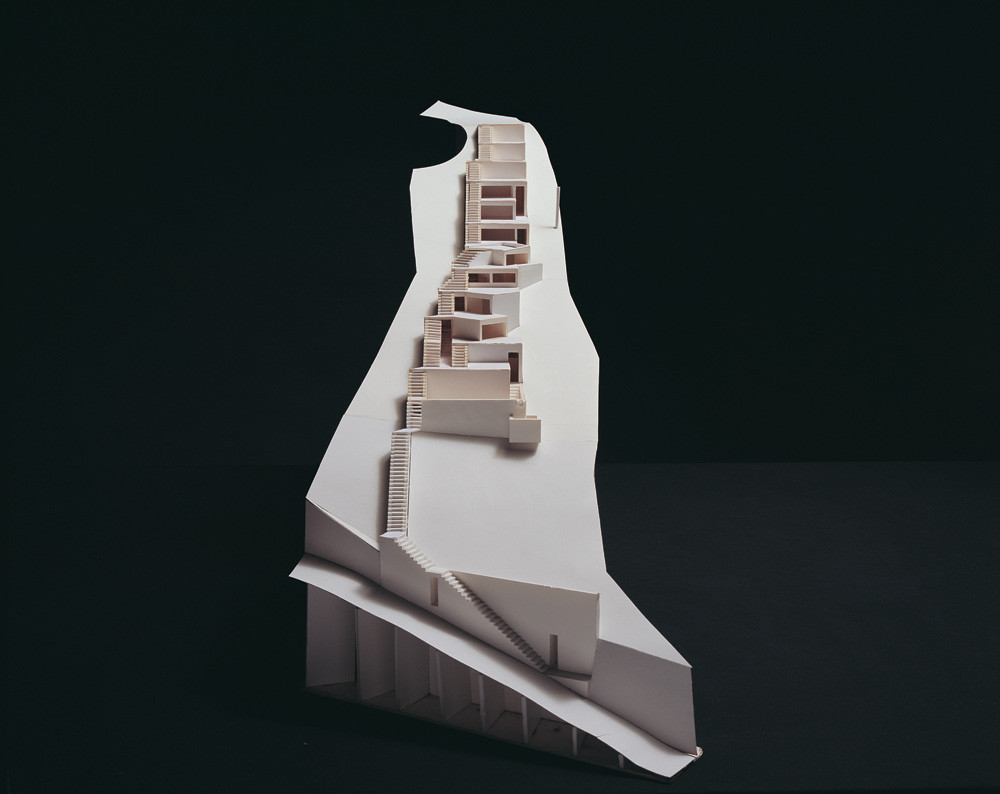

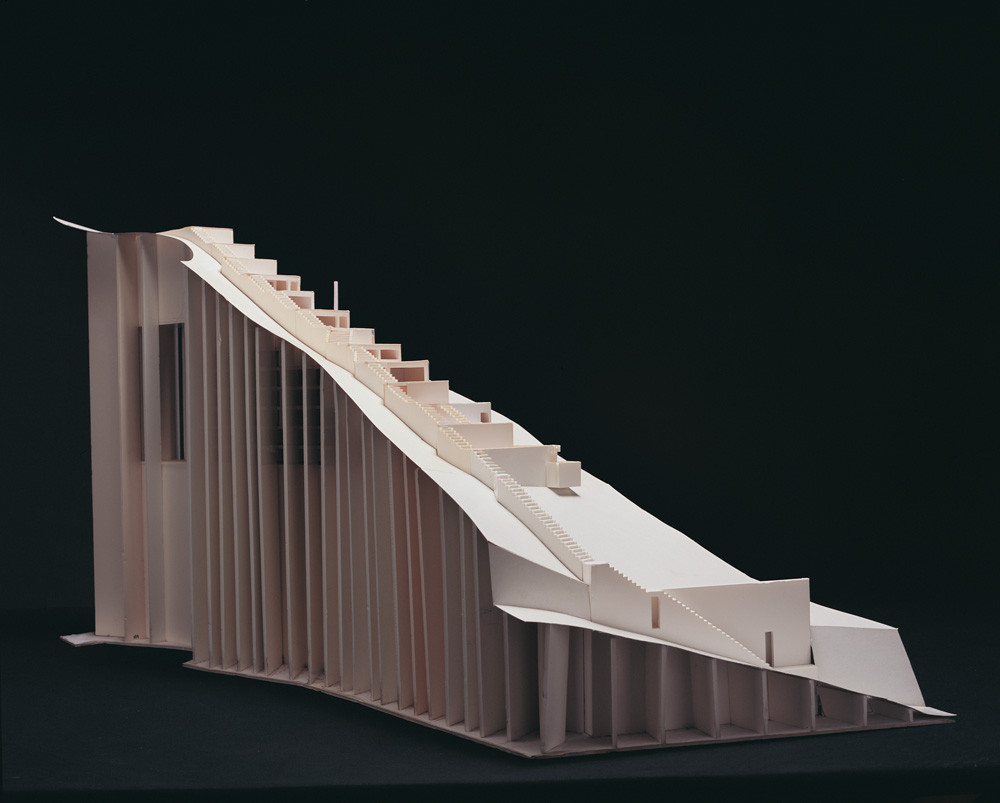

Model 01
Flashback: Tolo House

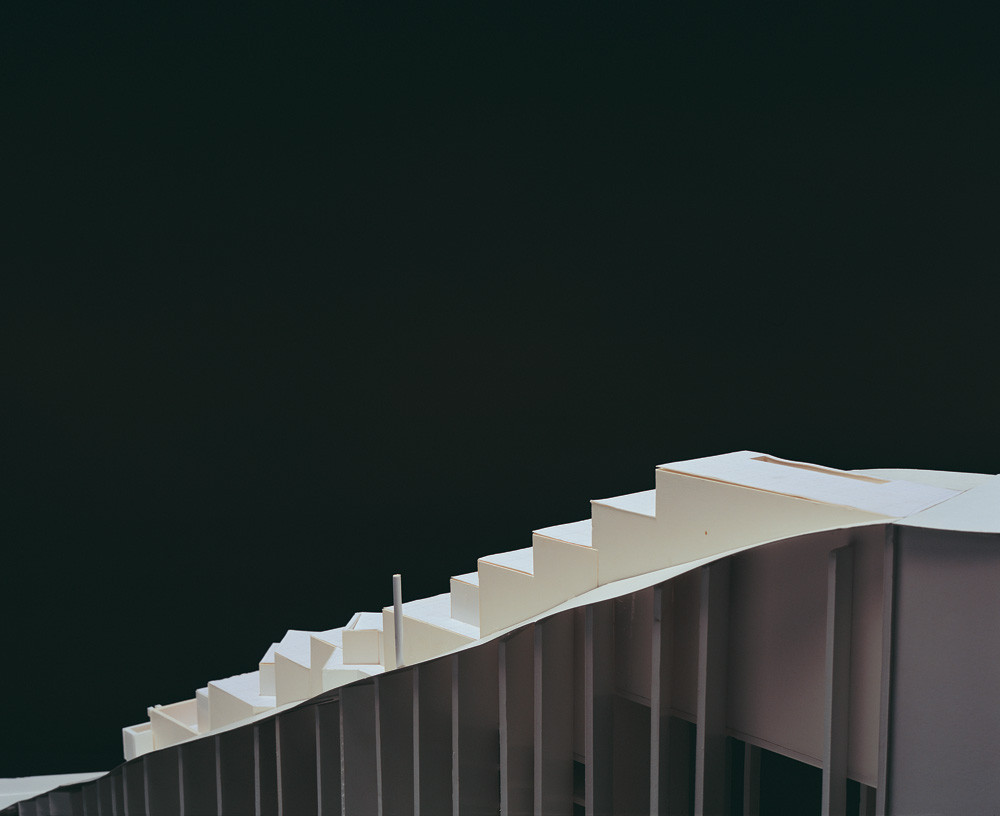

Model 02
Flashback: Tolo House

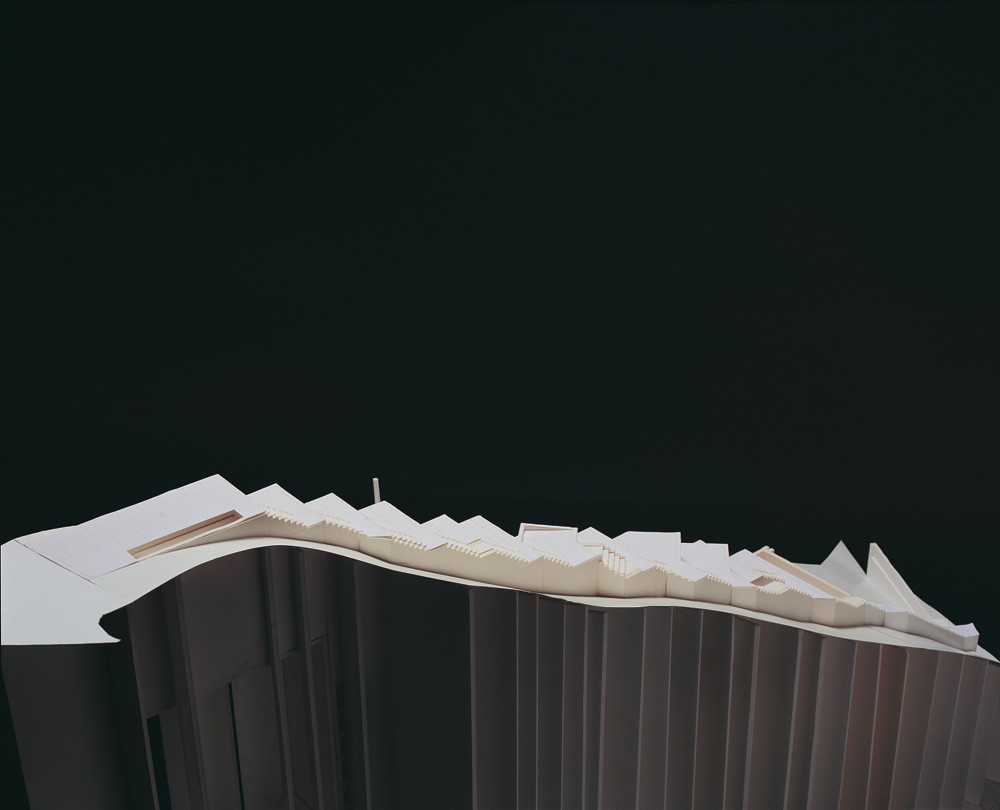

Model 03
Flashback: Tolo House
Model 04


Flashback: Tolo House

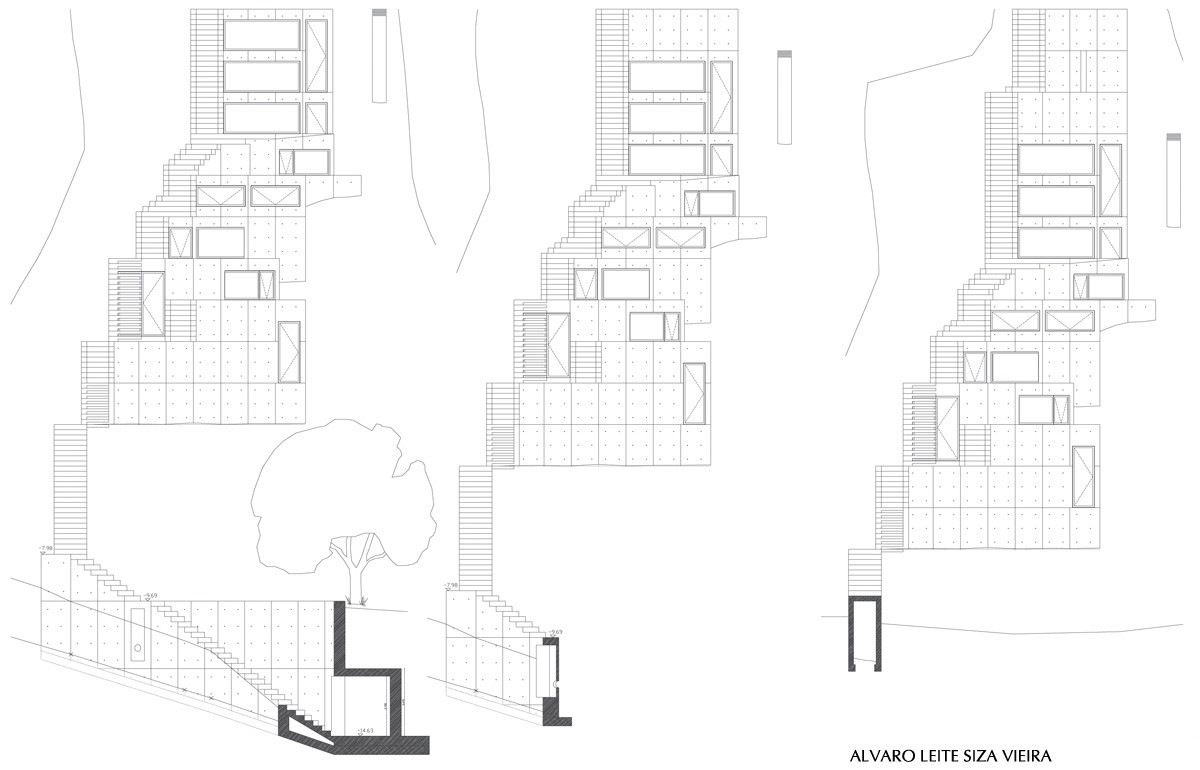

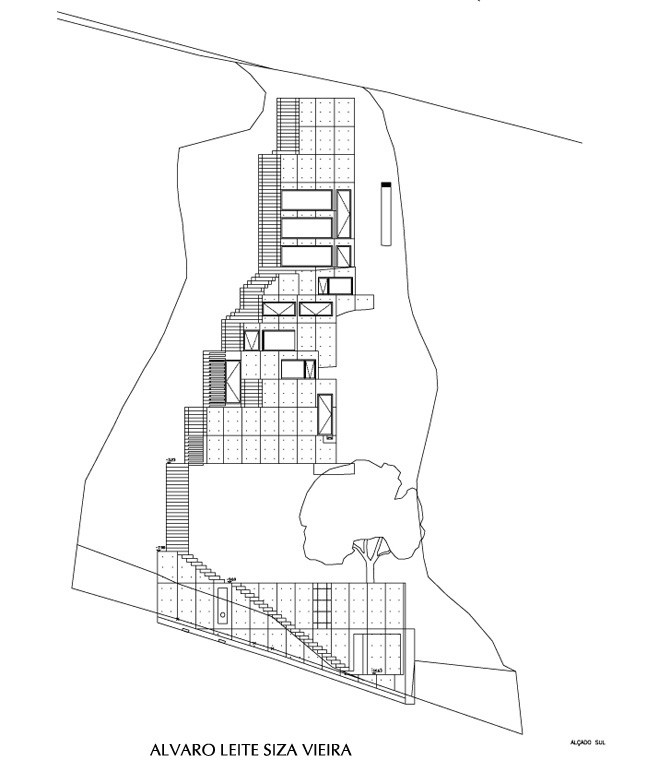

South Facade
