Yaita Architectural Design Institute Co., Ltd.

Patio

Patio
© Shinkenchiku-sha

PATIO

Yaita and Associates

STRUCTURAL ENGINEER
Katsuharu Sugiura

GENERAL CONSTRACTOR
Nichinan Iron Constraction

MECHANICAL ENGINEER
Shimazu Design Office Ltd.

PHOTOGRAPHS
Shigeo Ogawa, Shinkenchiku-sha

AREA
227 m²

SITE AREA
172.19m2

FOOTPRINT AREA
79.41 m2

YEAR
2011

LOCATION
Japan

CATEGORY
Houses

Text description provided by architect.

The client desired a simple formresidence with a interior wide open inside but cannot be perceived from outside . This wish became the entire concept of the residence.

Patio
© Shigeo Ogawa
Patio
© Shinkenchiku-sha

First, in order to take the light in, the living, dinning and kitchen are arranged on the top second floor.

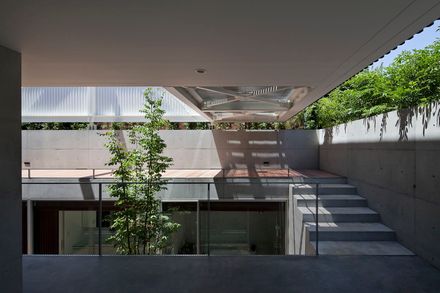

As a way to prevent gaze from the outside, the spaces are enclosed together with a courtyard, Floating Patio, with walls and is placed as if floating above a Japanese-style room ' s structure of the first floor.

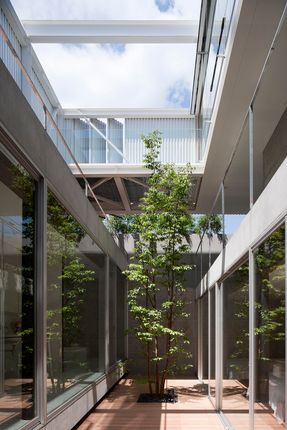

At the basement, another thin courtyard, Sunken Patio, is made so that it will link to the second floor ' s courtyard.

Patio
© Shigeo Ogawa
Patio
© Shigeo Ogawa

There, private spaces such as bedrooms and bathrooms are placed under plentiful of light, though they are located in the basement.

The first floor that is inserted between two private spaces on the top and the bottom is designed as more intimate space to the outside world compared to the two different floors.

Patio
© Shigeo Ogawa
Patio
© Shigeo Ogawa

The Japanese-style room on the floor is designed to hold tea ceremonies.

The second floor ' s floating structure serves as a large roof for the first floor which created the open and dynamic space around the structure surrounding the Japanese-style room.

Patio
© Shinkenchiku-sha
Patio
© Shinkenchiku-sha

The space is analogous to Roji-a designed alley in the context of traditional Japanese garden and the Japanese-style room will become a tearoom in the Roji.

Patios of each layers give completely different space experience on each story. Each of them gives very different and impressive image.

Patio
© Shigeo Ogawa
Patio
© Shigeo Ogawa

Moreover, by floating the box of the second floor, a fresh wind enters from a crevice, blows through this Patio helped by outer wall equipment which can be opened and closed.

This system realized an airy, comfortable space. Here, Patio appeared as a new way of an urban residence.

Patio
© Shinkenchiku-sha
Patio
© Shigeo Ogawa
Patio
© Shigeo Ogawa


Patio
© Shinkenchiku-sha
Patio
© Shinkenchiku-sha
Patio
© Shigeo Ogawa
Patio
© Shigeo Ogawa
Patio
© Shigeo Ogawa
Patio
© Shigeo Ogawa
Patio
© Shigeo Ogawa
Patio
© Shigeo Ogawa
Patio
© Shigeo Ogawa


Patio
© Shinkenchiku-sha
Patio
© Shinkenchiku-sha


Patio
Section
