Chiaki Arai Urban & Architecture Design

Kadare Cultural Centre

Kadare Cultural Centre
© Taisuke Ogawa

KADARE CULTURAL CENTRE

Chiaki Arai Urban and Architecture Design

CATEGORY
Hangzhou, China

LOCATION
Yurihonjo, japan

AREA
11750

PHOTOGRAPHS
Taisuke Ogawa

LANDSCAPE CONSTRUCTION
Muraoka Construction Inc, / Osada Construction Co.,LTD.

SUPERVISION
Chiaki Arai, Ryoichi Yoshizaki, Masanori Asai

STRUCTURAL ENGINEER
Arup

ENGINEER AND AIR CONDITION
P.T. Morimura & associates, LTD.

YAER
2011

ACOUSTICAL CONSULTANT
Nagata Acoustics

THEATER CONSULTANT
Theater Workshop

INTERIOR
Chiaki Arai, Ryoichi Yoshizaki, Masanori Asai

LANDSCAPE
Chiaki Arai, Ryoichi Yoshizaki, Masanori Asai

CONTRACTOR
Toda corporation

DESIGN TEAM
Chiaki Arai, Ryoichi Yoshizaki, Masanori Asai, Miroku Arai, Toshihiro Yano

Text description provided by architect.

This is a complex institution composed of Multiporpose Transforming Theater, Library and Community Center.

Kadare Cultural Centre
© Taisuke Ogawa
Kadare Cultural Centre
© Taisuke Ogawa

Originally, this project had two sites sandwiching a road. We combined sites by placing an indoor “Gathering Steet” which gives access to each function. Its fissure like form lets sunlight into the deep center of the building.

Developed in the workshops with locals, the spaces were designed based on somesthetic experiences - human scale, the usability of rooms.

Its structure follows spaces like how mangrove trees grow, and it embraces a high level of redundancy as a structural system. It is not a consistent, but the inconsistent spaces.

Kadare Cultural Centre
© Taisuke Ogawa
Kadare Cultural Centre
© Taisuke Ogawa
Kadare Cultural Centre
© Taisuke Ogawa

Also we had organized workshops with local children and students who are the bears of the future of the region. The whole process of Kadare contributes to "Cultural Sustainability".

Multiporpose Transforming Theater - This theater has varying configrations such as flat floor, normal, center stage to be used for various events.

Kadare Cultural Centre
© Taisuke Ogawa
Kadare Cultural Centre
© Taisuke Ogawa

The movable seats adapting to multi-configurations with perfect acoustics was designed for this theater. Seats of the first floor can gathered at the back side of the theater and it stored in the pit underneath. The stage also decends for flat floor configration.

“Super Box” - Theater, Citizen Activity Room, Gallery and north and south Pocket Parks combined. These facilities can be connected together to make a 135 meter long, dynamic and spacious tunnel.

Kadare Cultural Centre
© Taisuke Ogawa
Kadare Cultural Centre
© Taisuke Ogawa

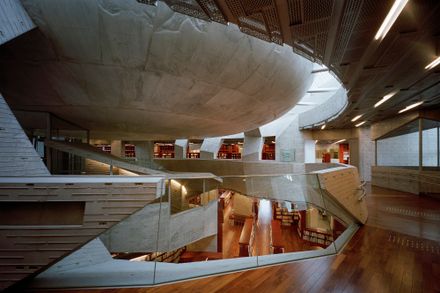

Library and Planetarium - Planetarium floats above Library like a moon. Only four bending columns support it, and there are skylights around of it.

The large open space of the library, achieved with minimum structure elements, has space for about 220 thousands volumes and there are a total of 188 browsing seats.

Kadare Cultural Centre
© Taisuke Ogawa
Kadare Cultural Centre
© Taisuke Ogawa

Users can choose from these various browsing spaces.


Kadare Cultural Centre

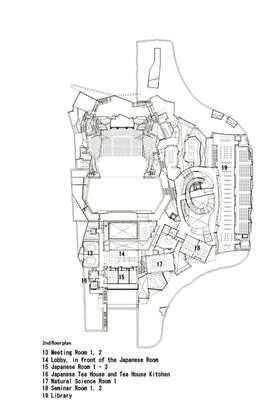

Second Floor Plan

Kadare Cultural Centre
Third Floor Plan


Kadare Cultural Centre
North Elevation
Kadare Cultural Centre
South Elevation

Kadare Cultural Centre
East Elevation
Kadare Cultural Centre
West Elevation


Kadare Cultural Centre

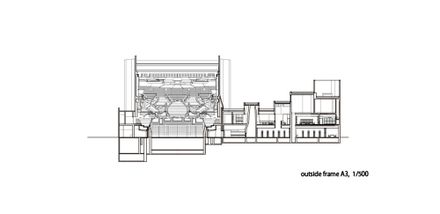

Section 1

Kadare Cultural Centre

Section 2
Kadare Cultural Centre
Section 3
Kadare Cultural Centre

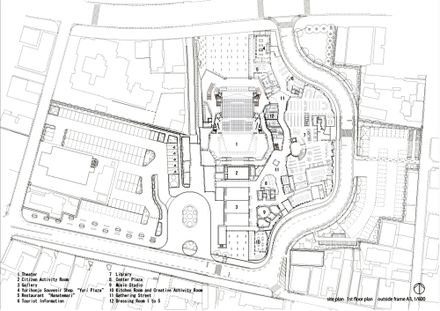

First Floor Plan


Kadare Cultural Centre
Drawing 1
Kadare Cultural Centre
Drawing 2
Kadare Cultural Centre
Drawing 3
Kadare Cultural Centre
Drawing 4
Kadare Cultural Centre
Drawing 5
Kadare Cultural Centre
Drawing 6
Kadare Cultural Centre
Drawing 7
Kadare Cultural Centre
Drawing 8
Kadare Cultural Centre
Drawing 9
